Product Description
The pump suction voice type gas detector is a safe device that can continuously detect the concentration of leakage gas. It adopts advanced integrated circuit technology, 32-bit embedded microcomputer chip control, and imports 16 bit ultra-high resolution ADC detection special chip. The calculation speed is faster, and the test data is more accurate and stable. The tester uses a 2.4-inch high-definition LCD color screen. Through the Chinese and English interfaces and voice prompts, the user can quickly understand the product, and the use and maintenance are simple: the tester uses an aluminum alloy shell, a USB charging connector, a built-in 2900ma large capacity lithium battery and a high-end vacuum suction pump, and a high-quality imported gas sensor. It has excellent sensitivity and excellent repeatability; Ppm and Mg / m3 range units can be switched by one key, with fast reaction speed, strong anti-interference ability, stable and reliable performance, which is at the leading level in China. The detector is widely used in industries and places where safety monitoring is required, such as petroleum, chemical industry,
environmental protection, metallurgy, refining, gas, biochemical medicine, agriculture, fire protection and archaeology. The detector can effectively predict the concentration of dangerous gas and alarm, so as to ensure that the life safety of workers is not threatened and the production equipment is not lost.
environmental protection, metallurgy, refining, gas, biochemical medicine, agriculture, fire protection and archaeology. The detector can effectively predict the concentration of dangerous gas and alarm, so as to ensure that the life safety of workers is not threatened and the production equipment is not lost.
Specification
Product type | Voice portable pump |
Detection gas | More than 1000 combustible, toxic and volatile gases |
Detection principle | Electrochemistry, infrared detection, catalytic combustion, PID, semiconductor, optical waveguide |

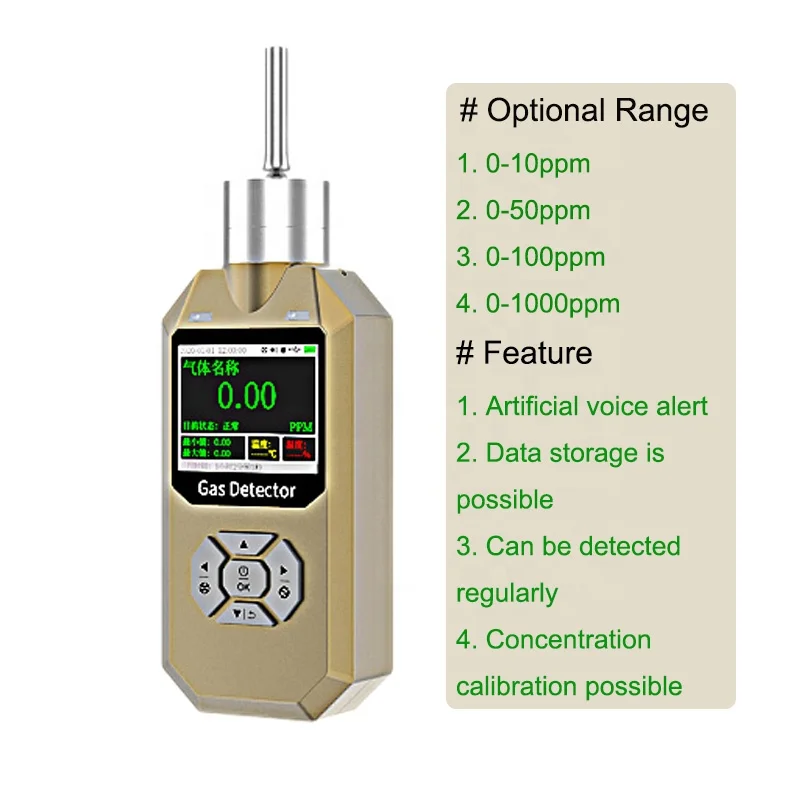

Measure Range | 0－1、2、5、10、50、100、500、1000、5000（depends on the sensor and the technology） |
Resolution | 0.001、0.01、0.1、1、2、5（According to sensor and technical principle） |
Unit | %VOL、%LEL、ppm、mg/m 3 Optional |
Precision | ≤±3%（Actual concentration, higher accuracy requirements depending on sensor performance） |
Warm up time | ≤60 S |
Display mode | 2.4Inch HD color screen |
Alarm mode | Sound, light, vibration |
Working temperature | -20℃～+50℃（Special requirements to be customized） |
Working humidity | ≤95%RHnon-condensing |
Working pressure | -30kPa~200kPa |
Appearance size | 130x63x36mm(LxWxH) |
Weight | About 500g |
Detection mode | Pump suction type |
Protection level | IP66 |
Pump flow rate | 300-500CC/Min |
Texture of material | Aluminum alloy; strong, wear-resistant and corrosion-resistant |
Executive standard | GB15322.1-2003，GB3836.1-2010，GB3836.2-2010，GB3836.4-2010 |
Data storage | 4000 alarm records |
Charging voltage | DC 5V |
Voltage | 3.7VDC（Built in 2900ma rechargeable polymer power supply） |
Characteristics of the Device
1. Intrinsically safe circuit design, safe and reliable
1. Intrinsically safe circuit design, safe and reliable
2. Beautiful appearance, convenient operation, accurate measurement, strong and durable
3. 2.4-inch ultra-high-definition LCD color screen, perfectly showing various gas detection indicators
4.16-bit data acquisition chip + 32-bit nanoscale microprocessor, higher resolution and faster response
5. High-strength aluminum alloy shell, acid-resistant, alkali-resistant, cold-resistant, heat-resistant, impact-resistant, easy to flame
6. The gas sensor imported from abroad has high precision, strong stability, low error rate and good linearity. Customers can set high and low alarm values, and alarm prompt switches and other functions according to their needs.
7. 2900mA high-capacity lithium battery,
electrochemical sensors can work continuously for more than 20 hours
electrochemical sensors can work continuously for more than 20 hours
8. One-key switch between PPM and mg/m3 range units, simple
and clear.
and clear.

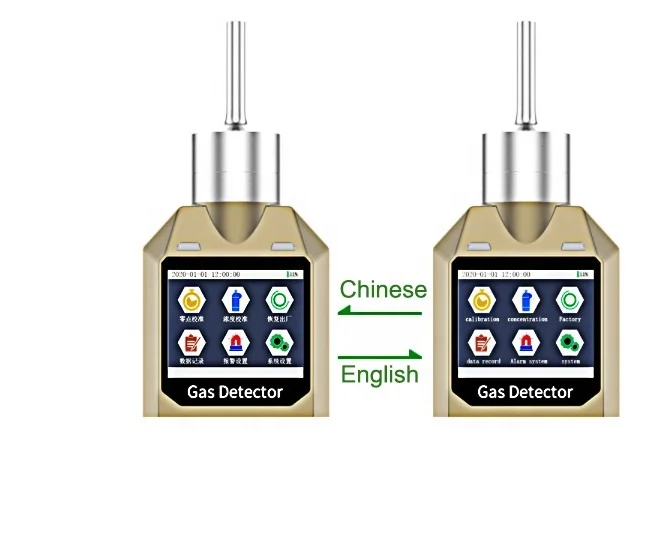

9. Micro USB design, compatible with most Android phone chargers, charging treasure display interface in Chinese and English, and voice prompts in Chinese and English. Suitable for use by all people.
10. Sound, light and exposure triple alarm prompt.
