Product Description

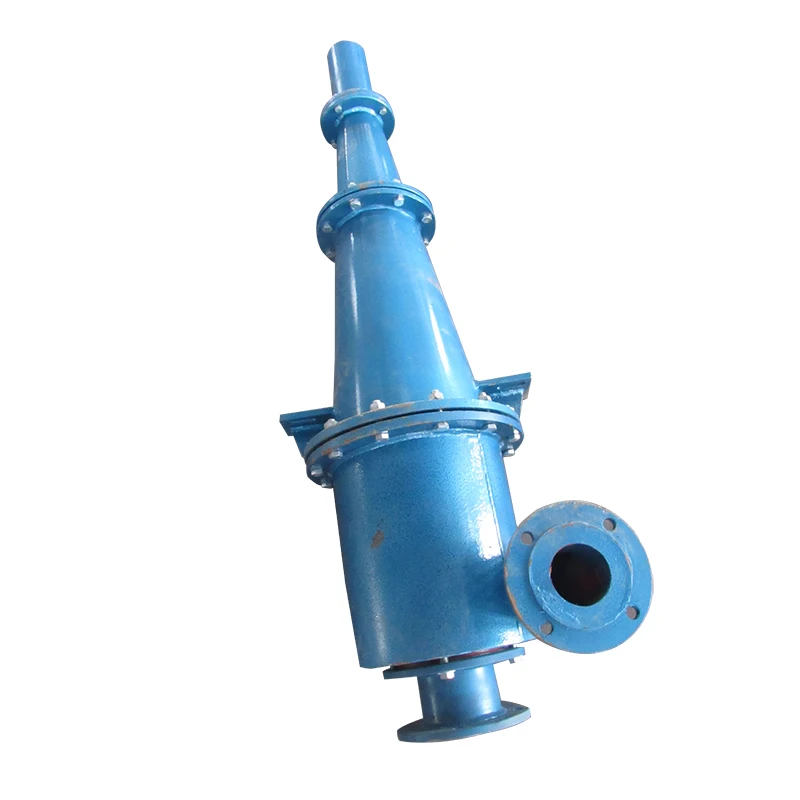

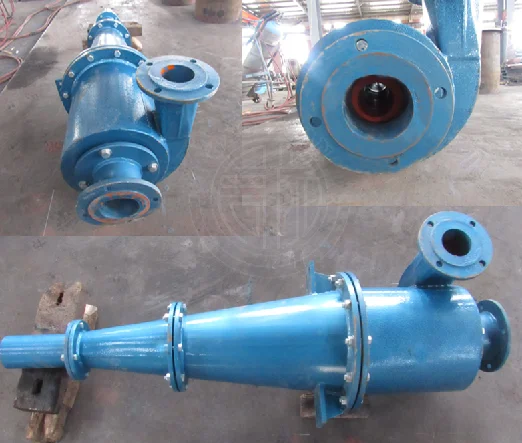

1.Introduce of Hydrocyclone:
Hydrocyclone, also called Hydraulic cyclone, which is a high efficient grading and de-sliming equipment of fine-particle
materialis and it is mainly applied to the process of second paragraph grinding, coarse or concentrates re-grinding and the

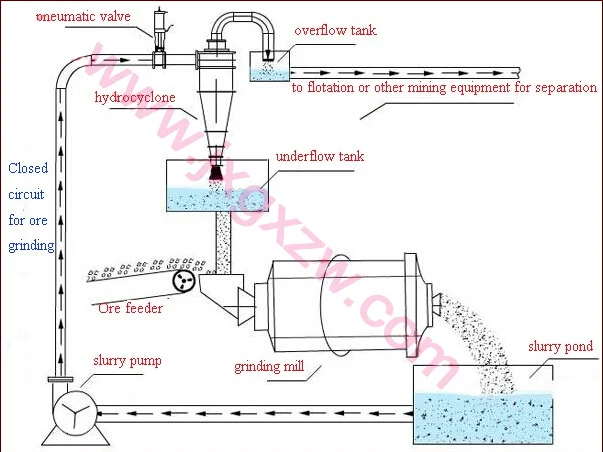

closed-circuit composed by mechanical grading machine, its grading operation is according to the particle size. In closed circuit grinding system, it features high classification efficiency and fine over fall fineness under high mine concentration.
2.Application Fields of Hydrocyclone:
1.A hydrocyclone is most often used to separate "heavies" from a liquid mixture originating at a centrifugal pump or some othe continuous source of pressurized liquid.
2.A hydrocyclone is most likely to be the right choice for processes where "lights" are the greater part of the mixture and where the "heavies" settle fairly easily.
3.Generally, hydrocyclones are used in continuous flow systems so that the instantaneous liquid inflow to the hydrocyclone is equal to the total instantaneous outflow of "lights" plus "heavies".
4.In cases where "heavies" are a very small part of the whole liquid, it is sometimes advantageous to accumulate them in the bottom of the hydrocyclone for batchwise removal.
3.Working Principle of Hydrocyclone separator:
The feed is introduced under pressure through the trangential entry which imparts a swirling motion to the pulp. This generates a vortex in the cyclone, with a low pressure zone along the vertical axis.An air core develops along the axis ,normally connected to the atmosphere through the apex opening, but in part created by dissolved air coming out of solution in the zone of low pressure.Hydroclone have repaled mechanical classifiers in many modern grinding plants,as they are more efficent, especially in the finer size ranges,they also need less floor space and consume less power. Due to the relatively short residence time of particles within the cyclone,the mill circuit can rapidly be brought into balance if any changes are made abd oxidation of particels within thecircuit is reduced.
Hydrocyclone, also called Hydraulic cyclone, which is a high efficient grading and de-sliming equipment of fine-particle
materialis and it is mainly applied to the process of second paragraph grinding, coarse or concentrates re-grinding and the
closed-circuit composed by mechanical grading machine, its grading operation is according to the particle size. In closed circuit grinding system, it features high classification efficiency and fine over fall fineness under high mine concentration.
2.Application Fields of Hydrocyclone:
1.A hydrocyclone is most often used to separate "heavies" from a liquid mixture originating at a centrifugal pump or some othe continuous source of pressurized liquid.
2.A hydrocyclone is most likely to be the right choice for processes where "lights" are the greater part of the mixture and where the "heavies" settle fairly easily.
3.Generally, hydrocyclones are used in continuous flow systems so that the instantaneous liquid inflow to the hydrocyclone is equal to the total instantaneous outflow of "lights" plus "heavies".
4.In cases where "heavies" are a very small part of the whole liquid, it is sometimes advantageous to accumulate them in the bottom of the hydrocyclone for batchwise removal.
3.Working Principle of Hydrocyclone separator:
The feed is introduced under pressure through the trangential entry which imparts a swirling motion to the pulp. This generates a vortex in the cyclone, with a low pressure zone along the vertical axis.An air core develops along the axis ,normally connected to the atmosphere through the apex opening, but in part created by dissolved air coming out of solution in the zone of low pressure.Hydroclone have repaled mechanical classifiers in many modern grinding plants,as they are more efficent, especially in the finer size ranges,they also need less floor space and consume less power. Due to the relatively short residence time of particles within the cyclone,the mill circuit can rapidly be brought into balance if any changes are made abd oxidation of particels within thecircuit is reduced.

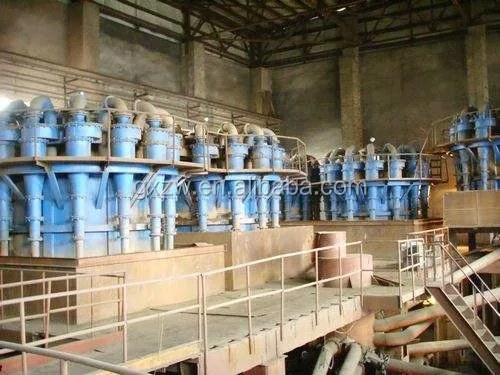

Hydrocyclones are widely used in mineral separation processes, especially for the classification of coarse and fine particles.They work by creating a rotating water flow that generates centrifugal forces to separate particles based on their density differences. The hydrocyclone is commonly used in industries like mining, coal processing, metallurgy, and more.
Specifications
Model | Specification | Capacity (m³/h) | Separation Particle Size (μm) | Diameter of Overflow Port (mm) |
FX-10 | 10 | 0.05-1 | 1-5 | 2-4 |
FX-25 | 25 | 0.3-1 | 2-10 | 5-8 |
FX-50 | 50 | 1.5-3 | 5-74 | 11-18 |
FX-75 | 75 | 2-5 | 5-74 | 15-20 |
FX-100 | 100 | 5-12 | 10-74 | 20-40 |
FX-125 | 125 | 8-15 | 20-74 | 25-40 |
FX-150 | 150 | 10-23 | 25-74 | 30-45 |
FX-200 | 200 | 17-38 | 28-80 | 40-65 |
FX-250 | 250 | 24-53 | 30-82 | 65-100 |
FX-300 | 300 | 40-100 | 36-90 | 65-120 |
FX-350 | 350 | 56-118 | 40-100 | 80-120 |
FX-375 | 375 | 74-157 | 42-105 | 90-135 |
FX-450 | 450 | 90-192 | 44-110 | 100-150 |
FX-500 | 500 | 128-300 | 50-115 | 130-220 |
FX-600 | 600 | 200-468 | 57-125 | 160-260 |
FX-660 | 660 | 237-524 | 60-130 | 180-280 |
Packing & Delivery

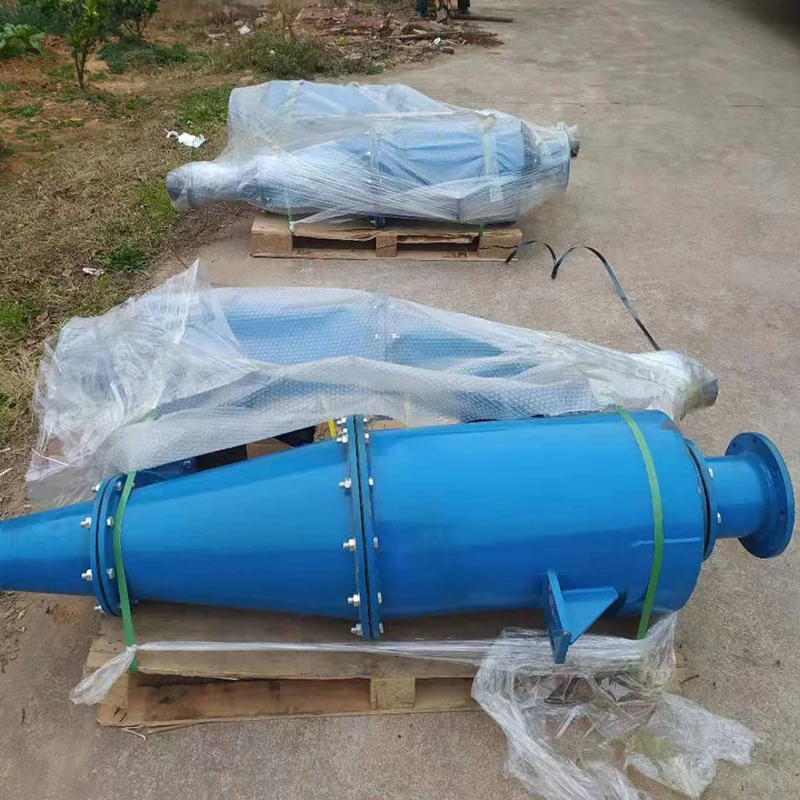

Ways of packing
1.Small parts packed in the wooden cases
2.Big parts packed by plastic membrane

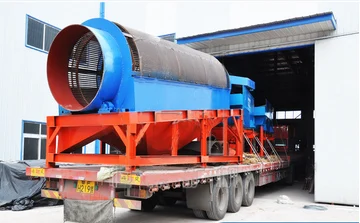

3.The whole big machine is loaded in the container
2.Big parts packed by plastic membrane
3.The whole big machine is loaded in the container
◆ Shiping by sea/air freight

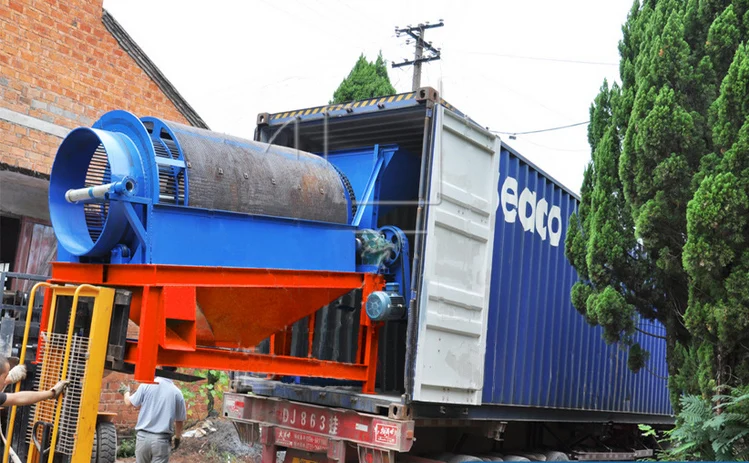

1. Usually our mining machines are shipped in 40'HQ or Flat Containers by sea.
2. Our mining equipments can be also shipped by air if customers request.
2. Our mining equipments can be also shipped by air if customers request.

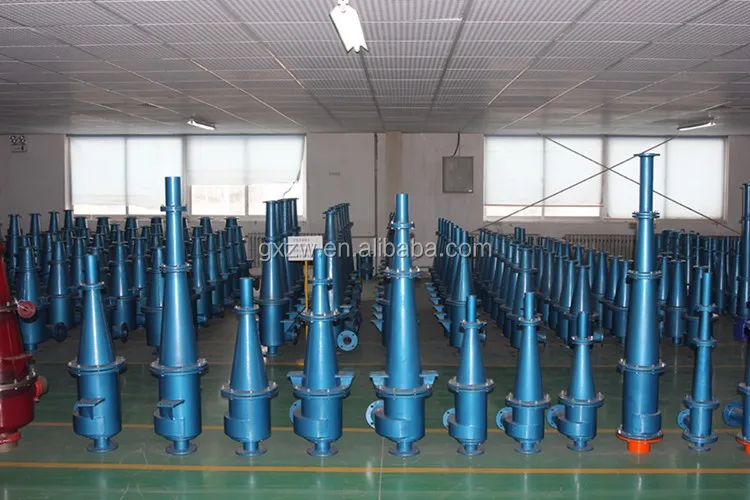

Company Profile
Customer Photos
Exhibition
FAQ
Q1. Are you factory or trade company?A1. We are manufacturer, we also supply trade service.
Q2. What about your price?
A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good
reputation.Our price is 3%-5% lower than the average market price.
Q3. What payment terms do you accept?
A3. Welcome clients to place orders by Alibaba Trade Assurance! Other payment ways such as T/T, L/C, D/P, etc can be negotiated.
Q4. How about your delivery time?
A4: Generally, it will take 15-20 working days after receiving your advance payment. The specific delivery time depends on the
items and the quantity of your order.
Q5: what will you do if the machine is broken down?
A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the
machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q6: How do you make our business long-term and good relationship?
A6: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
from.
Q2. What about your price?
A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good
reputation.Our price is 3%-5% lower than the average market price.
Q3. What payment terms do you accept?
A3. Welcome clients to place orders by Alibaba Trade Assurance! Other payment ways such as T/T, L/C, D/P, etc can be negotiated.
Q4. How about your delivery time?
A4: Generally, it will take 15-20 working days after receiving your advance payment. The specific delivery time depends on the
items and the quantity of your order.
Q5: what will you do if the machine is broken down?
A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the
machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q6: How do you make our business long-term and good relationship?
A6: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
from.
