Сварочный пистолет BOQUILLA SOPLETE FLAMINETA
US $0.30-$1.00

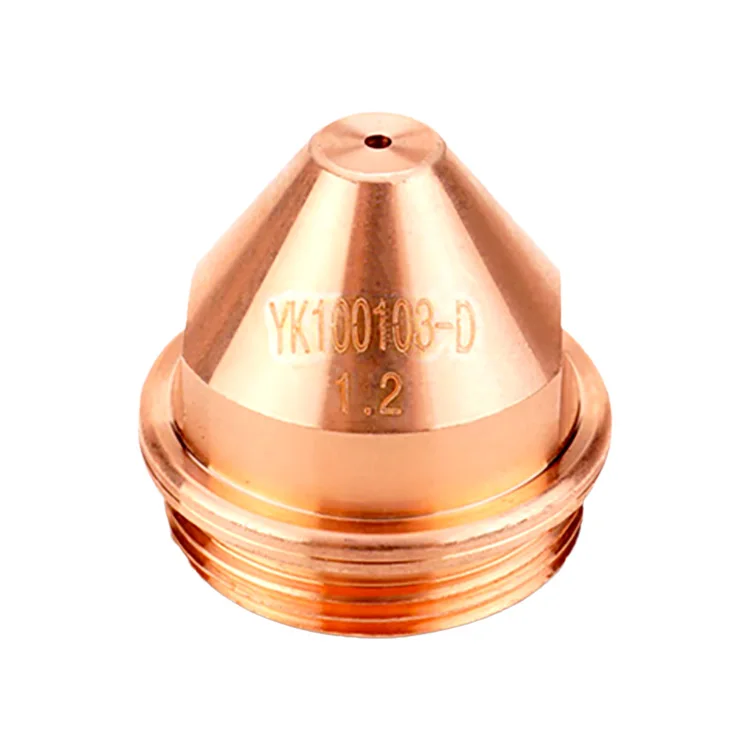

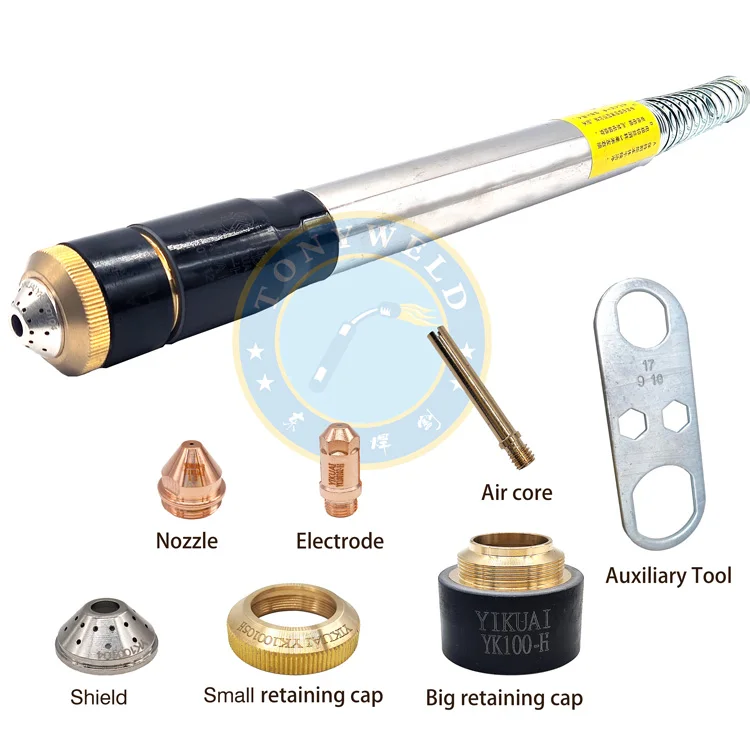

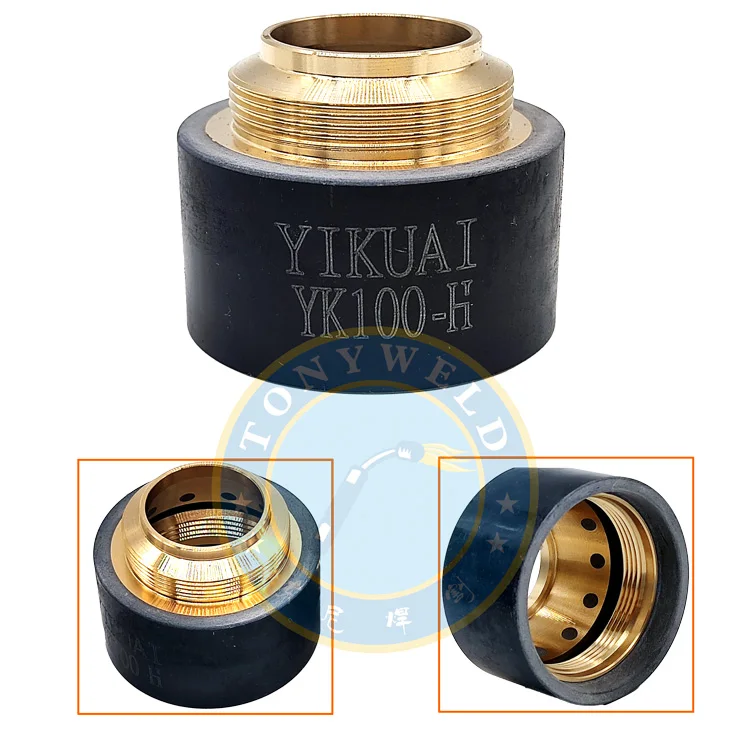

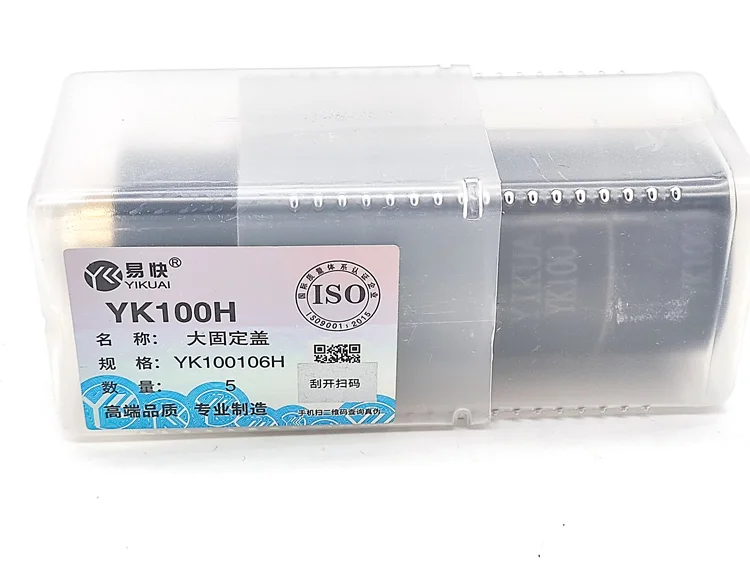

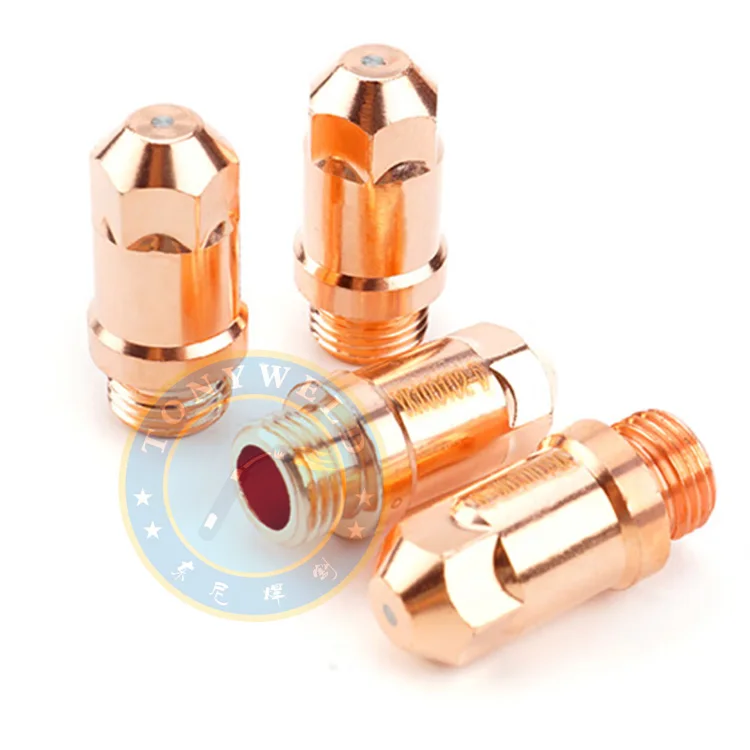

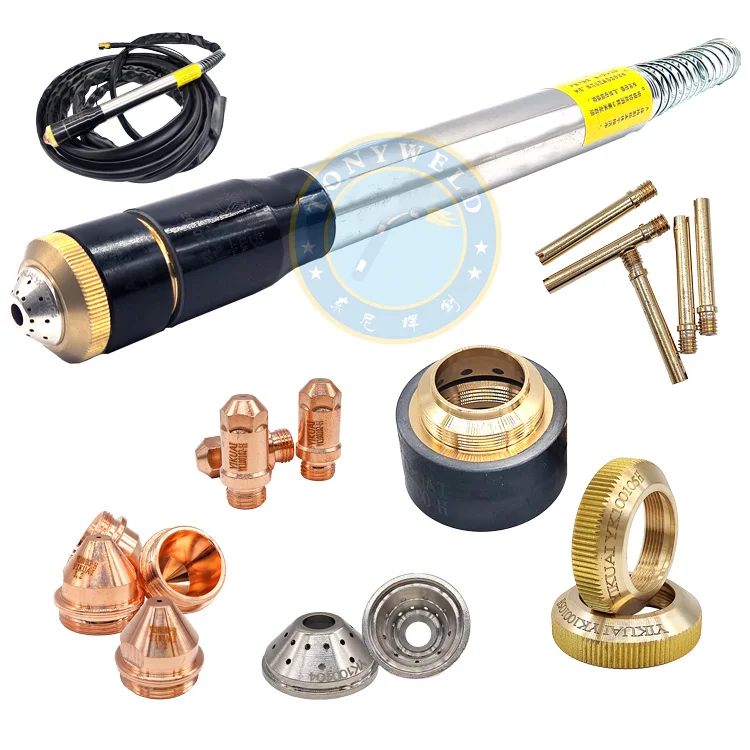

YK100-H плазменный резак Yikuai с тонкой режущей насадкой и электродной сварочной горелкой
- Категории: >>>
- Поставщик: Changzhou,Tonyweld,Co.,Ltd.Changzhou,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Over View
Selected high-quality copper materials,
New process ceramic insulation,
Unique air channel ratio and eddy current compression, perfect air channel distribution,
Make it have the advantages of fast cutting speed,
Long life of consumables,
smooth cutting surface and good verticality, etc.

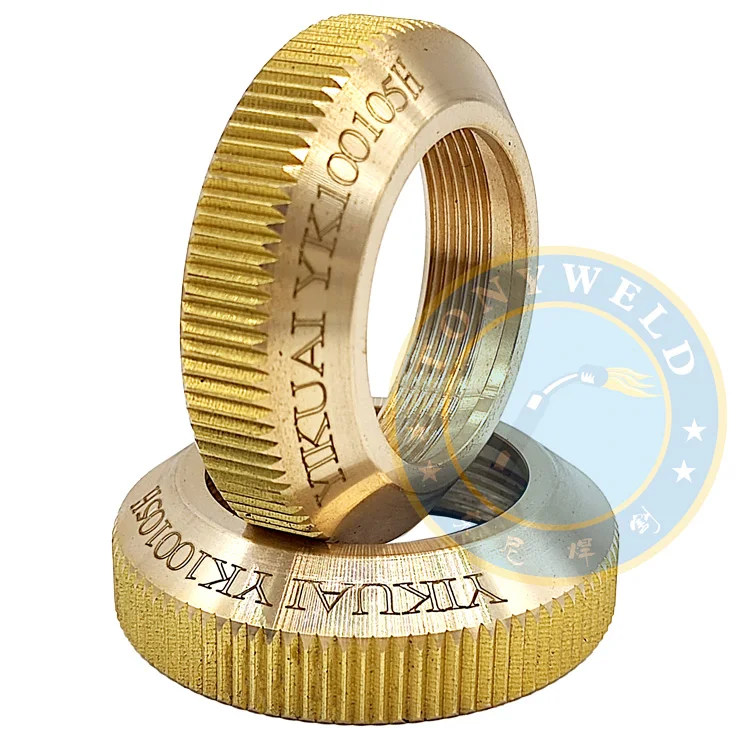

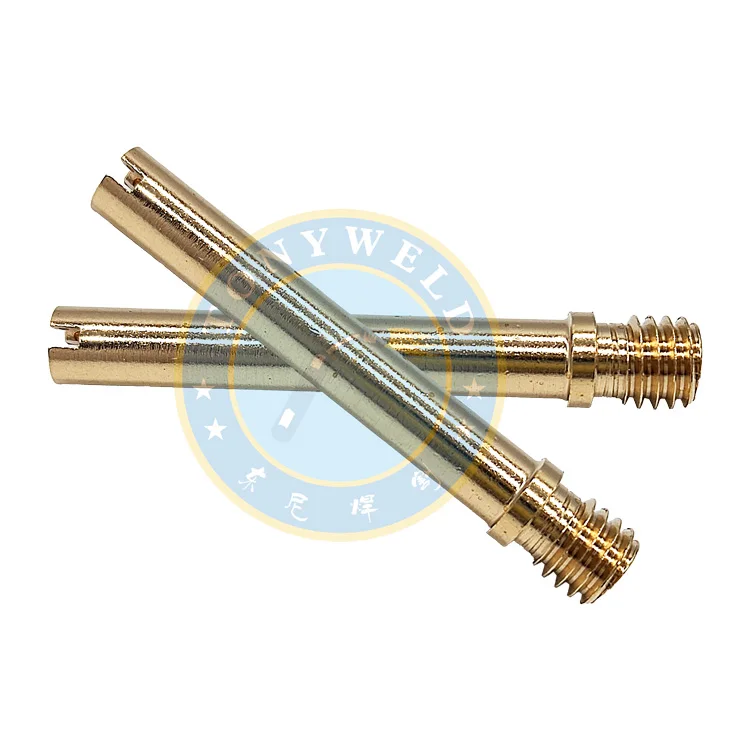

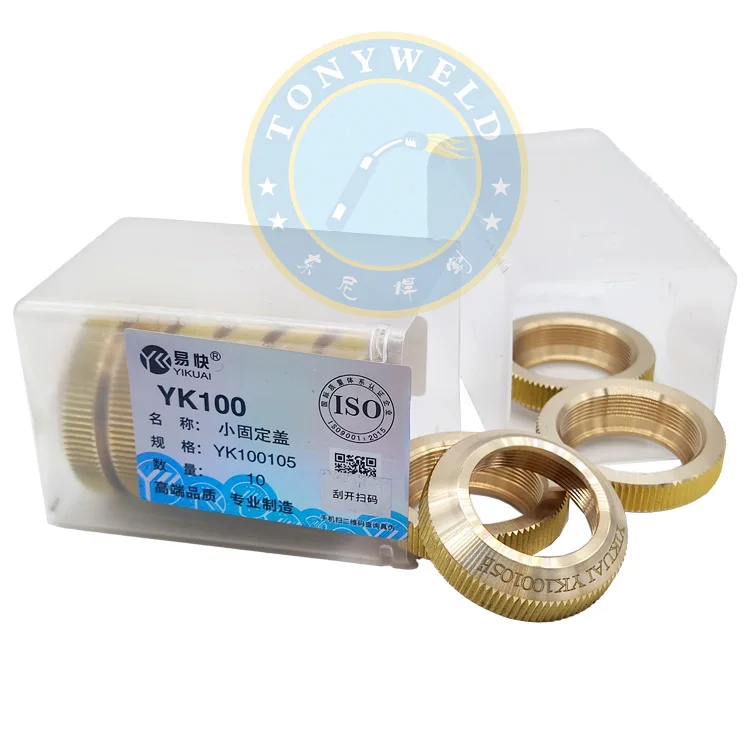

Detial
Matters needing attention
Please don't push too hard, it will damage the thread.Use for a period of time, please check whether there is slag in the ventilation filter element inside the cutting gun head.If there is any loosening, clean it up in time. Use a small wrench to align the air filter element with the wire mouth so as to avoid deviation and easy burning of the electrode nozzle.
| Cutter gun cutting data reference table | ||||||||
| Cutting thickness (mm) | Cutting current (A) | Nozzle diameter | Air pressure (Mpa) | Punch time (min) | Punch height (mm) | Cutting height (mm) | Cutting speed (mm/min) | Note |
| 1.5-2 | 40-60 | 1.2 | 0.4-0.45 | 0.1 | 5-6 | 4-6 | 3500-6000 | This parameter table is the cutting parameters of carbon steel plate, such as cutting stainless steel, copper, aluminum and other non-ferrous metal cutting speed should be relatively reduced; If it is a straight cutting workpiece, the current increases, the speed can be accelerated |
| 3 | 50-70 | 1.2 | 0.4-0.45 | 0.2 | 5-6 | 4-6 | 2000-3200 | |
| 4 | 60-80 | 1.2 | 0.4-0.45 | 0.2 | 5-6 | 4-6 | 2000-2800 | |
| 5 | 70-90 | 1.6 | 0.45-0.5 | 0.3 | 6-8 | 5-8 | 1800-2500 | |
| 6 | 80-100 | 1.6 | 0.45-0.5 | 0.3 | 6-8 | 5-8 | 1500-2300 | |
| 8 | 80-100 | 1.6 | 0.45-0.5 | 0.4 | 6-8 | 5-8 | 1300-2000 | |
| 10 | 80-100 | 1.6 | 0.5-0.55 | 0.5 | 6-8 | 5-8 | 1000-1500 | |
| 12 | 100-120 | 1.6 | 0.5-0.55 | 0.6 | 8-10 | 5-8 | 1000-1500 | |
| 14 | 100-120 | 1.6 | 0.5-0.55 | 0.8 | 8-10 | 5-8 | 800-1100 | |
| 16 | 100-120 | 1.8 | 0.55-0.6 | 1 | 8-10 | 5-8 | 600-900 | |
| 18 | 120 | 1.8 | 0.55-0.6 | 1 | 8-10 | 5-8 | 450-500 | |

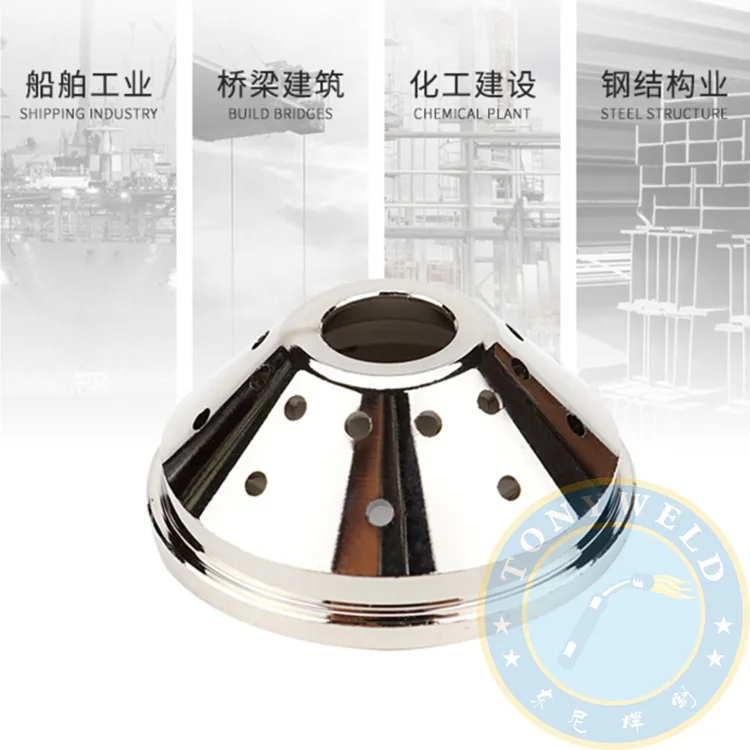

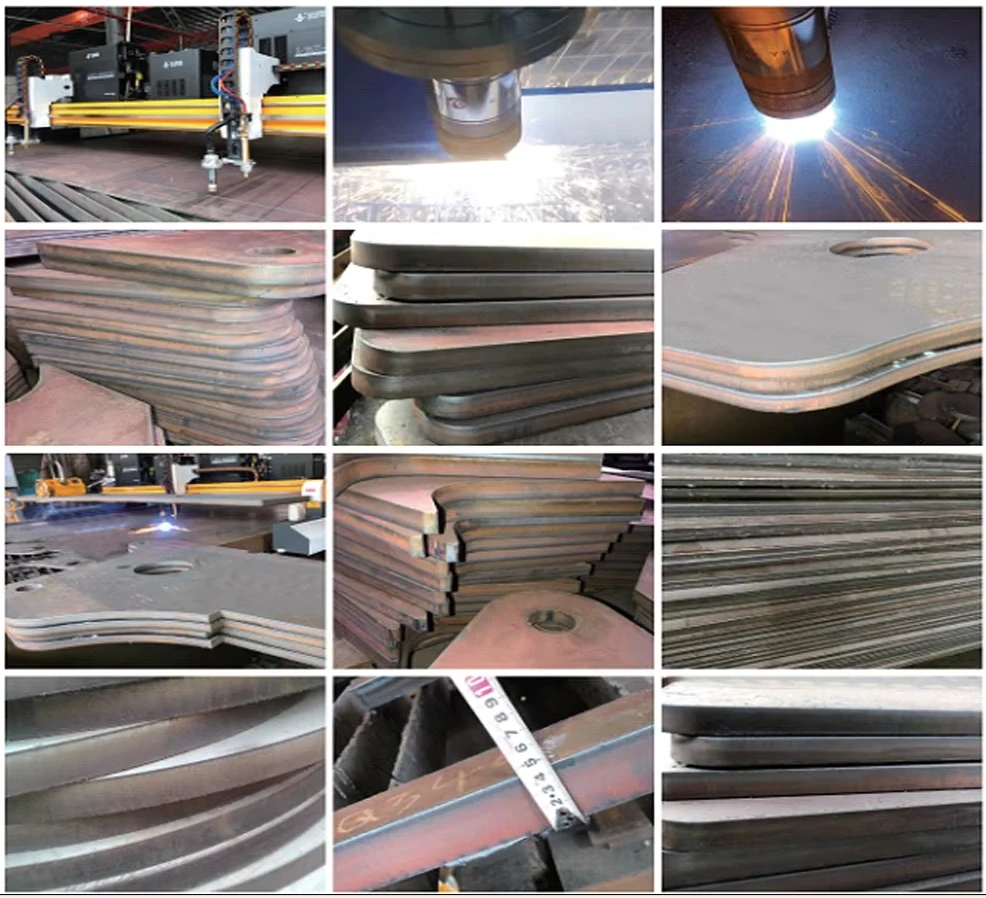

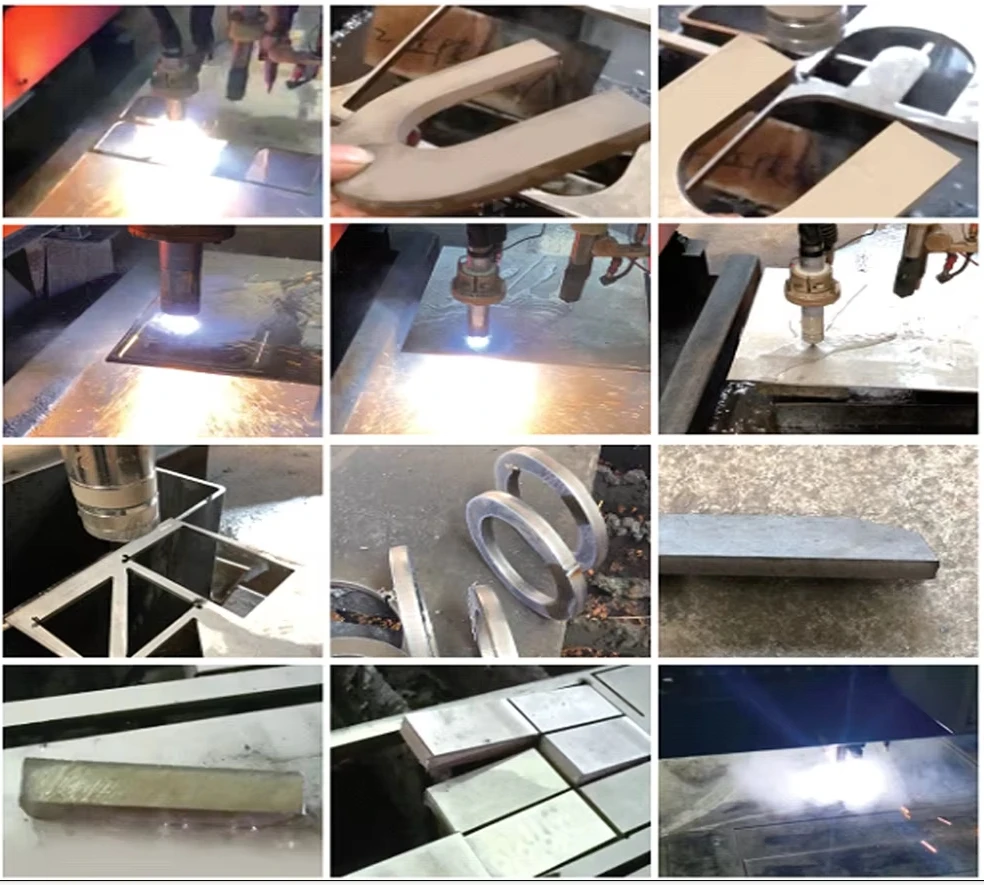

Application Field
TONYWELD BORN FOR HIGHER WEL DING EFFICIENCY

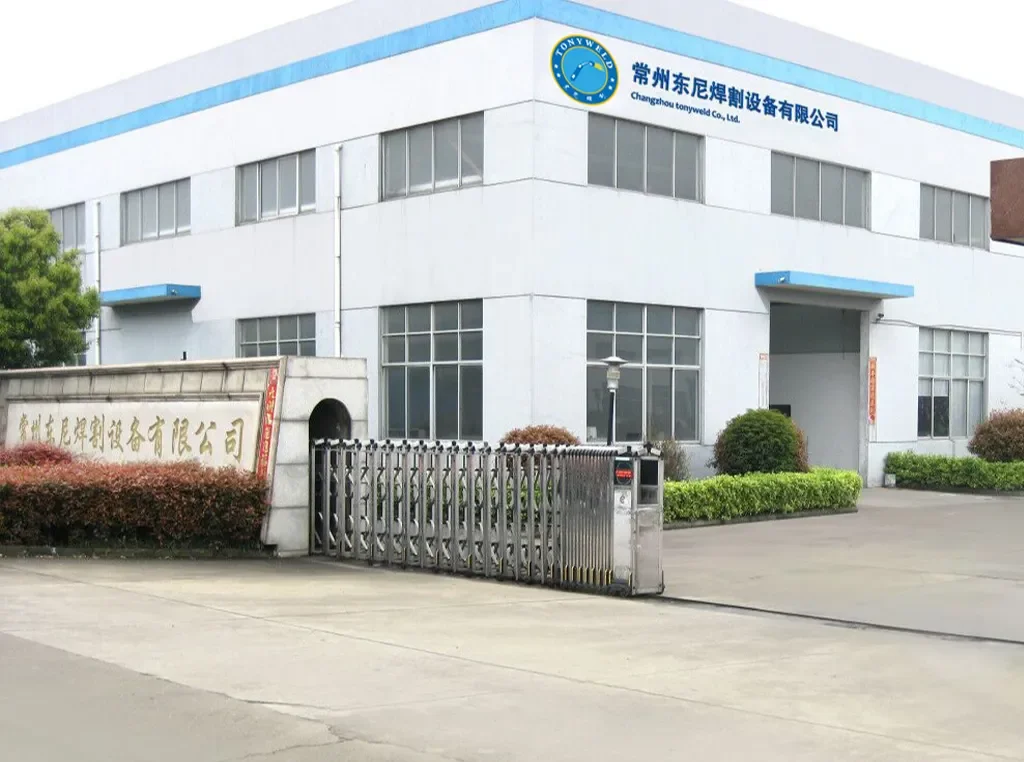

About Us
We-ChangZhou Tonyweld Group Co.,Ltd. was established in 2000,is the production of MIG/MAG,TIG and plasma cutting torches, and other welding equipment and accessories . We plant strong technical force, advanced technology and equipment, detection means perfect. The factory production of welding equipment, has been at home and abroad cars, ships, containers, steel structures, machinery manufacturing and other industries widely used, much user trust and praise.
Changzhou Tonyweld Co.,Ltd. is a professionl manufacturer MIG/MAG welding torch,TIG welding torch and air plasma cutting gun.We have tens years exprience to export many countries,and our products is very competitive in the world.
P80,AG60,PT31,AG100 ,SG51,JG60,JG100,SG55, trafimet serise cutting torch and part
WP12 ,WP9, WP17 ,WP18 ,WP26 torch , tungsten electrode and all accessories parts
Binzel---14AK,15AK,25AK,24KD,26KD,36KD 40KD,61GD,240D,401D,501D,501D AL/P, PLUS555,610D
Binzel RF --- RF15,RF25,RF26,RF36,RF45
Binzel A ---155LW,255LW,305LW,355LW,405LW
Binzel AT ---155LW,255LW,305LW,355LW,405LW,455LW
Tregaskiss-XS180A,XS260A,XS300A,TR300C,TR400C,TR500C,TR600C,TR300T,TR400T,TR500T
Brazil type OXIMIG--- SBME116,SBME125,SBME135,SEME235,SBME350,SBME450,SBME470
SPOOLGUN---SP15,SP24,SP25,SP36,TW2,TW4,100E,100T,100L,100M,Spoolmate 100,SP200,SP200H,SP200E
PUSH-PULL---PP240,PP250,PP360,PPTW2,PPTW4
Flux-Cored---126pro,126,354,231-1
4.Other welding consumables:
Tungsten electrode,
Earth clamp
Cable joint
Welding glove

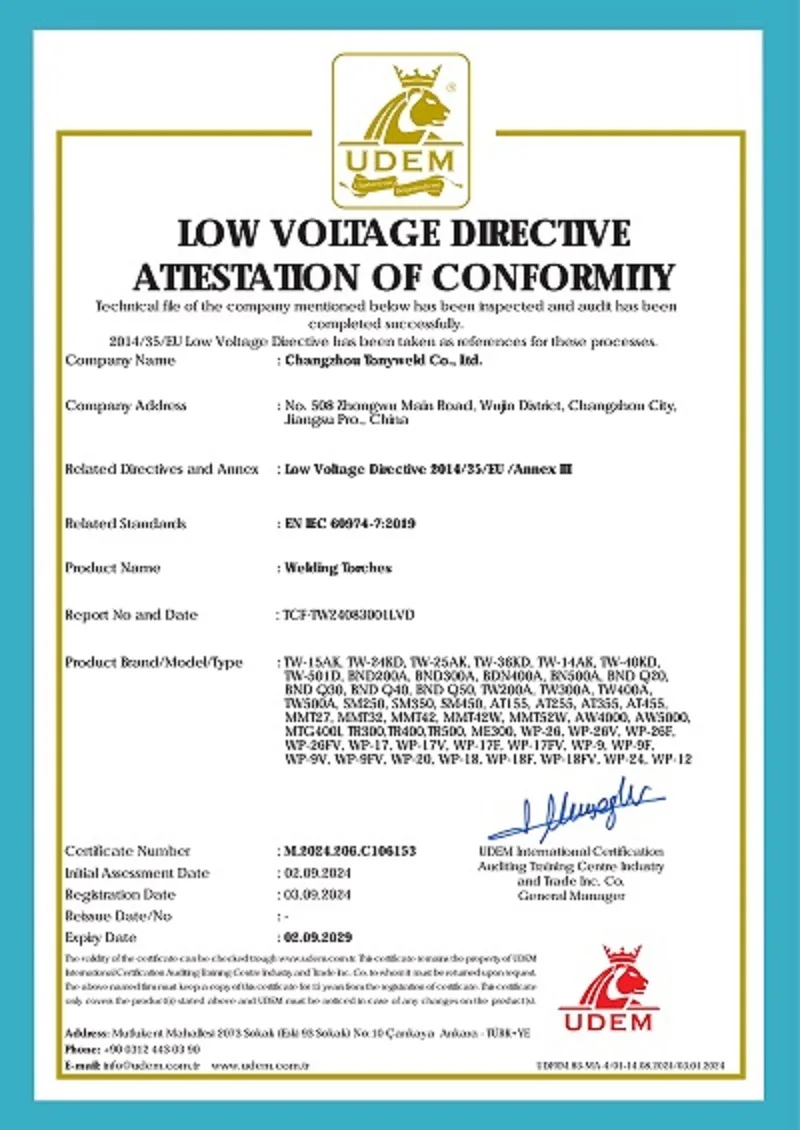

CERTIFICATE
Why Choose Us

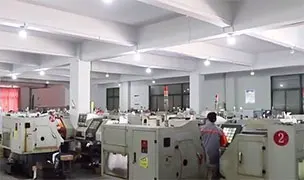

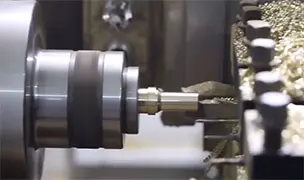

ADVANCED CNC EQUIPMENT
Our company has a large number of advanced CNC equipment. which can realize the automatic feeding and taking of materials with high efficiency and stable quality.
ADVANCED CNC EQUIPMENT
Our company has a large number of advanced CNC equipment. which can realize the automatic feeding and taking of materials with high efficiency and stable quality.

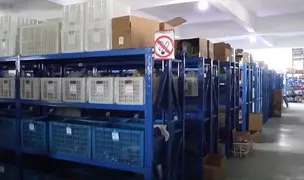

HAVE ALARGE STOCK OF PARTS
This is one of the warehouses of our company. We have a large stock of some conventional parts, You are welcome to visit.
HAVE ALARGE STOCK OF PARTS
This is one of the warehouses of our company. We have a large stock of some conventional parts, You are welcome to visit.
Customer Reviews
Packing & Shipping
Q&A
Q1: Can I get a free samples to check the quality?
A : Sure , we can supply the free samples which price is low than US$5.
Q2: Will I afford the carrier charge?
A : Yes , you will afford the express charge or your account is OK.
Q3: Can I add my trademark on my products ?
A : Yes , we need your certificate of authorization .
Q4: Welding torch payment terms?
A : T/T , L/C , Western union all support.
Q5: Welding torch delivery time?
A : sample order 2 working days, 500pcs order 10 working days.
Q6: MOQ?
A : 1 PC, welcome your visit to our factory.
Our Customers
Over last 10 years
Tonyweld already sold products to USA,Canada Germany,United Kingdom,Denmark,Sweden,Poland,Italy,Greece,Australia New Zealand,Japan,Korean,India,South Africa,and so on. We are alwas on the way,never stop.....
Explore International Market,Win-Win Cooperations!
To Know More please contact us
Contact Us
WebPage: https://www.tonyeweld.com
Company Name: Changzhou Tonyweld Group Co.,Ltd.
Address:No.508 zhongwu main road,Wujing district, Changzhou city, Jiangsu province, China
Phone:+86-13921051558
Tel:+86-51981868670
E-mail:info(at)tonyweld.com
WhatsApp:+86-13921051558
