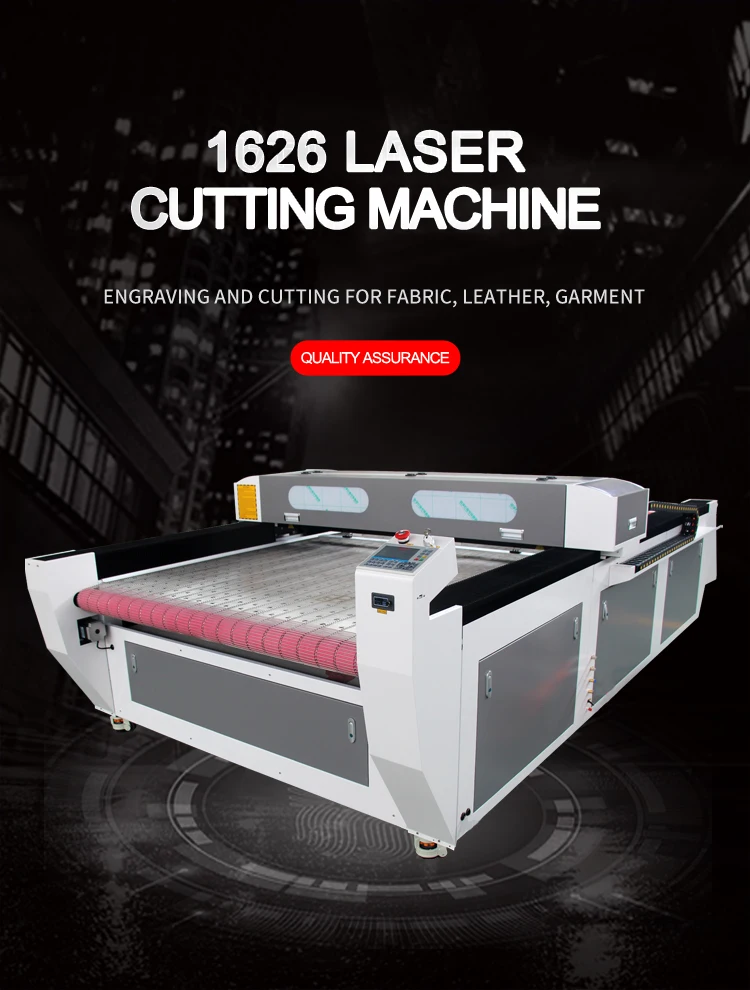

1626 100w co2 auto feeding laser cutting machine for fabric
1. Adopts automatic stainless steel crawler platform & large scope, can meet the demand of large-format cutting, carving for clothing and other fields.
2. With advantages of high speed, higher precision can save time and greatly improve production efficiency combing with automatic feeding device.
3. Red Light Pointer realizes the exact position without laser.

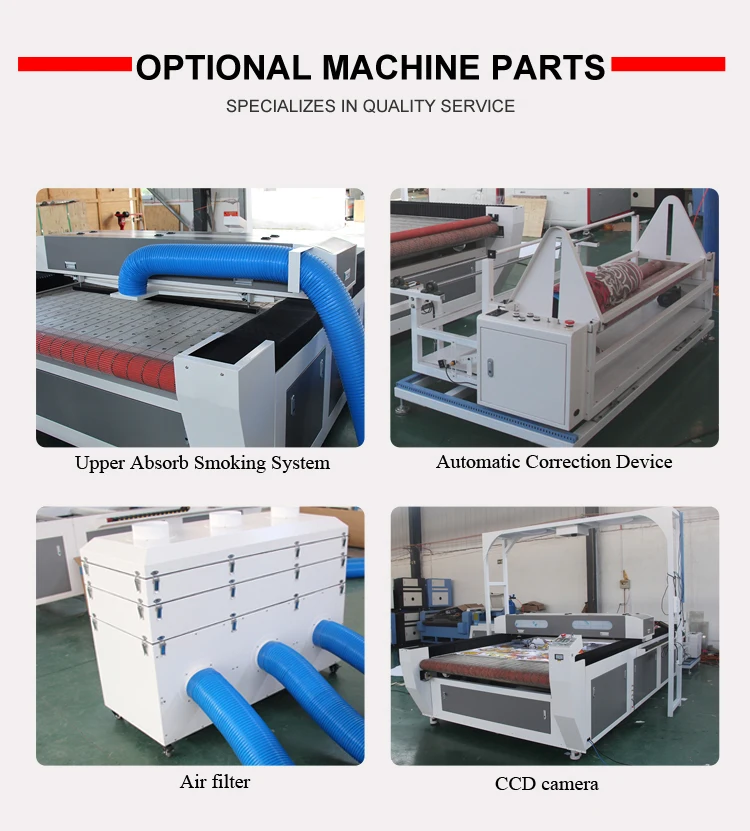

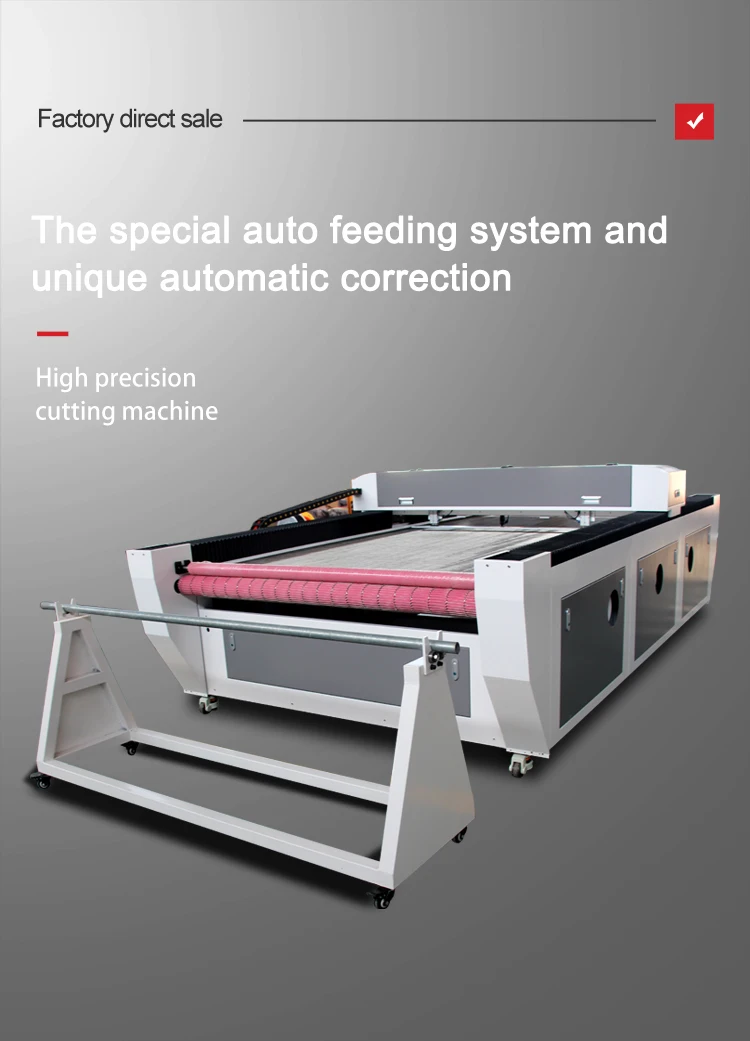

4. Optional Rolling and Automatic Feeding System, realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.
5. Applicable to the thick crawler type work platform: The automatic fabric laser cutter can promote the smooth movement of the processing material, ensure the material is smooth, this Co2 laser cutter for sale is convenient for the stable operation of the laser head, and the work stability is improved.
Model | YK1626/ YK2030/ YK2050 |
cutting area | 1600x2600mm/ 2000*3000mm/ 2000*5000mm |
Laser power | 80W/100W/130W |
Laser type | CO2 Laser tube |
Engraving speed | 0-60000mm/min |
cutting speed | 0-24000mm/min |
Resetting positioning accuracy | 0.01mm |
Power supply | 220V/50HZ 110V/60HZ |
Operating temperature | 0 - 45 °C |
Operating humidity | 5-95% |
Min. shaping character | English 1.0x 1.0mm |
Graphic format supported | PLT,AI,DXF,BMP,DST |
Software supported | CorelDraw, PhotoShop, AutoCAD |
Driving system | Stepper motors |
Cooling mode | Water-cooling and protection system |
Recommended Spare Parts | Laser Tube and Lens |

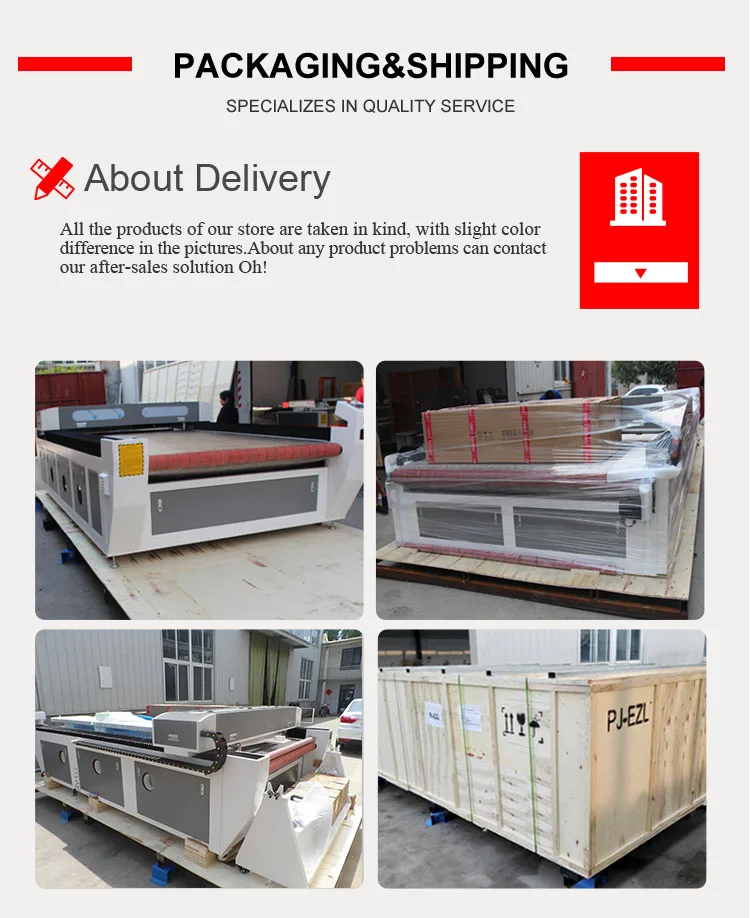

Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea or by train.We can transport machine by boat or by training, according to your requirement.
