Product Description
span 30m 20 ton electric magnetic overhead crane
Double Girder Hydraulic Grapple Grab Bucket Bridge crane is mainly used in inside workshop. It is diveded into two working classes: A5 and A6 according to the use grade and load-up condition.There are three kinds of method for entering the platform of cab from the side, from the end and from the top. The figure is the side entrance.The cab can be either fixed at the left end or at the right end; the figure shows tat the cab is fixed at the left end.Safe side wire or angle iron can be used for electric conduction of the crane
Detailed Images
Main beam and End beam
With high quality steel material, Main beam and end beam connect with bolts. This parts are including Travelling Crane Wheel and Travelling Mechanism.
Lifting Mechanism
Hoist trolley and Trolley. There are two choice for the lifting mechanism. For lifting 0.5-32ton, working duty is not heavy. We suggest use Hoist trolley. When the capacity is over 32ton. Overhead Crane will use Trolley as Lifting Mechanism. If you need to know more how to choose the overhead Crane, pls Contact us.
Control Method
Overhead Crane will have twos types way to control. Cabin and Remote control. You could choose one type or two types together.
Electrical parts
Our overhead Crane adopts PLC control electrical elements. There are many brand you could choose, such as Simens, ABB and so on.
Crane Hook
There are many types hooks to choose according to the overhead Crane’s different working situation.
Loading capacity | 5 ~ 500t |
Lifting height | 3 ~ 30 m or customized |
Lifting speed | Vary with lifting capacity, or customized. |
Span | 10.5~31.5 m/min |
Lifting mechanism | Wire rope hoist or electric chain hoist |
Working class | A5-A8 |
Working temperature | -20~40 |
Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz |
Control voltage | DC -36 / 48V |
Motor protection class | IP54 IP55 IP65 |
Control way | Cabin, wireless remote, pendant push button |
Safety device | Buffer,current overload protection,overload device |
Details Images
YZ double girder casting overhead crane
QDY double girder metallurgy overhead crane
QZ double girder grab overhead crane
QD double girder hook overhead crane
NLH double girder european overhead crane
QB double girder explosion proof overhead crane
Packing & Delivery
span 30m 20 ton electric magnetic overhead crane
Product Parameters
span 30m 20 ton electric magnetic overhead crane
ccording to the industry standard GB/T14406, the bridge crane is mainly composed of the following components
1, cylindrical wheel 2, buffer
3, block brake 4, wire rope
5, lifting hook 6, the driver's office
7, reducer 8, casting pulley
9, casting reel 10, the motor
11, electronic control

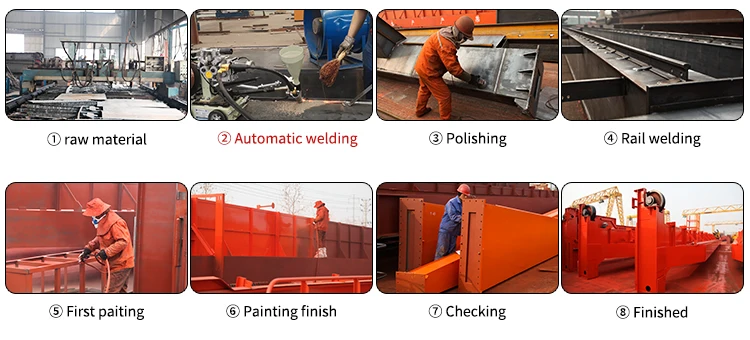

Producing process
Certifications
Why Choose Us
Since 1995,more than 50 years crane, hoist and winch produce Experience;
The only designated supplier for China War Industry and Aerospace Lifting Equipment;
Asian biggest crane production independent workshop with 40,000 square meters;
> 6S management system with strict quality control;
The only designated supplier for China War Industry and Aerospace Lifting Equipment;
Asian biggest crane production independent workshop with 40,000 square meters;
> 6S management system with strict quality control;
