Huahong double shaft shredder for sale
Features of double shaft shredder machine:
1.This series double shaft shredder is suitable for waste type, oil tank,bags,tyres,thin wood sheet,thin steel sheet, waste electrical shell, film etc.
2.Features: double blade shaft structure with multi-claw type blade.
It can save energy and has strong strength.
The blade is made of special steel through heating treatment with long life.
It can be changed easily and can be reused again through repairing.
3.The gearbox adopt oil lubrication with low noise, big torque etc. Low speed and high torque design make low noise and little dust.
It is specially for film, PP woven bag, etc.
It also can be suitable for PP/PE baled film and PET bottle.
Product Application:
The shredder is widly used for shred metal chip, mattress spring, cable, PE film, wooden pallet, metal oil drum, bicycle, sofa, TV, mattress fabric, plastic pallet, and plastic barrel and so on.
1. Bicycles, motorcycles, car shells, waste metal.
2. Cans, paint bucket, iron sheet, color steel tile.
3. The final particle size is based on your demand, and the outlet size can be changed according to change the screen.
Main Technical Parameters:
Model | 2000 | 1600 | 1200 | 1000 | 800 | 600 | 400 |
Power kw | 55kw*2 | 45kw*2 | 37kw*2 | 30kw*2 | 15kw*2 | 11kw*2 | 7.5kw*2 |
Shaft speed r/min | 30 | ||||||
capacity t/h | 5.0-15 | 3.0-7.0 | 2.0-5.0 | 1.5-3.5 | 1.0-3.0 | 0.5-2.0 | 0.5-1.5 |
Blade thickness and qty | 40mm 50pcs | 40mm 40pcs | 40mm 30pcs | 40mm 24pcs | 40mm 20pcs | 30mm 20pcs | 20mm 20pcs |
Out put size mm | 30-100 | 30-100 | 30-100 | 20-100 | 20-100 | 20-100 | 20-100 |
Hopper size mm | 2600*1400 | 2000*1400 | 2000*1400 | 1500*1000 | 1200*1000 | 1000*1000 | 400*600 |
Oversize mm | 5.5*2.1*2.9 | 4.5*2.1*2.3 | 4.0*2.1*2.3 | 3.5*1.8*2.0 | 3.0*1.2*1.8 | 2.8*1.2*1.8 | 1.6*1.2*1.5 |

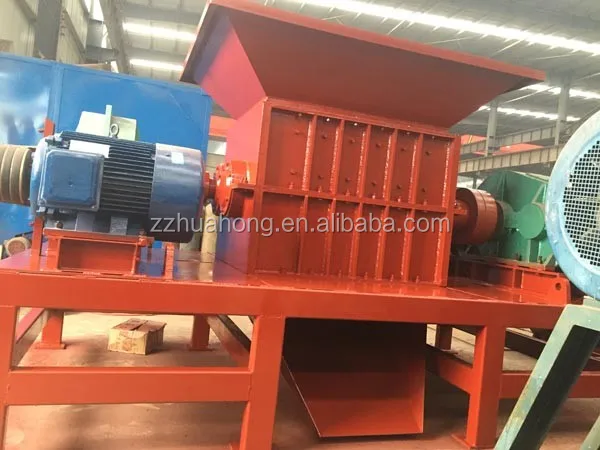

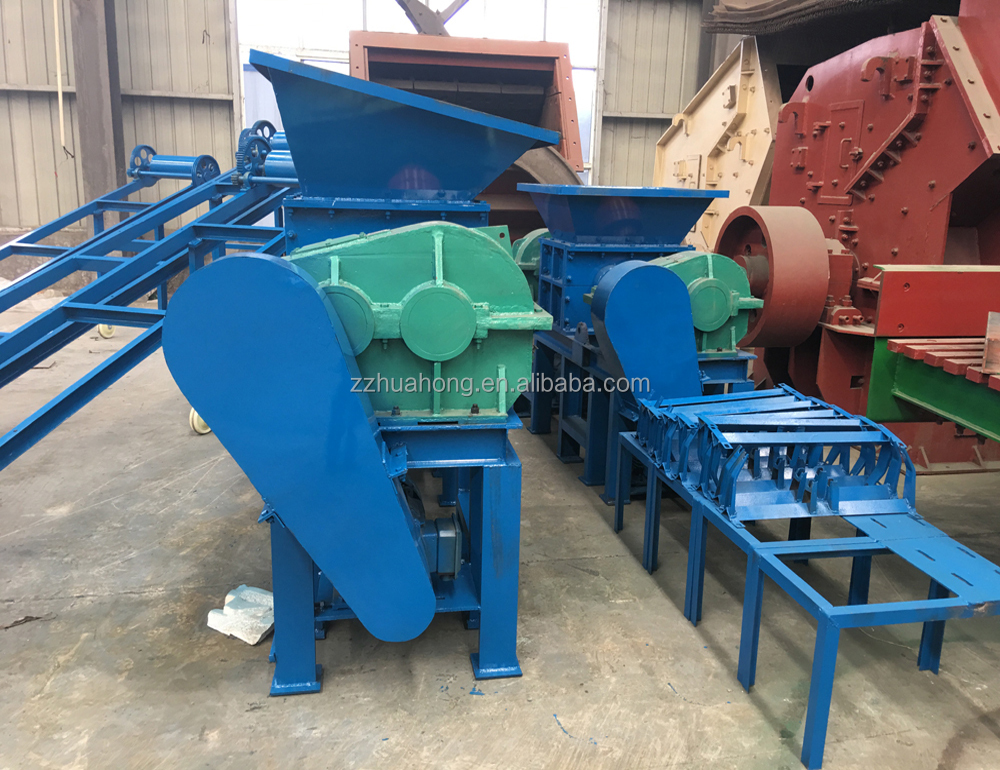

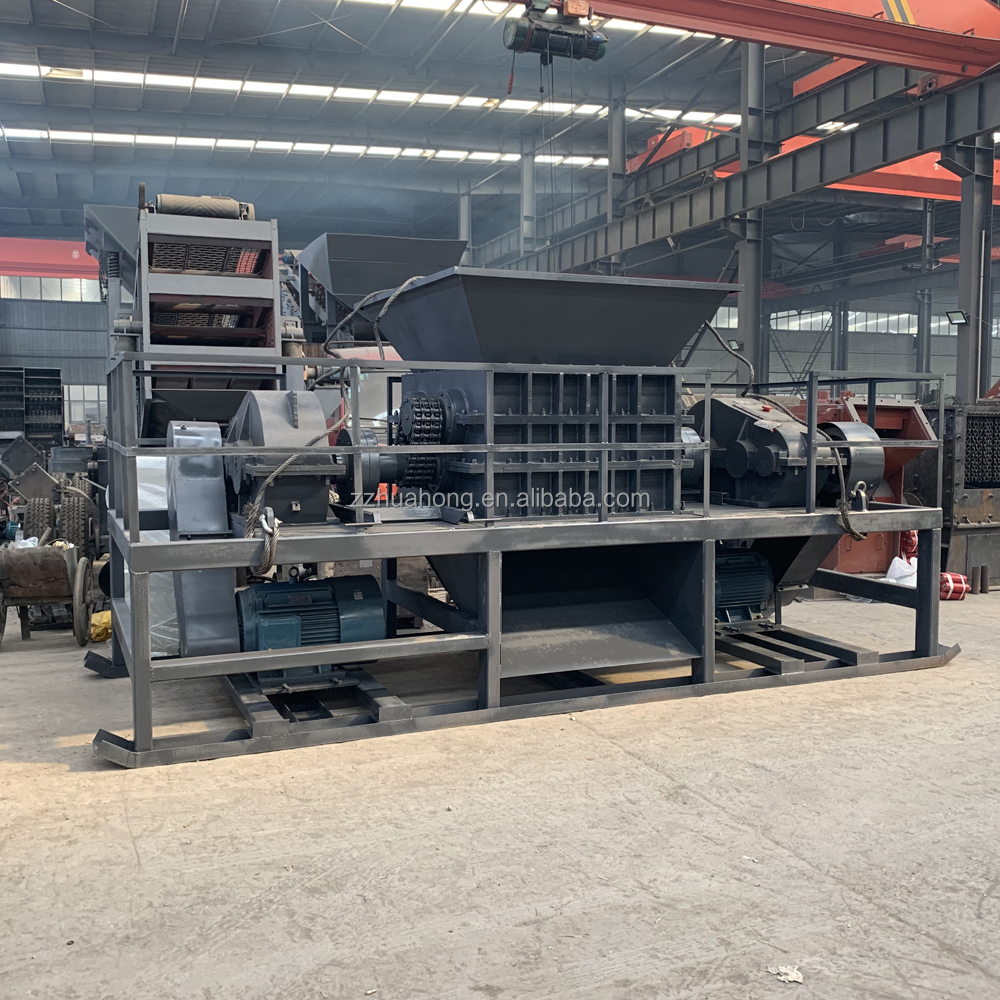

This is our 1200 double shaft shredder:

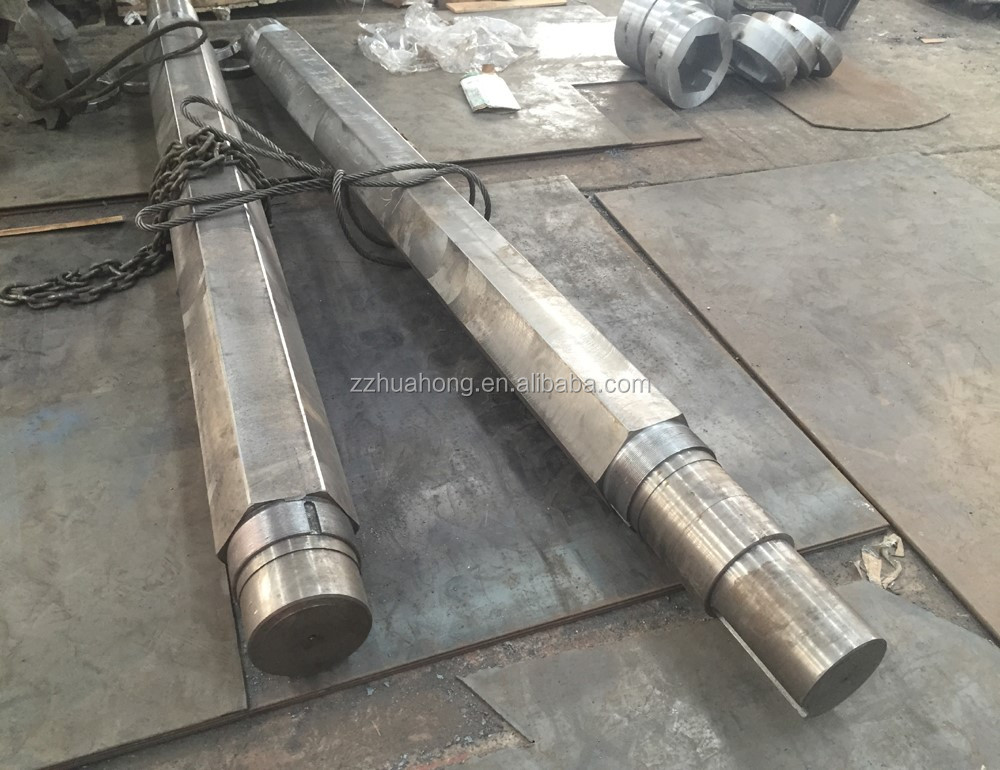

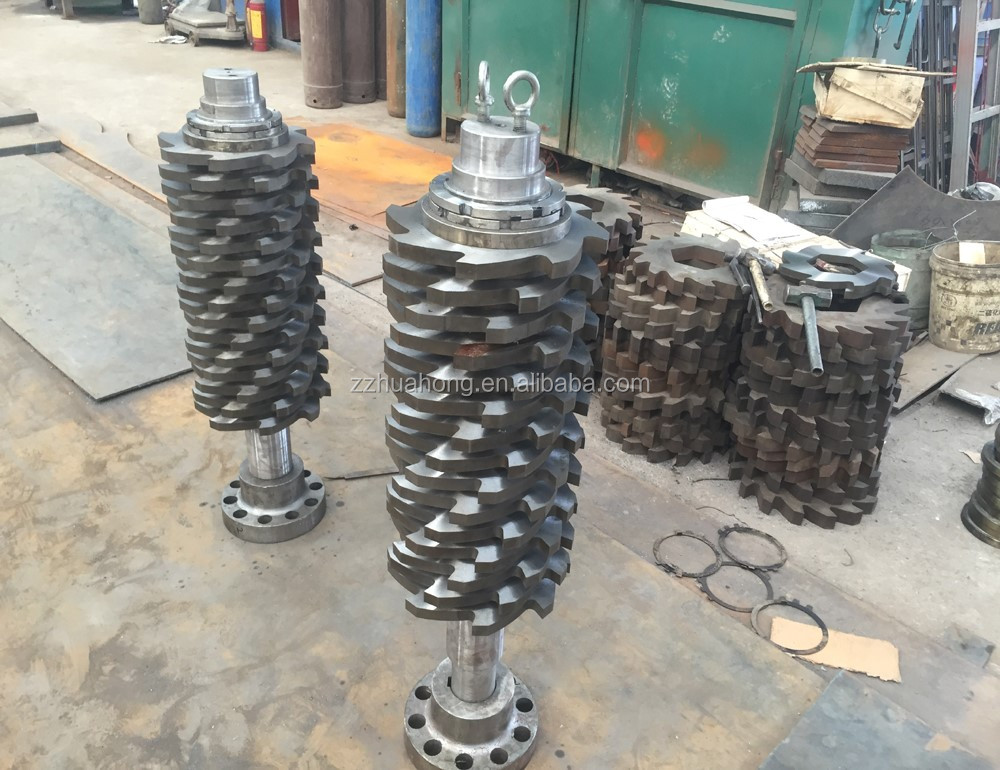

Inner structure:

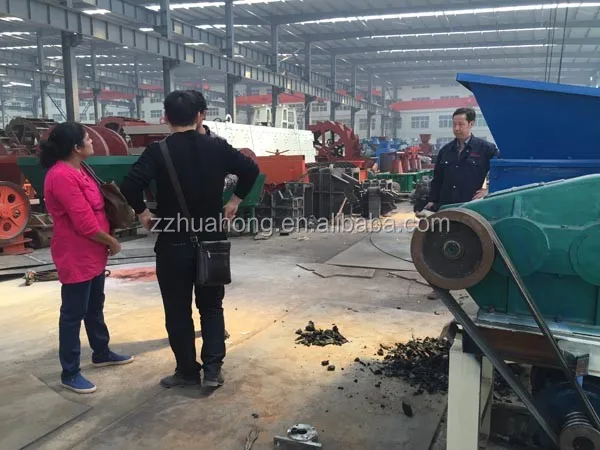

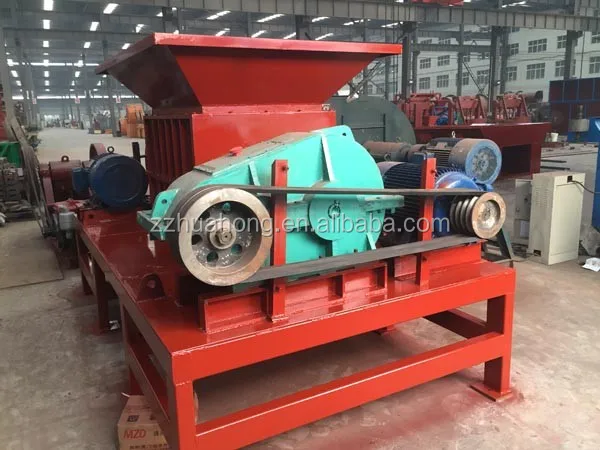

This is our shredder for tyre testing:

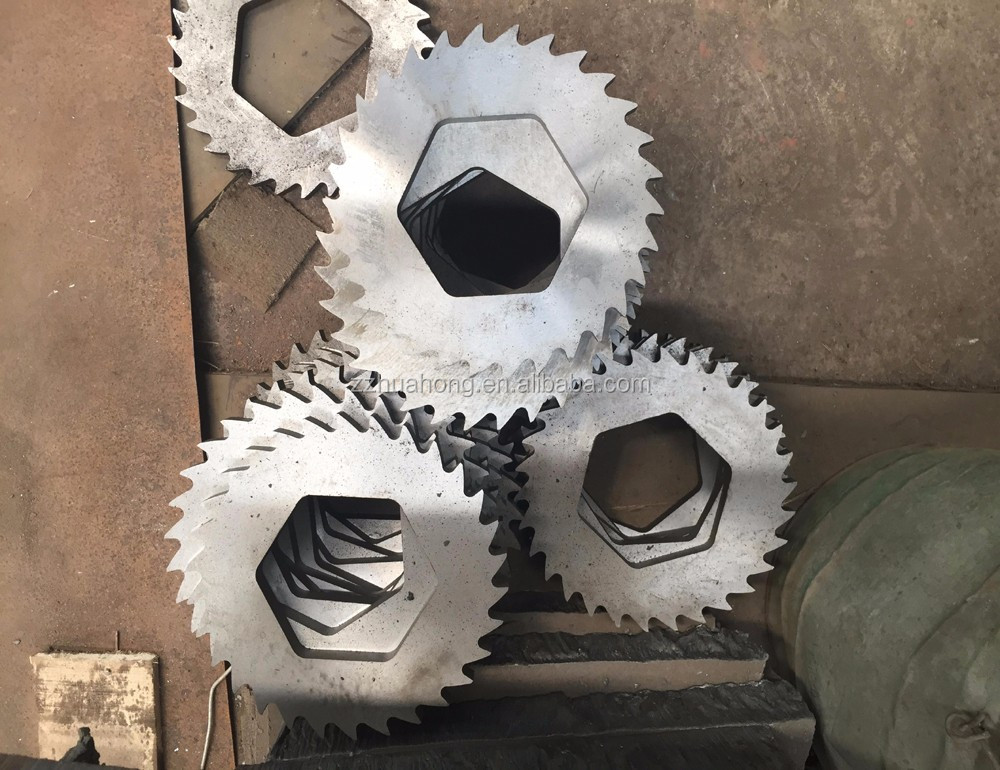

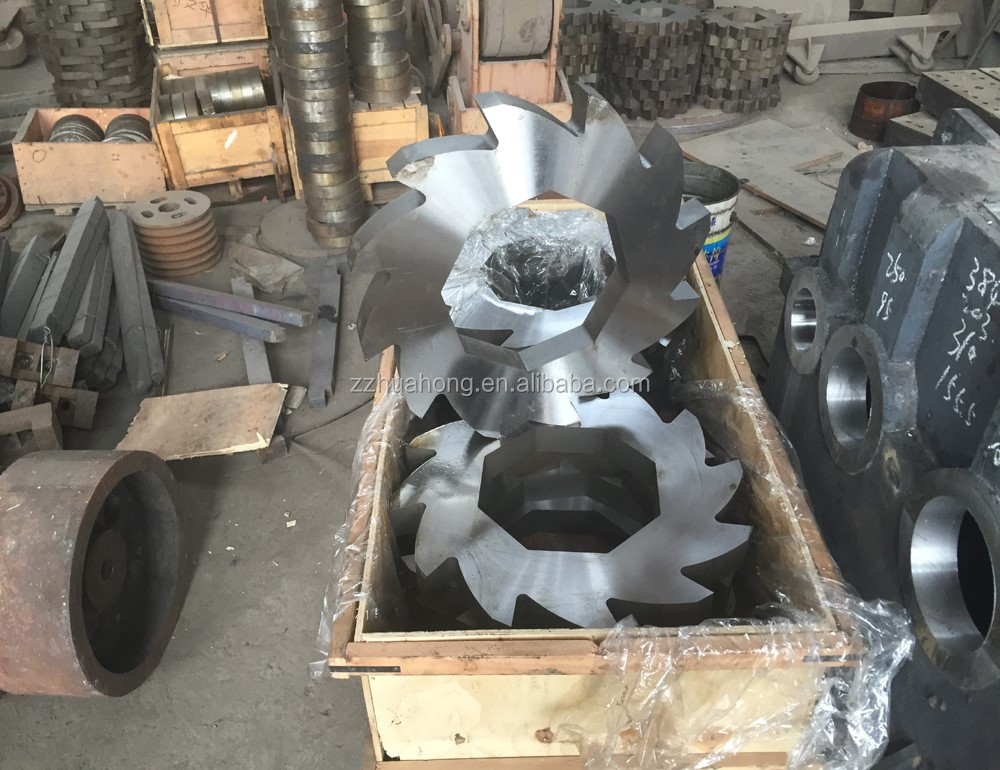

Blade: blades material is Cr12MoV, but blade material can be customized as required.
Bearing and seal: The bearing block using detachable patent registration, it not only quickly remove the knife, knife, bearings and other components, but also conducive to maintain and replace knife tool. Its unique sealing structure barrier to the crushing material and grease contact effectively. Moreover, handling liquid materials can also protect the bearings and gears.

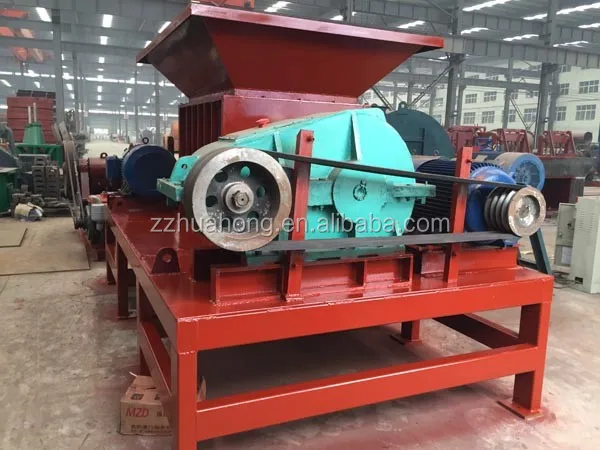

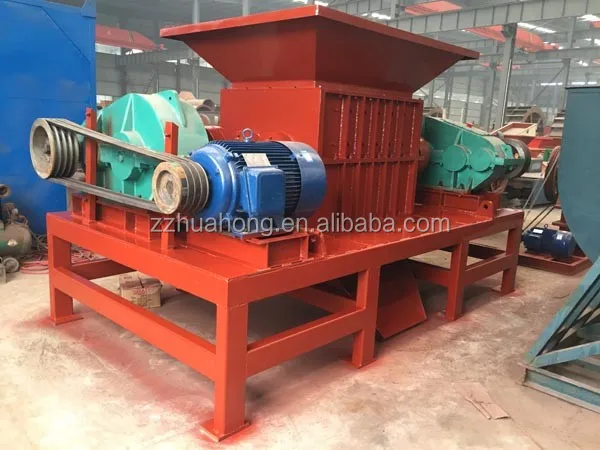

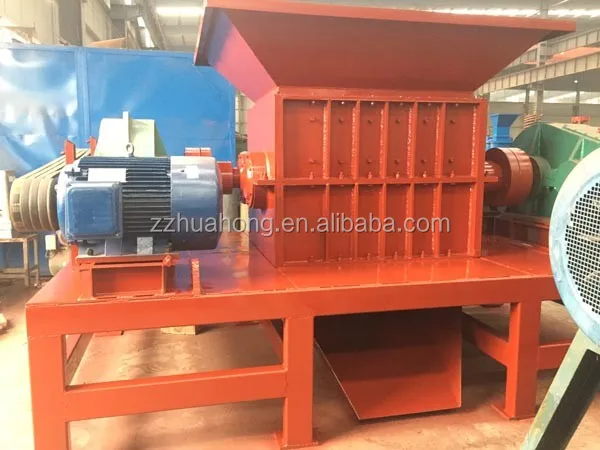

Gear-box & motor: Each shredder has two gearbox and two motor

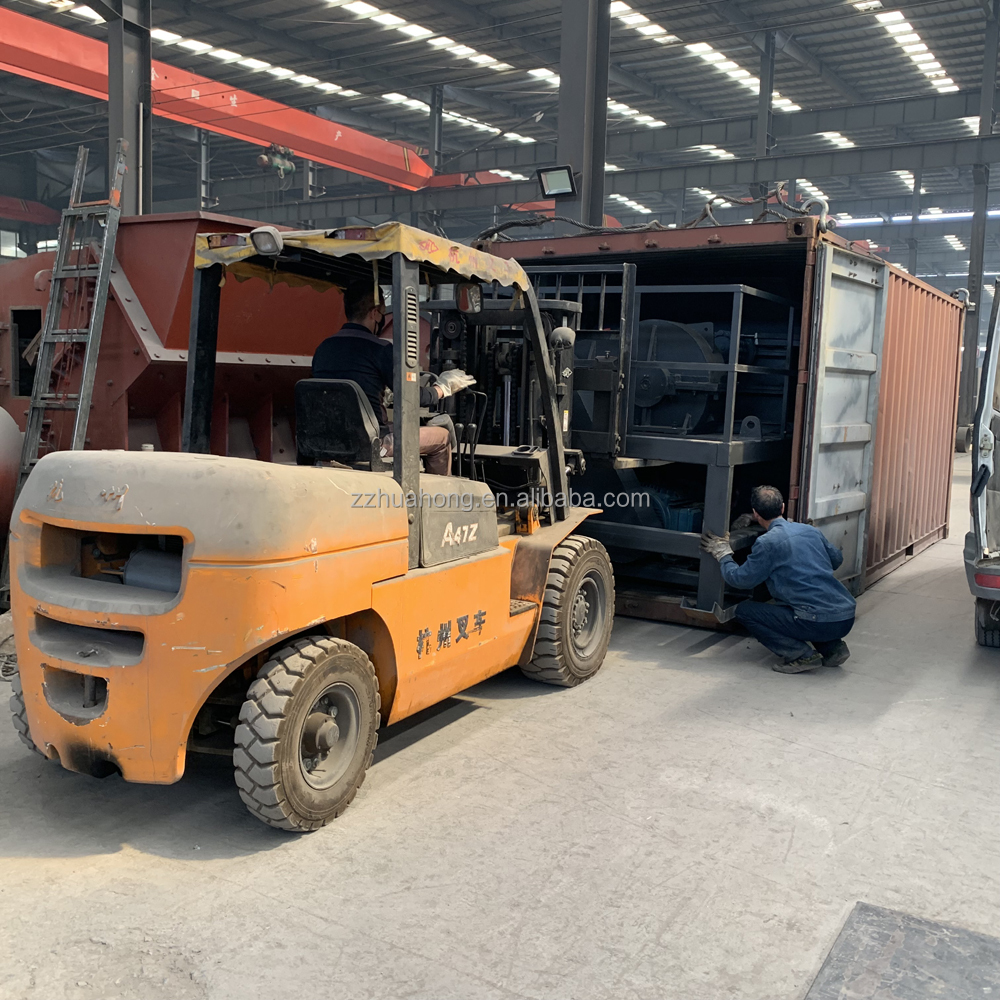

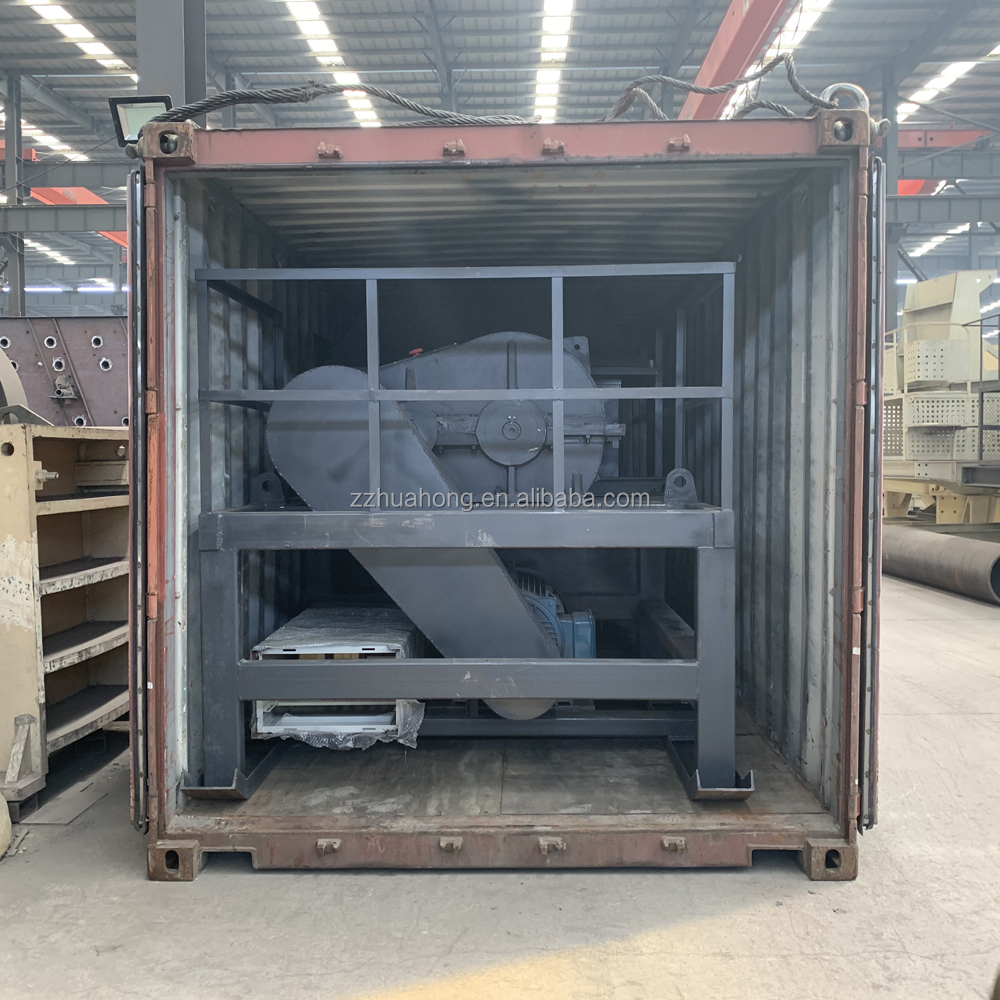

Packing in container:
