Products Description

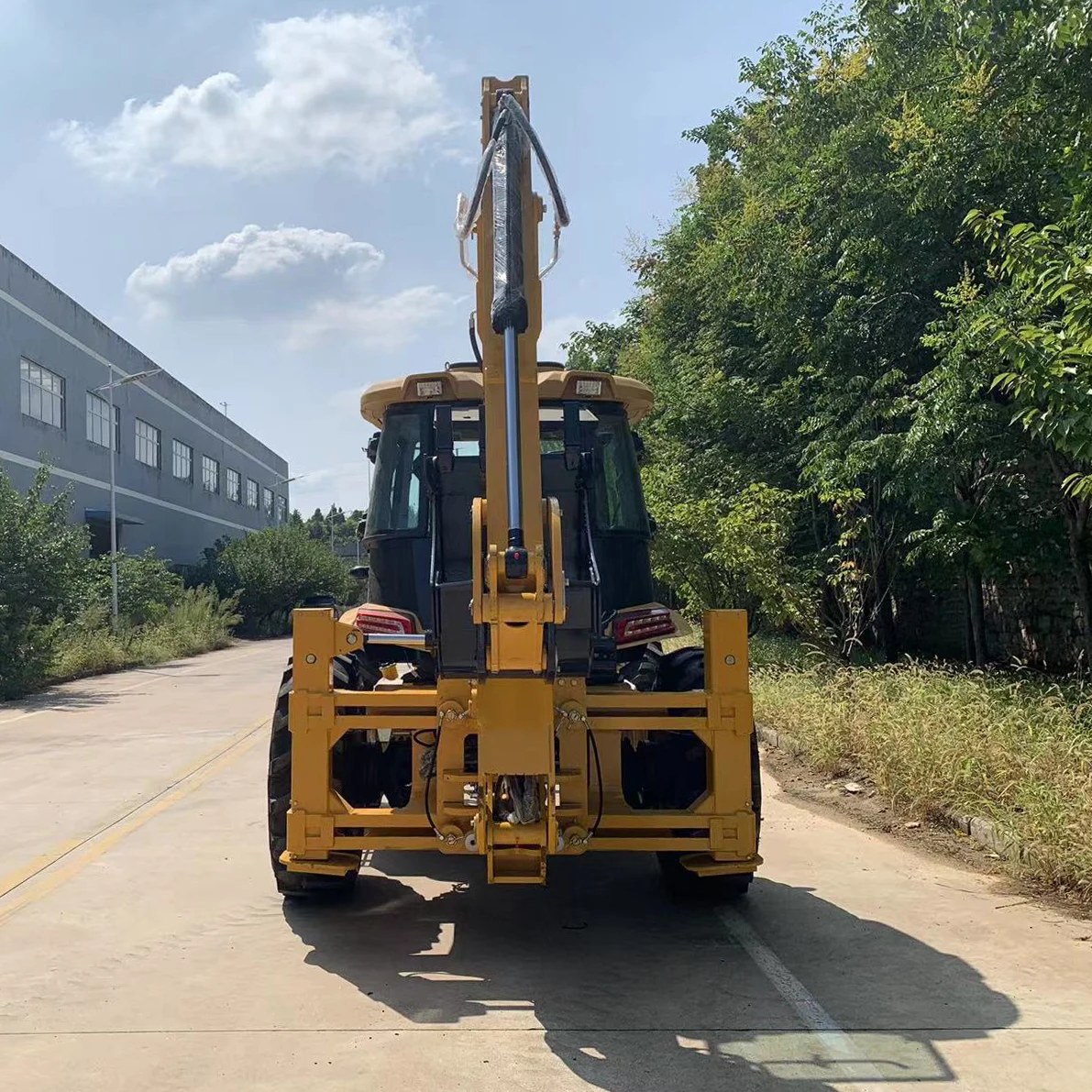

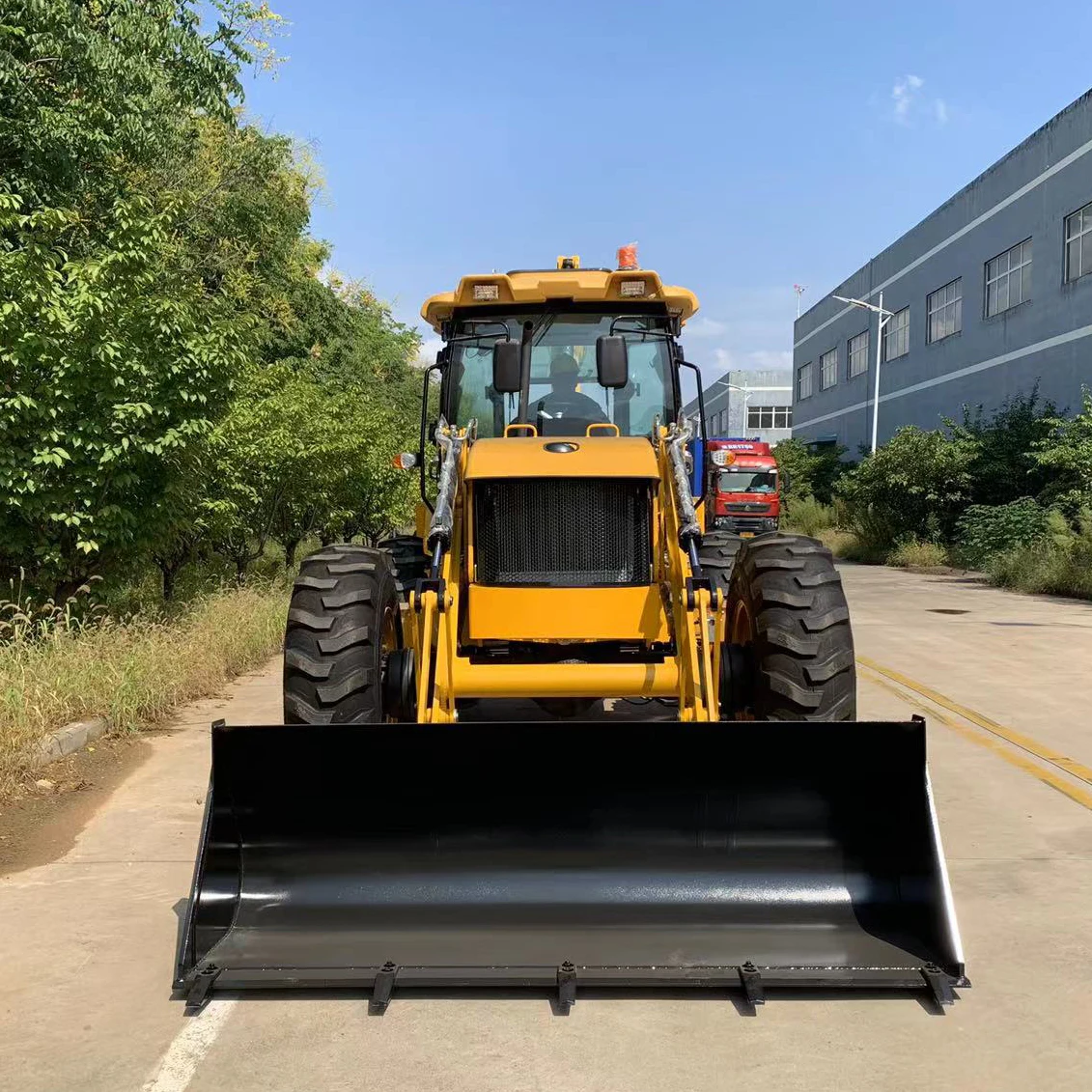

RUNTX brand Backhoe Loader
1.Enlarged operator cabin, with secure glass, is capacious and bright.
2.Working table, water temperature, oil temperature, current, work timing are all in sight.
3.Famous brand hydraulic components are adopted, two gear oil pump work together, the power is driving and loading and dumping can change freely.
4.Adjustable seat, convenient and comfortable to use.
5.Rear and front body, with small rotary radius, hydraulic steering, comfy and convenient to operate.
6.Ascendant performance of complete appliance, with extraordinary operation efficiency.
7.With which many kinds of optional components can be matched to meet requirements of different users.
1.Enlarged operator cabin, with secure glass, is capacious and bright.
2.Working table, water temperature, oil temperature, current, work timing are all in sight.
3.Famous brand hydraulic components are adopted, two gear oil pump work together, the power is driving and loading and dumping can change freely.
4.Adjustable seat, convenient and comfortable to use.
5.Rear and front body, with small rotary radius, hydraulic steering, comfy and convenient to operate.
6.Ascendant performance of complete appliance, with extraordinary operation efficiency.
7.With which many kinds of optional components can be matched to meet requirements of different users.
Product Paramenters
Model | RTX35-40 Articulated | RTX28-32 Compact | |||
Overall dimension | mm | 7600x2260x3000 | 6450x2500x3120 | ||
Rated load capacity | Kgs | 3000 | 2800 | ||
Operate weight | Kgs | 8000 | 8000 | ||
Front bucket capacity | m³ | 1.7 | 1.5 | ||
Backhoe bucket capacity | m³ | 0.35 | 0.35 | ||
Max.dumping height | mm | 2742 | 2800 | ||
Max.digging depth | mm | 4000 | 4000 | ||
Wheelbase | mm | 2250 | 2335 | ||
Mini.ground clearance | mm | 300 | 300 | ||
Max.drive speed | Km/h | 38 | 38 | ||
Hydraulic System | Pressure | Mpa | 22 | 22 | |
Engine | Model | Yuchai YCD4J22T-125 | Yuchai YCD4J22T-125 | ||
Rated power | Kw | 91 | 91 | ||
Cylinder number | 4 | 4 | |||
Optional model | DF Cummins 4BT3.9-C125 engine (92KW) Italy Fiat brand EPA T4 engine (90KW) | DF Cummins 4BT3.9-C125 engine (92KW) Italy Fiat brand EPA T4 engine (90KW) | |||
Transmission System | Gears ( F/R) | 4/4 | 4/4 | ||
Drive type | 4 wheel drive, articulated steering | 4 wheel drive, 4 wheel steering, crab walking | |||
Steering systerm | Steering angle | ° | ±36 | ±36 | |
Min. Turning Radius | mm | 5018 | 5750 | ||
Brake System | Service brake | Air Over Oil Caliper Brake | Air Over Oil Caliper Brake | ||
Parking brake | Manual | Manual | |||
Tyre(F/R) | 16/70-24 | 16.9-28 | |||
Customization
Company Profile

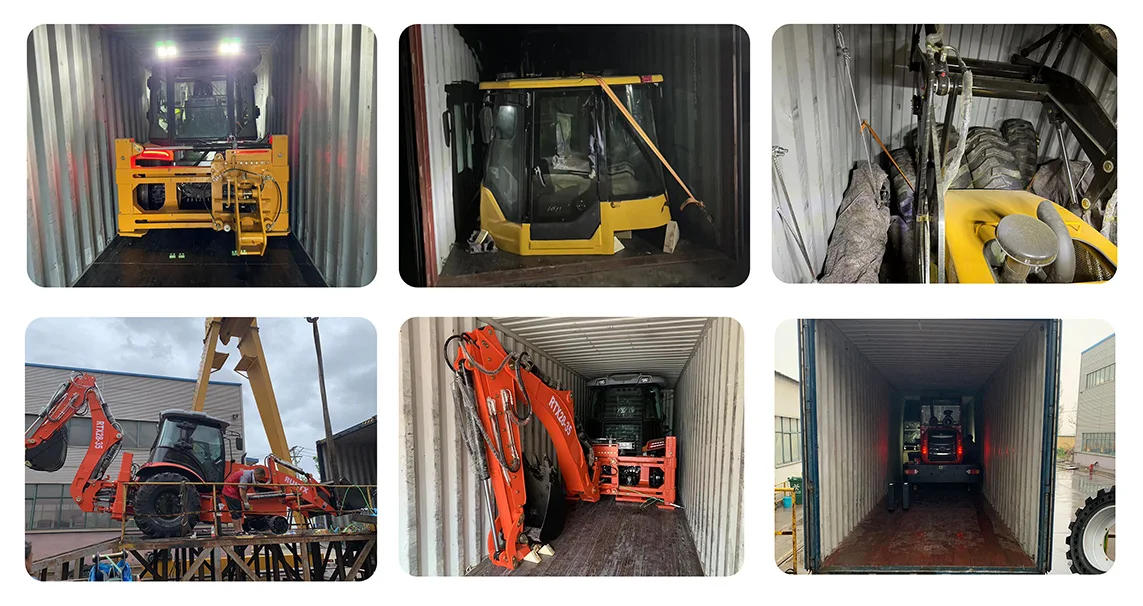

Shipping Packing
FAQ
1. Why choose us?
As a manufacturer,Runtx industrial is committed to offer not only skid steer loaders with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
Runtx industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,skid steer loader,excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if
needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products,we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements to
your order.
6. Can we provide OEM service?
We can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
7. After-sales service
We can provide 12 months or 2000 working hours from BL date.
As a manufacturer,Runtx industrial is committed to offer not only skid steer loaders with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
Runtx industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,skid steer loader,excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if
needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products,we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements to
your order.
6. Can we provide OEM service?
We can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
7. After-sales service
We can provide 12 months or 2000 working hours from BL date.
