Product Details
220V AC Synchronous Motor 60KTYZ 14W Permanent Magnet Synchronous Motor Gear Motor 220V 2.5/5/10/15/20/30/40/50/60RPM
Application Scope:
Rang hood, Fan door, Gluestations, Mood monitors, Mahjong machines, Electric screen, Electric oven, Ice machines
High Torque Gear Motor,planetary gear motor,dc motor,brushless,vibration motor,coreless motor,reversible 120v 220v ac synchrunous motor,synchronous gear motor etc. we have over 100 series and thousands of dc motors and gear motors for your choise, any interests or question please contact us freely, any other special requests can be customized
Basic information:
Voltage: 220VAC 50/60HZ (12/24/36/100/110V can be customized)
Rated speed: 1.2 to 100rpm
Rated input power: 14W
Rated output power: 3.5W
Rated torque: 2 to 100kg.cm
Rotation: CW and CCW
| Rated speed(rpm) | 1.2 | 2.5 | 5 | 8 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 |
| Actual speed(rpm) | 1.18 | 2.51 | 5.2 | 8.23 | 9.86 | 14.71 | 19.15 | 25.86 | 29.6 | 40.18 | 49.81 | 59.38 | 79.86 | 107.3 |
| Rated Torque(kg.cm) | 100 | 80 | 40 | 23 | 20 | 13 | 10 | 8 | 6.5 | 5 | 4 | 3 | 2.5 | 1.8 |
| Actual Torque(kg.cm) | 225 | 90 | 45 | 28 | 23 | 15 | 11.5 | 9 | 7.5 | 5.5 | 4.5 | 3.5 | 2.8 | 2.0 |
when 60hz, speed more than 1.2; torque lower than 1.2 | ||||||||||||||
Advantages
This ac synchrnous gear motor is featured as little consumption, high torque, no noise, light weight.

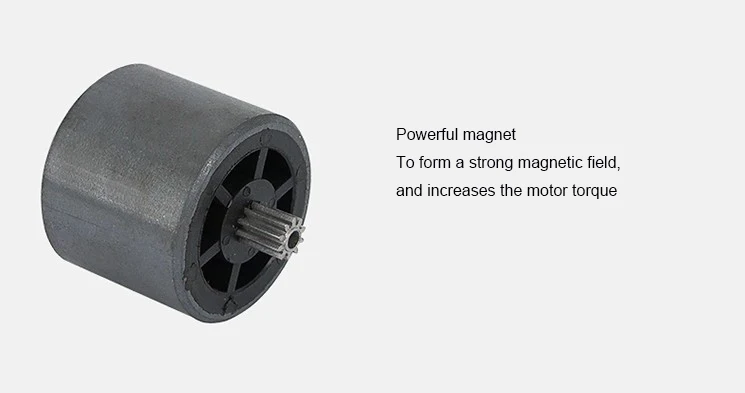

1--Using good magnetic steel, strong magnetic, torque higher than 50ktyz motor

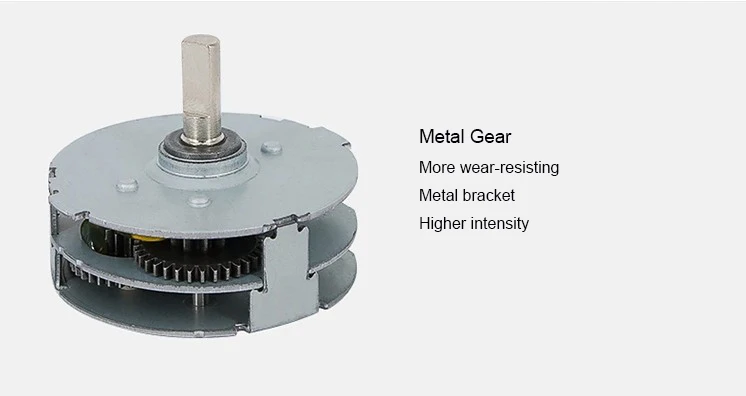

2--45# gear inside, high hardness

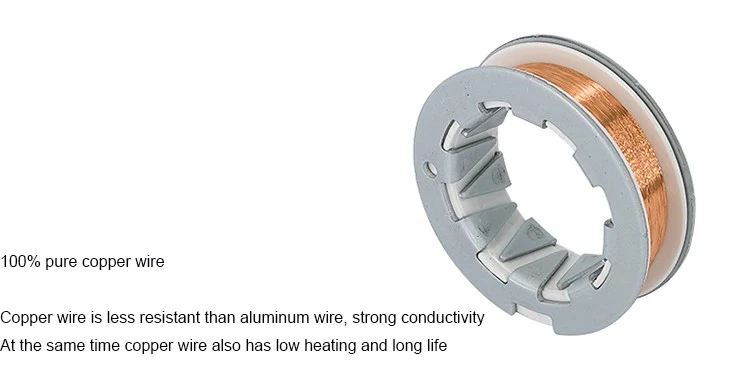

3--100% pure enough copper wire, performance stable, more safe
Package details
