Беспроводная мини-ленточная пила для резки металла
US $409.00-$449.00
BS-650G TTMC ленточной пилы для резки металла со стандартами качества Евросоюза (CE)
- Категории: Band Saw Machines >>>
- Поставщик: Tengzhou,Tri-Union,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview

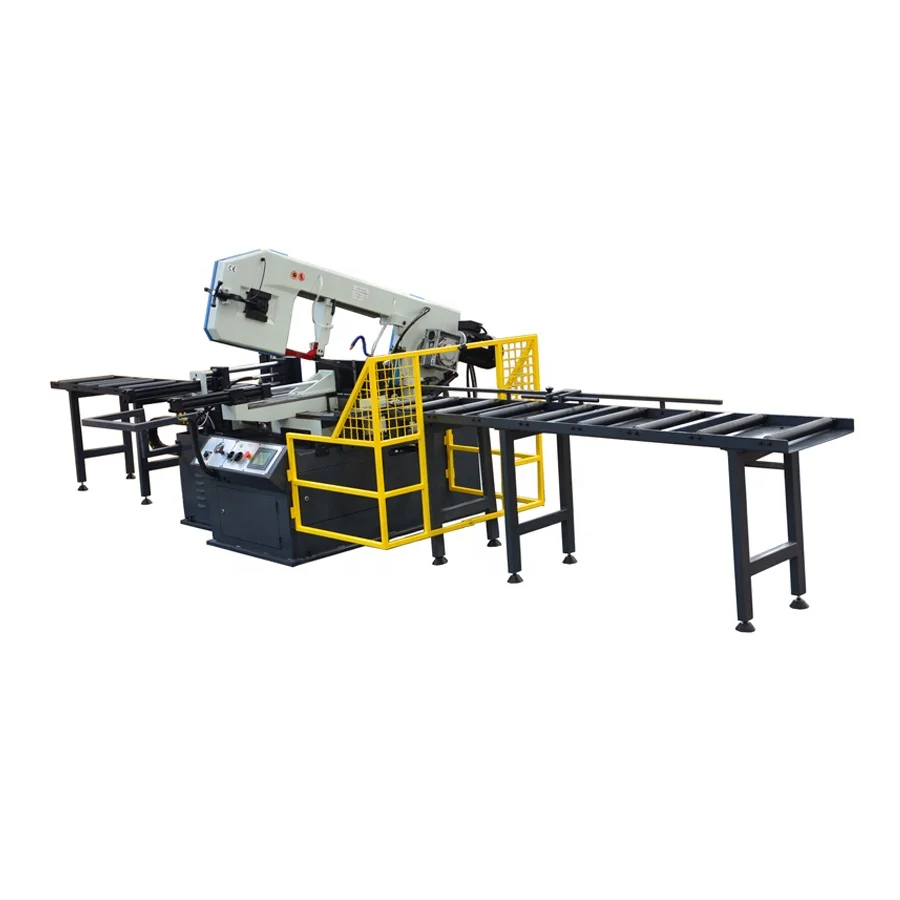

TTMC Automatic Metal Cutting Band Saw BS-650G
The BS-650G automatic feed bandsaw's hydraulic system can automatically clamp, cut, and feed bundles. The heavy steel frame on this 3 phase bandsaw maintains accuracy
FEATURES AT A GLANCE
Cuts up to 13” round and 13” x 18” rectangle at 90°
23-94 rpm variable speed
Miters up to 45° with a degree indicator to show your angle.
Powerful 5.5 kW servo motor
Automatic system, with a hydraulic vise and automatic return, saves time and smoothly manages the whole cutting process, including transitions.
Digital encoders feed the material between cuts for repeatability.
23-94 rpm variable speed
Miters up to 45° with a degree indicator to show your angle.
Powerful 5.5 kW servo motor
Automatic system, with a hydraulic vise and automatic return, saves time and smoothly manages the whole cutting process, including transitions.
Digital encoders feed the material between cuts for repeatability.
PRODUCT SPECIFICATIONS
TTMC CNC Metal Cutting Bandsaw BS-650G
Item No. | 388126 |
Model | BS-650G |
Cut circular @90° | 460 mm |
Cut rectangular @90° | 650x350 mm |
Cut circular @60° (right) | 310 mm |
Cut rectangular @60° (right) | 310x350 mm |
Cut circular @45° (right) | 460mm |
Cut rectangular @45° (right) | 460x350 mm |
Blade speed | 23-95 rpm |
Blade size | 41x1.2x5220 mm |
Motor | 5.5 kW, servo motor |
Drive | Gear |
Packing size | 303x228x222 cm |
N.W./G.W. | 2430/2730 kg |
