HSS df100 модуль чаша тип шестерни резак с прямыми зубьями

Описание и отзывы

Характеристики

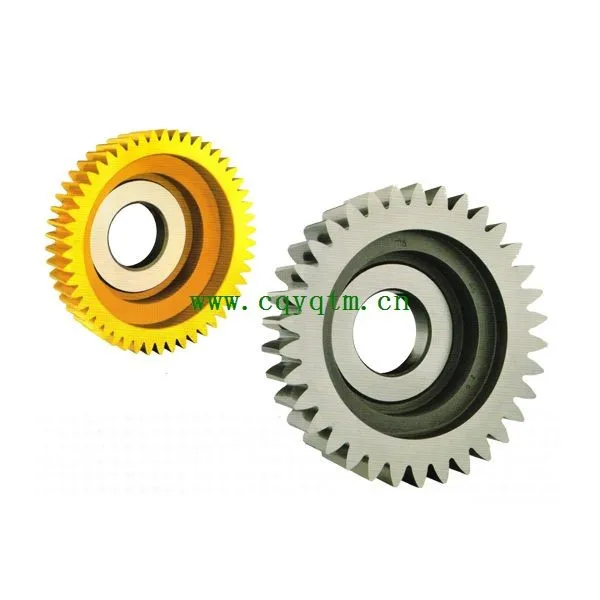

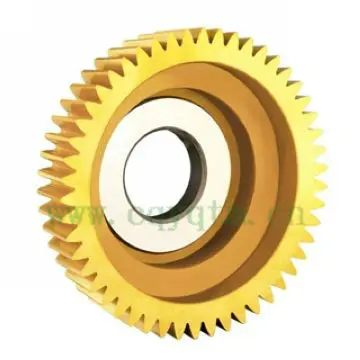

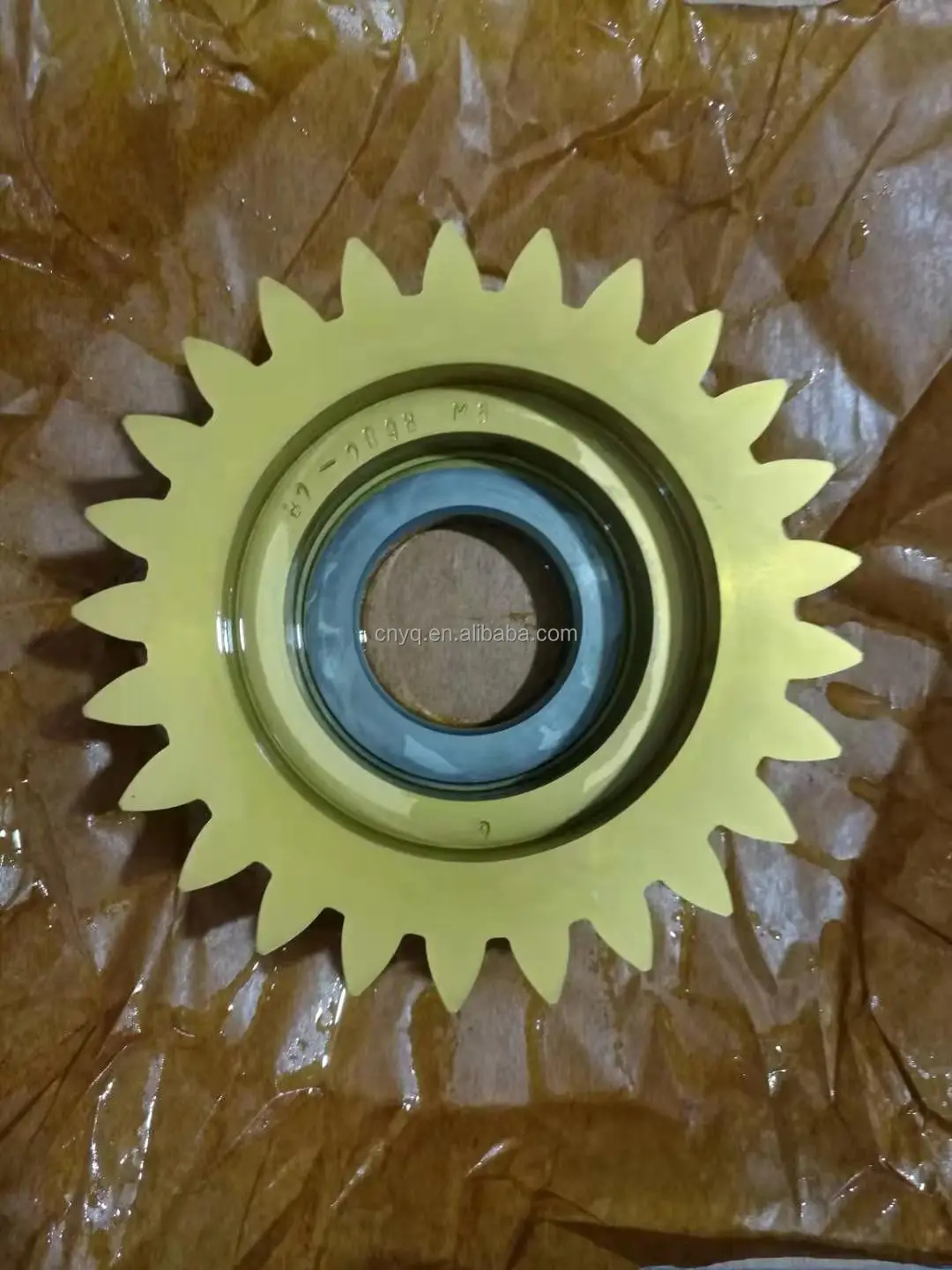

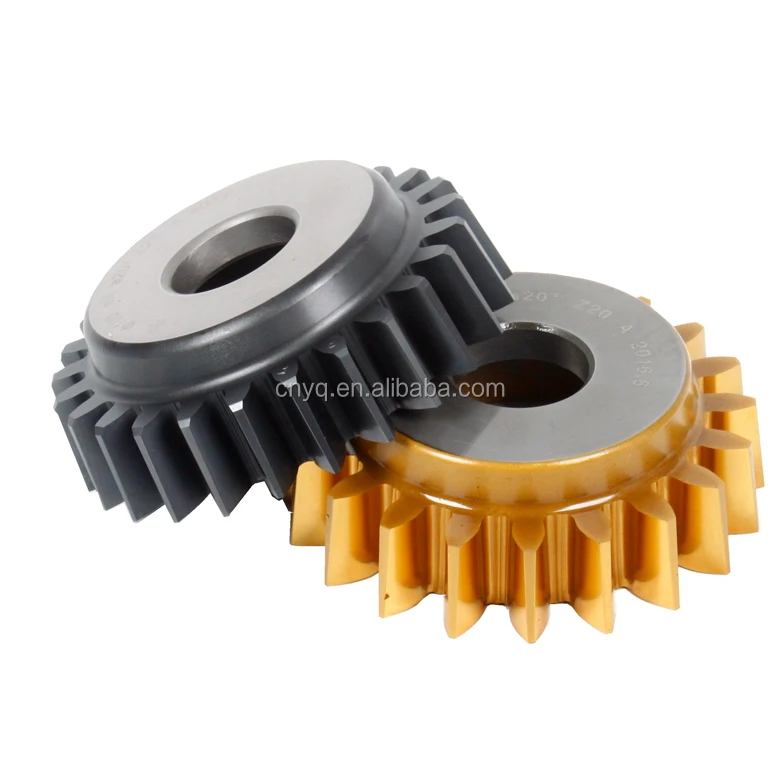

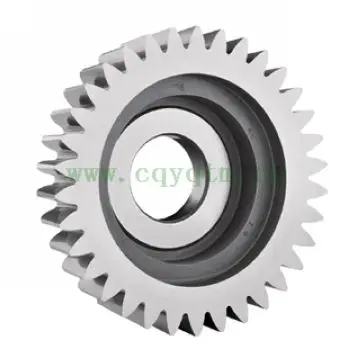

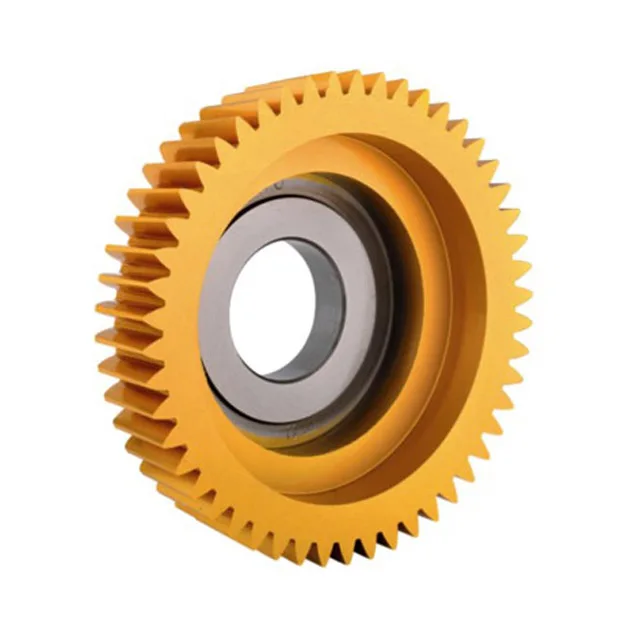

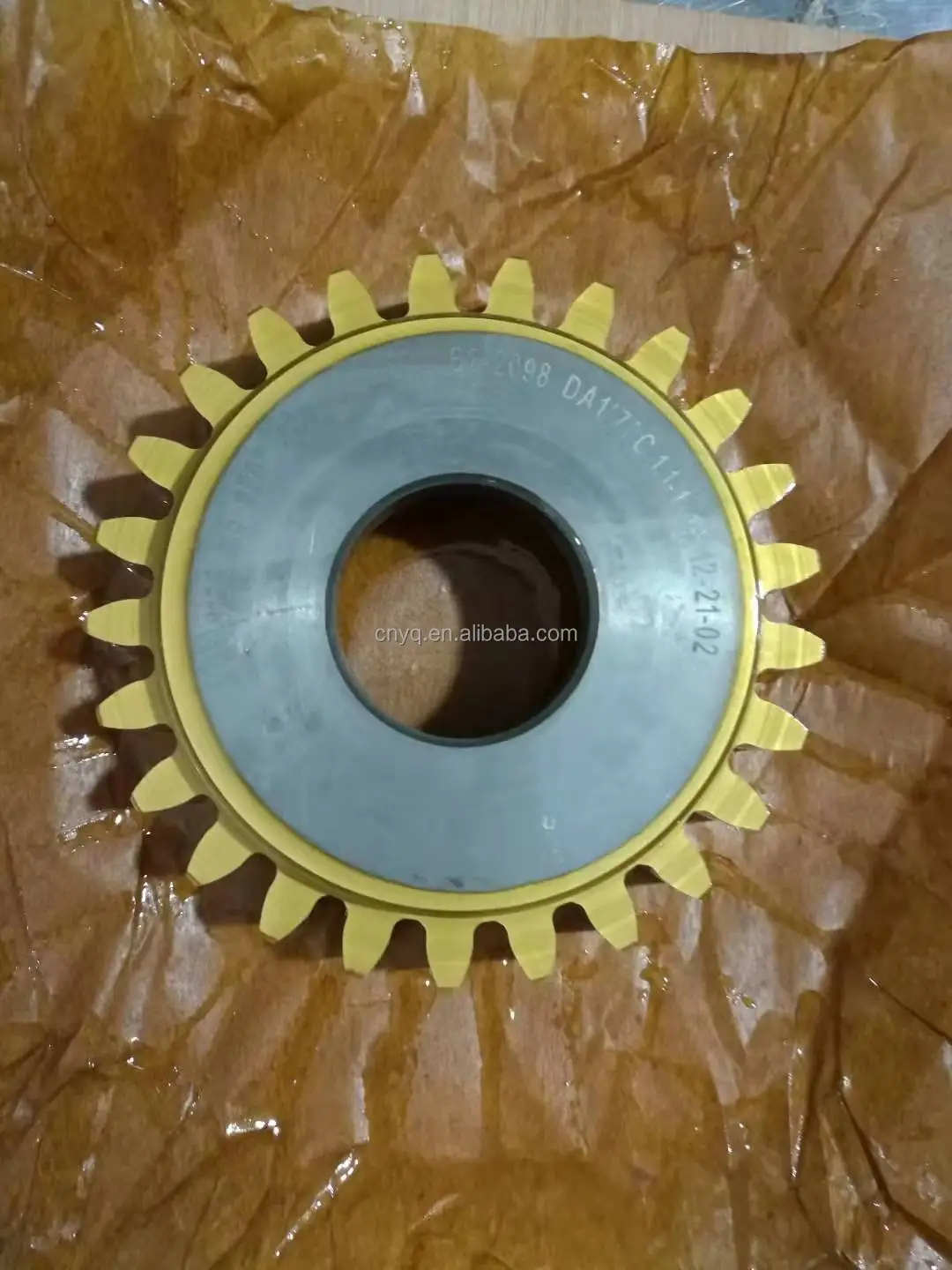

HSS df100 Module Bowl Type Gear Pinion Cutter with Straight Teeth Gear shaper



1.Nominal pitch circle dia.:75mm ClassAA,ClassA ,ClassB



Module	No. of teeth	Outside dia.	Dia.
1	76	78.72	31.743
1.25	60	78.38
1.5	50	79.04
1.75	43	79.99
2	38	81.40
2.25	34	82.56
2.5	30	81.76
2.75	28	84.42
3	25	83.10
3.25	24	86.78
3.5	22	86.44
3.75	20	85.14
4	19	86.80





2. Nominal pitch circle dia.:50mm ClassA , ClassB

Module	No. of teeth	Outside dia.	Hole dia.
1	50	52.72	20
1.25	40	53.38
1.5	34	55.04
1.75	29	55.49
2	25	55.40
2.25	22	55.56
2.5	20	56.76
2.75	18	56.92
3	17	59.10
3.25	15	57.53
3.5	14	58.44





3.Nominal pitch circle dia.:100mm ClassAA , ClassA ,ClassB



Module	No. of teeth	Outside dia.	Dia.
1	100	102.62	31.743(or 44.443)
1.25	80	103.94
1.5	68	107.14
1.75	58	107.62
2	50	107.00
2.25	45	109.09
2.5	40	108.36
2.75	36	107.86
3	34	111.54
3.25	31	110.71
3.5	29	112.08
3.75	27	112.35
4	25	111.46
4.5	22	111.78
5	20	113.90
5.5	19	119.68
6	18	124.56





4. Nominal pitch circle dia.:125mm ClassAA, ClassA, ClassB

Module	No. of teeth	Outside dia.	Hole dia.
4	31	136.80	31.743(or 44.443)
4.5	28	140.14
5	25	140.20
5.5	23	143.00
6	21	143.52
6.5	19	141.96
7	18	145.74
8	16	149.92































Material Introduction:



A. W6Mo5Cr4V2 (GB), M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition: C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application: It is widely used for making all kinds of cutters and durability cold-work die





B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), S6-5-2-5(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application: It is often used for making blades with high-speed and great cutting difficulty as it’s good abrasive resistance



W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
