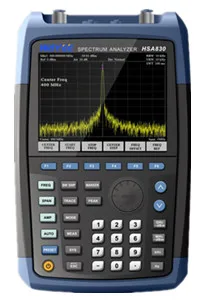

Portable 3.6GHz Handheld spectrum analyzer

Product Description





HSA830

Features and Benefitd

  • 6.5 inch LCD Display
  • User-Friendly Menu
  • Li-ion Battery for 6000mAH inside
  • PC support for remote control
  • Support to integrate to user systems for further R&D develop
  • USB Interface
  • SCPI Support

Specification

Frequency Range9KHz-3.6GHz
Frequency resolution1Hz
Readout Accuracy± (frequency standard reading × frequency reference accuracy +1% × span +10% × RBW +0.5 × [span / (sweep points -1)] +1 Hz)
Frequency reference stability (10MHz)Aging rate<1ppm/year
Temperature stability<0.5ppm (15°C~35°C)
Resolution Bandwidth Range (RBM)
Range (<1KHz Optional )10Hz to 500kHz (1 to 10 continuous),1MHz,3MHz
Selective   RBW500kHz<5:1
Accuracy<5%
VBW10Hz~3MHz



Sweep time
Setting range100HzSPAN3GHz10ms to 3000s
Span=0 Hz1ms to 3000s
Sweep modecontinuous,single
Frequency conter
Resolution1Hz,10Hz,100Hz,1kHz
Counter uncertainty±(frequency read value×frequency reference accuracy +counter resolution)
Total Amplitude Uncertainty±1.5dB
Displayed Average Noise Level(10Hz RBW)
Frequency Preamplifier offPreamplifier on
100kHz-90dBm-110dBm
1MHz-120dBm-140dBm
100MHz-122dBm-145dBm
500MHz-125dBm-145dBm
1000MHz-122dBm-140dBm
1.4GHz-120dBm-138dBm
1.8GHz-123dBm-140dBm
2.2GHz-121dBm-138dBm
3.0GHz-120dBm-137dBm
Phase Noise-80dBc/Hz @ 10kHz(typ.)
-90dBc/Hz @ 30kHz(typ.)
-115dBc/Hz @ 1MHz(typ.)
Amplitude
Maximum safe input levelAverage continuous power+27dBm
Max input DC voltage50Vdc
Input attenuator range+7dBm
1dB Compression point0 to 39dB,steps:3dB
Spurious response
TOI+13dBm
SHI+30dBm
Input related spurious<-85dBm
Residual response(Inherent)<-60dBc



Input/Output
RF InputType-SMA female(50Ω)
USBVersion 1.1
LAN Interface

Headset jack

AM/FM

RJ-45,10 Base-T,100 Base-T

Reference Input/OutputBNC female,10MHz
