Солнечный водонагреватель-горячий 99 C для горячей

Описание и отзывы

Характеристики

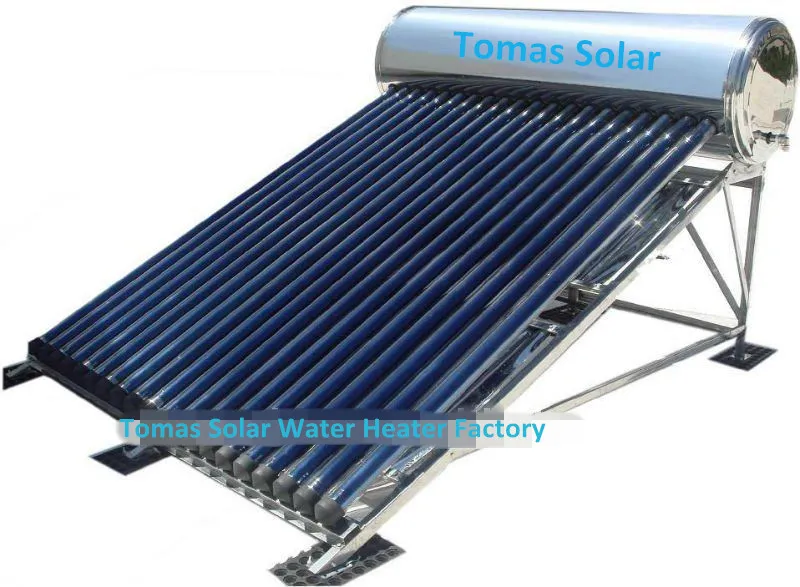

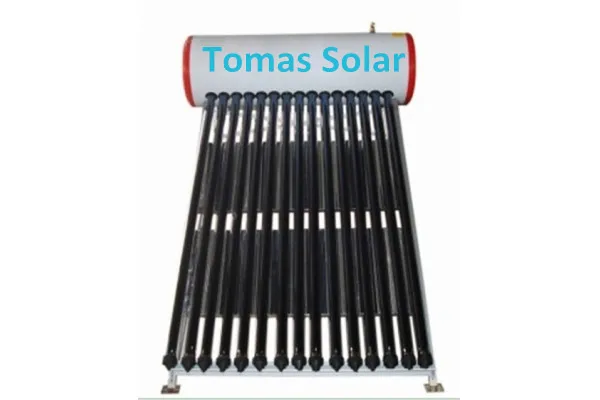

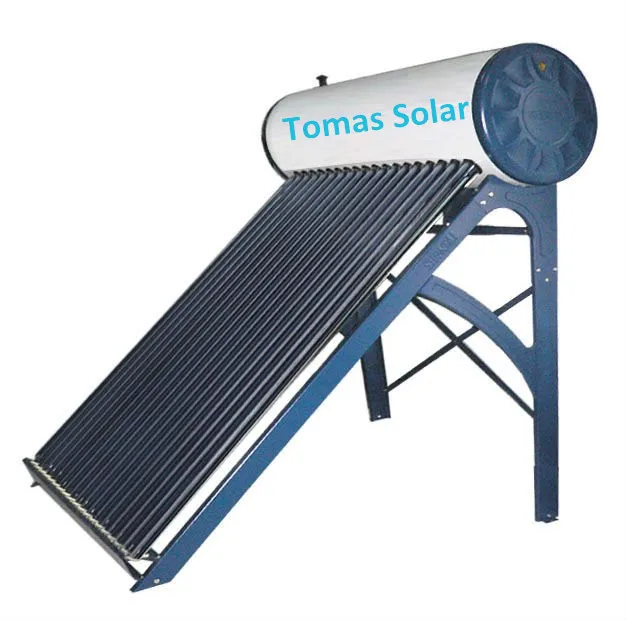

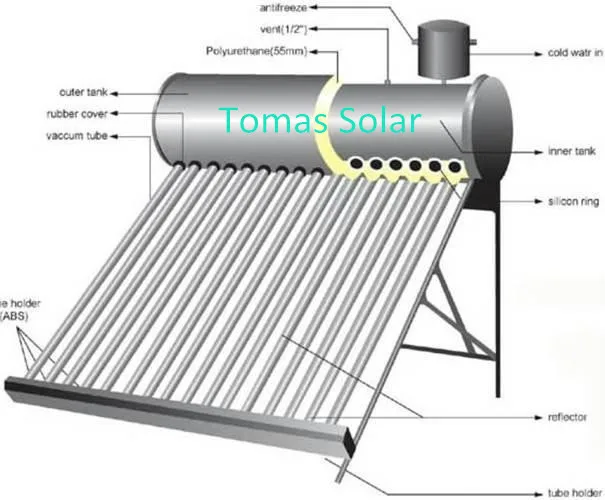

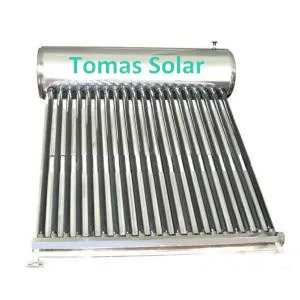

Vacuum tube solar water heater

Outer tank: SUS304-2B stainless steel or colourful steel or galvanized steel

Inner tank: SUS304-2B food-grade stainless steel thickness≥0.4

Sealing Ring: Excellenrt Silica gel material. Life is twice longer than common Silica gel.

Cap of water tanks: Aluminium-alloy thickness≥1.0

Vacuum tuber: High-efficient vacuum tube

High-Efficient heat-collection function: New generation o vacuum tubes, use molecular nanotechnology, greatly enhance heat-absorption by 20 percent, higher water temperatures.

Adopts the international advanced film-coating technology, solar thermal conversion rates extremely high, absorbing heat even if the cloud weather.

Vacuum tube strictly choose high-borosilicate glass 3.3 so that it has low coefficient of thermal expansion and higher intensity. Hail-resistance: 25mm

Insulation: 55mm polyurethane keep heating do with aging the cell is small and uniform reasonable density excellent insulation

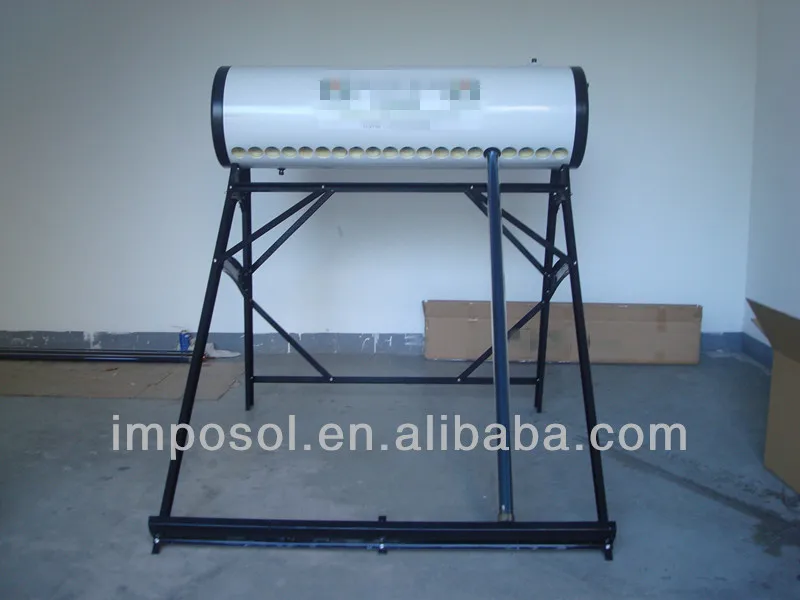

Frame: Thicker galvanized steel, Anti-corrosive. And Anti-ultraviolet, installed in the slope and flat place freely. Strengthen hail-resistance. Best angle for the winter: 45 degree. Through oxidation process. It increase wind resistance., life is longer than common frame. Beautiful appearance.

Automatic operation: Digital controller shows water temperature and water lever, water loading automatically, heating automatically, controlling automatically.





Model	Light Area(m2)	Vacuum Tube			Tank Net Capacity (Liters)	Overall Capacity   (Liters)	20GP/40HQ Loading Qty(sets)
		Ø(mm)	L(mm)	NO.
IPJG 47581810-GS/SS	1.4	58	1800	10	85	116	71/172
IPJG 47581812-GS/SS	1.68	58	1800	12	100	137	62/150
IPJG 47581815-GS/SS	2.1	58	1800	15	125	172	52/125
IPJG 47581816-GS/SS	2.24	58	1800	16	135	185	48/116
IPJG 47581818-GS/SS	2.52	58	1800	18	150	206	43/105
IPJG 47581820-GS/SS	2.8	58	1800	20	170	232	39/96
IPJG 47581824-GS/SS	3.36	58	1800	24	200	274	34/82
IPJG 47581830-GS/SS	4.2	58	1800	30	250	343	28/68
IPJG 47581836-GS/SS	5.04	58	1800	36	300	412	23/57
IPJG 47471515-GS/SS	1.35	47	1500	15	110	134	62/152
IPJG 47471518-GS/SS	1.62	47	1500	18	135	164	54/131
IPJG 47471520-GS/SS	1.8	47	1500	20	150	182	50/122
IPJG 47471524-GS/SS	2.16	47	1500	24	175	213	43/104
IPJG 47471530-GS/SS	2.7	47	1500	30	220	268	34/84
IPJG 47471536-GS/SS	3.24	47	1500	36	260	318	29/71
