flat panel solar water heater

We are SOLAR WATER HEATER manufacturer with ISO and CE certificate in Changzhou, China.

solar water heater ( CE ISO SGS SOLAR KEMARK )

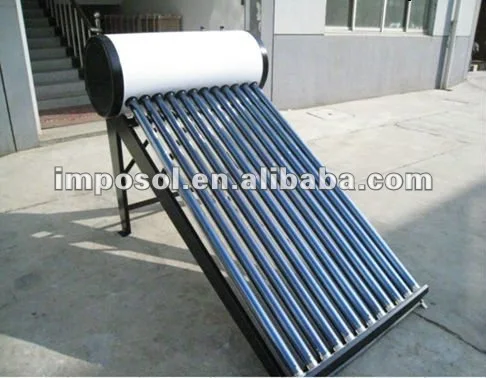

Jingang series is LOW pressurized solar water heater with stainless steel outer tank and support.
Specification:
1) SUS304-2B stainless steel

2) Vacuum heat-collecting tubes at high temperature with new triangle elements
3) A long time of heat preservation
4) Specially fitting in the areas of acid rain, seawind erosion by salt and bad weather conditions
5) Stable and reliable performance, well wind resistance
6) Patent protected collision from the side bracket resistant design
7) Meeting the requirement of washing clothes, abstersion and bathing
8) Meeting the demand of well-to-do families





Model	Ligthing (m2)	Vacuum Tube			Supply hot water(L/D)	20/40" container
		diameter	length	No.
IPJG420-1500/47-12	1.26	Ø47mm	1500mm	12	70	90/205
IPJG420-1500/47-18	1.80			18	100	63/147
IPJG420-1500/47-24	2.49			24	130	50/116
IPJG420-1500/47-30	3.15			30	160	38/89
IPJG470-1500/47-12	1.26	Ø47mm	1500mm	12	90	78/176
IPJG470-1500/47-18	1.80			18	130	62/136
IPJG470-1500/47-24	2.49			24	168	51/108
IPJG470-1500/47-30	3.15			30	210	42/90
IPJG470-1800/58-12	1.68	Ø58mm	1800mm	12	100	66/146
IPJG470-1800/58-18	2.57			18	150	48/110
IPJG470-1800/58-24	3.40			24	200	32/76
IPJG470-1800/58-30	4.32			30	250	26/63
