VMC1200 большой вертикальный обрабатывающий центр с ЧПУ для

Описание и отзывы

Характеристики

VMC1200 large Cnc Vertical Machining center



Table size	mm	1220X620
T slot		5/18/115
Max. load of worktable	kg	1000
Table travel	mm	1200/600/600
spindle nose to table surface	mm	150-750
spidle axis to column surface	mm	650
Spindle  taper		BT40
Speed Range	rpm	40-6000
Max.spindle torque	N.M	52.5/95.5
spindle motor power	kw	11
cuttiing feed  X/Y/Z	mm / min	1-10000
rapid feed  X/Y/Z	m / min	24/24/18
tool magazine capacity	piece	24
tool magazine type		arm type
Max. tool dimension	mm	Ø80/150×300
Max. tool weight	kg	8
Tool changing time(tool-tool/cut-cut)	s	1.75/5
positioning accuracy	mm	±0.005/300 JIS
repeat  positioning accuracy	mm	±0.003
air pressure	Mpa	0.5-0.7
overall dimensions(LxWxH)	mm	3200*2300*2800
Machine weight	kg	8560



 We will test every machines carefully in different status by our professional engineers to make sure our machines quality. For linear guides cnc milling machine, we will test the accuracy by Renishaw laser interferometer and will make ball bar test, as well as cutting test before delivery.With the sequence testing, we can make sure the machines' quality.

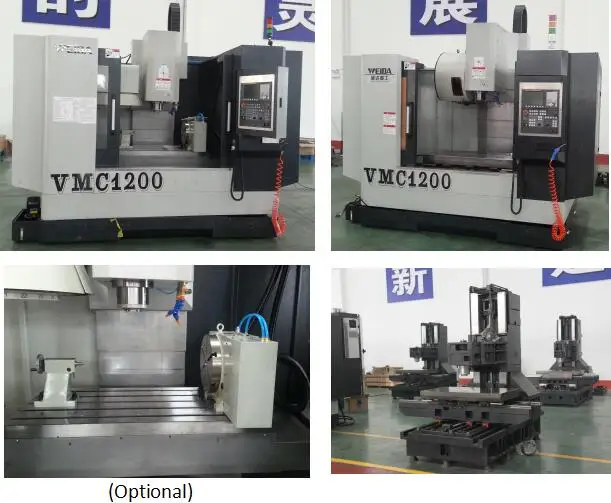

Machine model: VMC1200 large Cnc Vertical Machining center

Packing size: 3540*2280*2550mm

N.W./G.W.:8200/8560KGS

Suitable container:

40HC container



  Mainly used for a variety of complex plane, surface and shell parts processing, for example, all kinds of cams, molds, connecting rods, blades, propellers and boxes and other parts of the milling process, but also can drill, , Etc., for the processing of the box, cavity, mold and other parts, with the specifications of the CNC milling machine and machining center can meet the basic processing requirements.

Optional accessories

 VMC1200 large Cnc Vertical Machining center can be equipped with many accessories to carry out different works. Mostly, the machine can be equipped with the 4th axis rotary table or dividing head, we can supply China brand and Taiwan brand, it can be equipped with tool setting probe. You can use tool setting probe to measure tool length,diameter etc. And you can also choose screw type chip conveyor or chain type conveyor. You can choose all the optional accessories according to your demand. If you need any other accessories, we can talk in details, we will try our best to satisfy all your request.

All our machines have been passed CE certification,such as cnc vertical center machine,vertical machining

center,drilling machines etc.. Besides, we also have ISO9001 certificate. Our company complys with European

standard. We always export our machines to European market,such as Poland, Russia, Italy, Germany,America etc



From the moment we recieve your confirmed order,we will begin to arrange the production. First, we will prepare

the castings. We have our own castinng factories,we can make sure its quality.Casting will decide your machine

quality. When all the parts are ready, we begin to assemble it. During assembling, we will test every step to control

machine's quality. Large parts and protections will be assembled first, then next is painting. After painting, electrical

will be installed, finally, the machine will be assembled well and  tested. We will control each step, so finally, there

should be no problem for assembled machine. We will deliver an qualified machine to you.

Processing equipment

We owns more than 632sets of production equipments, some world famous brand like Germany DMG horizontal

machining center, Germany Trumpf laser cutting machine and bending machine, America floor tye boring machine,

Shanghai cnc gantry guide rail grinding machine, Beijing cnc gantry type boring milling machine and automatic

powder coating line .Besides, Cnc machine tool project laboratory with with advanced testing equipments is built for quality control.





Shandong Weida Heavy Industries co., ltd. is a large scale joint enterprise with the right of import&export.It covers

 an area 500,000square meters,the building zone is about 350,000square meters,and the total assets is more than

RMB500million, there are 365 engineers and 632sets of production equipment&measuring test instrument in the

company.We are the biggest manufacturer of machine tools in the south of Shandong Province. Our main products have developed to 8 series:cnc gantry type machining center, vertical fanuc cnc milling machines specifications,

horizontal boring machine, cnc vertical center machine.altogether more than 90 specifications.



For cnc workshop as above, we will produce vertical machining center,gantry type machining center,horizontal

machining center,cnc vertical center machine etc.. Every year we will produce hundreds of machining centers for

abroad customers. Our brand is well-known in many markets. And in every exhibitions in home and abroad, we will

avertise them. And we get great effect from exhibition.

For milling machine workshop, we produce conventional milling machine, ,cnc millingmachine. We have more than 15  years experience on conventional milling machines. We have great experience and professional engineers, the quality for them is good, you can trust.And our brand for conventional milling machine has been popular in abroad market. We supply the machines to many famous companies, such as Germany KNUTH company, Germany OPTIMUM company, Russia JET company, American companies etc.

Every year, we will attend many exhitions at home and abroad. At home, we will attend CIMES,CCMT,

 CANTON fair etc..At abroad, we will attend EMO held in Hannover or Milano, Metalloobrabotka in Moscow,

and other exhibitions,such as Mexico,Turkey,Colombia, Brazil,Indonesia,Thailand, Iran exhibitions etc.

Our machines are sold well and known by many famous customers.

We are always trying our best to exhibit best machine to you. We warm welcome to make business with you if you

are willing. We will be your good supplier. Because we have good quality machine and good service.
