automatic wall mortar cement spraying plastering putty machine
US $800.00-$2000
Dp-N6M станки для распыления раствора автоматическая система
- Категории: Разбрызгивающие машины >>>
- Поставщик: Ningbo,Dino-Power,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
More products
Product Description

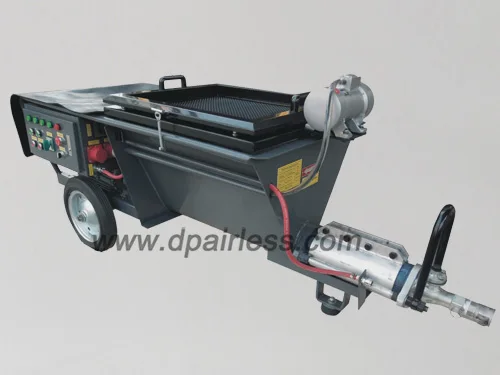

Dp-N6M Mortar Spray Machines,Auto-Mixing Cement Spraying System
| Voltage/Frequency | 380V/50Hz |
| Motor Power | 4.5/5.5KW, variable speed (lower/high) |
| Pump Delivery Capacity | 50L/min ( N6M 40L/MIN) |
| Hopper Volume | 100L |
| Working Pressure | 30bar |
| Delivery Height | 1-30m |
| Delivery Distance | 1-60m |
| Cement Mortar Size | <6mm |
| N6M mixing machine capacity | 120L |
| N6M Mixing speed | 52r/min |
| G.W. | 290kgs ( N6M 430KGS) |
| Overall Demension | 214×75×82cm (N6M 235*85*130CM) |
| Standard Accessories | Φ32mm*10m mortar pipe 1pc Φ8mm*20m vent pipe 1pc Spray gun 1pc Repair kit 1set. |
DP-N6 Mortar Spray Machines is newly designed, economical and practical,durable and high efficiency for spraying cement mortar
DP-N6 ( without MIXER, without COMPRESSOR )
DP-N6M (with MIXER, without COMPRESSOR )
DP-N6C (without MIXER, with German COMPRESSOR )
DP-N6MC (with MIXER, with German COMPRESSOR )
Applications:
Specially designed for spray cement mortar, widely applied for construction projects like
secondary grouting for the channels, cement mortar grouting for slope geotechnical
engineering, prestressing duct grouting, water curtain consolidation grouting, void
grouting for soft foundation and concrete pavement slab bottom, and interior/
exterior wall painting, etc
Features:
1. Output volume adjustable (lower/high speed)
2. Equipped with vibration screen.
3. With remote control function.
4. With durable screw pump.
5. Control box: the core of the machine, to drive the motor, air & water pump.
6. Safety cover & quick unpack gear & material hopper: the material can be unpack
by the gear on the net cover, and be even poured into the tank.
7. Quick snap: easy to fix the material hopper and the cart.
8. 4. 5 /5.5KW motor & retarder: to drive the twister for material transportation.
9. Stirrer tank: quick and even mixing material.
10. Water inlet: lead water into the machine from outside.
11. Spinning Form Twister & Screw Pump: the material will be transport to the outlet by
the screw pump after the quick and even mixing by twister.
12. Pressure controller: to adjust the pressure of the mortar pipe to avoid the suddenness
13. Mortar pipe connector: very easy to connect with the machine.
The model of DP-N6 series Cement Mortar Sprayers as follows
Application
Company Information
Packaging & Shipping
FAQ
Q1:HOW LONG CAN I GET THE FEEDBACKS AFTER WE SENT THE INQUIRY?
Your inquiries will be replied within 1 working day.
Q2: WHAT’S THE PAYMENT TERM?
Sample order, 100% before shipment. Formal order, 30% deposit before production and 70% balance against copy of BL. Normally by T/T.
L/C at sight, Paypal, West Union is acceptable depends on the amount.
Q3:WHAT IS YOUR DELIVERY TIME?
Normally 7 days for the sample order, 25~35 days for the formal orders.
Q4:WHAT IS YOUR WARRANTY TERM?
1 Year warranty for main components(Easy damaged parts are not included.)
Q5:CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
OEM is available. The delivery time will be 35-50 days depend on order quantity and the MOQ will be different based on different models.
Q6: CAN I CHECK THE QUALITY OF GOODS BEFORE DELIVERY?
A:You can come to our factory or ask colleagues from your Chinese office or a third party inspection company to check the quality of goods before delivery.
B:We also can provide inspection report to you before shipping.
