Products Description

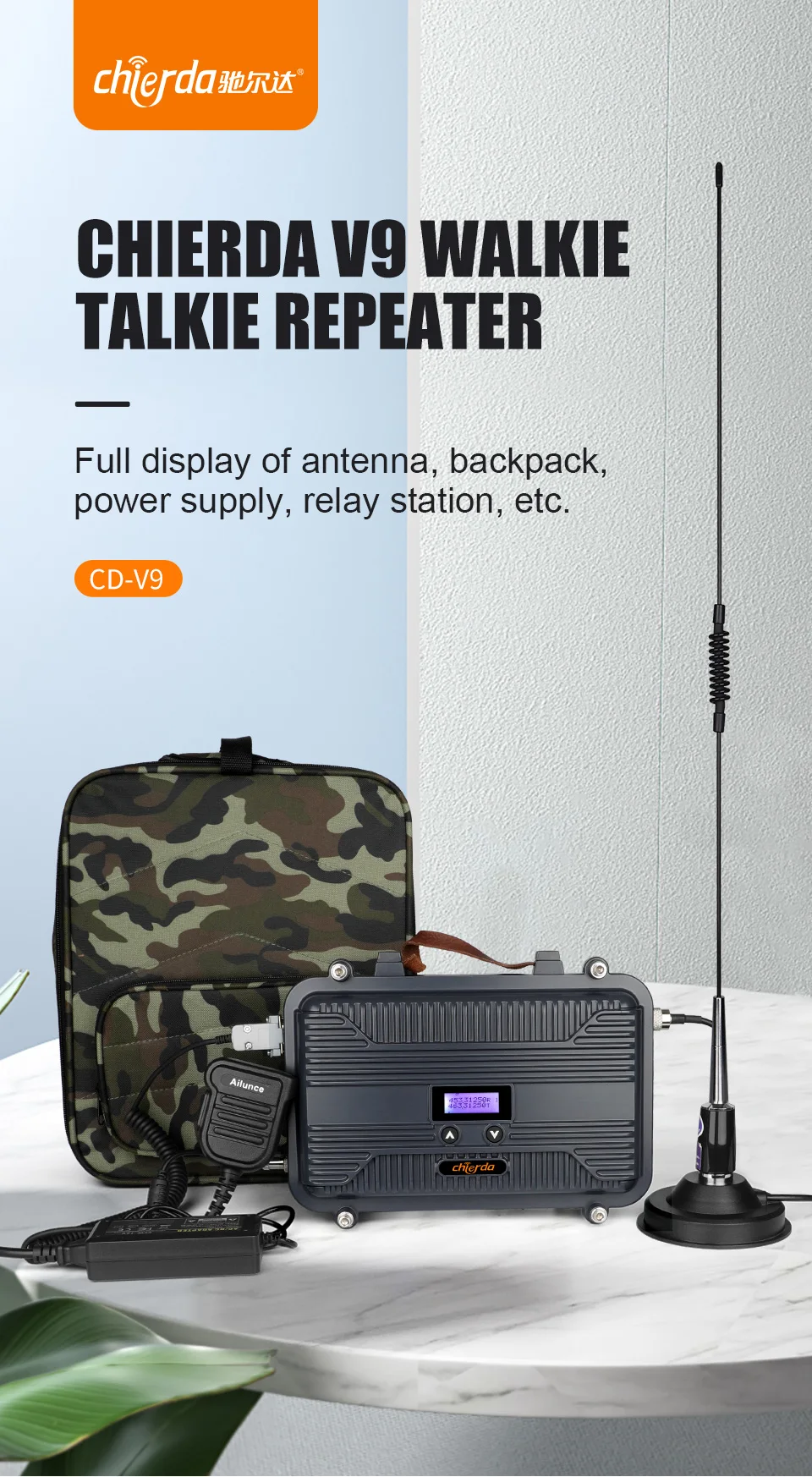

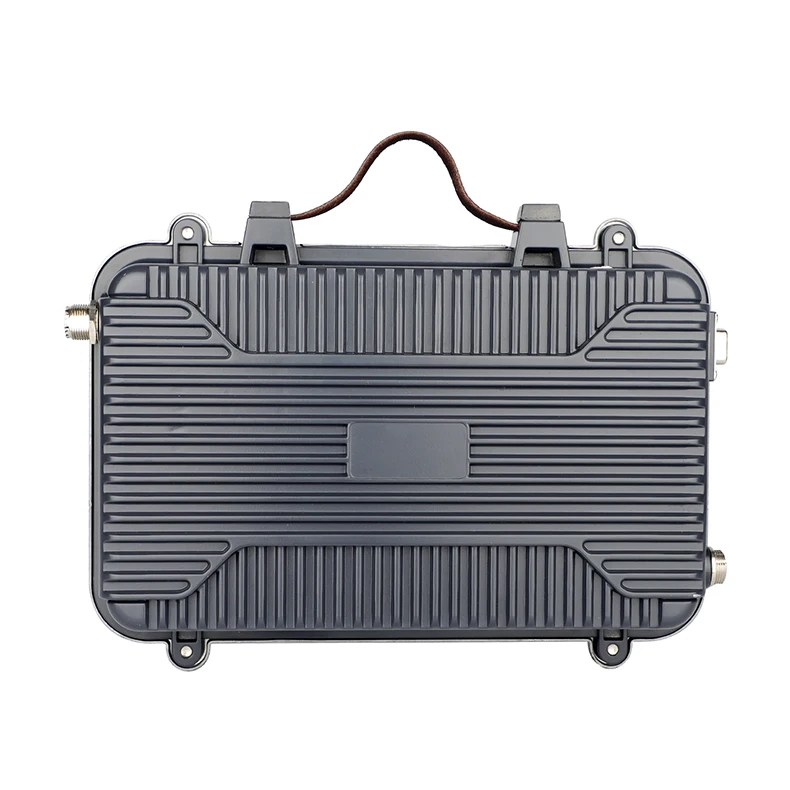

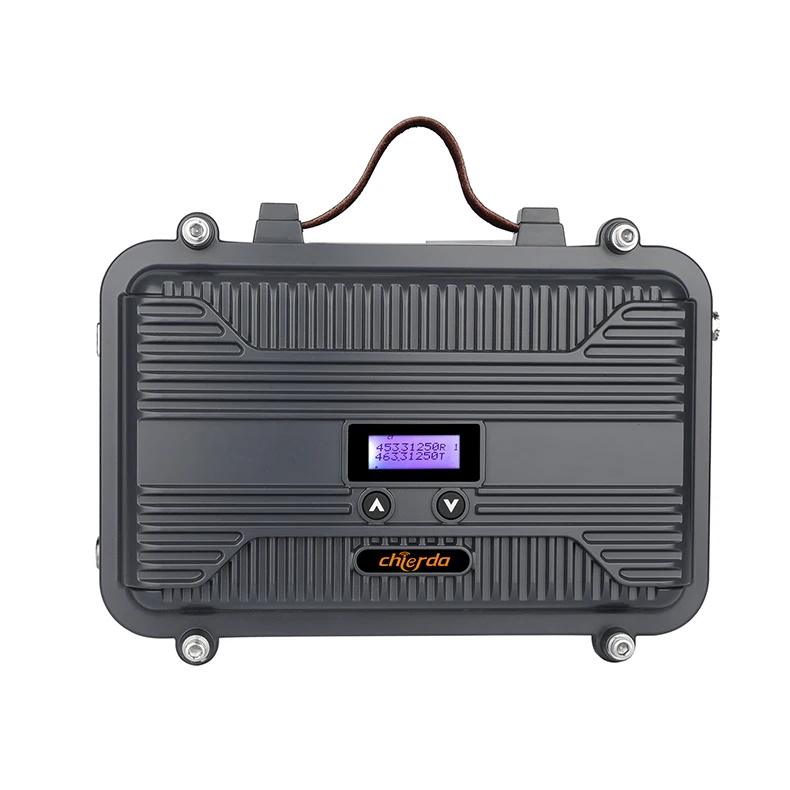

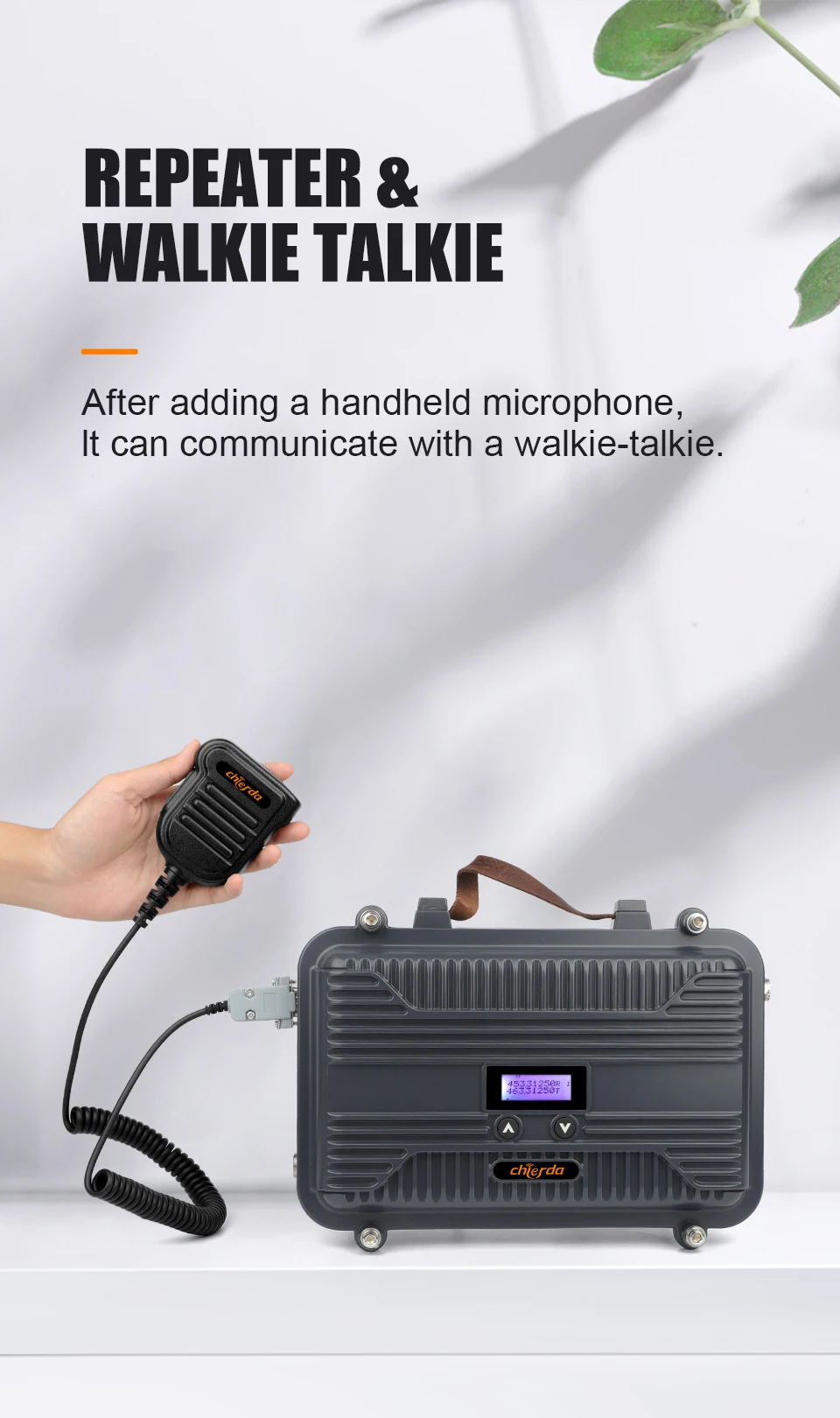

Chierda V9 full-duplex micro base station mobile repeater is designed to expand the transmission range of handheld walkie-talkies and mobile radios, and greatly improve your communication capabilities.
Suitable for business and outdoor activities, such as remote radio solutions between buildings, racing, concerts, ball sports, construction sites, natural disasters, rescue, mountaineering, etc.
Features:
1. The installation is simple and the operation is flexible; the repeater can be fixed or moved and operated flexibly.

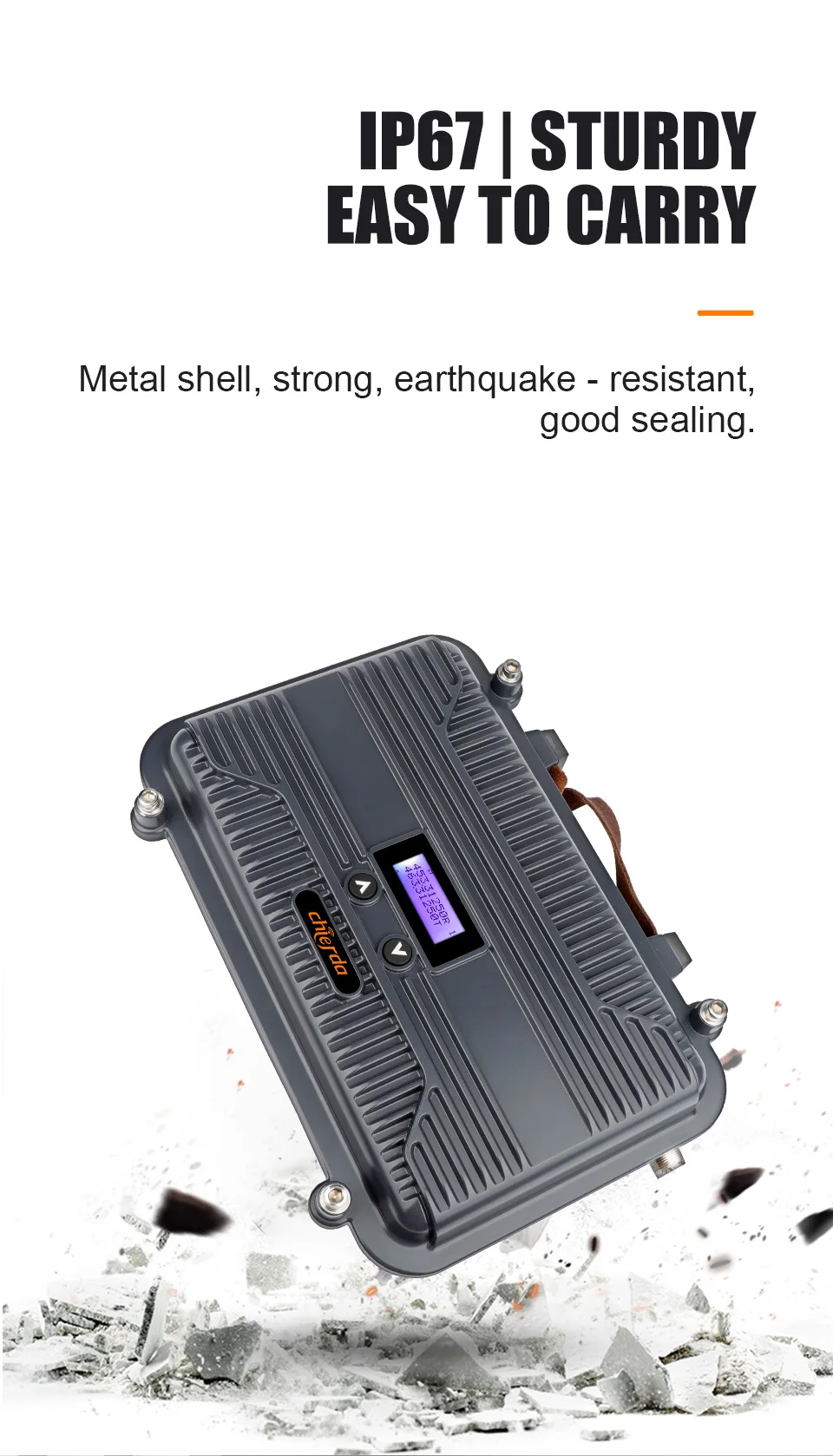

2. Sturdy body and greater flexibility: The sturdy design complies with military specifications and can prevent the influence of dust, wind and other adverse conditions.

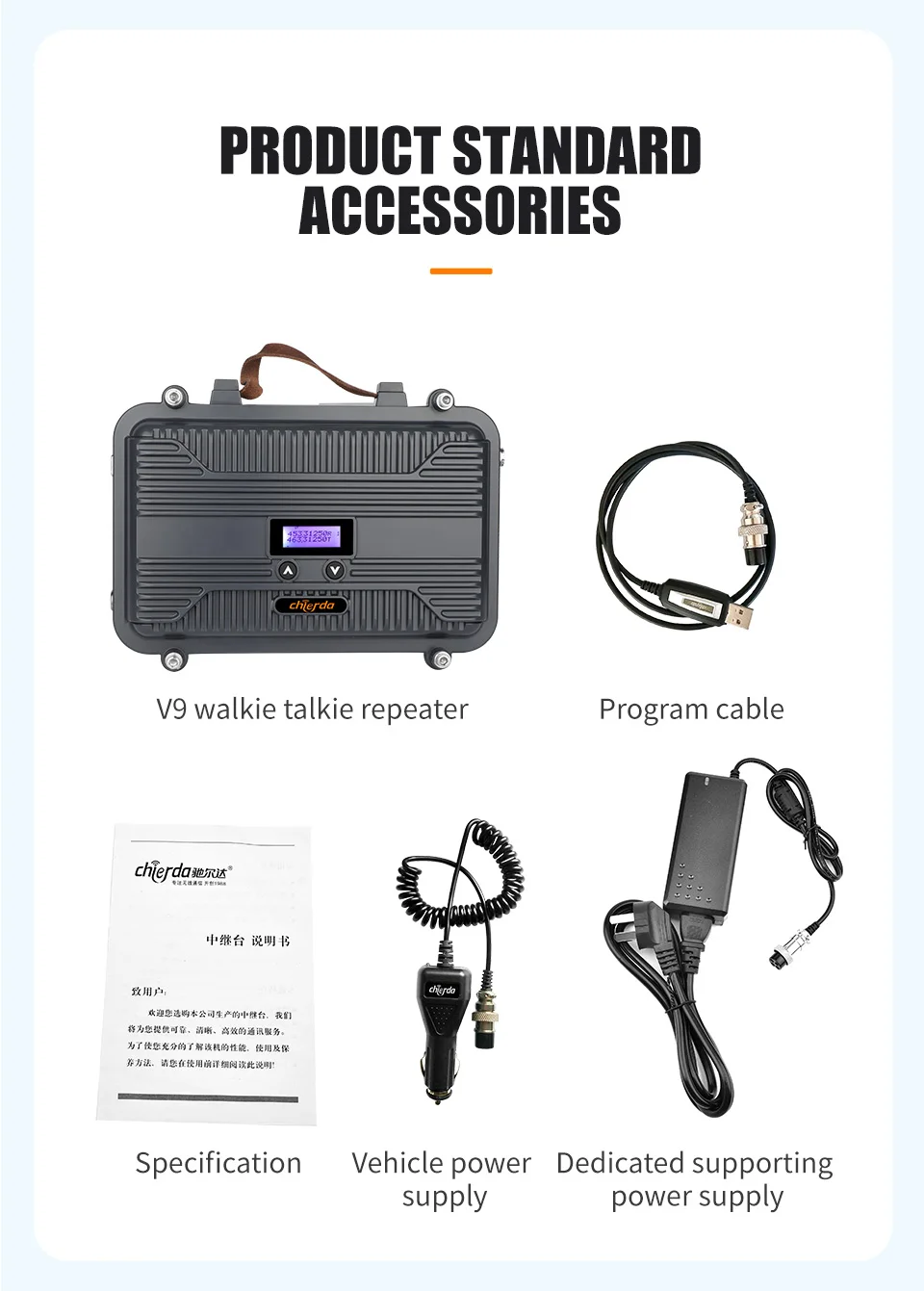

3. Multiple charging options: The matching power adapter can work under DC12V~24V power supply or vehicle power supply to meet your needs.
4. The antenna can be selected according to actual needs.

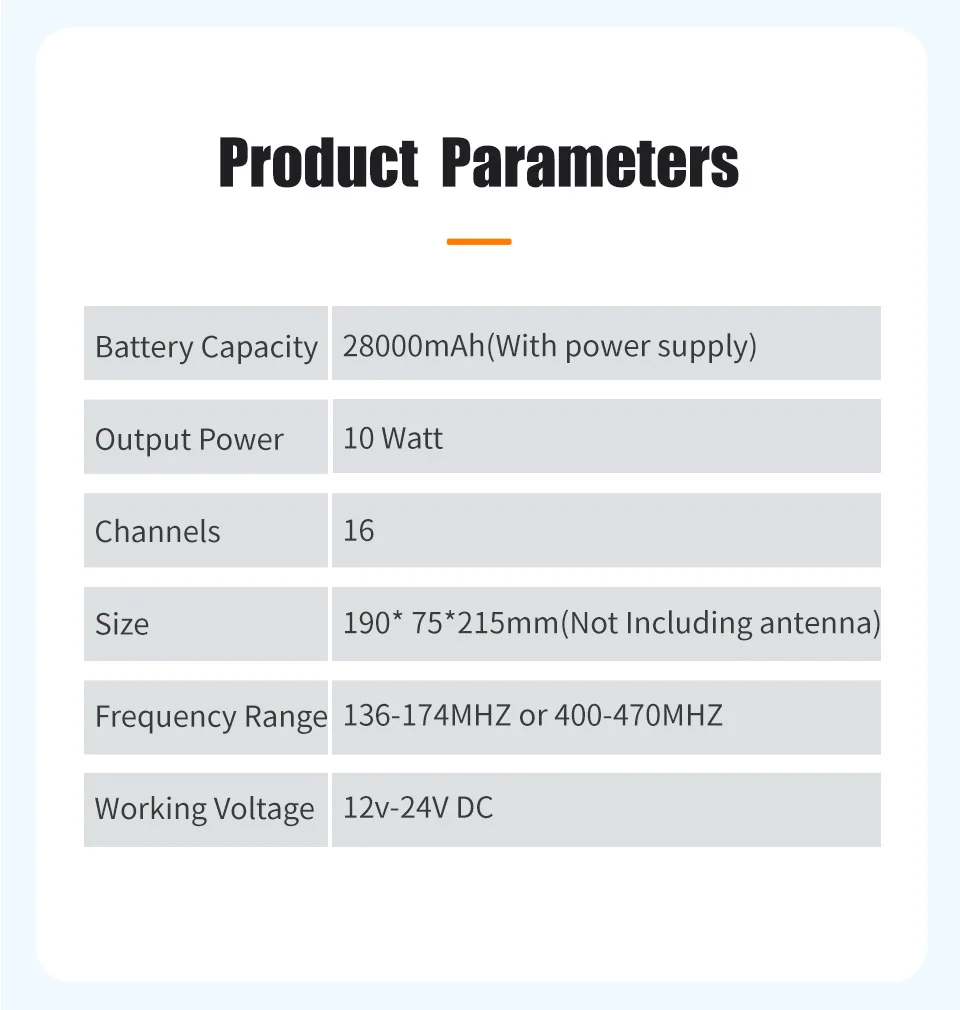

Frequency | UHF:TX 463.3125MHz / RX 453.3125MHz VHF:TX 162.6125MHz / RX 152.6125MHz Customize:136-174MHz/400-470MHz Note: Transmit and receive frequencies to be customized |
Channel Capacity | 16CH |
Channel Spacing | ±12.5KHz Narrow/±25KHz Wide |
Operating Temperature | -30℃~+60℃ |
Operating Voltage | DC12V-24V |
Antenna Impedance | 50Ω |
Frequency Stability | ±0.5ppm |
Dimension | 280×210×75mm |
Weight | 2624g |
Transmitter | ||
Output power | 10W | |
Transmission Current | ≤2.5A | |
FM Modulation | 11kφF3E/16kφF3E | |
Digital modulation | 4FSK | |
Modulation Distortion | ≤5% | |
FM Noise | ≥40dB(25KHz)/≥35dB(12.5KHz) | |
Adjacent Channel Power | ≥70dB(25KHz)/≥60dB(12.5KHz) | |
Audio Response | +1~-3dB | |
DMR Protocol | ETSI-TS102 361-1,-2,-3 | |
Receiver | ||
Analog receive Sensitivity | 0.25μν(12dB)SINAD | |
Digital receive sensitivity | -120dBm (BER≤5%) | |
Adjacent channel selectivity | ≥70dB(25KHz)/≥60dB(12.5KHz) | |
Inter-modulation | ≥60dB/≥65dB | |
Signal imitation | ≥70dB | |
Audio Response | +1~-3dB | |
Audio distortion | <5% | |
FM Noise | ≥45dB(25KHz)/≥40dB(12.5KHz) | |
