Плазменный резак 63A 100A 120A 160A 200A сталь cnc
- Категории: CNC Plasma Cutters >>>
- Поставщик: Maanshan,Durmapress,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Main features

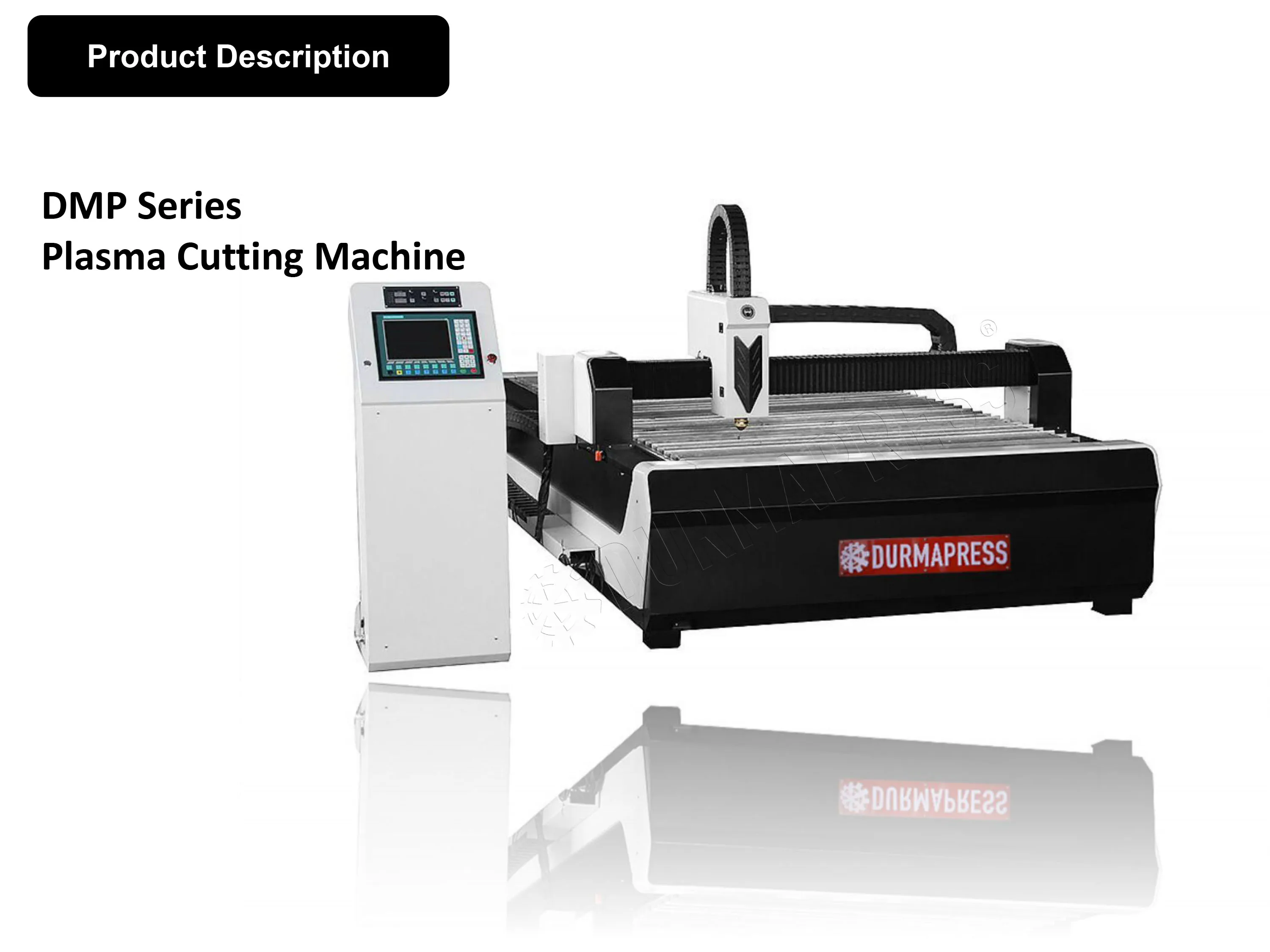

This kind of portable cnc plasma and flame cutting machine is specially developed for steel plate cutting,2 kinds of cutting modes are provided:plasma cutting and flame cutting,working size can be customized upon requirements,this portable cnc plasma and flame cutting machine is characterized of easy operation,compact structure and low cost.It is suitable for large, medium and small mines, widely used in automobile, shipbuilding, engineering machinery, agricultural machinery, suitable for carbon steel (flame cutting), and stainless steel.
Name | Specification |
Working Area(X*Y) | 2700×1500*200mm |
Frame | Square tube |
X Y Z Rail | Taiwan HIWIN Linear guide |
Transmission | X/Y rack and pinion, Z Taiwan TBI Ball Screw |
Motor driver | FL118 Stepper Motor, Leadshine driver |
Control System | START Control System |
Cutting Thickness | 3mm-15mm stainless steel |
Plasma Power Supply | 105A |
Rotary device(diameter) | 200mm |
Working Voltage | 380V,3PH,50/60HZ |
Software | Fastcam |
Detailed Images
Related Products
Packing&Shipping
After Sales Service
Company Introduction
FAQ
