Product Information | ||
Applied lens | 18Lpi,25Lpi,32Lpi,42Lpi | |
Raw material | PS | |
Thickness | 3mm,4.1mm,2mm | |
Size | 120X240cm/200X300 | |
Pitch check ranger | ±0.01Lpi | |
Viewing angle | 36 degree | |
Viewing distance | 1-15m | |
Applied machine | Inkjet lamination or directly UV flatbed printing | |
Recommed effect | 2/3 image flip,animation,3D or motion. |

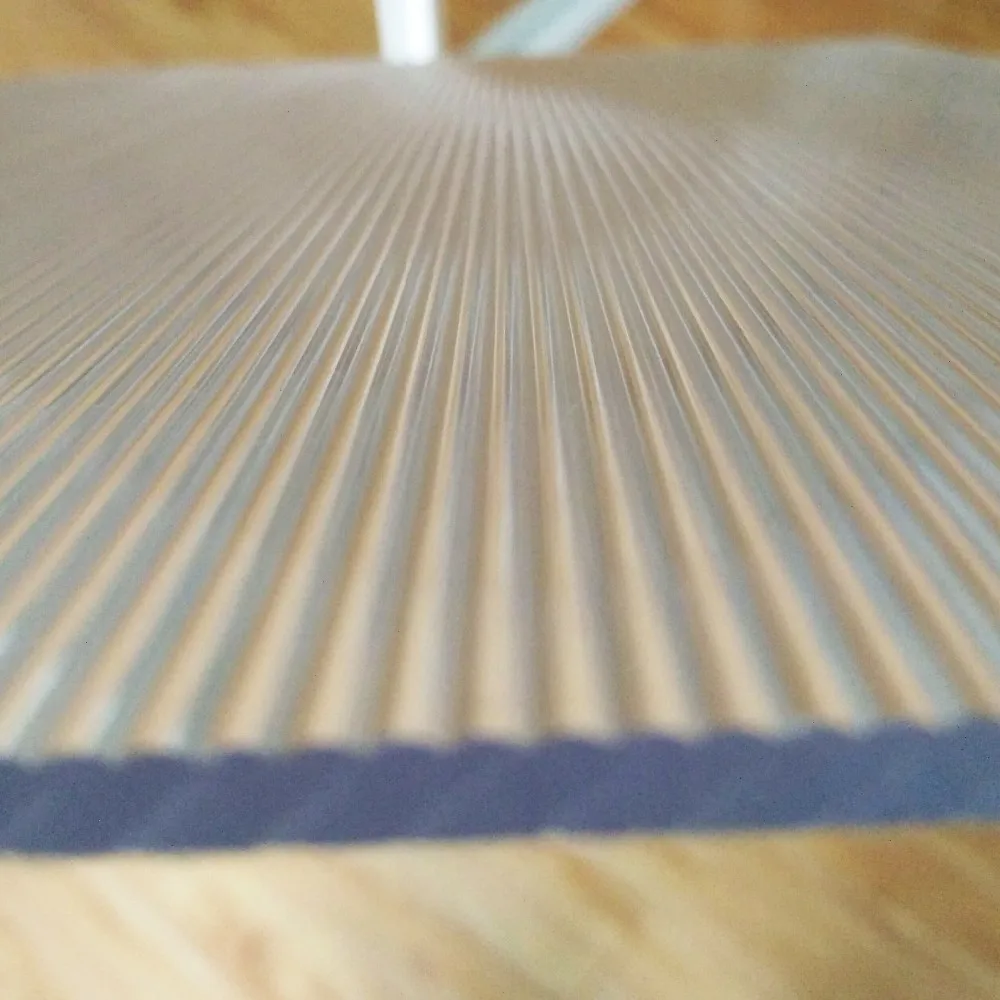

Lpi,means how many roots per inch,for example,18Lpi means there are about 18 roots per inch.the pitch(18.30) of the lenticular is measured and them used to determine the required image resolution.
Lenticular technology is a high-resolution imnaging process that allows you to create printed imagescloser to reality by incorporating 3D relief(depth),flip or motion(animation).

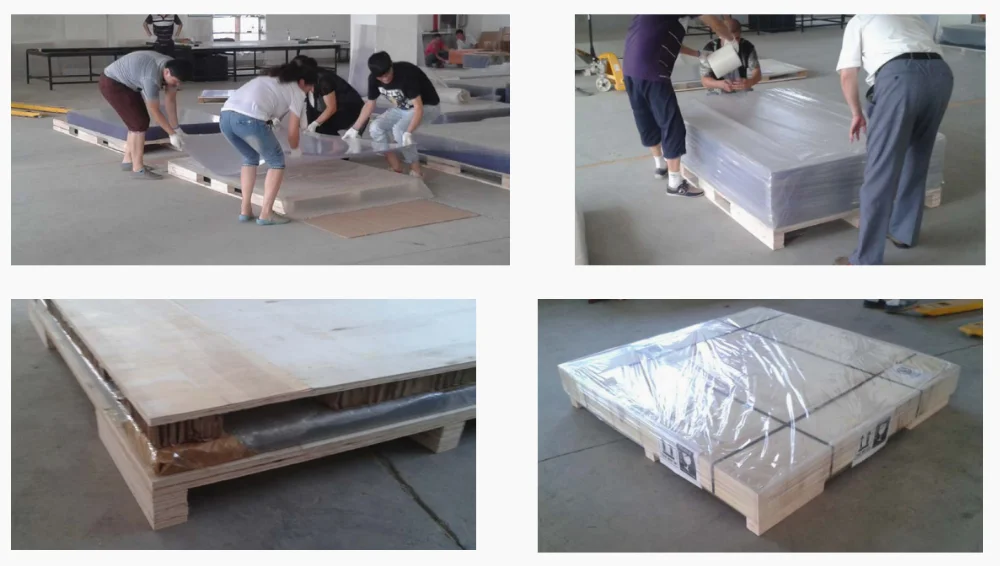

In order to avoid the risk of damage when the lens is being manually carried and restacked,protective layers are on both lenticular side and staff always wear gloves during handling.

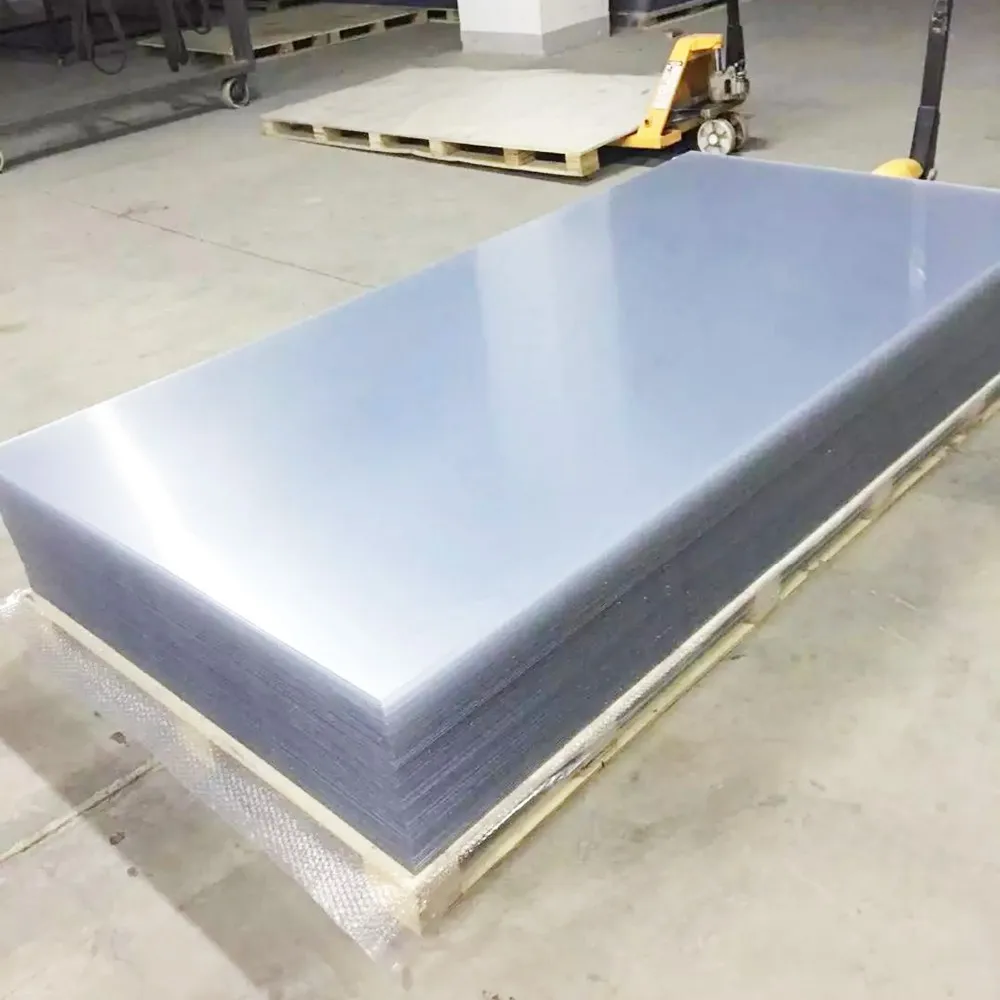

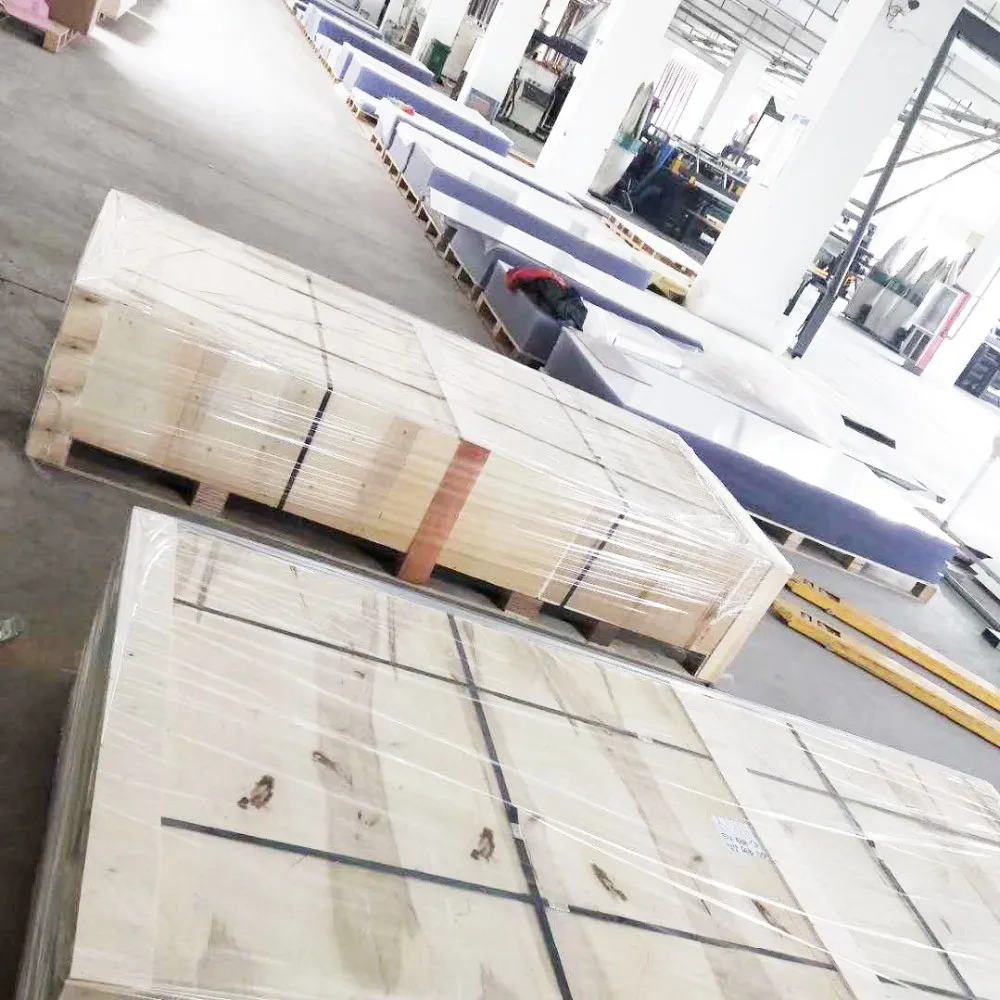

Standards of packing include high grade laminated wooden,clean bubble-wrap and wrapping the lens in plastice protective layer.If different size of lens are palced in side,addtional packing is placed around the samller sheets to prevent any movement.
Flip lenticular items allow you to have up 2 or 3 distinctive photos in a single space by flipping from one to anther,each observer will be astonished by the flip effects on large areas,you will find themself doing a double take when they see this image change.
We suggest using two images and avoiding contrasting colours from maximum effect,where possible,areas of white and light colour need to have similar colour areas on the opposing image.It is also good practice to steer away from hard lines and vector elements where possible.
Animation is a series of sequential images being put together to create a scene that resembles a short movie clip. The animation effect is great for emphasizing body movement or mechanical action. Morphing is the conversion of an image to another via gradual and seamless transformation.Here we suggest 7- 10 images for animation or morphing effect.
A: A:Base on output size&viewing distance.
18Lpi,20Lpi&25Lpi are the right lenses for large format flip or 3D effect,size as 80X120cm or largerLenticular prints are graphics designed to work together with a lenticular lens that allow viewers to see different images when viewed from different angles.
The image is a composite of two or more graphics that are interlaced together. The lens is a unique plastic that is made up of individual lenticules. Based on the angle of viewing, each lenticule acts as a magnifying glass that enlarges and displays the portion of the image seen in the specific angle of vue. Multiple lenticules working together create the entire lenticular image. Therefore, lenticular prints will display motion in three-dimensions because the left eye and the right eye will be viewing the lenticular prints from different angles.
A: Low MOQ, 1pc for sample checking is available
A: For sample,we usually ship by DHL, UPS, FedEx or TNT. It usually takes 7-10 days to arrive. Airline and sea shipping also optional.
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
A: 1.Suitable enquipment for photo shoots,advanced camera like SLr,mirrorless and advanced digital camera.
2,High image clearit,300dpi@actual size is the best and precise focus on the subjectA: 1,Print the interlaced image by inkjet printer,here we recommended Epson inkject printer.
2,Laminate the double side adhesive with the printing paper by laminator.1,Print a red baseline on the UV panel.
2,Draw a line on the side of lens,peel the protective layer of smooth side and match up the lines on lens and UV panel.smooth side on top.
3,Mirror image prints,low speed and single item printing.
