Солнечная энергия солнечная батарея для c60 c66 кроя 1/3 и он имеет высокую эффективность 23% 24.3% 25% 125*125 мм с мусорное ведро
- Категории: Solar Cells >>>
- Поставщик: Shenzhen,Xiangxinrui,Solar,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
sunpower solar cell c60 c66 cut 1/3 high efficiency 23% 24% 25% 125*125mm cut 1/3 Bin Me1
Product Description
sunpower solar cell c60 c66 cut 1/3 high efficiency 23% 24.3% 25% 125*125mm cut 1/3 Bin Me1
Product name | sunpower solar cell c60 c66 cut 1/3 high efficiency 23% 24.3% 25% 125*125mm cut 1/3 Bin Me1 |
size | 125*41.6mm |
material | monocrystalline silicon |
color | blue |
busbar | busbar free, none busbar |
power watt | 1.24w |
| efficiency | 24.3% |
Vmpp | 0.56V |
| Impp | 2.21A |
| Solar cell grade | A grade |
DATA SHEET
---------§---------
| Efficiency Code | 2430 | 2010 | 2080 | 2240 | 2260 | 2370 | 24.8 |
| Efficiency(%) | 24.3 | 20.10 | 20.80 | 22.40 | 22.60 | 23.70 | 2480 |
| Pmax(W) | 3.72 | 3.080 | 3.190 | 3.4400 | 3.460 | 3.63 | 6.78 |
| Vmp(V) | 0.56 | 0.552 | 0.554 | 0.556 | 0.558 | 0.560 | 0.56 |
| Imp(A) | 6.64 | 5.580 | 5.758 | 6.115 | 6.201 | 6.250 | 6.78 |
| Voc(V) | 0.66 | 0.651 | 0.654 | 0.656 | 0.658 | 0.661 | 0.661 |
| Isc(A) | 7.04 | 6.138 | 6.334 | 6.727 | 6.821 | 6.875 |
PYSICAL
CHARACTERISTIC
---------§---------
| Dimension | 125*41.6mm, 125*125mm cut by 1/3
| |||||
| Solar Cell Thickness | 180µm ± 20µm | |||||
| Front(-) | Blue silicon nitride anti-reflection coatings,none busbar | |||||
| Back(+) | Full-surface aluminum back-surface field, none busbar | |||||

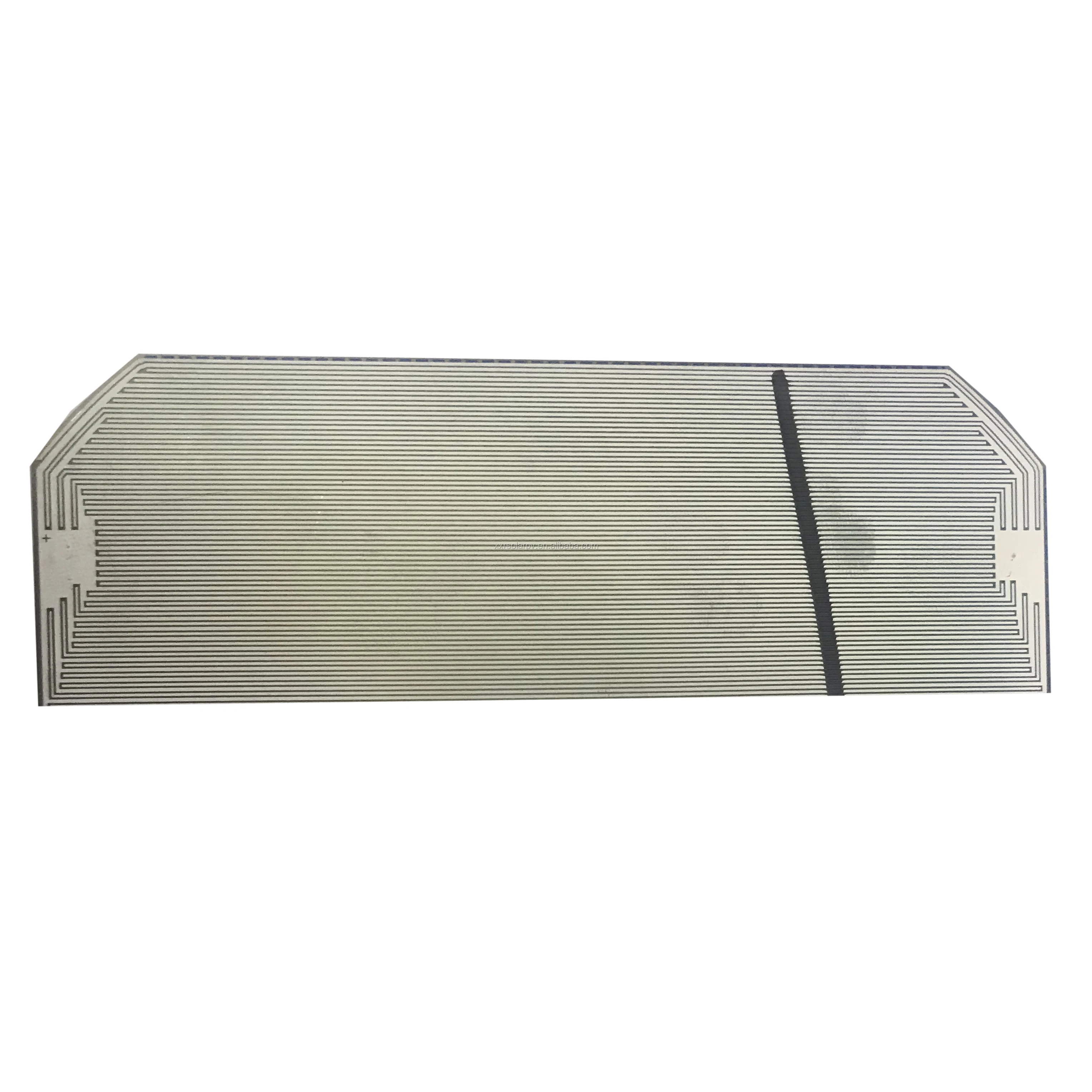

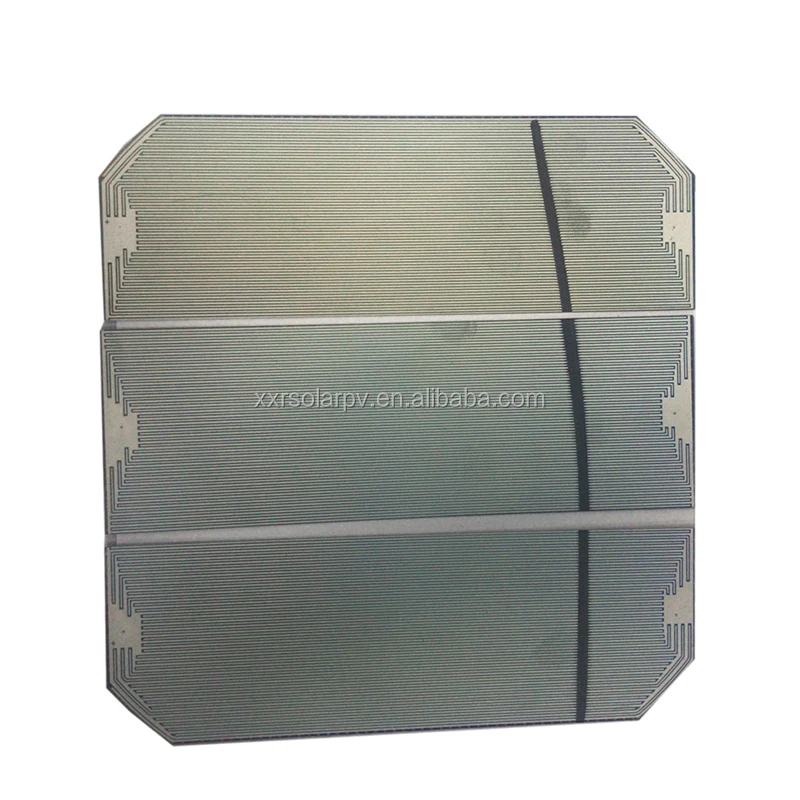

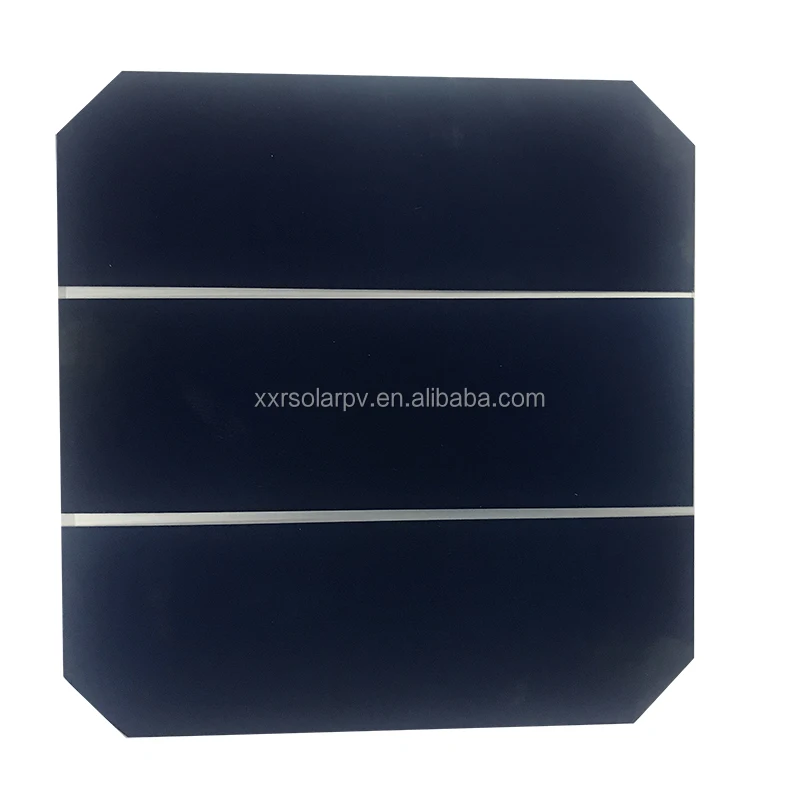

DETAILED IMAGES
Packaging & Shipping
| 100 pcs | 1400pcs | 50000pcs | 100000pcs | 2000000pcs | |
| Packing Size | 22*20*8CM | 23*28*25CM | 120*100*100CM*2 PALLETS | 120*100*122CM* 3PALLETS | 120*100*122cm * 6 PALLETS |
| GW (KG) | 1.5KG | 15KG | 675KG | 1350KG | 2700kg |
| NW(KG) | 1.2kg | 12kg | 600KG | 1200kg | 2400KG |
Company Information
Xiangxinrui Solar Energy Co.Ltd (XXR ) is a manufacturer of solar cells, customized solar modules ( such as PET laminated solar panel, semi flexible solar panel, epoxy solar panel), solar portable charger etc ,with well-equipped testing facilities and strong technical force.With a strong R&D design team, big production capacity, stable raw material suppliers, stable quality, fast delivery, excellent price and perfect after-sales system. our products are extensively used in solar energy field, electronics,toys,outdoor products and other field.

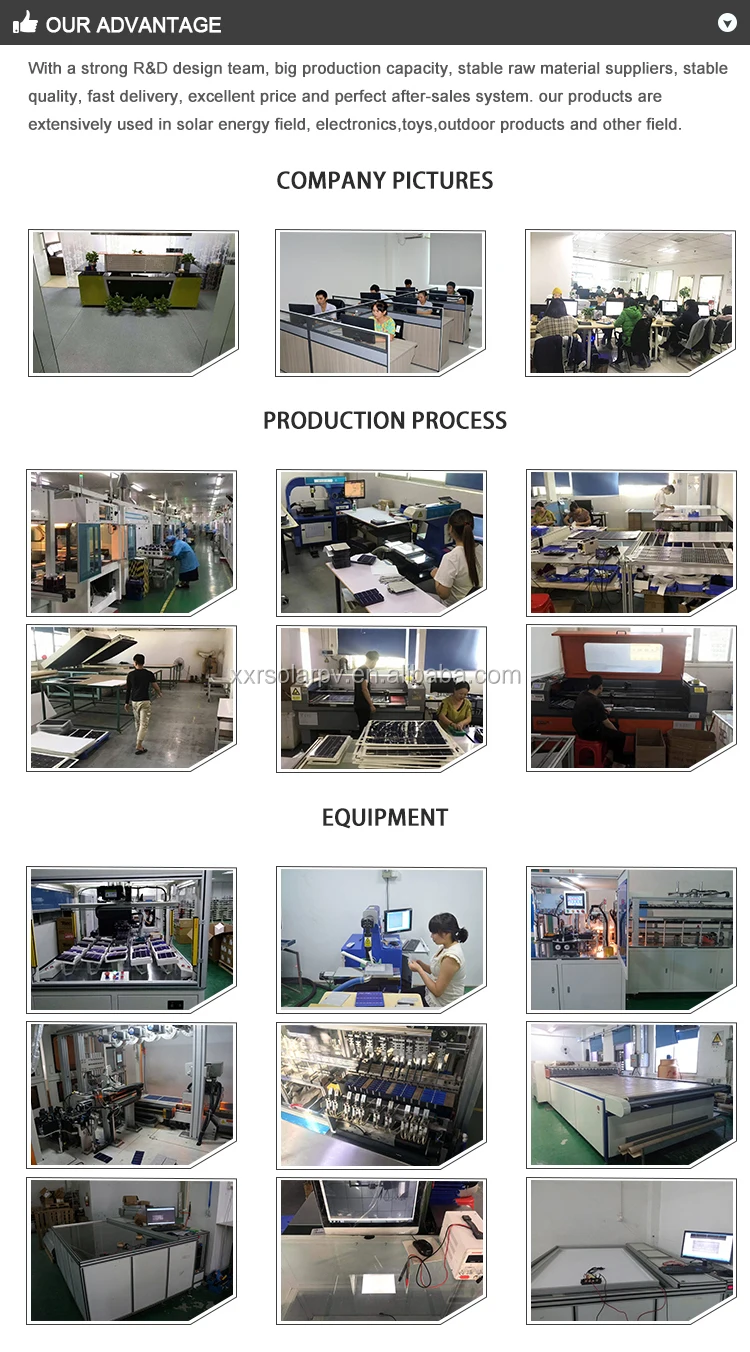

workshop production
solar cell materials : silicon materials —silicon rods —silicon ingot—wafer— texture and printing—solar cells , all procedure are produced by our one-stop production line. we can control solar cell quaity and cost well.
FAQ
Q1. Are you a factory or trading factory?
A. we are a factory supplier Our factory located in Shenzhen Province Welcome to visit us
Q2. Can i ask sample before place order?
A. Yes we can send you sample as your quality check, but customer need to pay sample fees & courier cost by themselves such as DHL TNT, Fedex EMS etc
Q3. Do you have on-hand stock?
A. Yes,we have stock, ready to ship. usually 50000 pcs shall be delivered within 1 -2 days. 100000 pcs shall be deliver within 1-3 days after receive the payment.
Q4. Do you have CO certificate we need it to clear custom?
A. Yes,we can issue you original COO. no problem.
Q5. Wat is your terms of payment, how can we pay you?
A: Our company can accept both T/T, If you have any other payment requirements, please leave massage or contact our online salesman directly.
