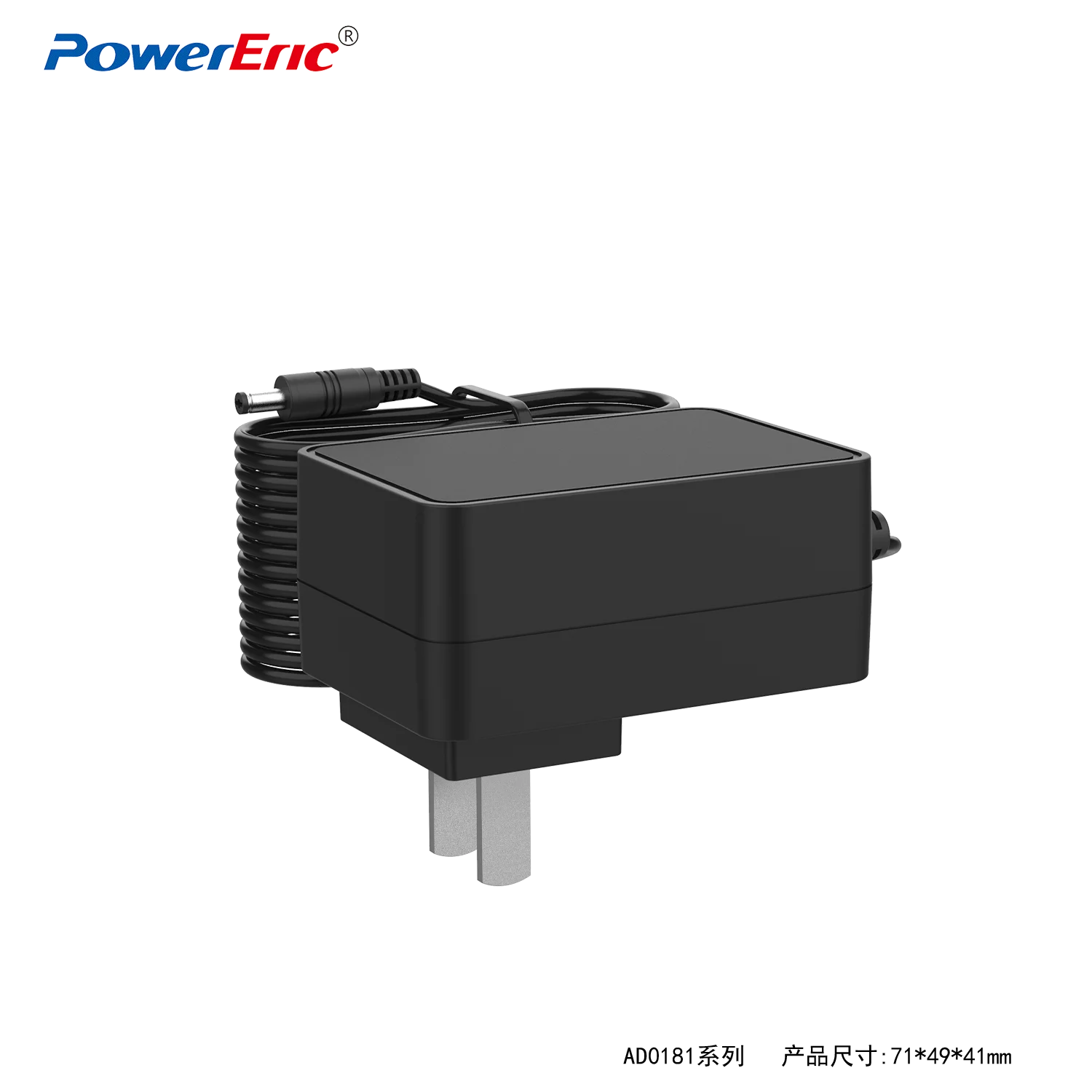

Оптовая продажа с фабрики 5V 8 4 V 9V 12V 12 6 15V 16 18V 21V 24V 25 2 0.5A 1A 2.1A 2.4A 3A блок питания зарядное устройство для адаптера переменного
- Категории: Power Adapters >>>
- Поставщик: Shenzhen,ABP,technology,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
Products Description
Power supply model number | AD0181-xxxxyyyyzf | ||
Output | DC Voltage | 4.2V to 32V | |
DC Current | 0.1A to 3A | ||
Max Power | 18W | ||
Ripple & Noise | 100Vp-p Max | ||
Voltage Tolerence | ±5% | ||
Input | Voltage Range | 100-240V~ 50/60Hz | |
Safety Standard | IEC/EN/UL62368, IEC/EN61558, UL1310 | ||
Safety Certification | CB UL CE BS GS CCC PSE KC SAA RCM | ||
Operating temperature | 0-40 C° | ||
Storage temperature | -20-60 C° | ||
Hi-pot test | Primary To Secondary: 3000VAC 5mA 1 minute or 3300VDC 5mA 3 Sec | ||
Burn-in test | 80% to 100% load, 40 C°± 5℃ for 4 hours | ||
Length of DC cord | UL1310 requires more than1.83M, EN61558 requires more than AWG20 | ||
DC connector | Optional | ||
RoHS/Reach | Yes | ||
Package | White box or plastic bag with outer carton | ||
AC Fix PLUG (Interchangeable Plug) | US/ EU/ UK/ AU/ CN/ JP/ KR/ IND | ||
Desktop Type | Avalible | ||
Efficiency Level | VI | ||
load Regulation | +/-5% | ||
Surge | Over 1 KV | ||
No Load power consumption | < 0.1W | ||
Protections | SCP/ OVP/ OCP | ||
Warranty | 2 Years | ||
Hot products
About Us
Company profile
Founded in 2007, Shenzhen ABP Technology is specialized in charging solutions across all categories.,such as switching power adapters,LSA/ Lithium Ni-mh battery chargers,phone chargers.,etc.We currently have 200-300 employees include 10-20 R&D team,20-30 QC team ,with a 6,000 square meters' plant,1 million capacity per month, which is equipped with advanced and complete production test equipment. Our factory have passed ISO9001-2015 audit and our products are certificated with CE, GS, FCC, UL, CUL,PSE, SAA, C-TICK,RCM, PSE,KC, CCC,ROHS .,etc.
We have successfully offered our one stop power supply & battery charger solution to over many customers around the world,such as
From concept,industrial design, electronic engineering, tooling design, certifications all the way to cost analysis,we do it all and than we do it well.
From concept,industrial design, electronic engineering, tooling design, certifications all the way to cost analysis,we do it all and than we do it well.
Factory View
Working flow
Why Choose Us
Our Advantage
1. 13 years experience;one step solution;
2. 20-50 people R&D Team to support
3. UL CB CE GS KC PSE RCM CCC listed
4. ISO9001-2015certificated
5. Whole flow of QA: IQC--IPQC--FQC--OQC
6. Door to Door service
7. Free sample for test
8. 6000 sqms,welcome for visits
9. ODM/OEM service
3. UL CB CE GS KC PSE RCM CCC listed
4. ISO9001-2015certificated
5. Whole flow of QA: IQC--IPQC--FQC--OQC
6. Door to Door service
7. Free sample for test
8. 6000 sqms,welcome for visits
9. ODM/OEM service
UL No.:E490471 CE No.:LPS-P19073003 RCM No.:RCM201002190 CCC No.：2020200907000138
Exhibition
Application
AC DC wall plug power adapter is widely used in electronic communication equipment, electric toys, electrical appliances, electrical tools, computer peripherals, consumer electronics,router,CCTV,camera,AV/DV,CVR,STB,LCD,led strip lights,coffer maker,mobile phone,audio,speaker,pos machine,terminal printer,game player.,etc

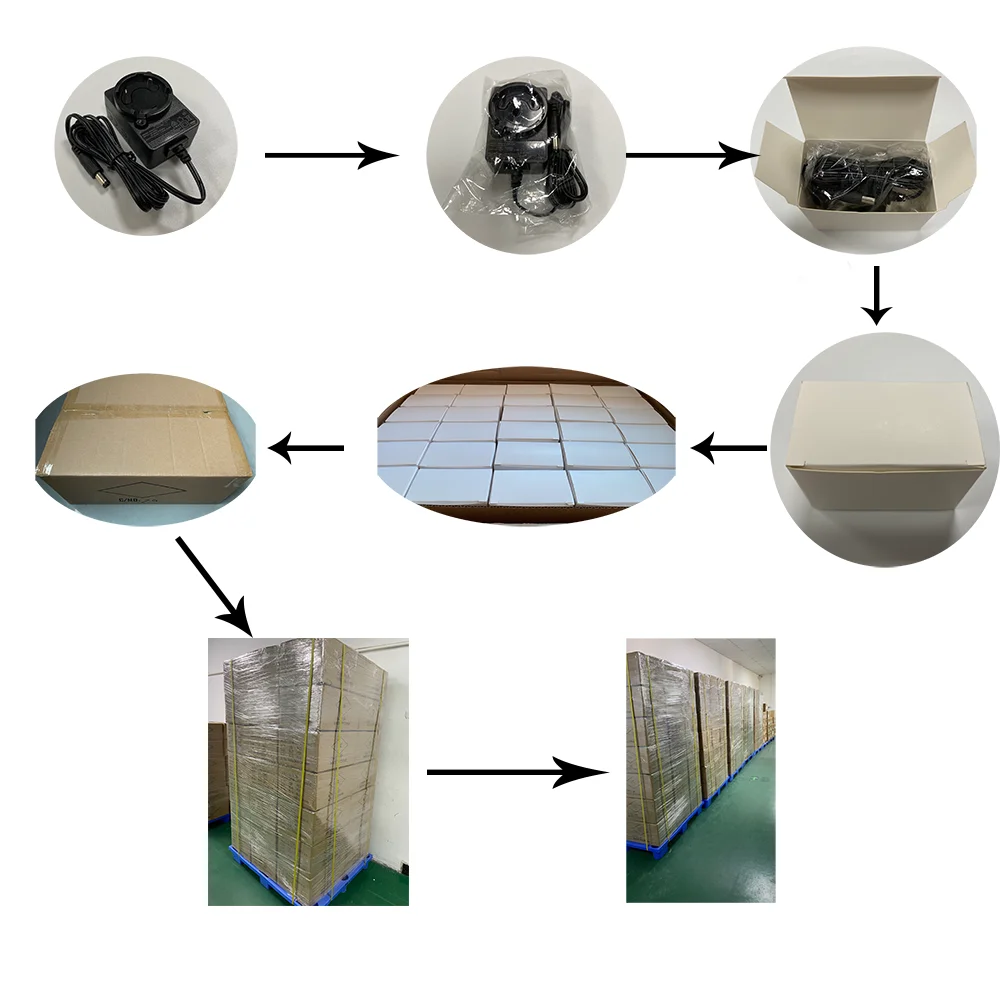

Packing & Delivery：
1 Carton Packing List | ||||||||
Item | Measurement (cm) | Quantity (pcs) | G.W(kg) | N.W(kg) | ||||
AD0181 | 50*40*21 | 100 | 100 | 9.56 | ||||
FAQ
1. Are you a trading company or factory?
We are factory in Shenzhen. Our headquarter in Hongkong.
2. Do you provide samples?
Yes, free samples are provided while you pay the freight. Usually delivered by express like Fedex, UPS, DHL, TNT, EMS, etc.
3. What’s your MOQ?
Our MOQ is 1000pcs, but for the first order, there is no MOQ.
4. How long is the lead time?
It takes about 15-25 working days to proceed mass production. For samples, it’s usually in a week.
5. What’s your payment term and shipping term?
Advanced T/T & FOB Shenzhen / Dongguan / Hongkong
6. How long is the warranty?
It’s 2 year. During this period, if you encounter any problem, pls feel free to contact us. Our sales team, QC and R&D department
will make every effort to meet your demand.
Contact Us:
Your inquiry and mail will be quickly responded. Suppose you have no ideas on choosing the right power supply, please do not hesitate to contact us: rambo.liao@abp.com.hk
We are factory in Shenzhen. Our headquarter in Hongkong.
2. Do you provide samples?
Yes, free samples are provided while you pay the freight. Usually delivered by express like Fedex, UPS, DHL, TNT, EMS, etc.
3. What’s your MOQ?
Our MOQ is 1000pcs, but for the first order, there is no MOQ.
4. How long is the lead time?
It takes about 15-25 working days to proceed mass production. For samples, it’s usually in a week.
5. What’s your payment term and shipping term?
Advanced T/T & FOB Shenzhen / Dongguan / Hongkong
6. How long is the warranty?
It’s 2 year. During this period, if you encounter any problem, pls feel free to contact us. Our sales team, QC and R&D department
will make every effort to meet your demand.
Contact Us:
Your inquiry and mail will be quickly responded. Suppose you have no ideas on choosing the right power supply, please do not hesitate to contact us: rambo.liao@abp.com.hk
