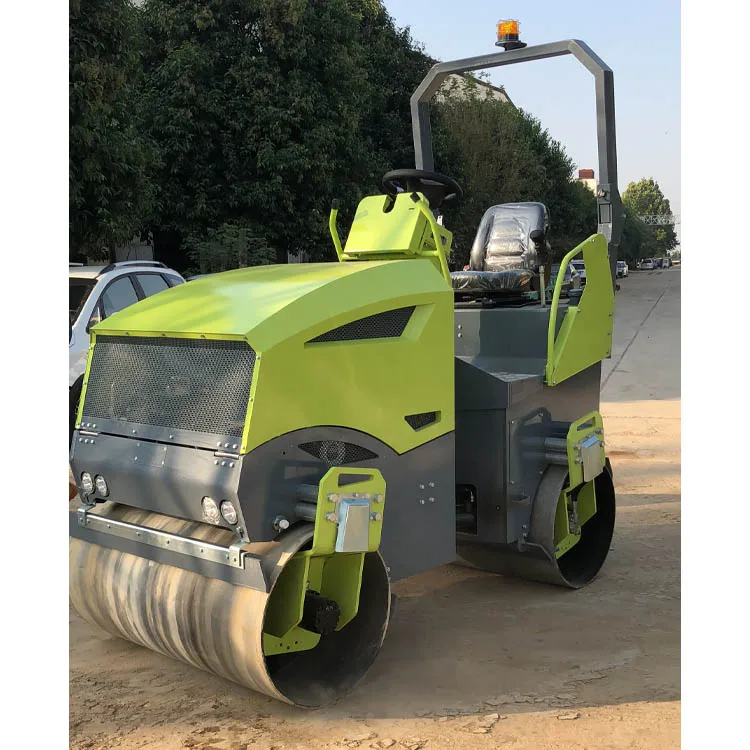

Дорожный каток трёхтонный Вибрационный дорожный
- Категории: Road Rollers >>>
- Поставщик: Qingzhou,Grace,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
FEATURES
1. Equipped with famous brand engine, could guarantee quality stability and excellent performance.

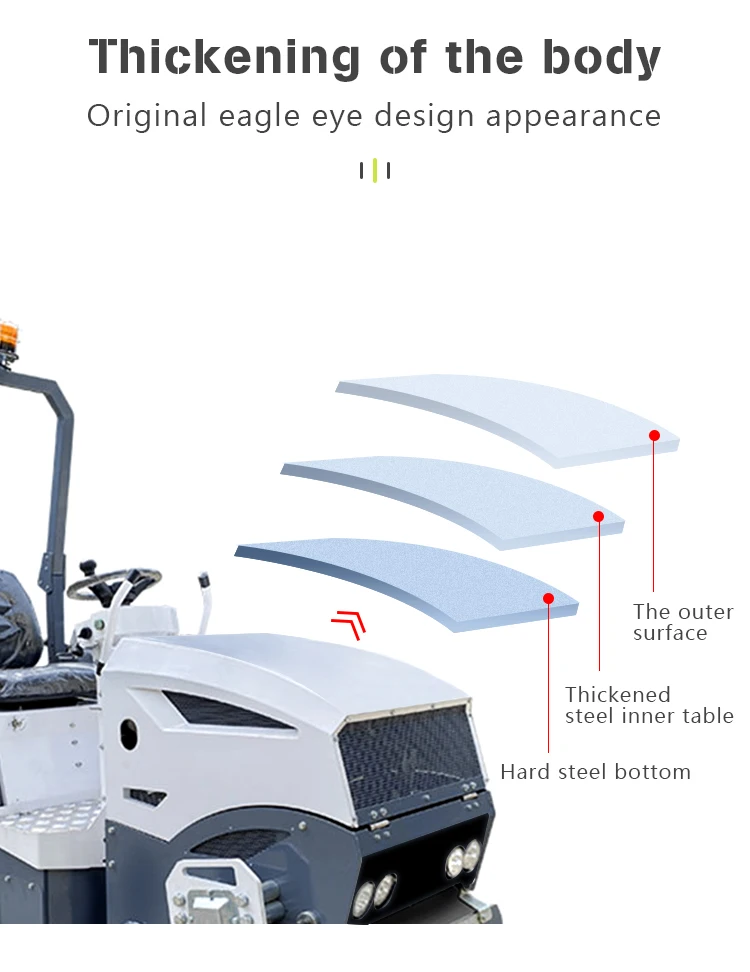

2. Hawkeye-shaped body design, wide field of vision, and beautiful appearance
3. Used international famous brand hydraulic pump and motor, which can be steplessly shifted and walk forward and backward.
4. LED display instrument panel.
5. Assembled with working light and warning light, could work at night.
6. Ergonomic chair.
7. Passed CE, SGS and ISO certification and won Red Star Award design.
8. The steel wheels are equipped with outline marker lamps, could ensure the safety of the operator.
Technical Date Unit ST3000
Model | ST3000 | ||
Weights | |||
Operating weight | kg | 3000 | |
Static linear load | N/cm | 106/94 | |
Dimensions | |||
Working width | mm | 1355 | |
Total length | mm | 2400 | |
Machine height with ROPS | mm | 2630 | |
Turning radius (inner/outer) | mm | 2405/3760 | |
Drum width | mm | 1200 | |
Drum diameter | mm | 630 | |
Wheel base | mm | 1650 | |
Drive | |||
Engine manufacturer |
| CHANGCHAI | |
Type |
| ZN390B | |
Engine type |
| Diesel, vertical, water-cooled, four-stroke | |
Number of cylinders |
| 3 | |
Power ISO 14396 | kW | 28.5 | |
Rating speed | rpm | 2600 | |
Electric equipment | V | 12 | |
Drive mode |
| Variable displacement pump, stepless speed change, two wheels drive motor parallel | |
Driving characteristics | |||
Speed | km/h | 0-10 | |
Climbing ability, (vibration on/off) | % | 30/35 | |
Brakes | |||
Working brake |
| Variable displacement pump | |
Steering | |||
Steering mothod |
| Hydraulic cylinder, articulated steering | |
Steering system |
| Swing articulated | |
Exciter system | |||
Vibrating drum |
| Front | Front+rear |
Driving form |
| Hydraulic Motors | |
Frequency | Hz | 65 | |
Amplitude | mm | 0.5 | |
Centrifugal force | kN | 35 | 2*35 |
Sprinkler system | |||
Type of sprinkling |
| Pressure | |
Capacities | |||
Hydraulic oil | l | 46 | |
Fuel | l | 42 | |
Water | l | 140 | |
Specification

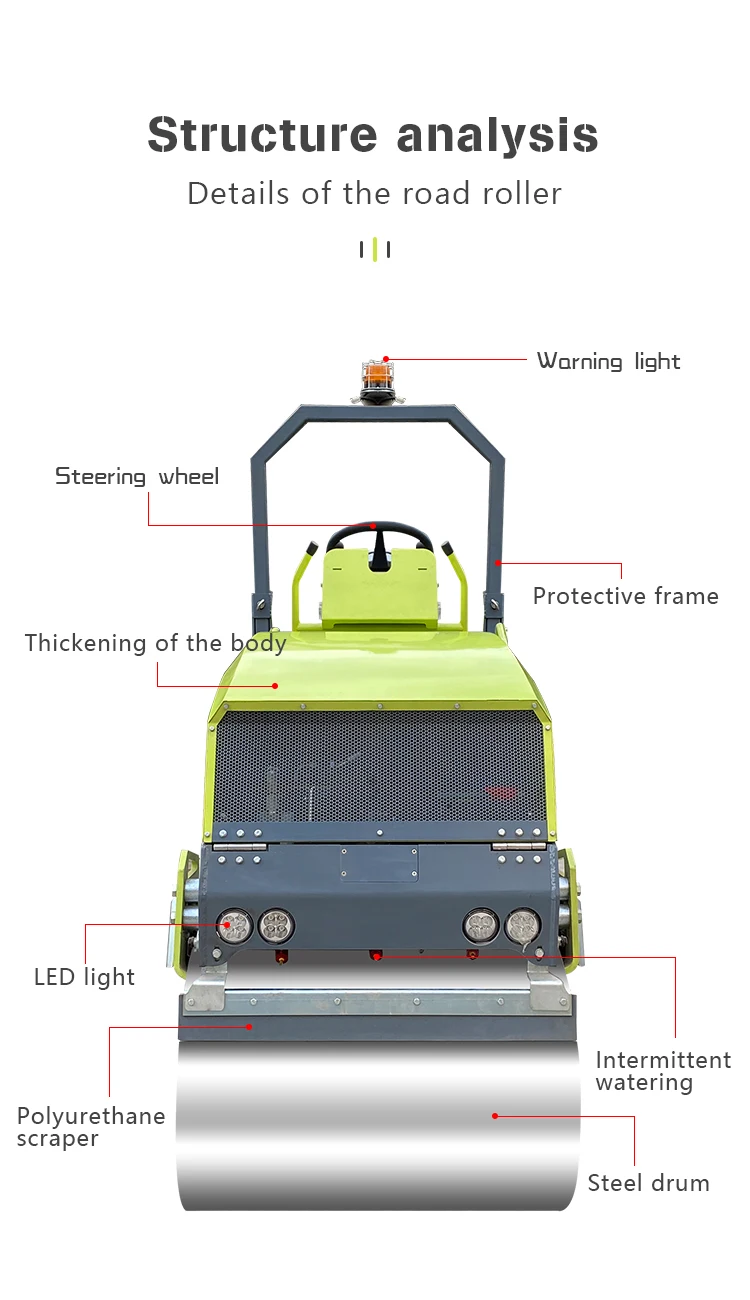

Standard configuration
Variable piston pump stepless variable speed walking
Parallel travel drive
Hydraulic articulated steering
Swing hinge in the middle of the fuselage
Vibration switch on the handle
Linkage dual manipulation handle
Two scrapers per steel wheel
Pressure intermittent water spray system
Adjustable driving seat
Hood with lock
Control and warning lights
Work chronometer
Steel water tank
Anti-fall protection frame
LED front and rear lights
Rear reflector
Seat gravity sensor automatically goes out
Features:

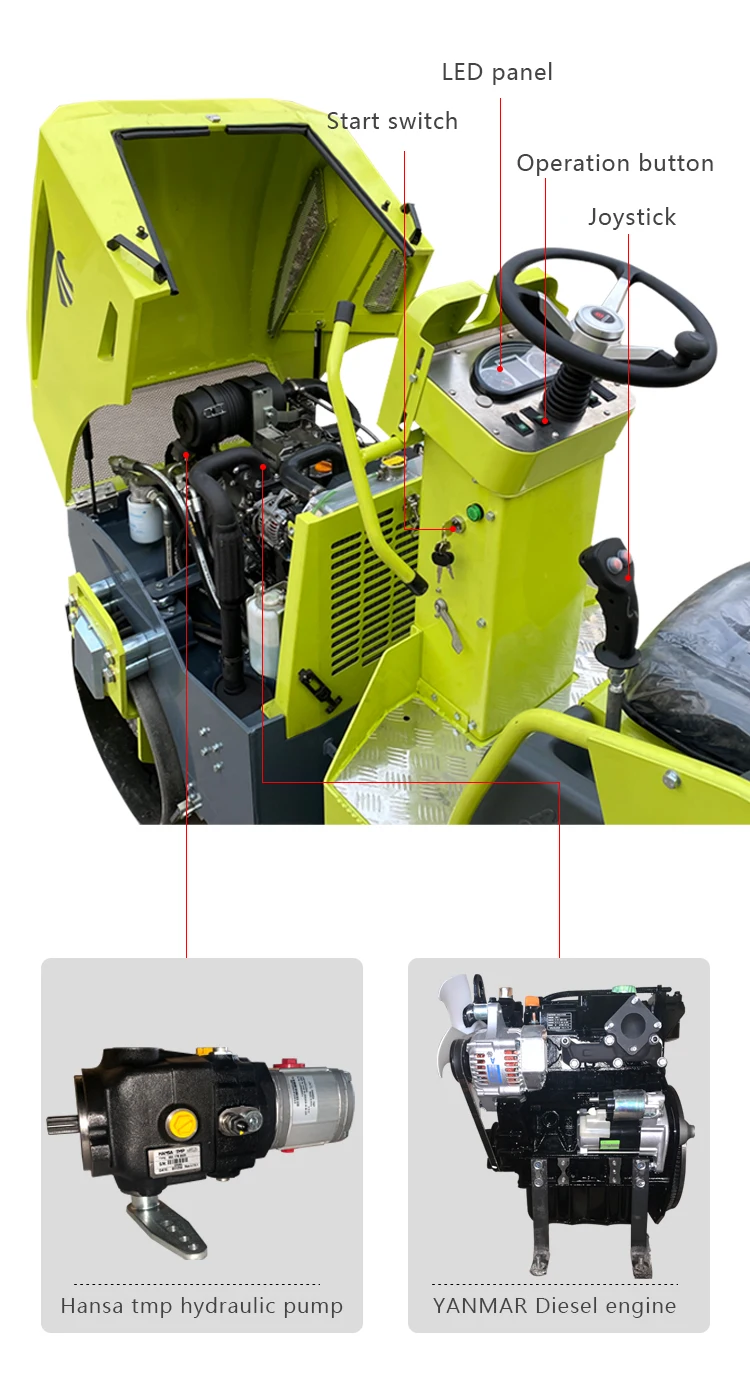

A):Changchai engine or Yanmar engine
B):HANDA-TMP hydraulic pump

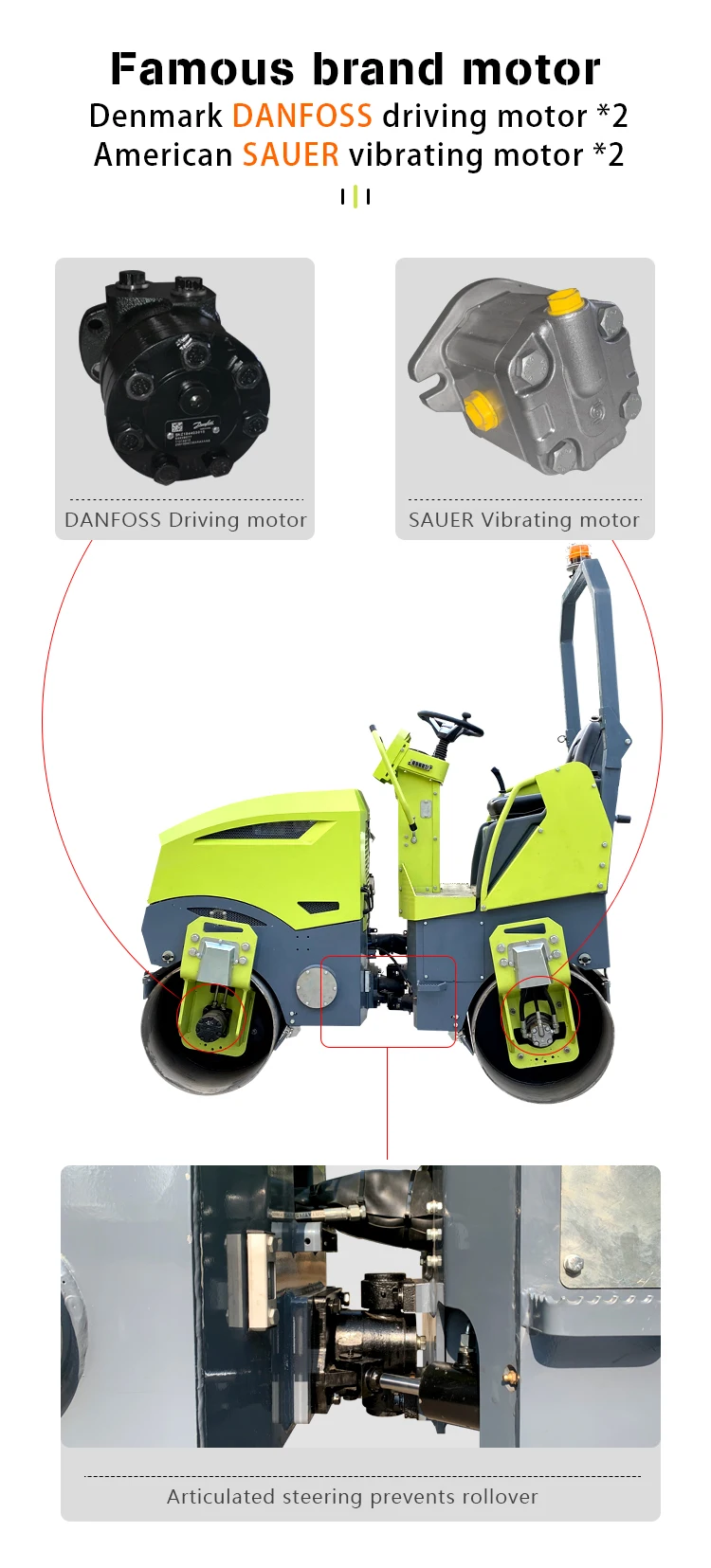

C):Denmark Danfoss Driving Motor
D): American SAUER Vibrating Motor
E):Electric Intermittent Spraying System
F):Plastic Water Tank
