4 этап телефонный разъем с медной нитью 3 5 Женский микрофон аудио PJ392A-B гнездо наушника smd Разъем для

Описание и отзывы

Характеристики

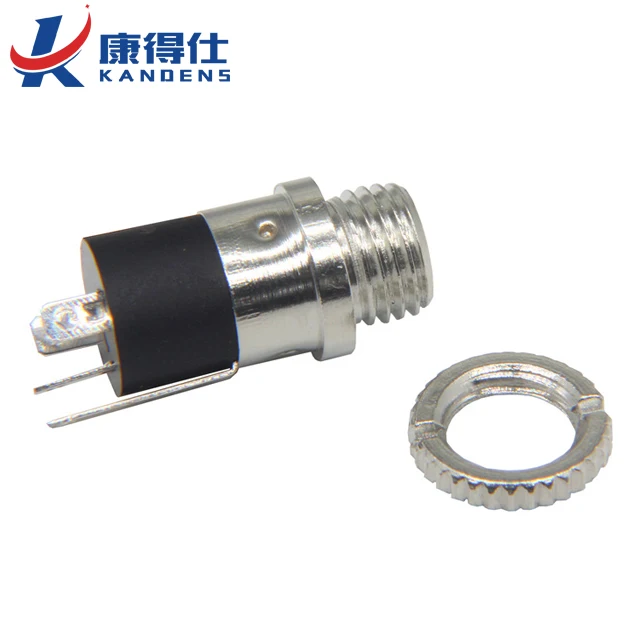

4 stage phone connector with copper thread 3.5 female microphone audio jack PJ-392A-B earphone socket smd phone jack



Phone jacks and plugs are connectors used with telephones and other audio systems. They are also known as modular jacks (female) and modular plugs (male). The term “modular” describes a telephone connection interface developed by AT&T that allows installers to assemble phones at customer locations by using components that can be plugged together instead of hard-wired. Phone jacks are female receptacles into which plugs or male connectors are inserted. Several types of phone jacks and plugs are commonly available.



Application of Phone Jack Connector:

1. Audio and video products: MP3, MP4, DVD;

2. Digital products: digital camera, digital camera, etc;

3. Remote control: remote control for vehicle, roll door and home anti-theft products;

4. Communication products: mobile phone, car phone, telephone, building equipment, PDA, etc;

5. Household appliances: TV, microwave oven, rice cooker, electric wind, electronic body scale, electronic fat scale, electronic kitchen scale, etc;

6. Security products: videophone, monitor, etc;

7. Toys: electronic toys, etc;

8. Computer products: camera, recorder, etc;

9. Fitness equipment: running machine, massage chair, etc;

Connector Type	Phone jack	Operating temperature	-20°c to + 85°c
Type	Solder Type	Contact	Copper contact terminal
Gender of Connector	2-6 Pin solder Male	Shielding	Plastic shell/Copper shell
Contact Resistance	30mΩ Max	Withstand Voltage	AC 500V(HZ)/min
Insulation Resistance	100MΩ MIN	Insertion Force	3.57Kgf MAX.
Rated	30V/0.5A	Durability	5000-10000 cycles

Q: Where Can we get the datasheets of the Phone jack?
A: Each Phone jack has the specification, Please contact with our sales if you need.

Q: Can we get the Phone jack samples before placing the order?
A: Yes. we can send you some free samples for your test before your order.

Q: How long is the lead time?
A: Normally we keep stock for most phone jack, the lead time is 5~7 days as soon as the payment is released.
For customized products, it takes longer.

Q: How about the after-sale service?
A:We offer 12 months for every products we sold.

If you meet any problems after sales, Pls contact us freely,we'll help solving the problems within 24 hours.

Q:  What's the payment terms?
A: Normally we accept TT and Paypal. L/C is also accepted if the order quantity is large.

Q: How about your quality control?
A: All the phone jack will be 100% checked before the shipment.

Q: Does your company accept small order of phone jack?
A: Yes, we accept small trial order.

Q: Do you support customization?
A: We support the OEM&ODM service.
