2 5 T аккумуляторная тележка Электрический узкий калибр локомотив для горных работ взрывозащищенный подземный туннель

Описание и отзывы

Характеристики





Introduction of 5T Underground Mining Electric Diesel Locomotive

5T Underground Mining Electric Diesel Locomotive is in line with the ideal of coal mine production safety transportation equipment. Small investment, the use of low maintenance costs. Meanwhile, the product configuration headlights, automatic protection devices, cables are flameproof or intrinsically safe type, equipped with a waste gas purification plant, very safe, reliable and does not pollute the environment. Mine explosion-proof locomotive, the use of exhaust gas purification system that allows diesel engine exhaust emissions to meet explosion-proof "diesel technology for coal mine explosion test standard" requirement. Particularly suitable for the remote areas, lack of electricity, less electricity, gas and coal dust explosions which are dangerous places of the mine rail practical. So the traction is not only the advantage of a tractor battery, but also safer, more economical, easier maintenance. Practice confirmed that the product is the ideal auxiliary transport coal mine equipment.   zmwm06

Parameter of 5T Underground Mining Electric Diesel Locomotive

Models	CCG 5.0/600J (B)
Matched Power Model	YH1125SFB
Dimension (L*W*H) mm	3020*1000(1098)*1600
Weight kg	5000
Greatest Traction Force KN	7.5
Pulling Tonnage T	22
Gauge mm	600
Wheelbase mm	880(860)
Greatest Speed km/h	17+1
Diesel Engine Power (kw)/Rotating Speed (r/min)	14.7/2200
Smallest Railway Orbit m	6
Greatest Braking Force N	8000
Traction Height mm	320 430
Height Above Ground mm	125

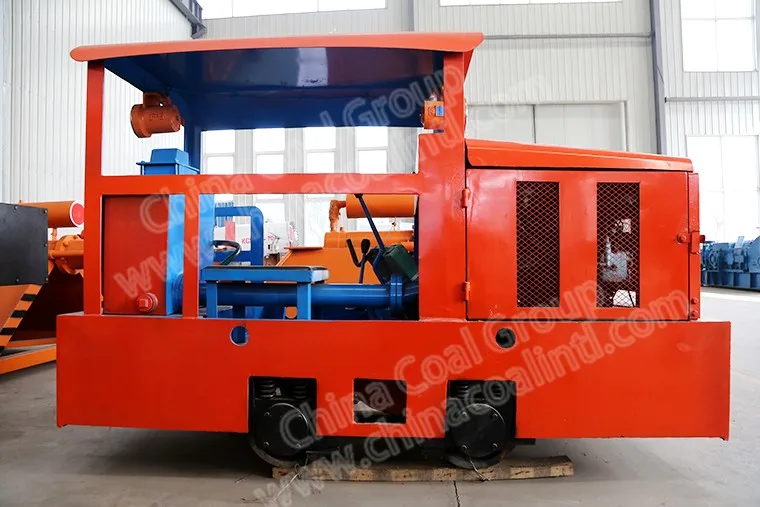

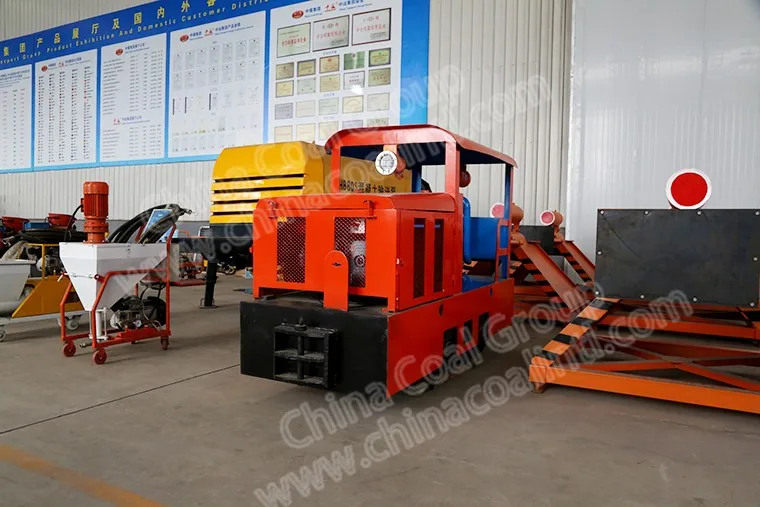

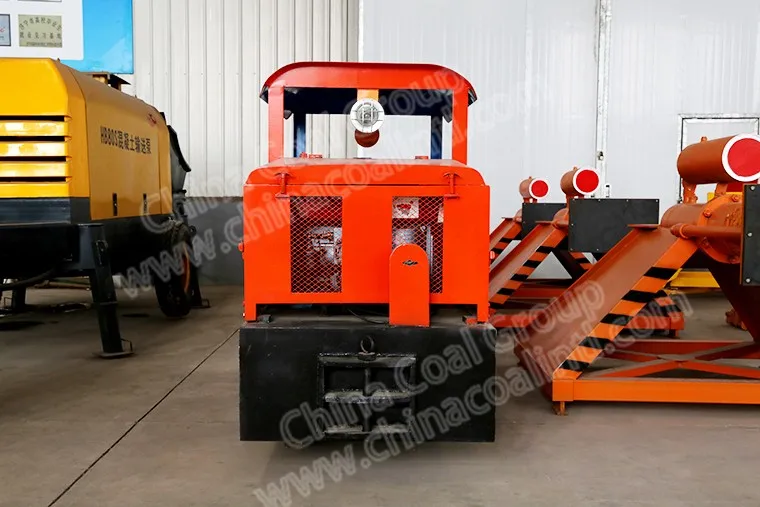

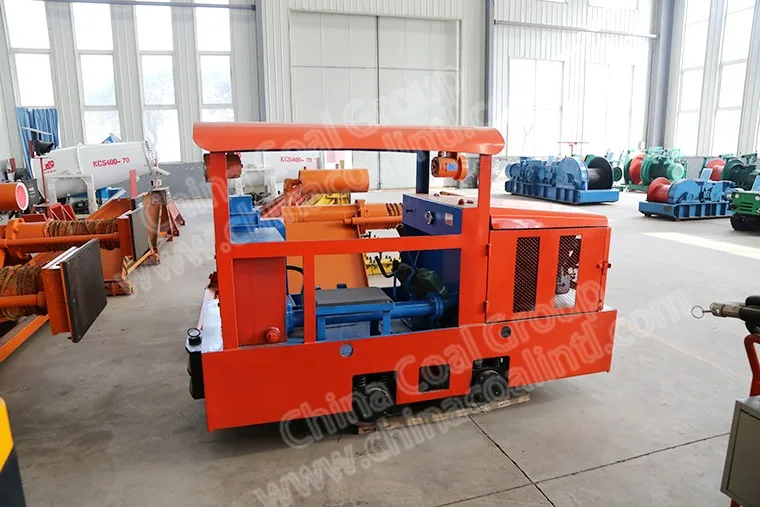

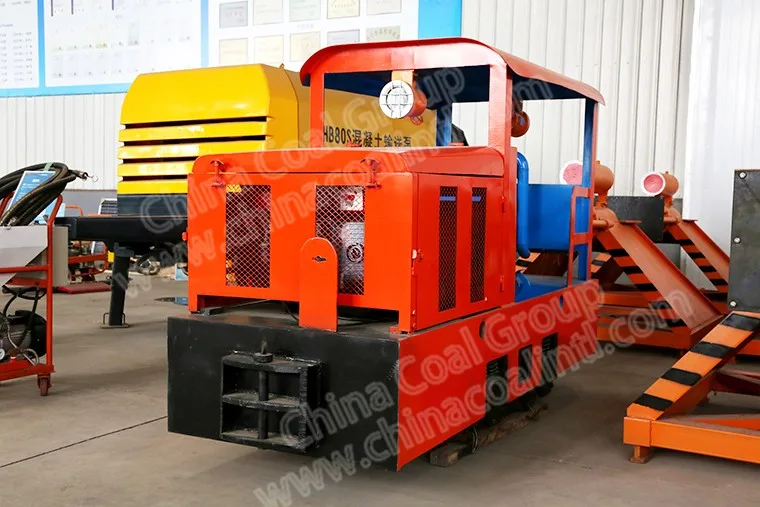

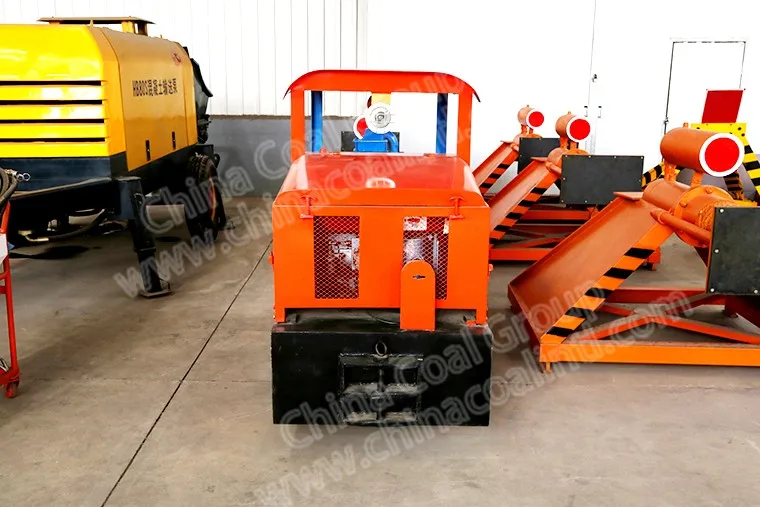

Photos of 5T Underground Mining Electric Diesel Locomotive
