Высокоэффективная Двухступенчатая линия гранулирования для высечки линий жесткого полиэтилена ПНД LDPE
- Категории: Other Rubber Recycling Machines >>>
- Поставщик: Jiangsu,Mooge,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

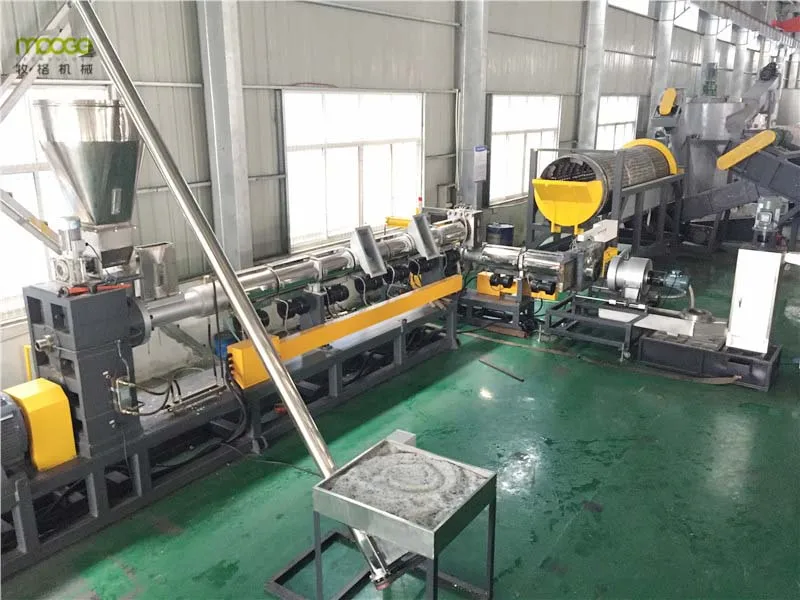

HDPE/PP/LDPE/LLDPE/PS /PC/ABS RIGID PLASTIC PELLETIZING LINE
In order to recycle waste plastic, the plastic need to be washed, dried then melted, plasticized, extruded into strips, cooled by cooling system, and cut into granules by granulator. These granules are further processed into various plastics products by blowing, injection and calendering. This line is a one/two stage plastic pelletizer/pelletizing/granulator , which is suitable for many kinds of plastic waste materials recycling such as PE, HDPE, LDPE, LLDPE,ABS,PS,PC bottle, hollow container, buckets ans so on.
Product Specification
Characteristics:
1. Very strong and long life: Screw and barrel are made of 38CRMOALA , inlet mouth treated with special alloy.
2. Easy operation: It has automatic constant temperature control and stable performance. After adjusting well, 1 or 2 workers are enough to run this machine, to feed the materials and change pellet receiver.
3. Low cost in using after redesign:Now this kind machine is more economic in electric power source and also water. In the long working life of this machine, it can save many sources in energy!
4. High output, long operating life and lower noise: it’s the ideal waste plastics regenerative pelletizer machine for nowadays.
2. Easy operation: It has automatic constant temperature control and stable performance. After adjusting well, 1 or 2 workers are enough to run this machine, to feed the materials and change pellet receiver.
3. Low cost in using after redesign:Now this kind machine is more economic in electric power source and also water. In the long working life of this machine, it can save many sources in energy!
4. High output, long operating life and lower noise: it’s the ideal waste plastics regenerative pelletizer machine for nowadays.
Technical Parameters:
Model | Screw Diameter:mm | Screw L/D | Main Power:KW | Capacity:Kg/h |
YDS-SJ 85 | 85 | 28-33:1 | 37 | 100-150 |
YDS-SJ 100 | 100 | 28-33:1 | 55 | 150-200 |
YDS-SJ120 | 120 | 28-33:1 | 75 | 250-300 |
YDS-SJ 150 | 130 | 28-33:1 | 90 | 300-400 |
YDS-SJ 150 | 150 | 28-33:1 | 110 | 400-500 |
YDS-SJ 160 | 160 | 28-33:1 | 132 | 500-600 |
YDS-SJ 180 | 180 | 28-33:1 | 160 | 600-800 |
YDS-SJ 200 | 200 | 28-33:1 | 200 | 800-1000 |
Model | Screw diameter:mm | Screw L/D | Main Power:KW | Capacity:kg/h |
YSS-SJ 85 | 85 | 28-33:1 | 37 | 100-150 |
YSS-SJ 100 | 100 | 28-33:1 | 55 | 150-200 |
YSS-SJ 120 | 130 | 28-33:1 | 75 | 250-300 |
YSS-SJ-150 | 150 | 28-33:1 | 90 | 300-400 |
YSS-SJ 150 | 150 | 28-33:1 | 110 | 400-500 |
YSS-SJ 160 | 160 | 28-33:1 | 132 | 500-600 |
YSS-SJ 180 | 180 | 28-33:1 | 160 | 600-800 |
YSS-SJ 200 | 200 | 28-33:1 | 200 | 800-1000 |
Details Images

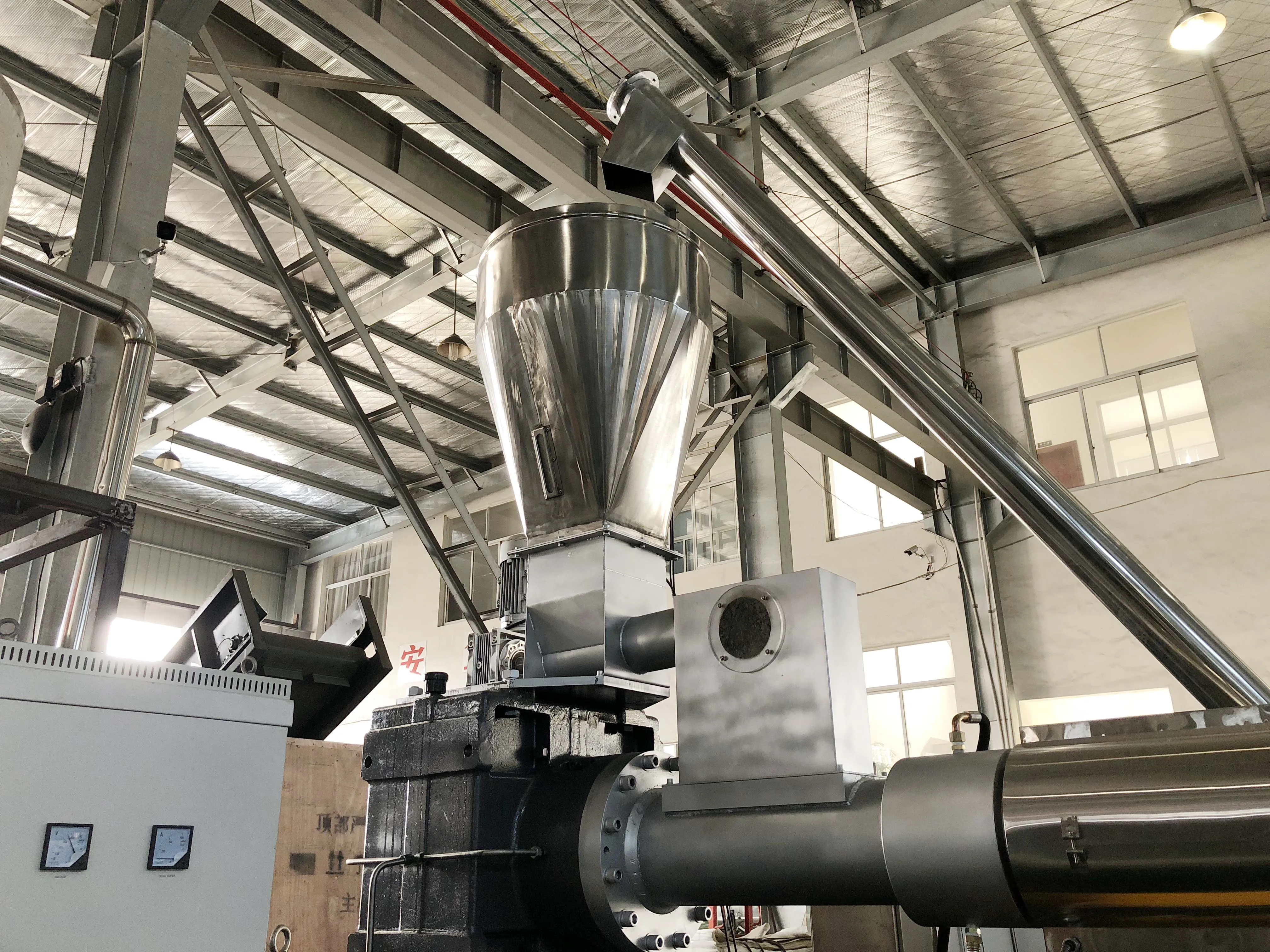

Dosing feeder
Dosing feeding the material into exturder
Keep the exturder more stable working
Keep the exturder more stable working
Speed adjust by inverter
Hopper made by stainless steel

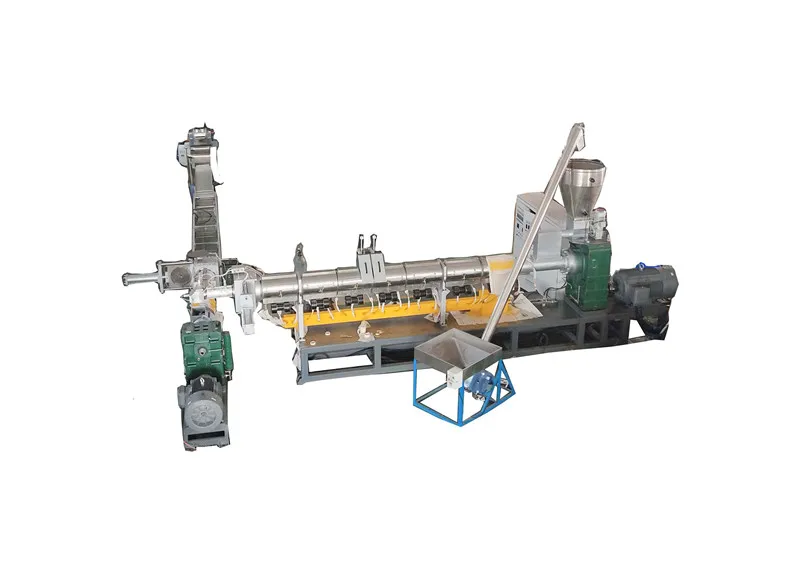

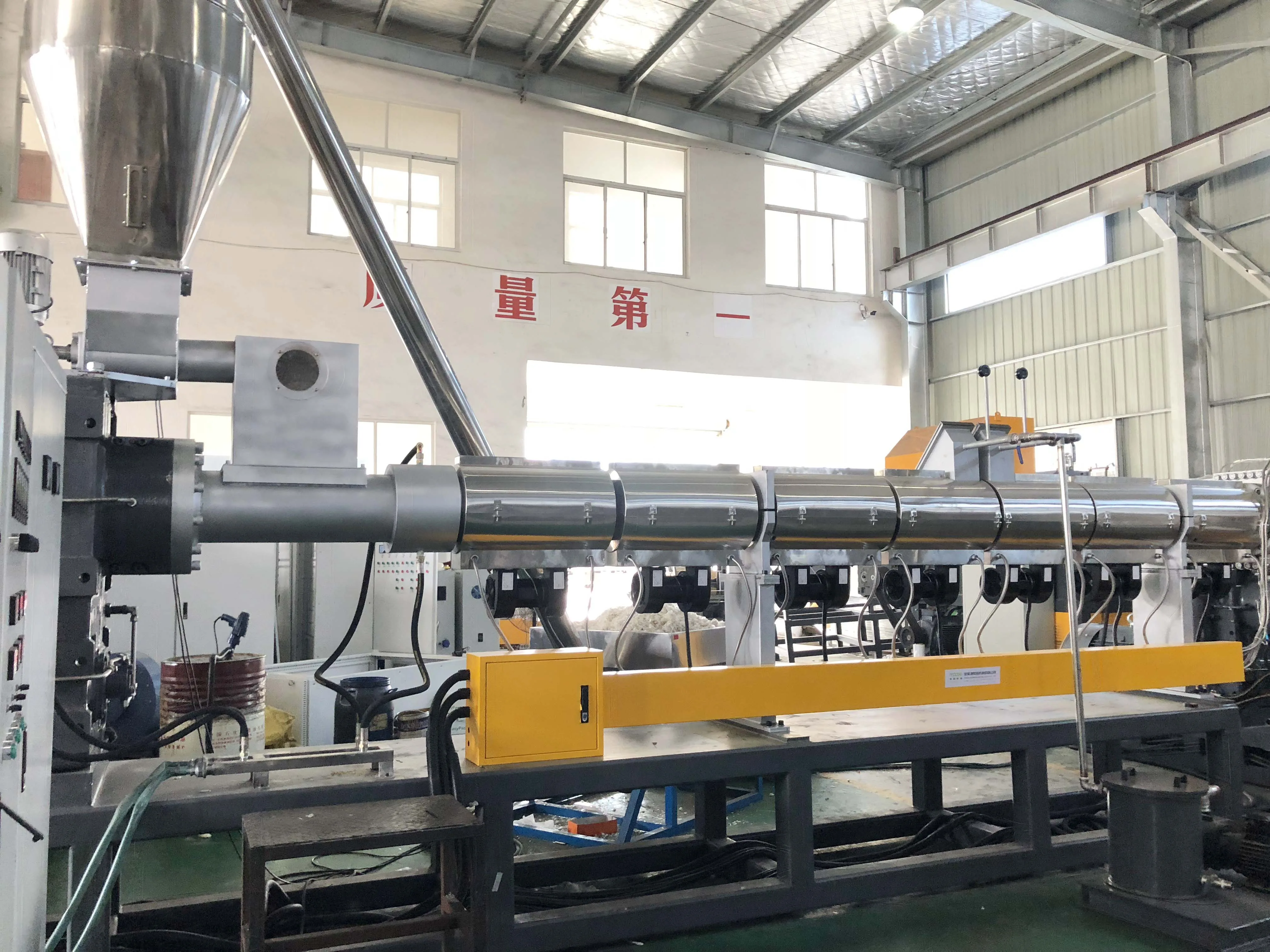

Single Screw Extruder
Single screw Extruder made by sturdy frame, heavy. No vibrating when machine running;
The whole frame where installed the gearbox, motor and screw has done the milling working.
The frame is build up by the square tube and thick steel on top.
The whole frame where installed the gearbox, motor and screw has done the milling working.
The frame is build up by the square tube and thick steel on top.

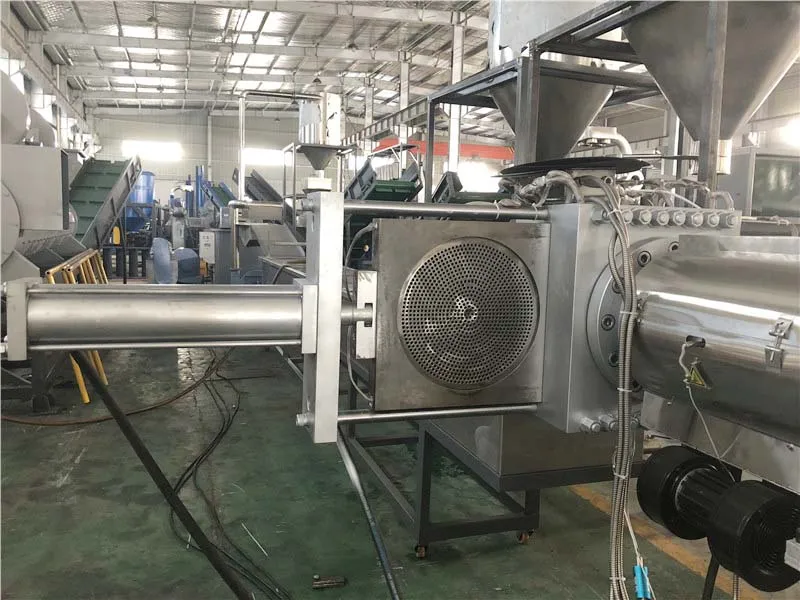

Hydraulic Screen Changer
Double position board model
Board made by 38CrMnAl with forging, heating treatment won’t deform after heating using.
Board made by 38CrMnAl with forging, heating treatment won’t deform after heating using.

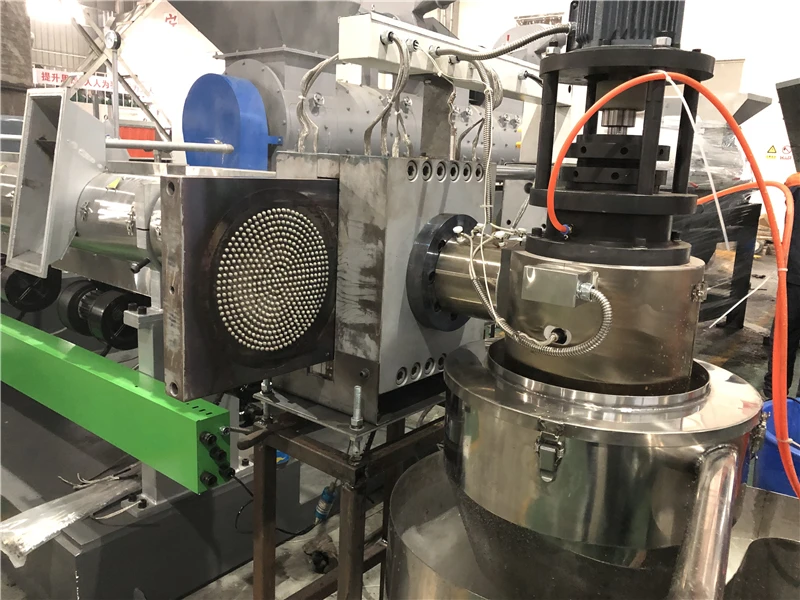

Vertical Die Face Cutting System
Cutting speed adjust by inverter
Inverter brand: DELTA of Taiwan
Blade made by SKD-11 steel
Die mold Made by the 38CrMoALA material with forging treatment, surface been nitriding treatment and buffing.
Inverter brand: DELTA of Taiwan
Blade made by SKD-11 steel
Die mold Made by the 38CrMoALA material with forging treatment, surface been nitriding treatment and buffing.

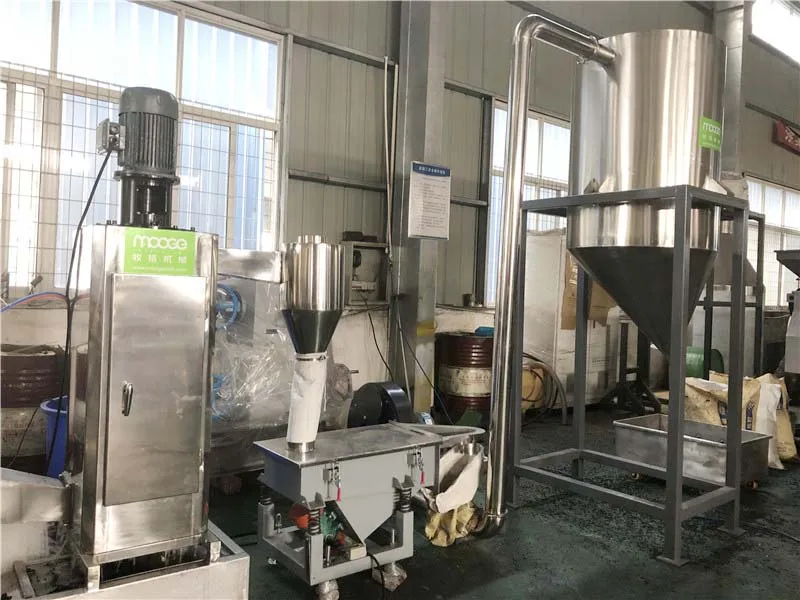

Dewatering machine and Vibration Screen
Drying the flakes and screen out the bigger size pellet

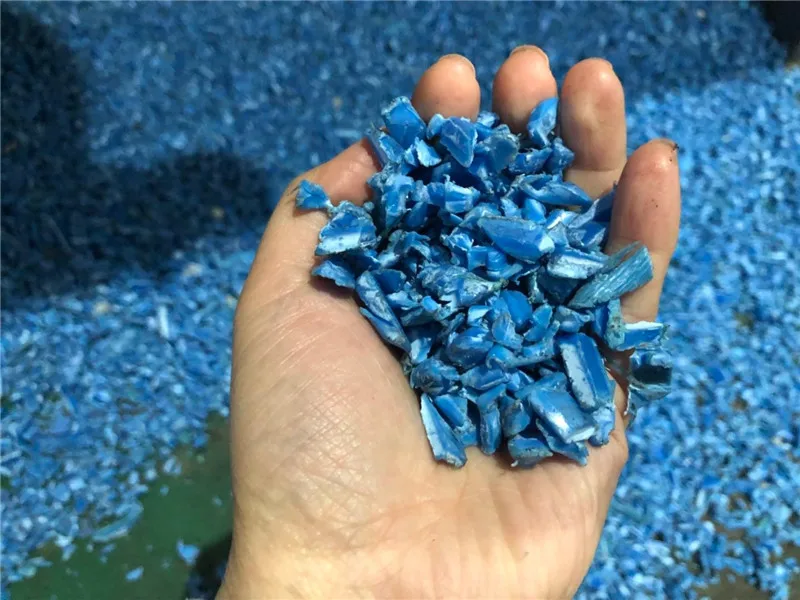

Raw material:Plastic PP HDPE ABS flakes

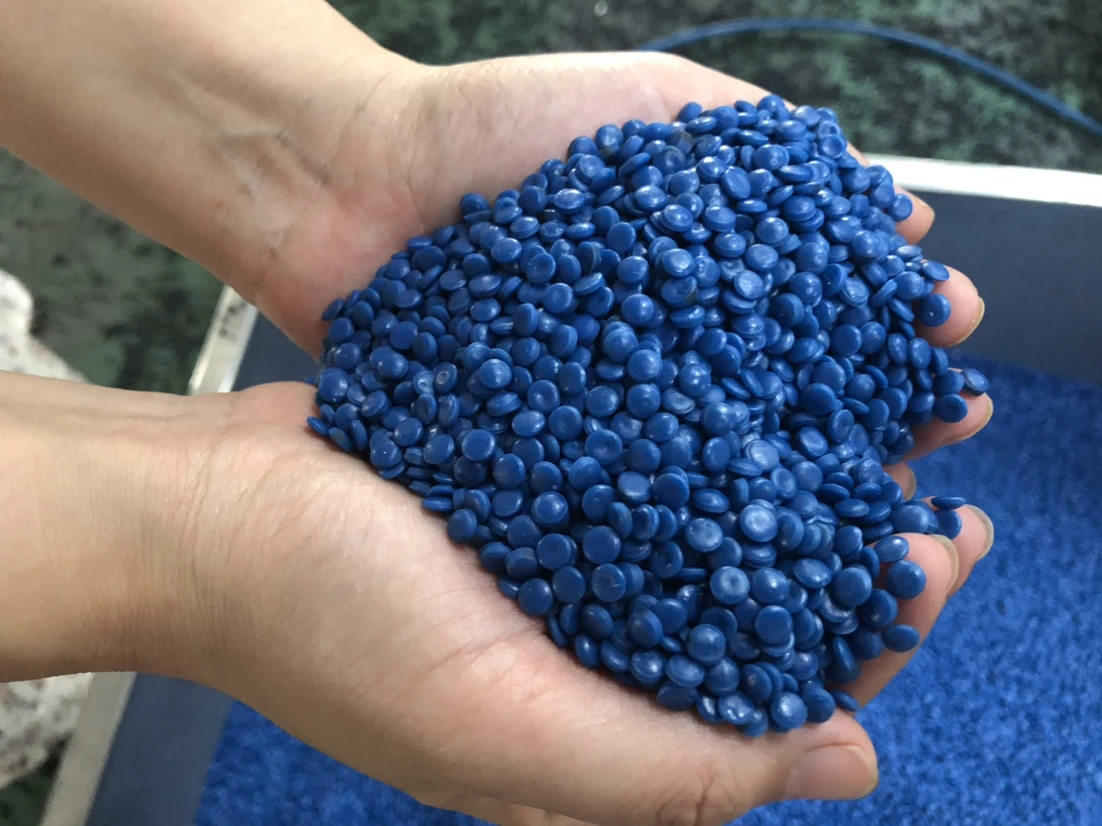

Final products:Plastic pellet
Recommend Products

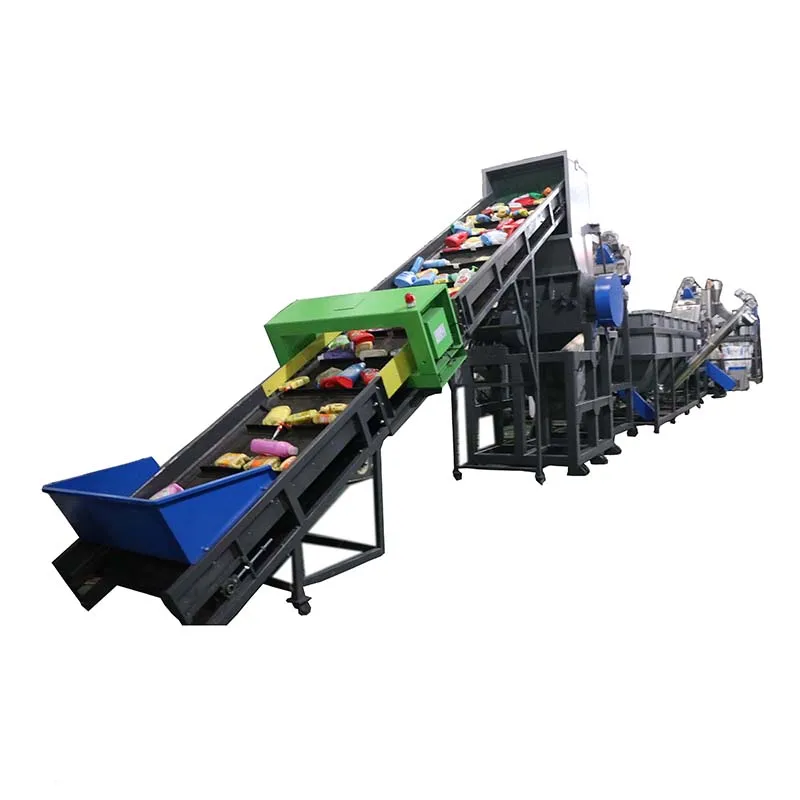

HDPE PP ABS PS bottle,bucket, hollow container recycling machine
