Машина для брикетирования Ram-type мощностью 22 кВт с сертификатом

Описание и отзывы

Характеристики





Introduction:

Raw material: all kinds of biomass material (pasture, sawdust, eucalyptus bark, bran, straw, rice straw, wheat straw, corn stalk, peanut shell, beanstalk, cotton husk, shrub, forest product residual wastes and other wood materials).

Principle: strong impact force 300t, high-frequency impact times 300 times/m, generates 150-200 degrees to forming.



Product features:

1.low cost, high added value, ash contains Mg, K, Na inorganic fertilizer;

2.high density, easy to store, density 1-1.5g/cm3, cover small area, convenient to transport and store;

3.Clean and Environed, green power, contains S 0.16-0.22%, is one kind of safety and clean energy.



Application:

Biomass power station, small boilers, hot water boiler, industrial boiler, gas furnace, and so on.



Main data:



Model	SWZ-2011A	WK-500A
Power(KW)	45	22
Output/ capacity	1.5-2t/h	0.5t/h
Dimension	3500*1800*1700mm	2500*1800*1700mm
Weight (kg)	8000	4500
Mold type	Ram type	Ram type
Product size	50mm diameter pole	50mm diameter pole
Product density	1-1.2g/cm3	1-1.2g/cm3
Finished products calories	3500-5500	3500-5500
Operation	2 person	2 person
Included parts	1) Biomass Briquetting Machine 2) Feeding Conveyor 3) Power Distribution Cabinet	1Biomass briquette machine 2)feeding conveyor 3)Hopper 4)discharge shelf 5)control box.

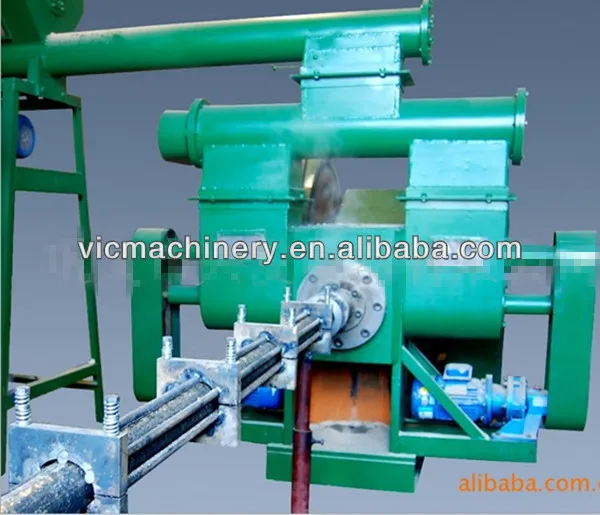

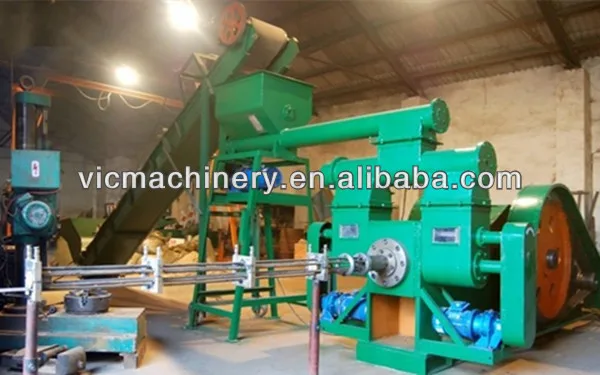

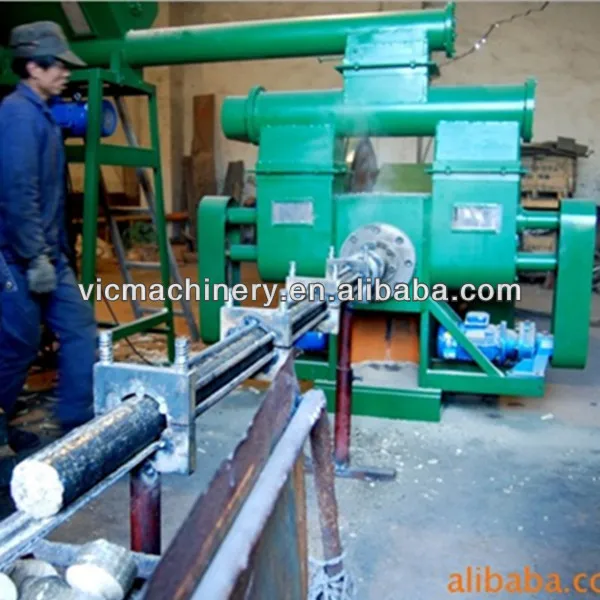

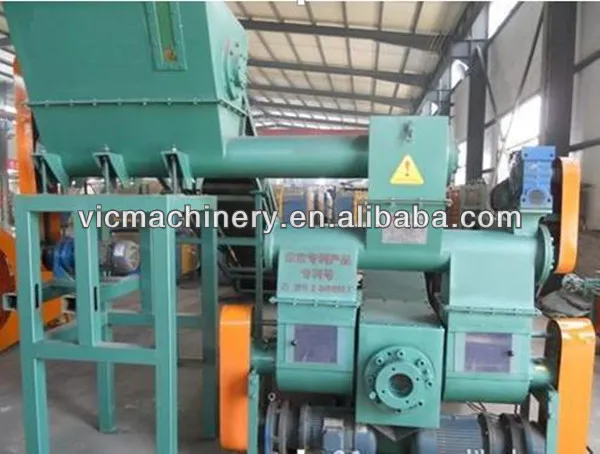

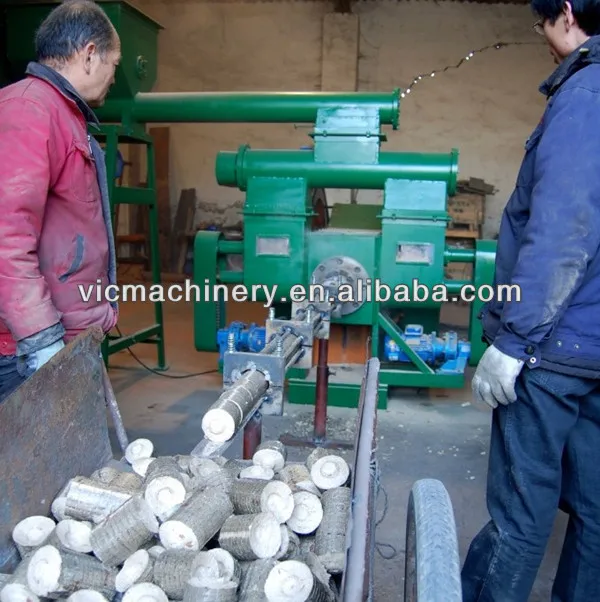

Machine details:

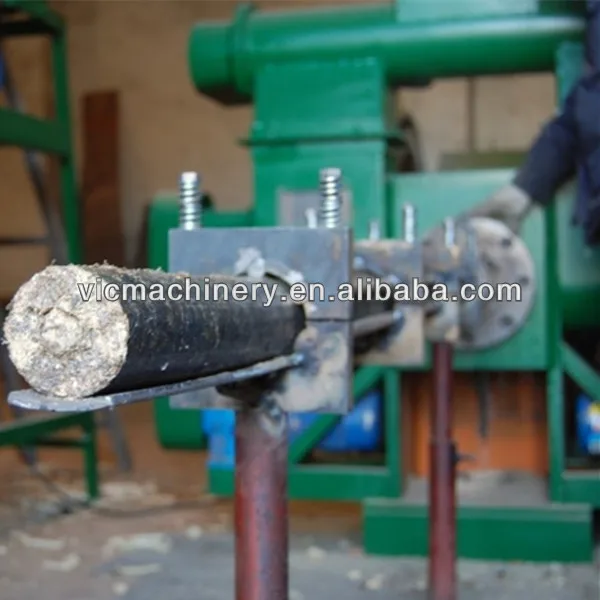

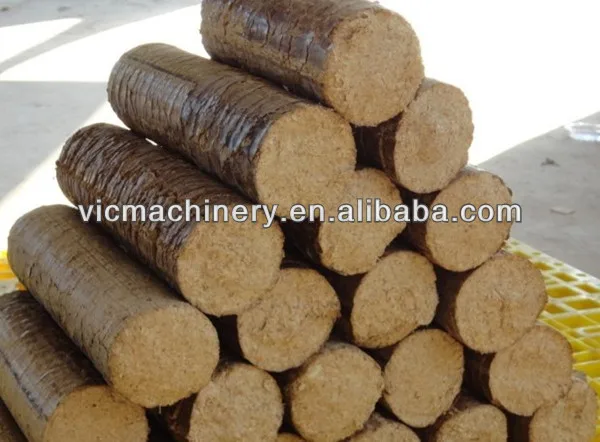

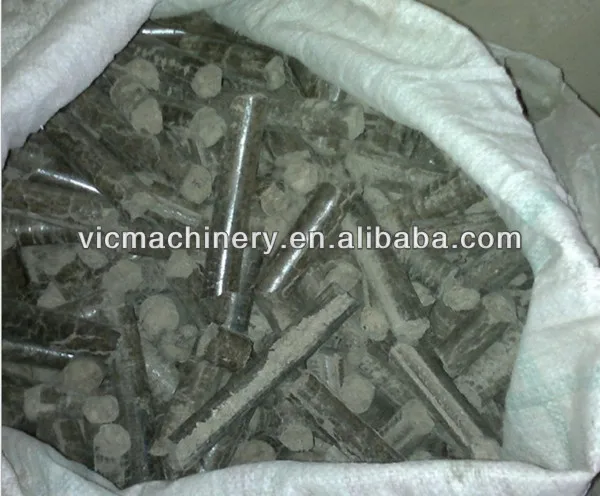

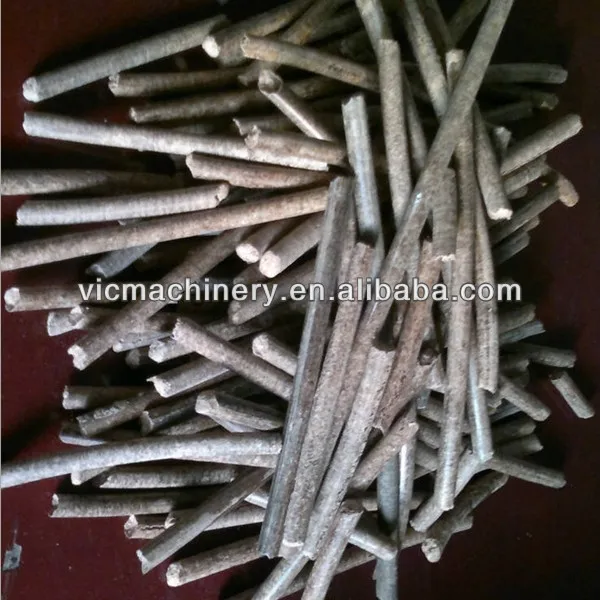

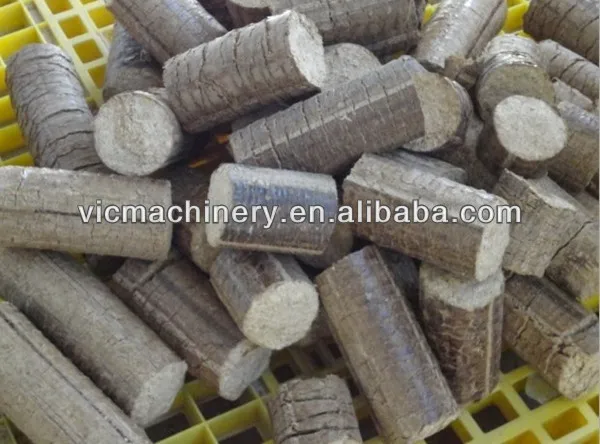

Briqutte sample











All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.



Shipping:

Machine usually transport by sea,we also can transport it by air and railway.

Delivery time: Within 15 workdays after receipt of the pre-payment.

Quality guarantee terms:

Quality guarantee is one year. Spare parts we supply at factory cost lifetime.



We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
