bottle cooling tunnel/fruit juice production line
1. Summary
This bottle coolling tunnel is applied to PET bottle tea or juice hot filling production line. For hot filling, It can put down the temperature of hot filling drink to 36-40, to keeping bottles dry and clean. So convenient to following-up labeling and packing processes. It is widely used in the fruit juice production line, after finished the juice filling, the bottled juice temperature is about 70-80 degree, so it needs to be cooled, this machine is used to make the juice bottle cool down, then the bottle can be labeled. It is the necessary equipment for the juice production line.
2. Structure feature:
a. The main is stainless steel frame-board structure
b. The tunnel spraying cleaning is continuous transmission
c. Main drive is frequency conversion and infinite speed, convey by plastic chain net or stainless steel chain net
d. Heat by coiled pipe hot vapor
e. Temperature control adopts PLC control film regulating valve

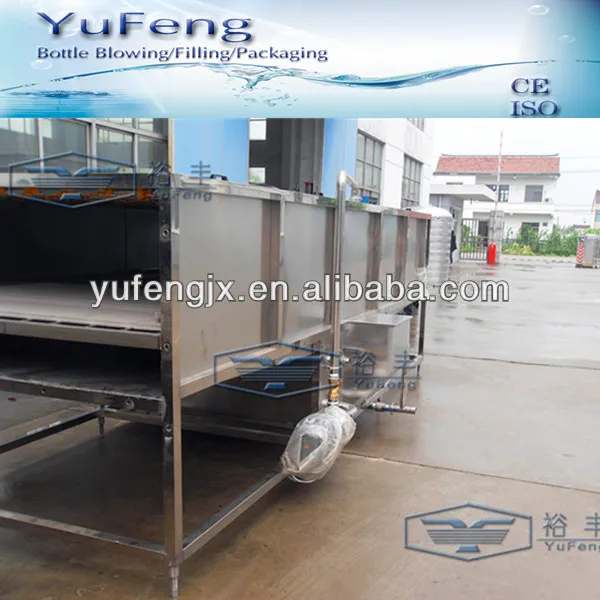

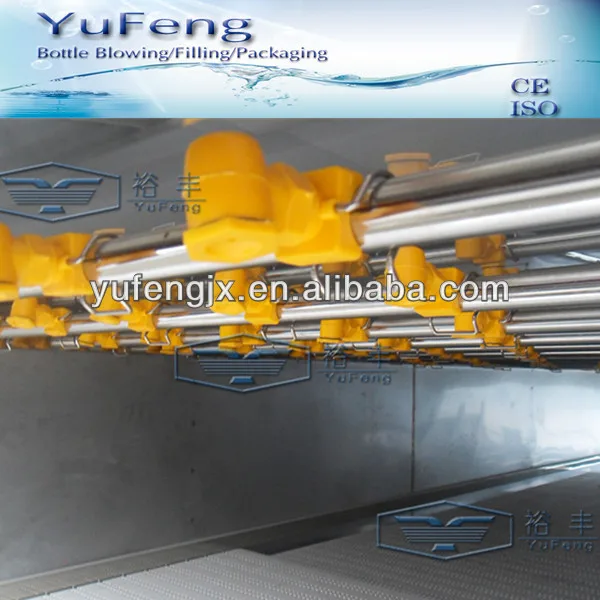

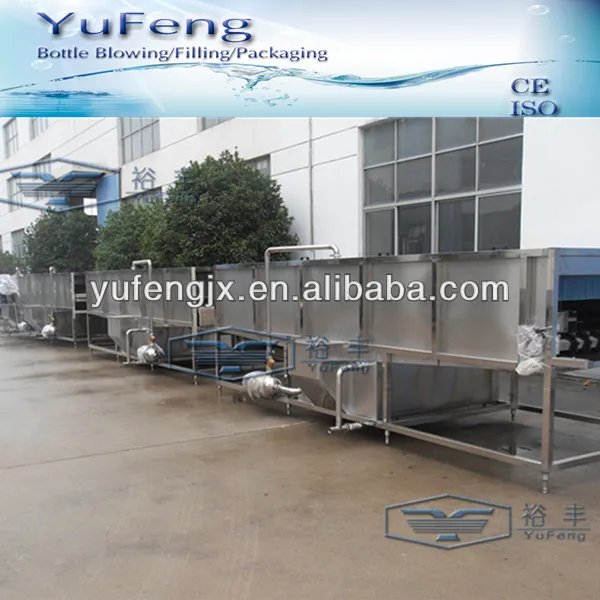

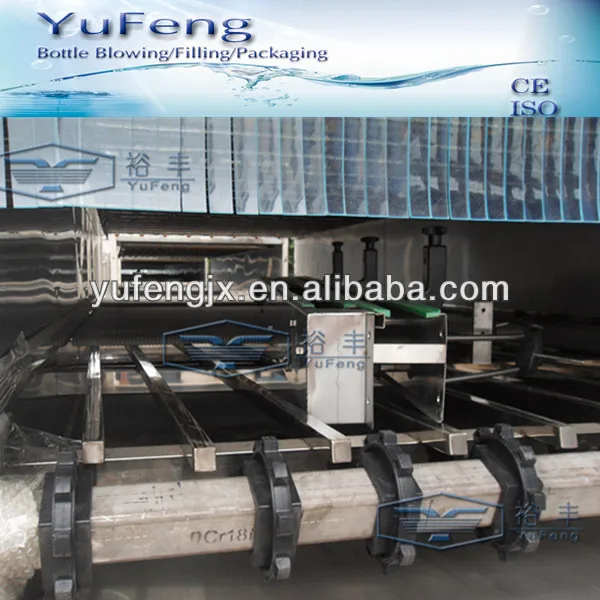

Product pictures:
3. Main technical parameter:
1 | Production Capacity(BPH) | 3000-5000 | 6000-9000 | 10000-15000 | 24000-36000 |
2 | Heating temperature () | 37-45 | 37-45 | 37-45 | 37-45 |
3 | Cooling time( min) | 12-15 | 12-15 | 12-15 | 12-15 |
4 | Linear conveying speed (m/min) | 100-550 | 100-550 | 100-550 | 100-550 |
5 | Width of mesh conveyor (mm) | 1.22 | 1.22 | 1.22 | 1.22 |
6 | Vaport .Pressure (Mpa) | <0.4 | <0.4 | <0.4 | <0.4 |
7 | Vapor consumption(kg/h) | 80 | 120 | 240 | 280 |
8 | Water circulation volum(m3/h) | 6 | 9 | 15 | 28 |
9 | Installed power( kw) | 6 | 7.55 | 8.6 | 18 |
10 | Dimension (LxWXHmm) | 620×1500×1700 | 1580×1500×1700 | 15800X1800×1700 | 22000×800×1700 |
11 | Weight ( KG) | 2500 | 3200 | 4300 | 5600 |
Packaging
Our Services
After Sales Service
1. Find our products through http://yufengjx.en.alibaba.com/
2. One year warranty for the whole system
3. Free equipment installation and debugging
4. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
5. Every 3 years, we can help to overhaul the machine free (Labor)
6. We can provide internship service and help you train the operator and mechanic
7. Free production technology and process configuration
8. We can help you to design the production line, workshop and provide turn-key project
