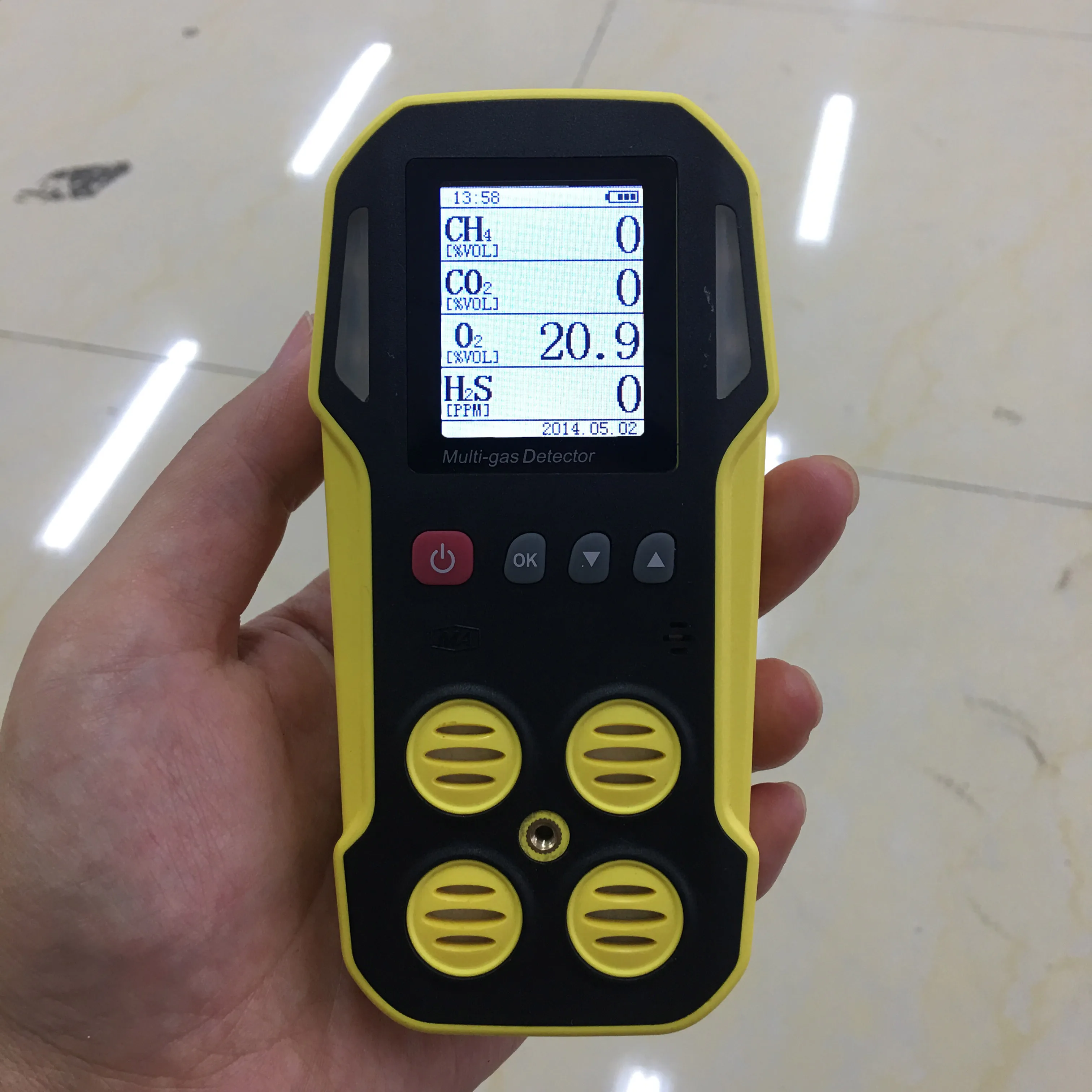

Portable Biogas Analyzer, Biogas Detector with Pump





1.  Application

      It is extensively used in petroleum, petrochemistry, chemical industry, gas ,coal, metallurgy and power system; safety detection in municipal administration, communication and traffic tunnel construction; electronics and semiconductor industry and other places where toxic and harmful gases exist.



SAZQ portable biogas analyzer can be used in biogas plants for biogas detection and measurements, besies, this biogas detector can be also used in food & beverage industry, agriculture, medical industry, lab, etc for related gas analysis.



2. Specification

Technical specification	Parameter
Detecting gas	CH4, CO2, H2S
CH4
Measurement range	(0-100)%Vol
Measurement error	±10%
Respond time	≤45S ( T90 )
Resolution	1%vol
Alarm point	20%vol
CO2
Measurement range	(0-100) %vol
Measurement error	±10%
Respond time	≤45S ( T90 )
Resolution	1%vol
Alarm point	20%VOL
H2S
Measurement range	(0-1000)ppm
Measurement error	±10%
Respond time	≤45S ( T90 )
Resolution	1ppm
Alarm point	10ppm
Alarm sound intensity	80dB
Alarm way	Sound, light alarm
Alarm indicator light	Can be visible in the distance of not less 20m
Sensor life	≥5 years( CH4, CO2) ≥2years( H2S )
Working current	80mA
Continuous operating hours	≥13hours
Battery item	PL123450 3.7V/1500mA
Battery short circuit current	2A
Charging time	4-5hours
Protection level	IP65
Working temperature	-25°C~55°C;  short time for -40°C~55°C
Size	130×66×30 (mm)







3. Product Features:

1. Handheld, industry use, high sensitivity and accuracy

2. Intrinsically safe, Ex sign is ExibdⅠ

3. Rugged ABS+PC case, heavy duty, crash resistant

4. High-capacity chip, 4 layers PCB board

5. Visual & audible alarm

6. High & low alarm point, fully adjustable

7. Low battery alarm

8. Rechargeable battery

9. LCD large screen display with Real time clock and status of battery

10. With Stainless Steel belt clip

11. Support data logging function

12. External air sampling pump is available for gas leak detection.

13. Multi gas detector can be made for any 2-5 gases in any combination.









Related product: IRCD4 portable biogas detector for CH4, CO2, H2S, O2
