Three Point New Mini Garden Towable Backhoe

Mini Garden Towable Backhoe Parameter

Model	LW-5	LW-6	LW-7	LW-8	LW-9
Horsepower Range	16-25	20-35	25-45	60-100	65-125
Overall size	1550×1480×1900	1550×1480×2130	2000×1860×2500	2140×1860×2800	2300×1750×2800
Max.digging depth(mm)	1612	1850	2150	2640	2900
Max.digging radius(mm)	2290	2800	3360	3930	3977
Max.digging height(mm)	1700	2500	3400	3510	3900
discharging height(mm)	740	1400	1760	2000	2362
Max.digging depth(2ft) Flat botton(mm)	1460	1600	2000	2500	2760
Swing Angle(.)	140	140	140	140	160
Bucket Rotation(.)	160	160	160	160	150
Operating Digging Force(KG)	16Mpa	16Mpa	16Mpa	16Mpa	16Mpa
Dipperstick Digging Force(KG)	750	790	950	1000	1270
Shipping Weight(approx)kg	410	470	540	600	820

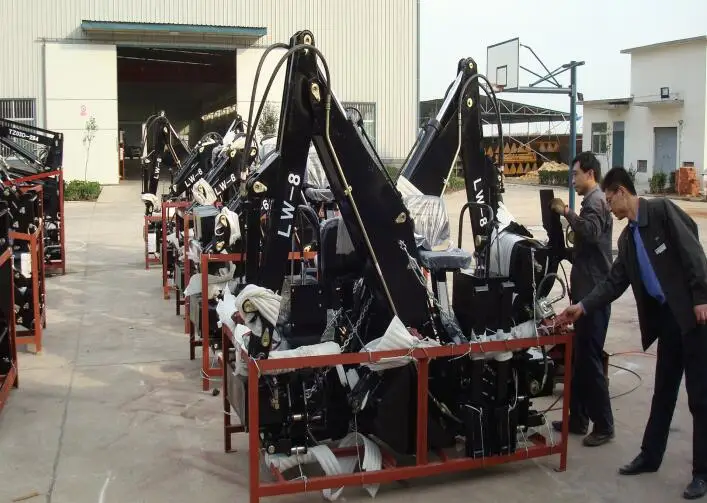

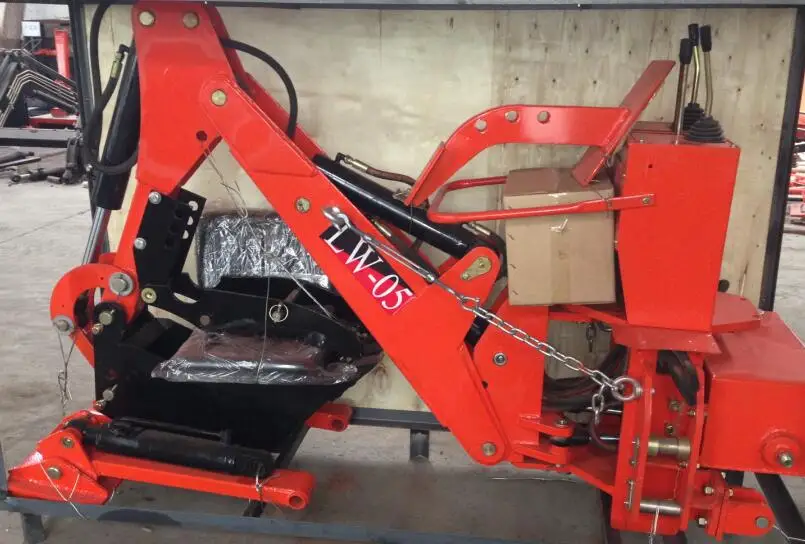

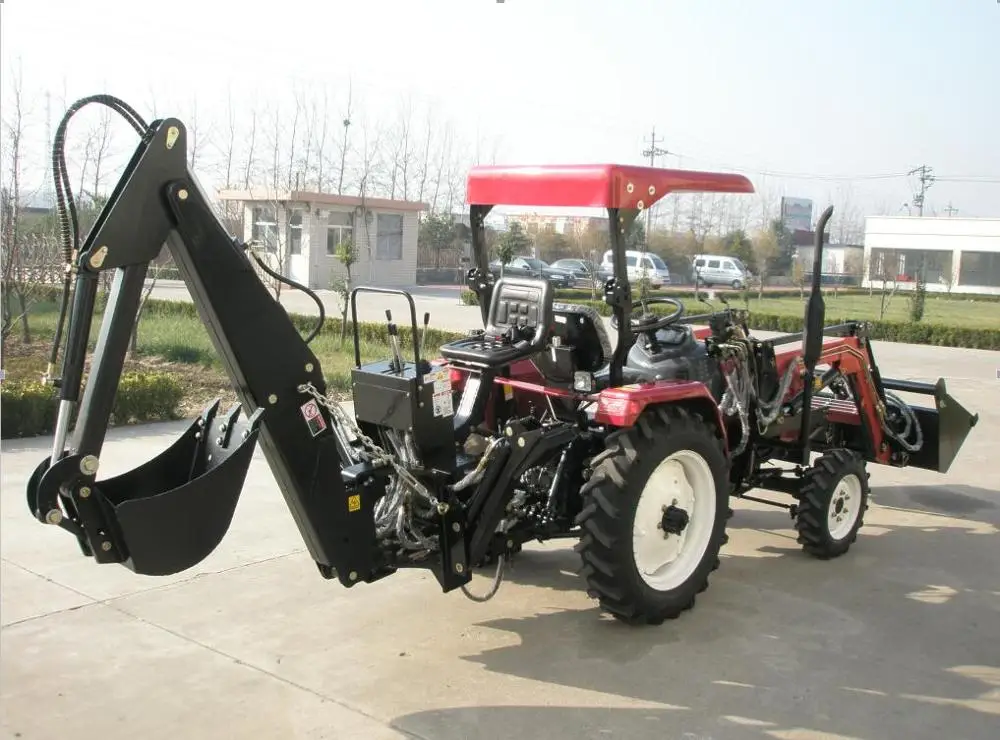

Mini Garden Towable Backhoe Pictures Show
