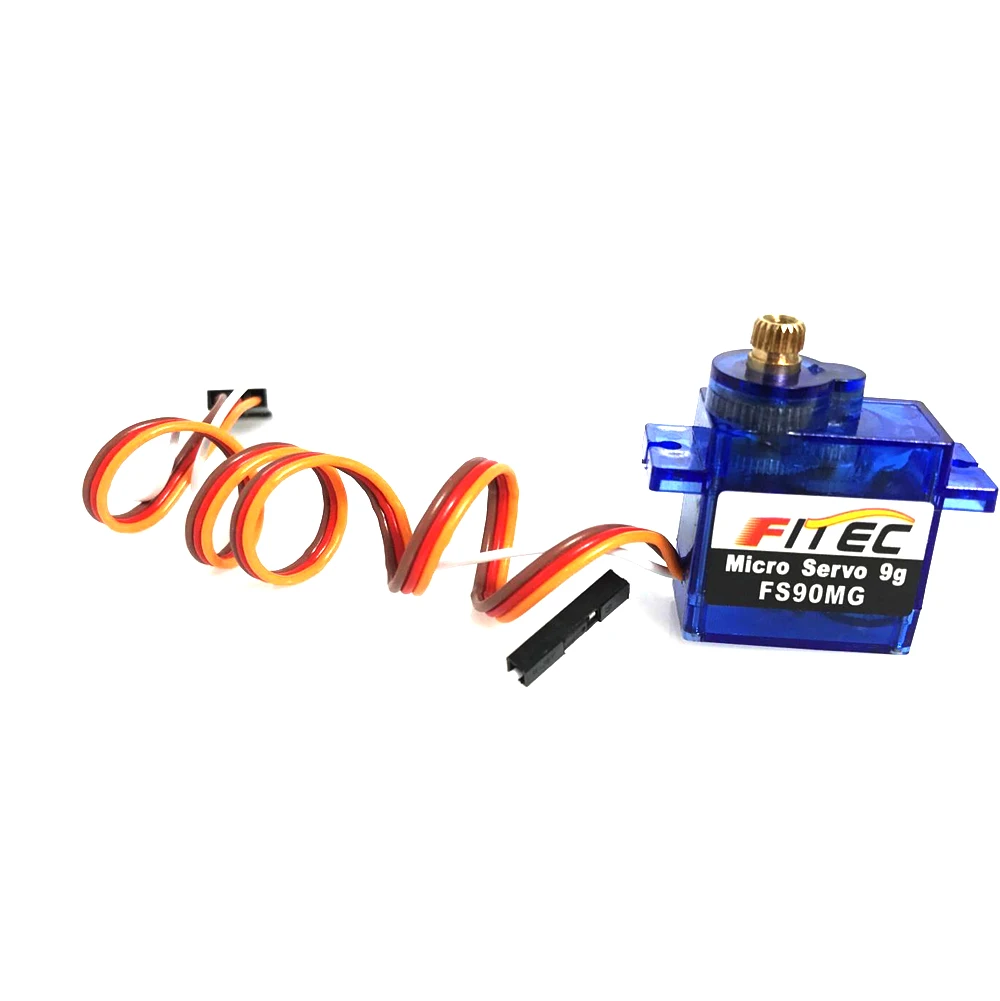

FITEC FS90MG металлическая Шестерня аналоговый 9g Робот rc сервопривод 180


Поделиться:

Цена:1,99 $ - 2,82 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики





Product Description

FS90MG metal gear analog 9g robot servo



1.metal gear analog robot servo
2.Best choice for arduino
3.good price
4.welcome wholesale



SPEC

FS90MG-280D-FB-2

 1



 Feetech servo FS90MG SPEC
1. Apply Environmental Conditon
No.Feetech FS90MGSpecification
1.1Storage Temperature Range-20°C~70°C
1.2Operating Temperature Range-10°C~60°C
2.Standard Test Environment
No.ItemSpecification
2.1Temperature Range-10°C~60°C
2.2Humidity Range65%±10%
3. Mechanical Specification
No.ItemSpecification
3.1Size23.2*12.5*22mm
3.2Weight14g

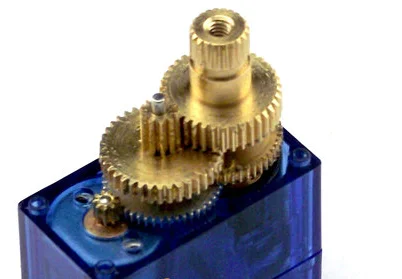

3.3Gear type5 Metal Gear
3.4Limit angle180°±5°
3.5BearingDUAL BB
3.6Horn gear spline
3.7Horn typeMetal
3.8CaseEngineering plastics(Polyamide)
3.9Connector wireFP: 240mm±5mm   JR: 300mm±5mm
3.10MotorDC motor
3.11Splash water resistanceNo
4.Electrical Specification
No.Operat voltage4.8V6.0V
4.2No load speed0.12sec/60°0.10sec/60°
4.4Peak stall torque1.5.cm1.8kg.cm
5.Control Specification
No.ItemSpecification
5.1Command signalPulse width modification
5.2Amplifier typeAnalog controller
5.3Pulse width range900~2100us
5.4Neutral position1500usec
5.5Running degree90°±3°(when 1000~2000usec)
5.6Dead band width8 usec
5.7Rotating directionCounterclockwise (when 1000~2000usec)

Direction :CCW

Operating Angle :120degree

Required Pulse :900us-2100us

Bearing Type :None

Gear Type :metal

Motor Type :Metal

Connector Wire Length :15 cm

ROBOT SERVO

FS90MG SPEC.jpg

The Drawings:

 FS90MG SIZE PICTURE

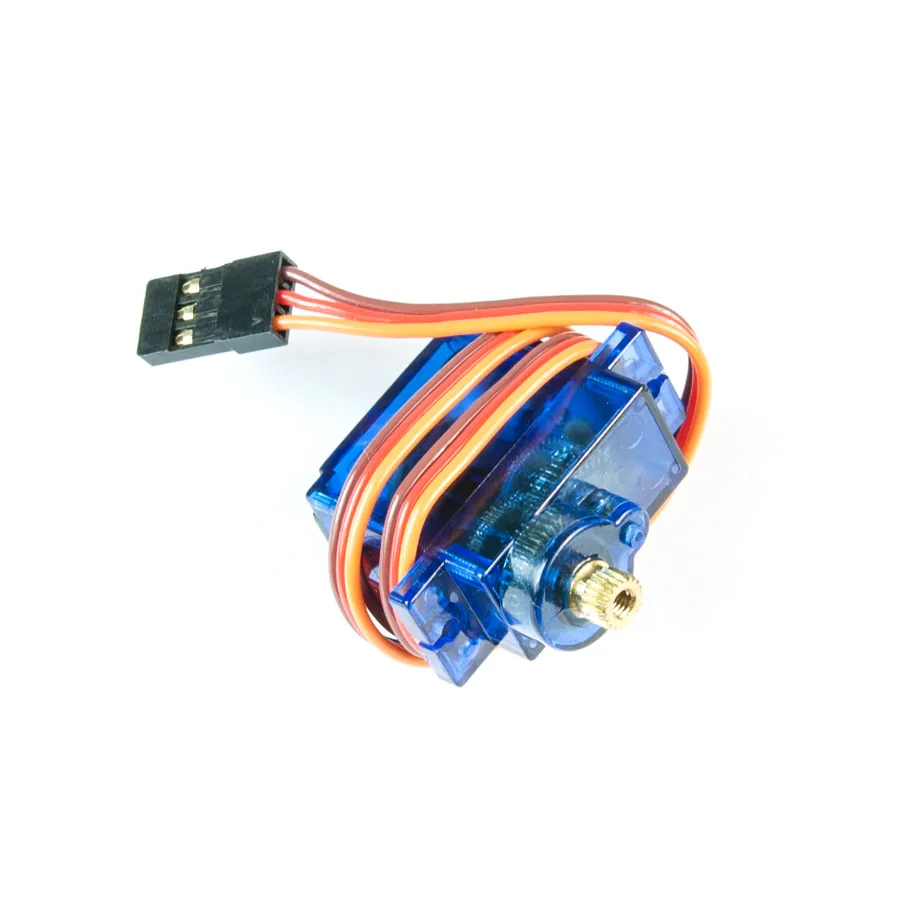

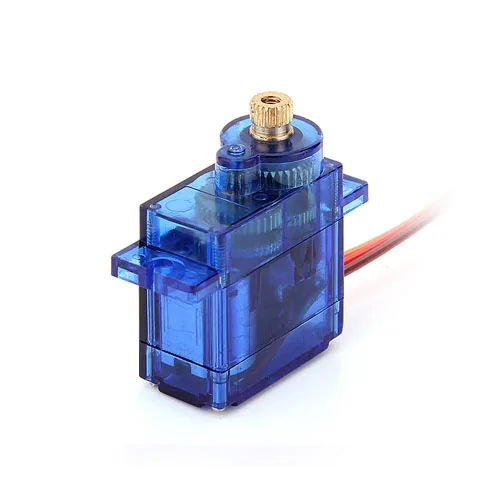

Picture:


9g servo Application

 750FS90-Q 750

hot selling

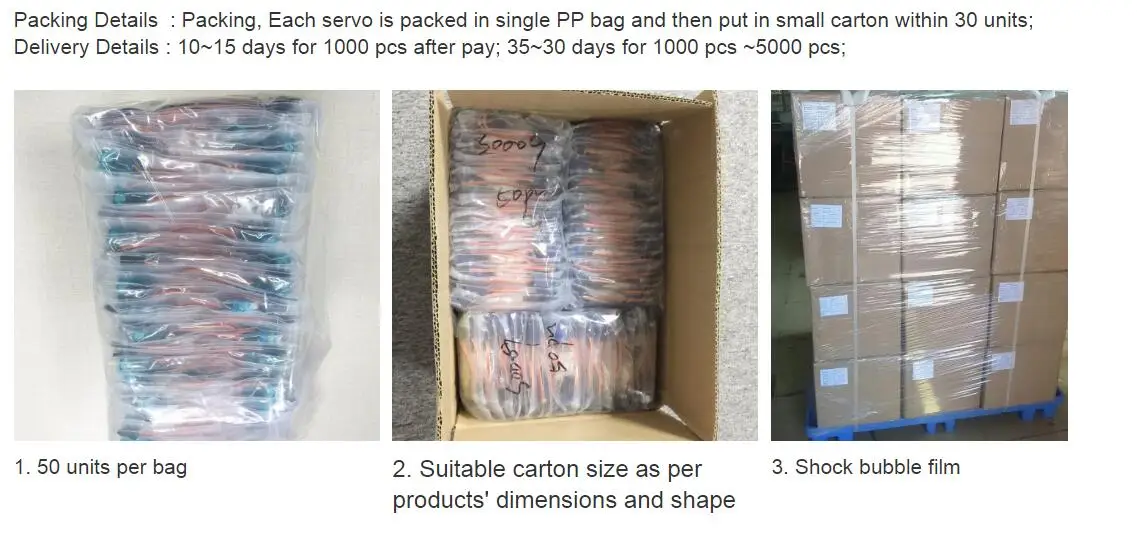

Packaging & Shipping





Packing:

1-PE bag (A servo + accessory)

2-Box (A servo + accessory)

 servo packing



contact me







Company Information



  Feetech Jenny Name Card

About us

Shenzhen FEETECH RC Model Co., Ltd. is specialized in researching, developing, manufacturing and selling the top quality RC servos to all over the world.We have a professional R&D team devoted to pursue the utmost usage of RC Servos according for the RC robot and RC car/ helicopter / airplane / boat, and industrial application products.

The products of FEETECH had passed CE,ROHS standard, Each single product is checked and tested through a series of strict and accurate QC (Quality Control) process by leading edge technology facilities.

We also provide ODM and OEM service, and offer the lowest price with the highest quality, the best manufacture process and the ideal products to you.

The brand of “FEETECH” is based on the concepts of Flying, Excellent, Efficient and Technology.

Our mission is to be a provider of the products with best quality and best service.

Looking forwards to our cooperation and mutual development.





Company Profile

Feetech factory







Our Services





Our service:

Specialized in ODM and OEM and Custom Made

Shipping

We adopt EXW term. Generally, we choose, DHL, FedEx, EMS or UPS as our forwarder. Of course, you can choose your own most favorable forwarder, and we would provide the freight bill according to the quantity and weight of the total products, Freight Collect can also be acceptable.

Payment

We adopt T/T payment methods. After we receive your payment, we will arrange shipment. All banking charges and interest are charged to purchasers.

Warranty Procedure

As long as you choose to use FEETECH products, you can enjoy the warranty service that we provide. Please print our Repair Request Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive as possible, in order to receive the best possible service.

Warranty Period

All FEETECH products are warranted against defects for a period of one (1) years from the date of purchase. During this period we will repair or replace (at our discretion) any defective products. You should always retain your original receipt as proof of the date of purchase.
