Горизонтальная ось ветряная турбина комплект альтернативной энергии генераторы решетки гибридная Солнечная ветровая энергия

Описание и отзывы

Характеристики

Tanfon Solar APP Super Advantage:
1)One Phone remote control ALL solar system, water pump, street lights, CCTV.
2)Troubleshoot and reduce maintenance costs
3)Develop your brand APP to enhance competitiveness



horizontal axis wind turbine kit off grid hybrid solar wind power system







Why Choose Tanfon?

1) TANFON  has sold the system to Nigeria, Colombia, Burkina Faso, Egypt, Bolivia, Kenya, Ghana, South Africa, Argentina, Philippines, Congo, etc. Almost 85% of Africa countries !

2) With a professional installation team, Have went to Egypt,  Chad, Nigeria, Ghana, Doha, Pakistan for installation

3) Already started some inverter factories in some countries. so there is no problem in after sale service. And we are still looking for local factories in other countries, to unfolding depth of cooperation

4) We insist on using good quality raw material whenever and wherever.

5) With customer’s’ praise as an assurance,Tanfon is a guaranteed brand.

6) Our company's philosophy is: one-stop solar energy service platform

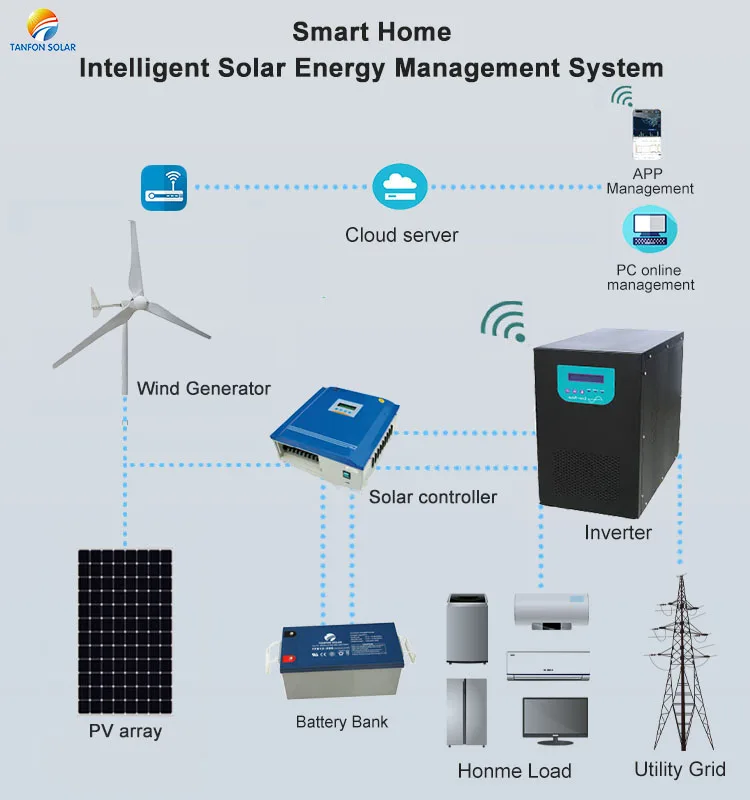

5kw Home Solar wind power hybrid charge system





Wind turbine generator



 Wind turbine Features:
1. Rare earth permanent-magnet generator
2. Small vibration and tiny friction, stable rotation in higher speed
3. Streamlined wind turbine body and blade outline design
4.Blades have 2 kinds, 300w-1kw for high-rigidity FRP materials and blades are dynamic-balanced
5. Noise level below 55dB around the wind turbine tower
6. State of the art, workmanship and beautiful appearance
7. Use magnetic saturation technology, with 20years designed life;
8. Select high quality bearing, free to maintenance;
9. Anti-twist device, generator can whirl in each direction
10. Anti strong wind, the blade protect itself automatically,
11. Supply matched controller/inverter, make the system more stable.





Solar PV panel characteristics

Module Type	FS250-24v
Maximum power at STC(Pmax)	250W
Optimum operating voltage(Vmp)	30V
Optimum operating current(Imp)	8.33A
Open-circuit voltage(Voc)	36V
Short-circuit current(Isc)	9.68A
Short-circuit current temperature coefficient	(0.065±0.015)%/℃
Open-circuit voltage temperature coefficient	-(80±10)mV/℃
Peak power temperature coefficient	-(0.5±0.05)%/℃
NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s)	47±2℃
Operating temperature	-40℃ to 85℃
Maximum system voltage	600V DC
Power tolerance	±3%
STC	lrradiance 1000W/m², Module temperature 25℃, AM=1.5

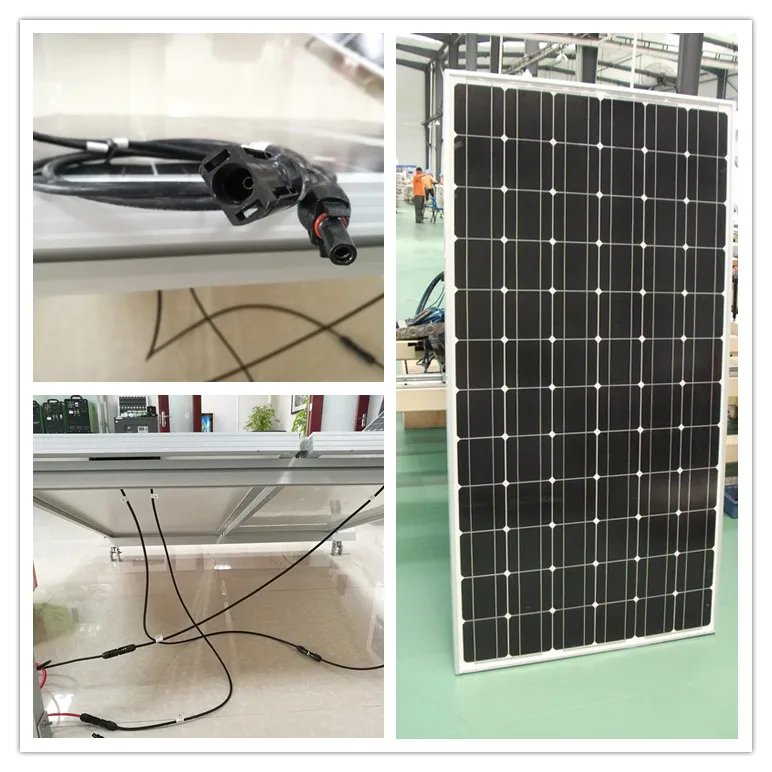

250W mono solar panel



Features

l  Nominal 24V DC for standard output.

l  High efficiency.

l  Outstanding low-light performance.

l  High transmission tempered glass.

l  Rugged design to withstands high wind pressure and snow load, easy installation.

l  Aesthetic appearance.

l  Design to meet unique demand of customer.

l  25 year module output warranty.





Pure sine wave power inverter



Specification

Model	TF5K
Capacity(W)	5000
DC voltage(V)	48/96
Input voltage(V)	145-280VAC
Input frequency	45-65HZ
Output voltage	Four steps AVR, 110V/120V/220V/230V for optional
Output wave form	Pure sine wave
THD	≤ 3%
Low-voltage protection(V)	39/78
Over voltage protection(V)	60/120
Recharge current	15-25A
Unit size(mm)	473*230*490
Transfer efficiency	87%--90%
Protections	Protection against short-circuit, over load, high-voltage, reverse polarity protection and low-voltage protection
Over load	120% of the rate capacity
Short circuit	300% of the rate capacity







Pure sine wave home inverter/solar,wind system off grid inverter Feature:

1) super wide input voltage: 145V---280VAC

2) completely controlled by CPU. Battery temperature sensor (BTS) Automatic generator starting (AGS)
3) protect against output short-circuit/overload. When you throw off its load, it will turn on automatically.
4) optional for charge build-in, charge current is 10A----30A.
5) different DC voltage: 12V, 24V, 36V, 48V, 96V, 110V,192V, 240V for optional.
6) inverter can operate with 120% of nominal load during 1 minute ;150% of nominal load during 10 second.
7) it can drive inductive loads, such as lighting, TV sets, fans, refrigerators and air-conditioner

8) it's humanized design, when the AC comes, it will start the unit automatically; And when it overload, it will also close the unit automatically, when you cancel the load, then it will return to work automatically.
9) ATM inverter, RS232 software, SNMP card for optional.

10) 100% import MOS and IC, promise high quality materials .

11) double protection ,city power &battery working mode button



PV Array Combiner



Features:

1. Use to connect to multiple PV array strings inputs, Simplify wiring between PV array and controller, protections to controller.

2. Can prevent countercurrent (reverse irrigation), prevent internal friction. Heat spot prevention effect.

3. It is equipped with the solar DC lightning protection devices. Both the positive pole and negative pole have the dual lightning protection function.

4. It adopts the professional DC breaker, capable to withstand voltage not lower than DC1000V. So it is safe and reliable.

5. The protection class is IP65, which meets the outdoor installation and usage requirements.

6. Easy and convenient installation and maintenance, long-term service life.

7. Reliable thunderstorm& surge protection



Gel Battery



Gel battery Features

1. A high storage capacity

2. Charge and discharge without mist.

3. Good charge acceptance, can be high current charge (0.8C-1C)

4. Can be high-current discharge; current will not damage if 30C discharge current in 8 seconds.

5. Can be super-deep discharge and repeated to make discharge, battery will not undermine.

6. Well adapt to the temperature, can be used within -50~60℃.

7. Small self-discharge; completely maintenance-free; the battery can still be used for normal if stored at room temperature after full charge.

8. Long design service life, double the life of lead acid batteries.

9. Environmental protection; It is easy to recycle and no pollution.

10. Astigmatic and well adjusts to poor working conditions.

11. Without space limitation and allowed to be operated in any orientation.

12. Simple operation

Maintenance free operation, and with the good coherence of internal resistance, capacity and floating charge, there is no equalizing charge required.



Panel Rack



Features:

Ground mounting, Slope Rooftop or Flat rooftop mounting

wind load: 55m/s,snow load:1.5kn/m2

structure: Anodized Aluminum +stainless steel, Angle adjustable(other type of rack can be customized as per client's requirement )



Solar system using feedback from customers:





5KW solar wind hybrid power system project





Packing





Tanfon Solar products Certification



We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.
