Cam Type bobbin winding machine





Description of plastc drawing machine

1. This machine is our newly developed energy-efficient winding machine with 1.5-2.2kw main motor only



2.It adopts cardioid cam to replace the former reciprocation shaft mechanism of combination winding machine. In this way, the machine can achieve stable movement and flat winding spindle.



3. Its overall length is greatly shortened by adopting 5 winding layers on both sides, which is good for matching with Plastic Tape Drawing Machine.

Main technical parameters

Type	Layer number of spindle	Number of spindle	Dimension of Bobbin(D*L)(mm)	Linear speed of tape winding(m/min)	Power of main motor(kw)	Power of winding motor(kw)	Installing Dimensions (L*W*H)(mm)	Weight(kg)
S-STL-11/190	5	190	38*230	50-160	1.5	9	5000*1500*1580	2800
S-STL-11/240	5	240	38*230	50-160	1.5	11	6200*1500*1580	3600
S-STL-11/290	5	290	38*230	50-160	1.5	14	7500*1500*1580	4300
S-STL-11/390	5	390	38*230	50-160	1.5	17	10500*1500*1580	5800
S-STL-11/430	5	430	38*230	50-160	2.2	19	11000*1500*1580	6500
S-STL-11/480	5	480	38*230	50-160	2.2	22	12000*1500*1580	7200
S-STL-11/520	5	520	38*230	50-160	2.2	24	13000*1500*1580	7800
S-STL-11/600/11	5	600	38*230	50-160	1.5*2	27	8000*4500*1580	9000
S-STL-11/720/11	5	720	38*230	50-160	1.5*2	32	9300*4500*1580	10800
S-STL-11/760/11	5	760	38*230	50-160	2.2*2	33	10000*4500*1580	11300
S-STL-11/800/11	5	800	38*230	50-160	2.2*2	35	11000*4500*1580	12500

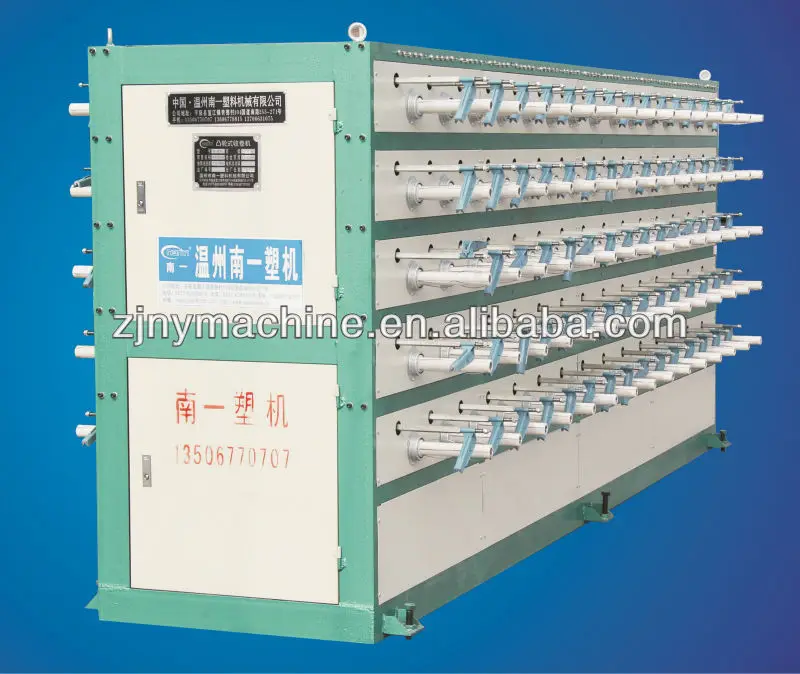

Product Show

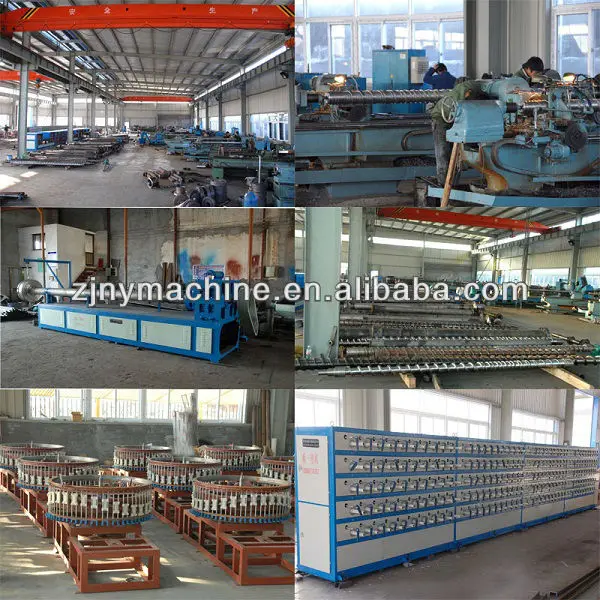

Workshop



Contact us

Wenzhou NanYi Plastic Machinery Co.,Ltd

ADD:No.268, National Road104, Aojiang Town, Wenzhou City, Zhejiang,China

Website: http://www.nanyijixie.com or

http:// zjnymachine.en.alibaba.com

Tel: +86-577-63696280  Fax:+86-577-63690818

Mob:+86-13867739043

Skype: lissy.xie
