0-100%vol Portable Oxygen Analyzer with External Sensor



Introduction:

This oxygen detector real-time measures oxygen concentration with range 0-100%vol, 0.1%vol resolution. This O2 detector sends visual and audible alarm when the measured oxygen concentration is higher or lower than the preset setpoint, which is fully adjustable by user.



The external sensor with 3m wire provides user more flexible measurements.







Product Features:

1. Handheld, industry use, high sensitivity and accuracy

2. Intrinsically safe, Ex sign is ExibdⅠ

3. Rugged ABS+PC case, heavy duty, crash resistant

4. High-capacity chip, 4 layers PCB board

5. Visual & audible alarm

6. High & low alarm point, fully adjustable

7. SETL & TWA alarm

8. Low battery alarm

9. Rechargeable battery

10. LCD large screen display with Real time clock and status of battery

11. With Stainless Steel belt clip

12. Support data logging function

13. External air sampling pump is available for gas leak detection.





Application:

The gas detection instruments we designed are widely used in petrochemical, municipal environmental protection, coal mine, residential places, and other natural and wide ranges of industrial environments.

 For food process, anaerobic exercise, construction, etc.



Technical Parameter:

Gas detected	Oxygen (O2)
Measuring range	(0~100)%vol
Resolution ratio	0.1%vol

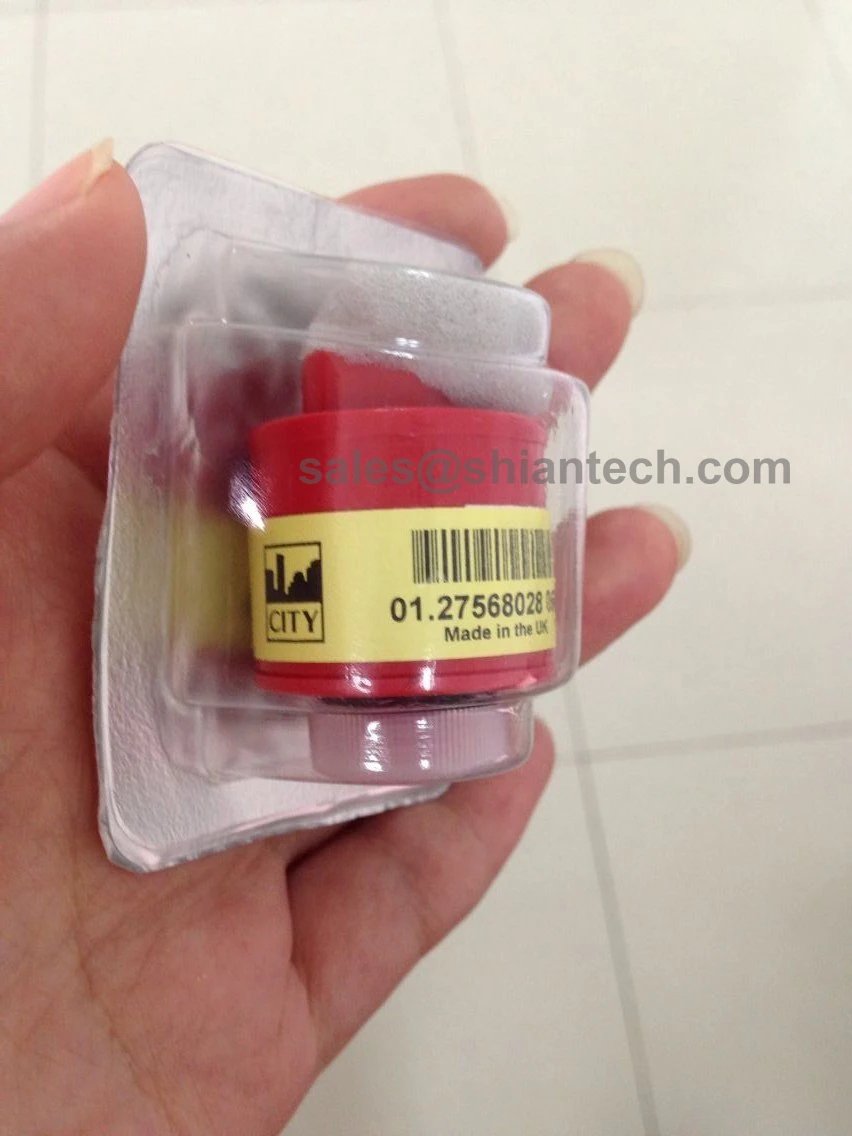

Sensor	CITY Electrochemical Sensor
Sensor lifetime	≥2 year
Response time	≤35s(T90)
Alarms	Audible--buzzer with ≥75dB audible Visible--flashing red LED, ≥20m visible
Alarm point	Fully adjustable
Data logging (optional)	Continuous Data logging (9000 data at configurable 0.1-10 minutes intervals)
Continuous working time	>3 months ( without backlight)
Working current	< 1mA ( without backlight)
Working temperature	-25℃~+55℃, short time: -40℃~+55℃
Display	Liquid crystal display (LCD)
Battery model	PL123450, 3.7V/1500mA
Charging time	4-5 hours
Dust and water resistance	IP65
Size & Weight	105*54*32mm/450g
Ex sign	ExibdⅠ
