                                V type metal panel mount electronic micro switch button



Product Description



  P/N: RV series micro switch metal panel  mount button micro switch

Model No.: RVMB2



RVMB2 4RVMB2

Rated data and performance of micro switch RV type



Item                     Type

RV-21 RV-16 RV-15  RV-11 RV-10



Allowable operating speed

0.1mm~1m/s (pin plunge type)

Allowable operating frequency

Mechanical 600 operations/min

Electrical  30 operations/min

Insulation resistance

100 mΩ min. (at 500V DC)

Contact resistance (initial value )

Max 15mΩ

Dielectric strength

Between the non-continious terminals

AC 1000V 50/60HZ for 1min

Between non voltage metal parts and each terminal

AC 2000V 50/60HZ for 1min

Between the grounding and the each terminal

Vibration resistance

Malfunction

10 to 55HZ, 1.5mm double amplitude (contact gap is less than 1ms )

Shock resistance

OF 0.49N type: less 98m/s2

OF 1.96N,3.29N type :less 294m/s2

OF 0.98 N type : 196m/s2

 Expected Life

Mechanical life (order OT)

50,000,000 operations min. (frequency is 60 operations/min)

Electrical life(resistive load )

100,000  operations min. (frequency is 20 operations/min)

Ambient operation temperature & Ambient humidity

-25~+80(with no icing ),

  85%RH max.(+5~35)

Contact material

AgNi alloy ; AgCdO alloy (not in the ROHS order )

Weight

Approx.  6.2g(pin plunger type )

Remark : micro switch operation with the low / high speed and shock , or used in the high temperature and more humidity , the life of micro switch and the capability of micro switch may be decreased because of the load capacity , so please consultation us freely .





Other information of micro switch RV type

Rating:21A/16A/11A/6A, AC250V
Contact formSPDT/SPST-NC/SPST-NO
Terminals:#187/#250 England made/ Screw fixed terminal/Solder terminal
Maximum Operating Force50gf-400gf

 Ratings

ModelRated voltageNo-inductive loadInductive load
Resistive loadLamp loadInductive loadMotor load
NCNONCNONCNONCNO
RV-21250VAC21A3A12A4A

8VDC

30VDC

125VDC

250VDC

21A

14A

0.6A

0.3A

5A

5A

0.1A

0.05A

12A

12A

0.6A

0.3A

7A

5A

0.1A

0.05A

RV-16250VAC16A2A10A3A

8VDC

30VDC

125VDC

250VDC

16A

10A

0.6A

0.3A

4A

4A

0.1A

0.05A

10A

10A

0.6A

0.3A

6A

4A

0.1A

0.05A

RV-11250VAC11A1.5A6A2A

8VDC

30VDC

125VDC

250VDC

11A

6A

0.6A

0.3A

3A

3A

0.1A

0.05A

6A

6A

0.6A

0.3A

3A

3A

0.1A

0.05A

RV-6250VAC6A3A4A--

8VDC

30VDC

125VDC

250VDC

6A

6A

0.4A

0.3A

3A

3A

0.1A

0.05A

4A

4A

0.4A

0.2A

--

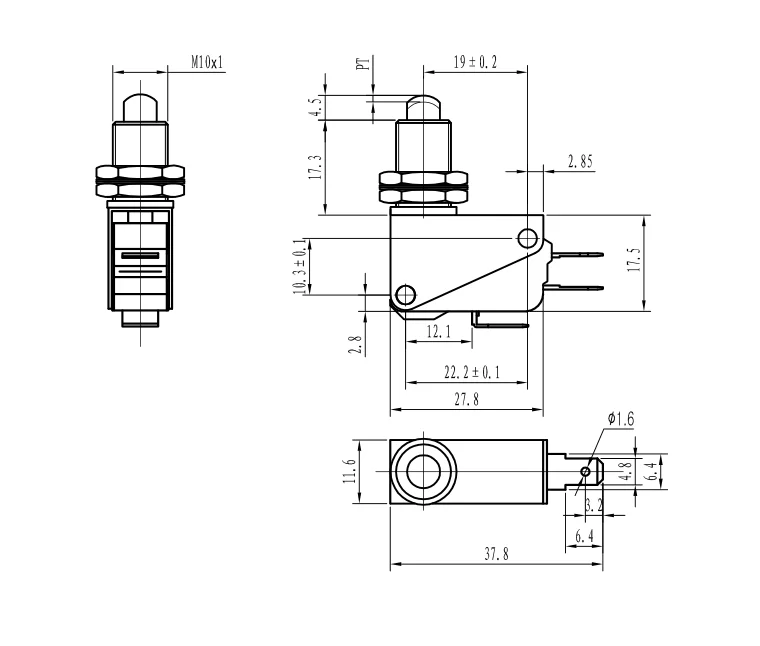

outside dimension of micro switch RV type:




.jpg




Packaging & Shipping

 By DHL, TNT, FEDEX, UPS express or By sea/ air.



Our Services

 Warranty period: 12 months.



Company Information

 Our company was founded in 1996, We are specialized in developing and producing micro-switch, limit switch, travel switch, toggle switch
All kinds of test machine:
Workshop:





WHY CHOOSE US?

1. More than 17 years experience on producing and developing micro switch, limit switch, toggle switch. Have our own brand "RENEW".

2. High quality raw materials, long life and secure switches.

3. Dust-free plant, strict quality control, provide you satisfactory switches.

4. CE, CCC, UL. ROHS Certificates.

5. Plentiful stocks, solve your urgent needs.



FAQ

1.Q:What are your payment terms? Do you accept paypal?

    A: 100% T/T in advance. We do not have a paypal account at present.

2. Q: Do you have a price list?

     A: We do not have a published list, however you can contact customer service and they can supply you with the pricing that you need.

3. Q: What are your warranties?

    A: 12 months from the date of invoice. Renew offer the free maintenance or replacement of malfuctioning products.

4. Q: Can you accept OEM?

     A: Yes, need your trademark authorization letter.

5. Q: What about the package?

     A: All use thickening export carton with "RENEW" mark, your specified mark or none.

6. Q: Do you provide sample?

     A: Yes, free sample can provide to you, express freight collect.

7. Q: Do you accept small order quantity?

     A: Yes, order quantity without limited.

8. Q: How about the delivery mothod?

     A: In small quantity, we suggest by express DHL, TNT, FEDEX, UPS......  If not by sea or by air transport.

9.Q: Do you bear the freight charge?

    A: We can offer you EXW, FOB or CIF price.

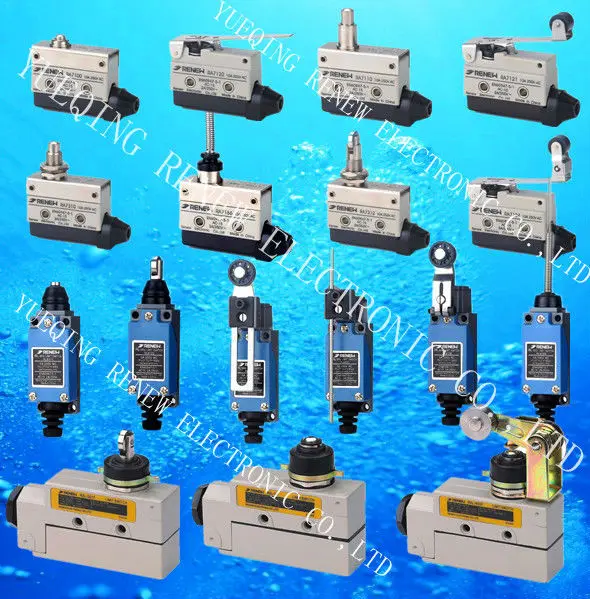

Our company specialized in  manufacturing micro switches, limit switches, toggle switches. Main products are show in pictures as below:



LIMIT SWITCHES

Types of electrical limit switches



MICRO SWITCHES

Types of electrical limit switches



TOGGLE SWITCHES

Types of electrical limit switches
