Машина для производства прозрачных косметических складных коробок из
- Категории: Other Plastic Product Making Machinery >>>
- Поставщик: Shenzhen,Hipower,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Model | HR-8000Z | HR-15KWZ | |
H.F. Power | 8KW | 15KW | |
Voltage | AC380V/220V/415V/440V | ||
Frequency | 27.12MHz +/- 0,6 % | ||
Oscillation tube | 7T69RB | 8T85RB | |
Max. Pressure | Pneumatic 1000KGS | ||
Upper Electrode | 500*700mm | 500*700mm | |
Lower Work Platen | 600*800mm | 600*800mm | |
Rectifier | SILICON DIODE | ||
Anti-Flash Function | 5557 high sensitive grade | ||
Productivity | 3 - 6 s / pcs | ||
Weight | 1600KGS | ||
Certificate | CE | ||
Machine General Features: High Frequency Plastic Box Creasing and Die Cutting Machine
This is an automatic high frequency soft line creasing machine with flattening system ;
It works with the transparent roll of PVC, PET , go through the flattening system first ,
It works with the transparent roll of PVC, PET , go through the flattening system first ,
before material creased by High Frequency Machine .
1.Optional of feeding-transfering material simultaneously,adjustable operating speed.
2.Electronic counting,continuous automatic feeding speed,suitable for different materials.
3.Exported abrasion proof of transformation,avoid damaging the mould.
4.Photoelectricity induction,feeding-collecting simultaneously,precise-controlled.
5.Motor Driving material feeding device installed
6. Waste collecting device available on request
1.Optional of feeding-transfering material simultaneously,adjustable operating speed.
2.Electronic counting,continuous automatic feeding speed,suitable for different materials.
3.Exported abrasion proof of transformation,avoid damaging the mould.
4.Photoelectricity induction,feeding-collecting simultaneously,precise-controlled.
5.Motor Driving material feeding device installed
6. Waste collecting device available on request
Specialize for PVC & PET soft plastic boxes making.Can be also called soft plastic box forming machine.
High Frequency welding machine for crease soft plastic box machine for mass production of present packaging industry
Such as: stationery, plastic box packaging, cosmetic packaging,gift packaging, plastic fishing tackle packaging,
hardware tools packaging, confectionery packaging.
Such as: stationery, plastic box packaging, cosmetic packaging,gift packaging, plastic fishing tackle packaging,
hardware tools packaging, confectionery packaging.
Application:
It is especially designed for Clear Packaging Boxes, soft crease box forming,
PVC & PET folding box, Transparent Foldable plastic box making. The plastic box can be made of PVC, PET, APET, PETG, GAG, and
other Eco-friendly plastic films.
Depend on plastic material type: Film Sheets or Plastic Roll, you can choose a semi-auto machine, or an automated machine.
PVC & PET folding box, Transparent Foldable plastic box making. The plastic box can be made of PVC, PET, APET, PETG, GAG, and
other Eco-friendly plastic films.
Depend on plastic material type: Film Sheets or Plastic Roll, you can choose a semi-auto machine, or an automated machine.

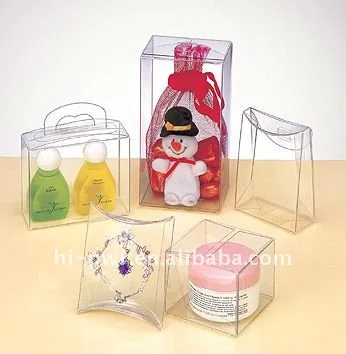

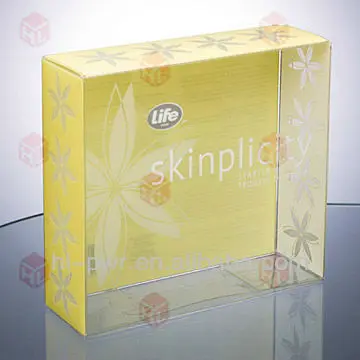

Welded Products:
1. PVC Box
2. PET Box
3. PET-G Box
4. A-PET Box
4. A-PET Box
5. GAG box
6. Other 30%PVC based Plastic packing box
Your customer will be happy to buy the products packed in clear / transparent plastic box, since they can know the products
clearly without opening the package. On the other hand, the see-through packaging method attract attention of customers, young or
old.
Your customer will be happy to buy the products packed in clear / transparent plastic box, since they can know the products
clearly without opening the package. On the other hand, the see-through packaging method attract attention of customers, young or
old.
Detailed Images

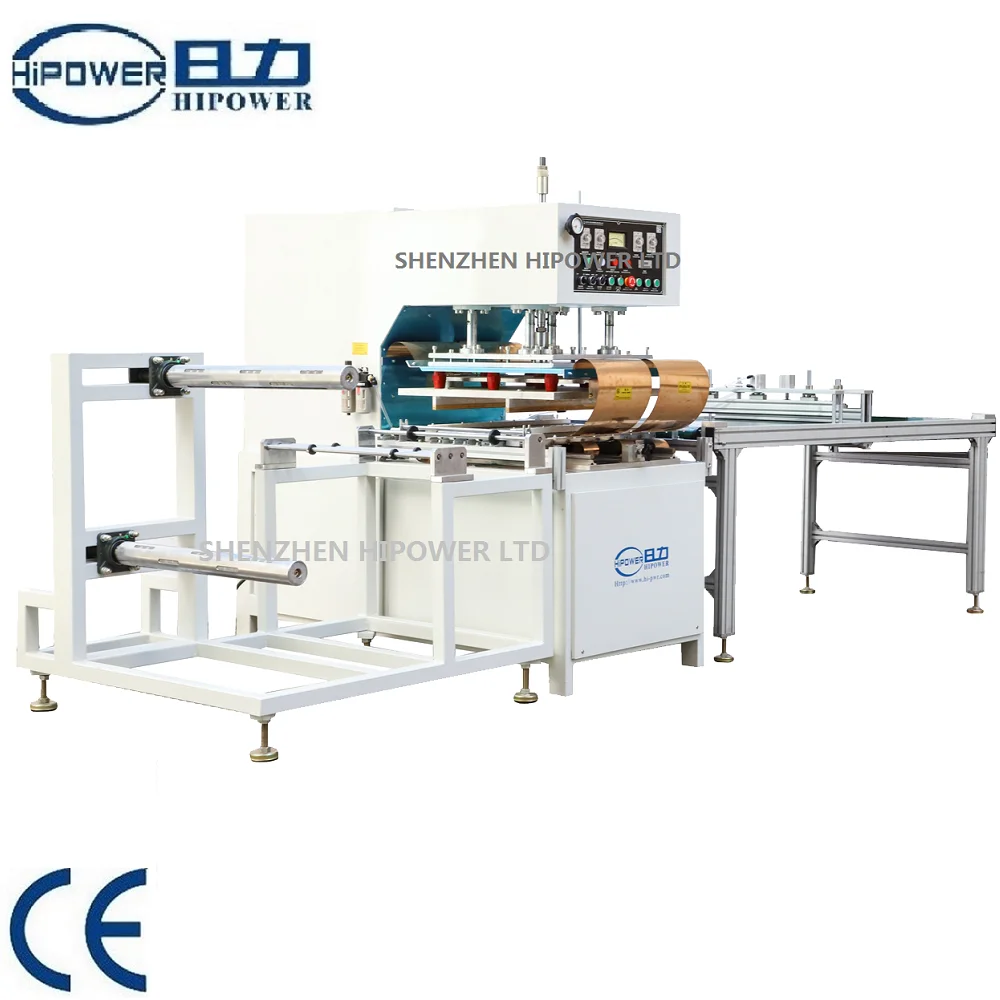

High Frequency Plastic Box Creasing and Die Cutting Machine
Size Information
The machine will be packed into 3 wood boxes for Left unit, midle unit, and right unit. It is easy to lay the units at correct sequence, and install the machine with our instructional manual and videos.
Machine Size: (mm) | L 5100 | W 1000 | H 1900 |
Related Products

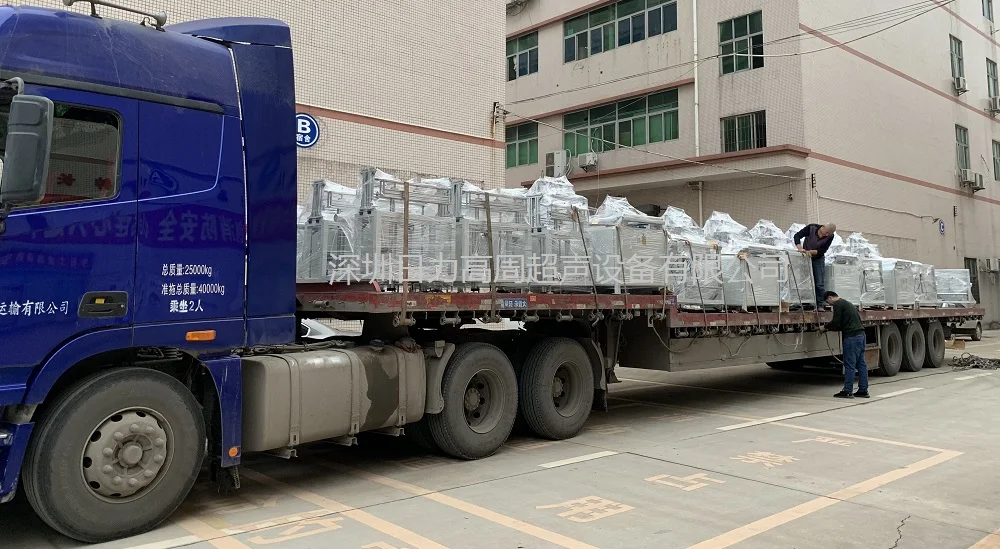

Packing&Shipping
After Sales Service
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Fax, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Recommend equipment of top choice based on your requirements for product;
5. Examining mold drawings on your behalf to confirm optimum structure size meeting high frequency process;
6. Providing assistance in manufacturing and modifying tools;
2. 12-24 hours Online service by Email, Fax, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Recommend equipment of top choice based on your requirements for product;
5. Examining mold drawings on your behalf to confirm optimum structure size meeting high frequency process;
6. Providing assistance in manufacturing and modifying tools;
Company Introduction
Who We Are:
Since 2000, Shenzhen Hipower Ltd, concentrates on highest quality, on-time delivery, professional technology support,
customer-oriented service and competitive price.
Where Are our Customers:
Our products are mainly exported to Asia, North America, South America, Europe and Africa, and etc....
What we do:
Our equipments are widely used in industrial application like: Automotive Parts, Stationery, conveyor belts Tarpaulin, Big
Covers,Tents products, Tensile structure, Medical Bags, Blister Packaging, Cylindrical Box, and other plastic welding industries.
Since 2000, Shenzhen Hipower Ltd, concentrates on highest quality, on-time delivery, professional technology support,
customer-oriented service and competitive price.
Where Are our Customers:
Our products are mainly exported to Asia, North America, South America, Europe and Africa, and etc....
What we do:
Our equipments are widely used in industrial application like: Automotive Parts, Stationery, conveyor belts Tarpaulin, Big
Covers,Tents products, Tensile structure, Medical Bags, Blister Packaging, Cylindrical Box, and other plastic welding industries.
Why US:
Hipower is at the forefront of newest technical developments in the field of high frequency and ultrasonic welding
technology,automation of production processes and other innovative industrial solutions.
technology,automation of production processes and other innovative industrial solutions.
FAQ
Question 01: Are a trading company or Manufactuer?
RE: Since 2000, we are the manufacturer in this filed;
Our factory can design, develop and manufacture ODM and OEM equipments for clients all over the worlds.
Questions 02: What about Delivery Time:
RE: 3 days for standard machine; and 15 to 35 days for custom machines
Questions 03: Payment Term：
RE: We accept payment by T/T, L/C, West Union, Paypal.
Questions 04: How do I inspect your machine quality?
RE: We always have real machines ready in stock, We shall meet you at airport, hotel, or railway station.
Questions 05: Is the machine easy to use and maintain in future?
RE: Yes, it is; we shall provide instructional manual, videos and engineer support via email or video talk online.
Questions 06. How Do You Pack the machinesRE: Our machines will be packed into after treatment wood box
Questions 07. Does the machine power voltage meet buyers' factory power source?
RE:Frequency: 50 - 60HZ Phases: single phase / 3 phases ; Voltage: 110V / 220V / 380V/ 415V/ 440V / On request
Questions 9. Could you make die / mould for me, if I buy machine from you?
RE: We design and make moulds up to product sample or drawings, we charge the mould price at facory cost price.
