Дизельный охлаждающий контейнер 210 л.с. для морской

[Main Technical Parameters]

Product Brand

Cheng Liwei Brand

Announcement of the batches

247

Product Name

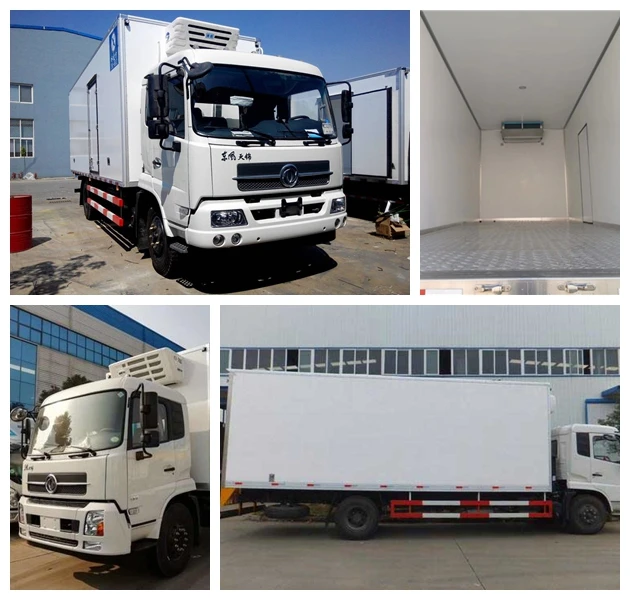

CLW5161XLCD4Type refrigerated truck

Product No

ZKGBV43U02J

Gross vehicle weight(Kg)

16000

Truck body capacity(m3)

Rated contained mass(Kg)

9000

(Dimension(LxWxH)( mm)

9000,8700,8500×2490×3850

Kerb mass (Kg)

6805

Gargo box (mm)

6400,6100,5800×2280×2300

Cab seats (people)

3

Quality of the utilization factor

Approach/Departure(°)

20/8

Overhang(Front/Rear)(mm)

1430/2570

Number of axes

2

Wheel Base(mm)

5000,4700,4500

Front/Rear axle load(Kg)

6000/10000

Max.Speed(Km/h)

90

Other

The top compartment closed, not open. optional compartments body with a side door,Protective materials:Q235A Carbon Steel,Connection mode: left and right side and bottom protection are connected by welding, the back of the protective section size (mm) : 120 * 50 * 5, the back of the protective ground height (mm) : 420. The car should be driving recorder.

[Chassis Technical Parameters]

Chassis Model

DF1160BX5

Chassis Name

Truck chassis(II)

Brand name

Dongfeng

Product Manufacture

Dongfeng automobile company

Overall Dimension(LxWxH)(mm)

8790,8290,7790,7190×2370,2460×2760,2840

Number of tires

6

Approach/Departure(°)

20/13

Tire Size

10.00-20,10.00R20,9.00-20,9.00R20,275/80R22.5 16PR

Number of leaf spring

8/10+8,7/9+6

Front track width(mm)

1880

Type of fuel

Diesel

Rear track width(mm)

1860,1800

Emission Standard

GB3847-2005,GB17691-2005(Euro IV)

Engine Type

Engine Manufacturer

Displacement(ml)

Power(Kw)

ISDe210 40

ISDe180 40

ISDe185 40

ISB180 40

Dongfeng Cummins Engine Co., Ltd.

Dongfeng Cummins Engine Co., Ltd.

Dongfeng Cummins Engine Co., Ltd.

Dongfeng Cummins Engine Co., Ltd.

6700

4500

6700

5900

155

132

136

132
