Introduction:



steel wire button head fixing machine



1. LD series button-head device is the special equipment for prestressing project.



2. It can manufacture high-strength steel wire bundle of button-head in the post-stressing pre-stress construction.



3.  It is used in the pre-stressing technology  of different precast yard.

4. It can heading the diameter for steel wires of 4mm, 5mm, 5 to 7mm, 9mm. And can head the diameter for pc strand of 12.7mm, 15mm, 15.24mm, 15.7mm and 16mm.



5. We can manufacture all kinds of anchor and equipment according to your requirement and drawings.









The parameter of steel wire button head fixing machine





Parameter of LD series button-head device(One)
Model	Rated hydraulic	Target of head	Max.buttonhead force	Order opening pressure	Heading stroke of piston	Clamping stroke of piston	Overall dimension	Mass
	Mpa	mm	KN	Mpa	mm	mm	mm	Kg
LD10	40	5	88.2	3.1	6	12	98X279X199	10
LD20K	49	7	186	3.2	7.5	20	120X303X249	15





Parameter of LD series button-head device(Two)
Model	Target of cut tendon	Max.Force of cutting	Stroke of cutter	Overall	Mass
				dimension
	mm	KN	mm	mm	kg
LD10	5	166.6	20	98X326X199	11
LD20K	7	323	20	120X363X249	16.5

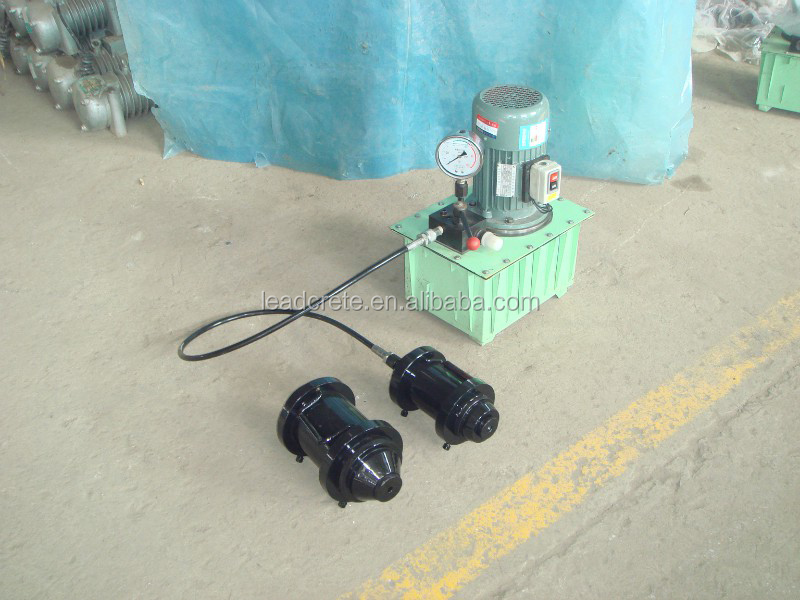

 The photos for button heading machine

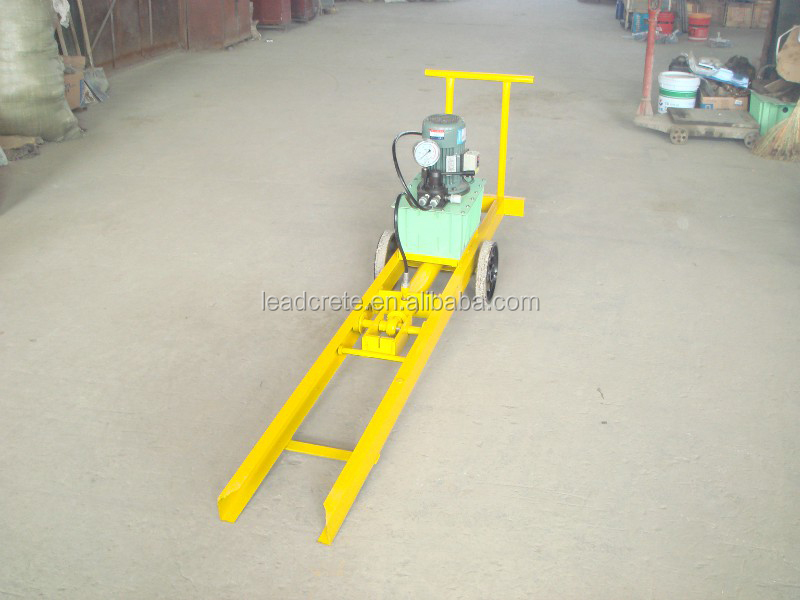

The photos for steel wires stressing machine

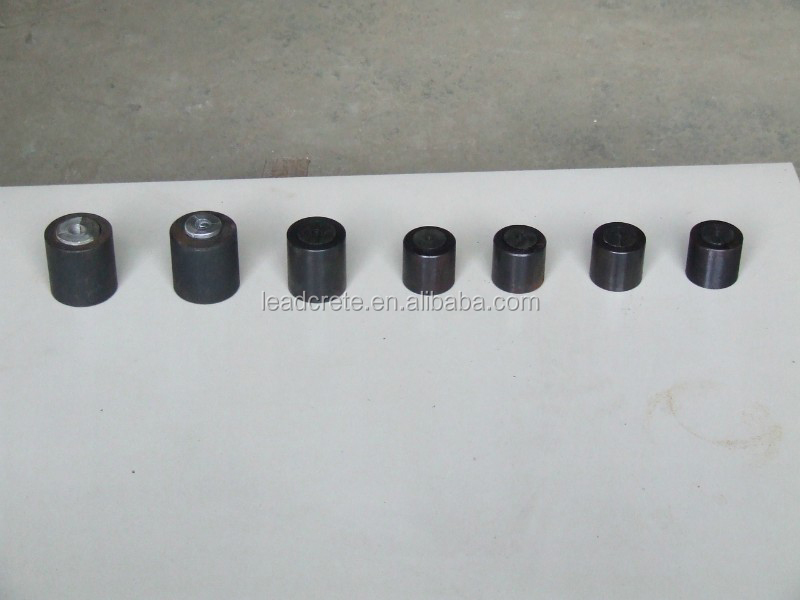

The photos for different sizes of steel wires anchorage and pc strand anchorage
