Предварительно окрашенная алюминиевая катушка с текстурой древесины для роликового затвора 0 20-1

Описание и отзывы

Характеристики

Color Coated Aluminum Coil

1. Grade

   1) Series: 1060 1100 etc.

   2) Series: 3003 3004 3005 etc.

   3) Series: 8011 etc.

2. Thickness: Roll Coating: 0.05-3.0mm

           Plate Coating: up to 10mm

3. Width: 20mm - 1600mm

4. Temper: H16, H18, H24, H26, H28

5. Inner diameter : 405mm/505mm

6. Standard outer diameter: 1100mm

7. Color: Metallic, Solid, RAL or by customer requirements.

8. Coating paint: PVDF(Polyvinylidene Fluoride), PE(Polyester)

9. Coating thickness: as per customer’s request

10. Protective film: PVC film, Colorless transparent or White-black

Alloy	1060, 1100, 3003, 8011, etc.
Temper	H16, H18, H24, H26, H28
Thickness	From 0.05mm to 3.0mm
Width	Standard width:1240mm
	Special width:1300mm, 1520mm, 1570mm, 1595mm
Diameter	Standard dia:1200mm
	Interior dia:150mm,405mm,505mm
Weight	2.5 T/coil,3.0 T/coil
Coating	PE, PVDF, ACRYLIC
Surface	Embossed, mill finish, coated
Color	AS to code RAL
Gloss	10-90%(EN ISO-2813:1994)
Coating Thickness	PE:more than 18 micron
	PVDF:more than 25 micron
Coating Hardness(pencil resistance)	More than 2h
Coating adhesion	5J(EN ISO-2409:1994)
Impact Resistance	No peeling or cracking(50 kg/cm,ASTMD-2794:1993)
Flexibility(T-bend)	2T
MEK resistance	More than 100
Advantage	1.High temperature resistant 2.Weathering resistant 3.Scrubbing resistant 4.Sound insulation 5.Acid or alkali proof 6. Fireproof 7.Light weight material is easy to construct and install

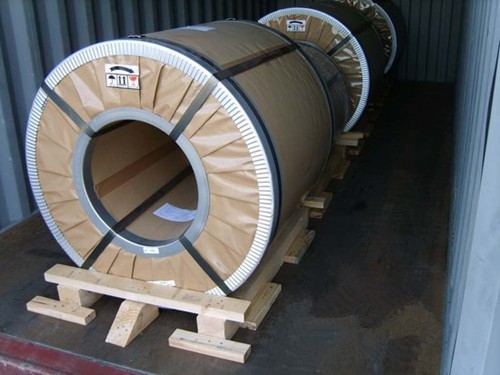

Out package	Wooden splint with export standard
Application	ACP,wall cladding,facades,roofs and canopies,ceilings,signboards,blind window,display platforms,electrical panels,etc





































































Manufacturing of Color Coated Aluminum Coil:

Decoiler → Accumulator→Tension Leveller →Acid & Alkali Cleaner → Rinse →Conversion Treatment → Priming coater →Infrared Curing Oven →Main coater →Floatation Curing Oven →Strippable Film Applicator → Exit Accumulator → Recoiler

Application of Color Coated Aluminum Coil:

1. Exterior applications: wall cladding, facades, roofs and canopies, tunnels, column covers or renovations

2. Interior applications: wall cladding, ceilings, bathrooms, kitchens and balconies

3. Advertisement and market applications: display platforms, signboards, fascia and shop fronts
