Hot Selling Automatic Parking  Traffic Security Road Blocker

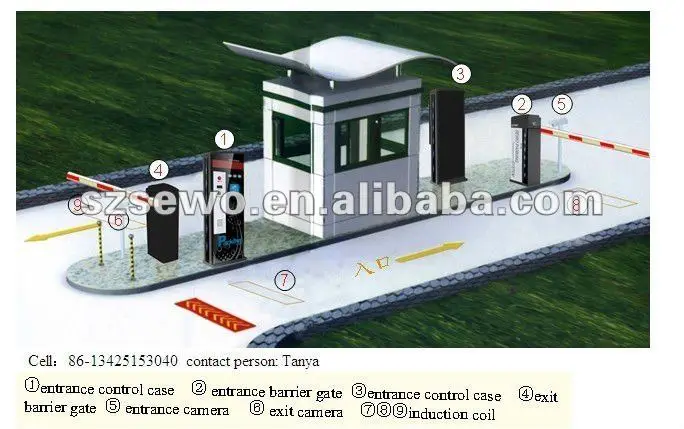

    Security Road Blocker is designed to provide a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle on toll gate, or parking lots with high traffic  flow such as shopping center, exhibition center, hospital, airports, government building, office building. Plant etc.

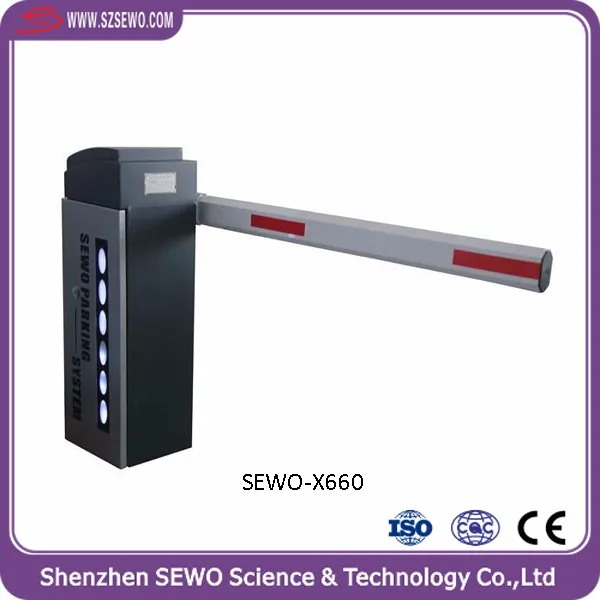

    SEWO-X660  security road blocker had won many national patents. It is researched and developed by using the most advanced international technial --- a leading global surface spraying coating treatment technical and advanced moisture-proof processing craft in machine. The whole equipment is full of leading technology and processing. According to the spraying and coating technical, there are three popular appearance colors to be chosen yellow, blue, shining black





Key features



1. Unique mold mass manufacturing, exquisite product craftmanship.	2. Integrated motor and deceleration device, free from belt drive, low noise, more convenient and stable.
3. Four-bar linkage balance design ensures the boom arm moving fast and stable with low power, can prevent lifting or pressing boom arm by purpose.	4. Electronic control parts: Hall switch, mechanical limiting switch, structure buffering top, can achieve triple control.
5 Barrier boom: Aluminum alloy octagon bar, with reinforcement, reliable quality.	6. Hit-proof structure: While barrier boom was hit by vehicles accidentally, the hit-proof structure can make the boom arm rotate for 90 degree to avoid or reduce the damage to vehicles and barrier.
7. The case was made of steel plate after special treatment, the surface was spraying with advanced salmon pink or advanced orange automobile coating, which is rust-proof, and can avoid fading caused by ultraviolet irradiation.	8. Barrier boom: Aluminum alloy octagon bar, with reinforcement, reliable quality.
9. Installed with air wave switch which is flexible, can effectively prevent hiting vehicles. While matching with vehicle detector, can achieve double protection.	10. Unique cold light illuminating barrier boom, it is the initiative patent in domestic. The tube is used the leading cold light technology and made of fiber material, with long lifetime and supper low power- consumpetion.



Specifications

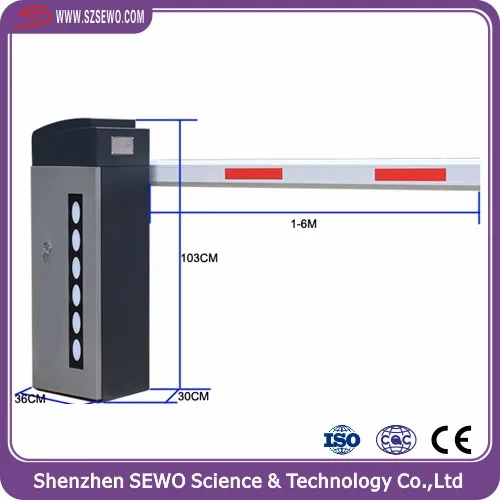

1. Outline size: L*W*H=344*290*1090(mm)
2. Voltage: AC220V±10% 50Hz
3. Motor power: 250W

4. Surface treatment: plastic spraying
5. Working temperature: -10°C~+45°C(standard) -25°C~+40°C(low temperature)
6. Relative humidity≤90%, non-condensing
7. Atmospheric pressure: 86Kpa~106Kpa

8. Lifetime:≥500 million times
9. Noise: ≤60dB
10. Motor speed: 30r/min
11. Motor torque: 20N/m

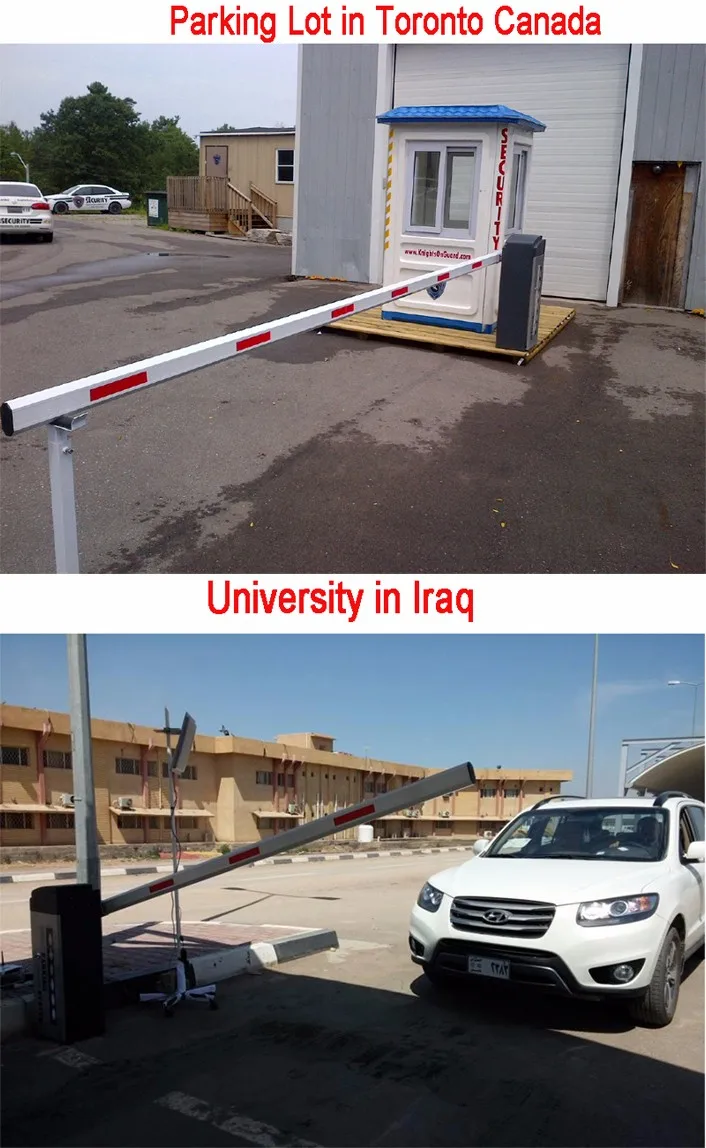

Photo Gallery









Accessories Selection

• Arm opening (closing )time: 6S

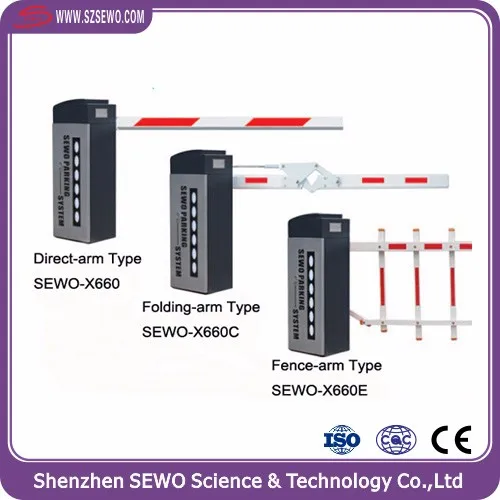

• Straight boom arm: Aluminum Alloy Octagonal arm

• Maximum length of boom arm: 6m
• Housing color: Yellow, blue, shining  black

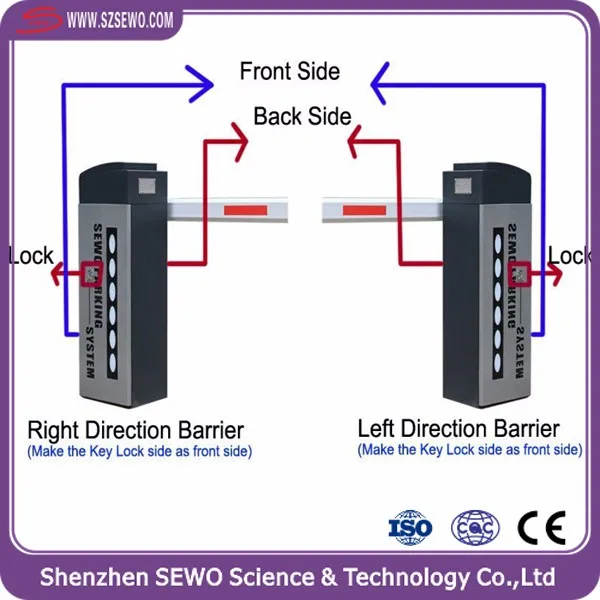

• Arm direction: Leftward / rightward
• Pressure wave detection (optional)
• Illuminated barrier boom (optional)
• Loop detector(optional)



Applications



•  Industrial zone
•  Administrative buildings
•  Recreation centers
•  Financial institutions
•  Government  agencies
•  Community,hospital,parking lot
