13 56 МГц IC кардридер система времени и посещаемости с ADMS/отпечатком пальца время записи TCP/IP/USB
- Категории: Time Recording >>>
- Поставщик: Vanshui,Enterprise,Company,Limited
Поделиться:
Описание и отзывы
Характеристики
Products Description
13.56MHz IC Card Reader Time and Attendance System with ADMS/Fingerprint Time Recording with TCP/IP/USB port

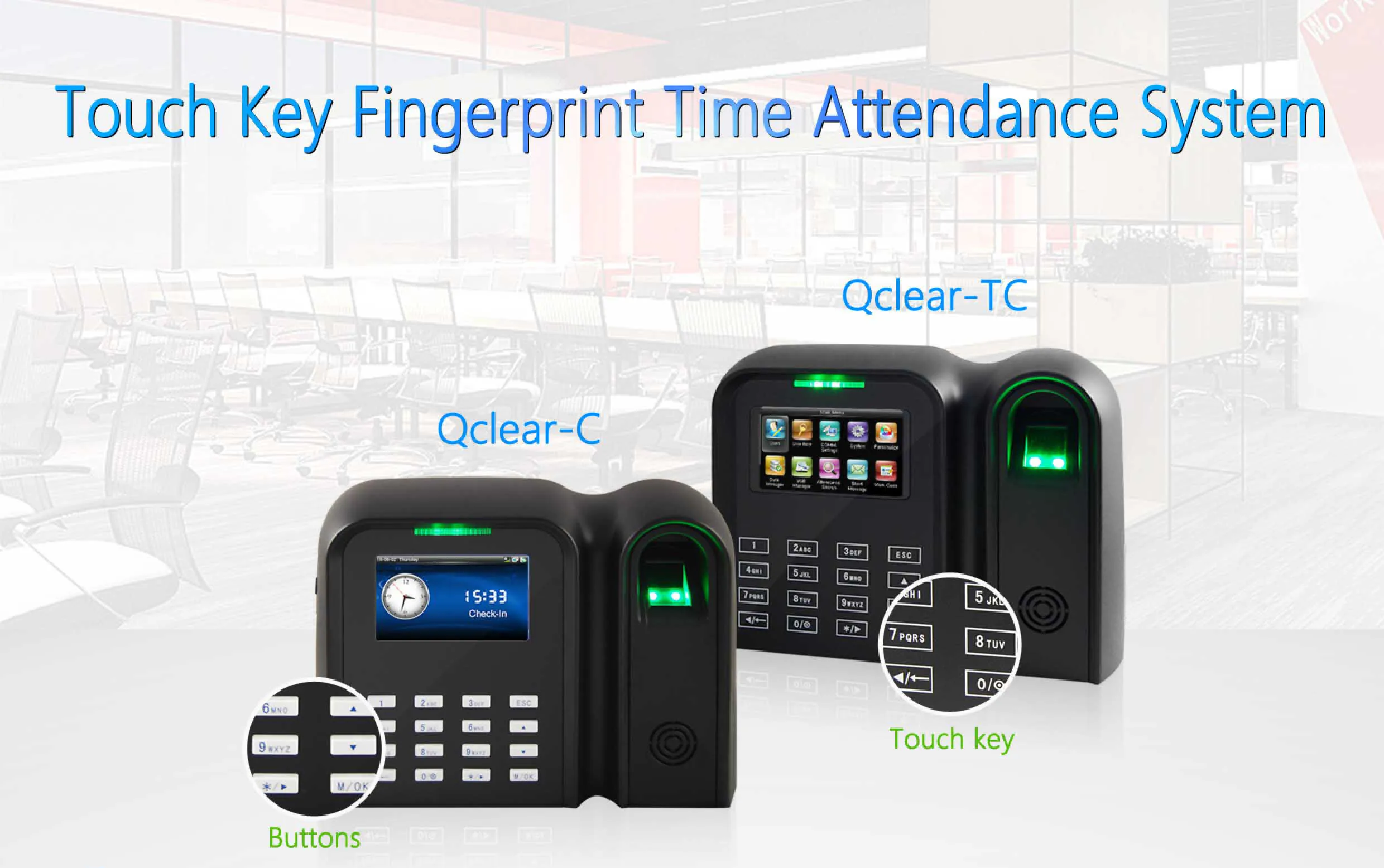

The Qclear-TC is one of the intelligent fingerprint time attendance system of new generation support both network and standalone, wireless WiFi(optioanl) makes communication with PC is earlier. USB flash drive for offline data management. Higer-speed CPU, newest fingerprint Algorithm and friendly user-interface make operations much comfortable.
Features
Features
New firmware, latest fingerprint algorithm.
3-inch TFT screen is user-friendly.
Similar Android/iOS interface, easy operation.
Data encryption improves security.
Communication: TCP/IP, RS232/485, USB host/client.
Optional: Wi-Fi, ID/MF card
Set user role, fingerprint expired date and shortcut key.
Support normal software and web based software.
3-inch TFT screen is user-friendly.
Similar Android/iOS interface, easy operation.
Data encryption improves security.
Communication: TCP/IP, RS232/485, USB host/client.
Optional: Wi-Fi, ID/MF card
Set user role, fingerprint expired date and shortcut key.
Support normal software and web based software.
Specification
Model | Qclear-TC/IC |
LCD Display | 3’’ TFT Screen is User-friendly |
Language | Mult language, English, French, Spanish, Arabic, etc., for more than 40 language can be selected |
Speaker | Voice prompt (language can be selected) |
Capacity | Fingerprint: 3,000, IC card: 10,000Card;Logs: 100,000 |
Verification | Verification speed(1:1)≤0.5s |
Identification speed(1:N): ≤1s | |
Identification | FRR≤0.01%, FAR≤0.0001% |
Environment | Operation temperature: 0℃ ~ 45℃, Operation humidity: 20% ~ 80% |
Communications | TCP/IP, USB-Host/Client(optional), RS232/485 |
Attendance Status | Check in, Check out; Break in, Break out; Overtime in, Overtime out |
Power Supply | 110/220VAC-5VDC/1A |
Packing Info. | Machine size: 19.4(L)*14.5(W)*4.9(H)cm Unit packing:28*23*10cm Carton packing:50*30*30cm Real weight:1.2kg Volume weight:1.5kg |

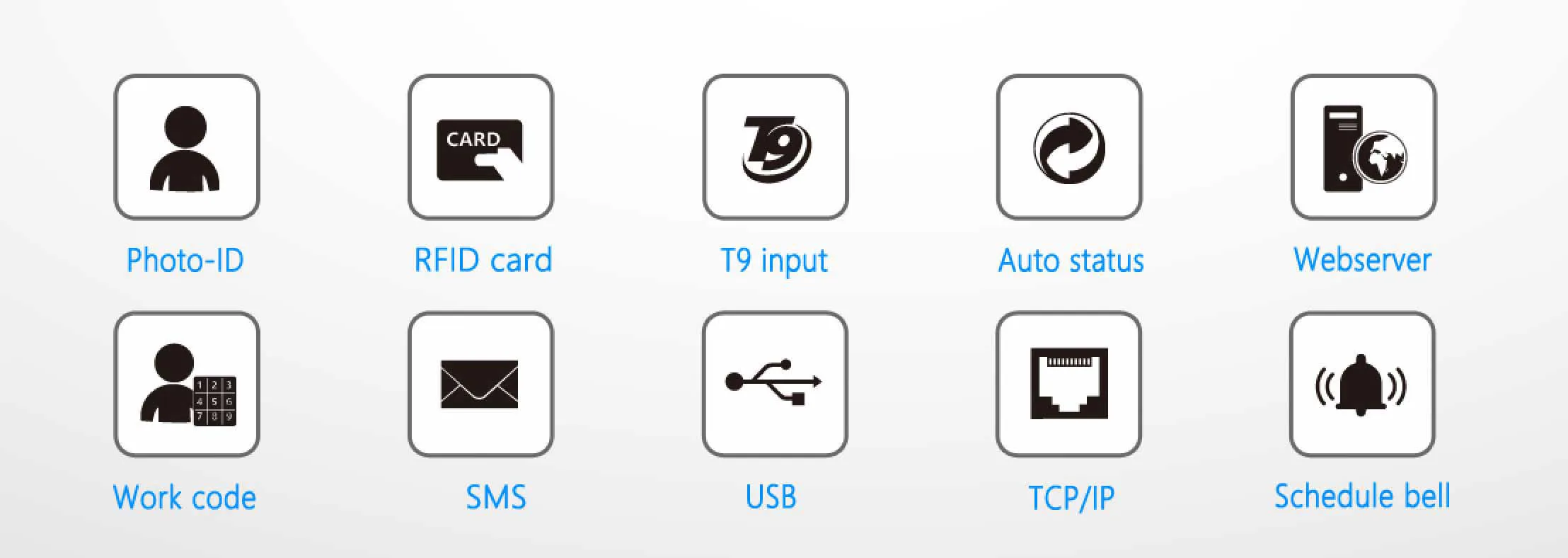

Standard Function | Scheduled bell; DST; Work-code; Photo-ID; T9 Input; Auto status; SMS |
Distinctive Functions | User role management; Fingerprint Expired date setting; Shortcut key setting; Fingerprint image display; Main-screen picture change; Self-Service Query; ADMS; Webserver, 9-PIN user ID |
Customize Function | Printer Support,ID card reader; External siren; Wifi module |

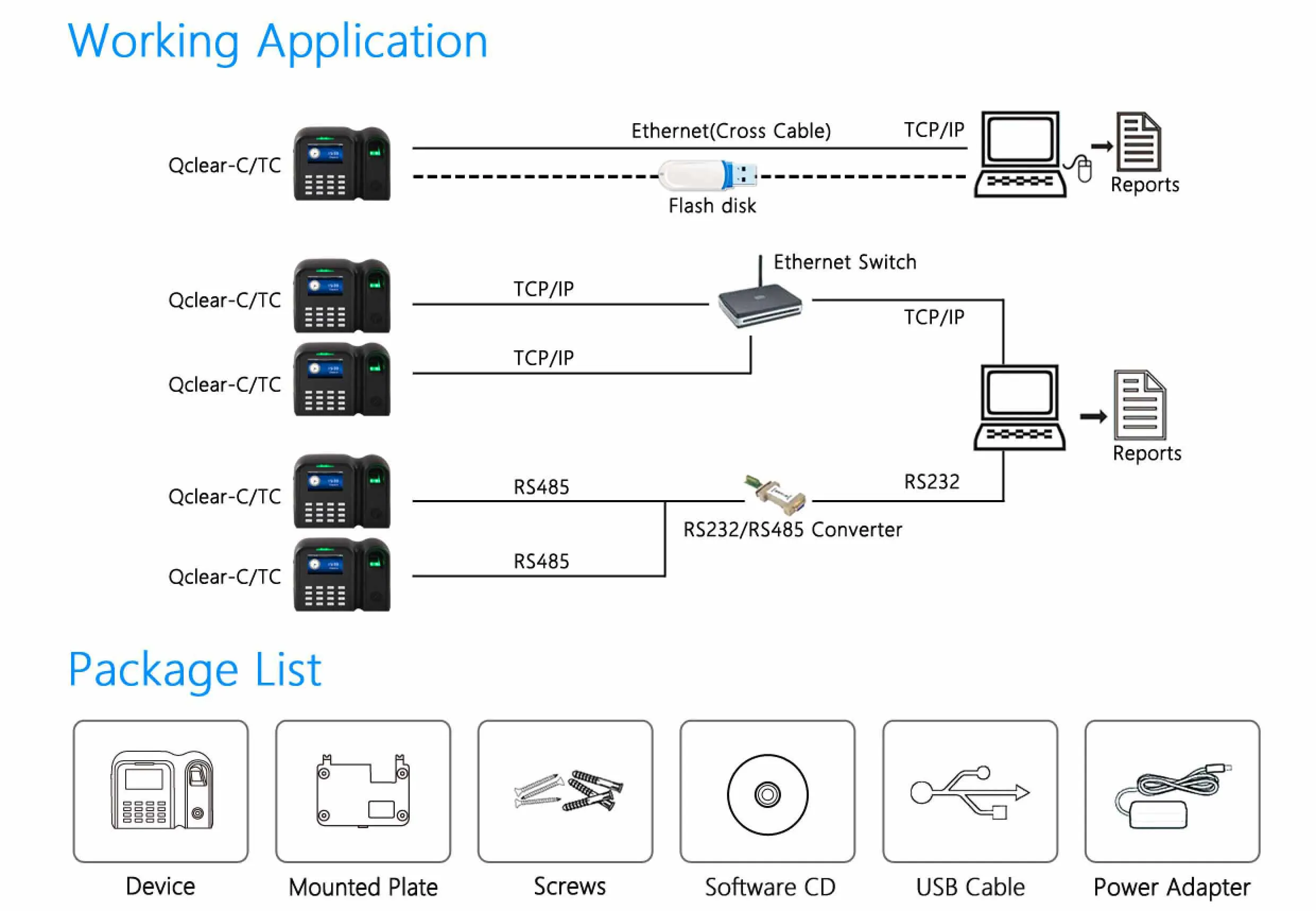

Diagram
Software
UTIME Master Web-Base Software
