Heat pump energy saving ERV air conditioning equipment



Product Features and Benefits



1. Heat recovery function

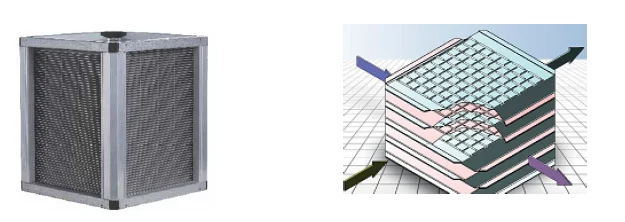

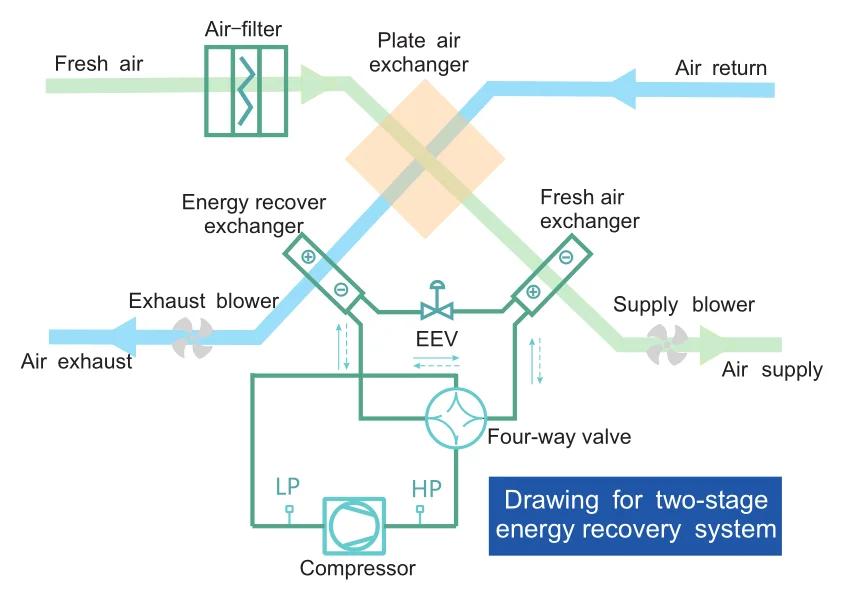

HPERV is equipped with crossflow heat exchanger integrated with the heat pump technology to recover the heat of the exhaust air and enhance cooling/heating performance.

2. Energy saving

The COP is up to 7.55 at ambient temperature of -15°C.



3. Reliablity

The main components are from the world-renowned manufacturer, for example, the built-in EC fans

are from Ziehl-Abegg, and the compressor is from .



4. High air cleanness

Triple filtration to ensure air cleanness, G4+F7+H10.

5. Environment friendly

The unit is using environment friendly R410a refrigerant.



6. Wide operating temperature

The unit is equipped with electrical heater and bypass as standard for extremely cold environment, the operating temperature ranges from -25°C~43°C.



7. Large stainless steel condensate tray

Large stainless steel condensate tray collecting the drain water from heat exchanger, evaporator and condenser.



8. Space saving

Unit can be hidden in the ceiling with no influence to decoration, built-in water pump to drain out condensate.

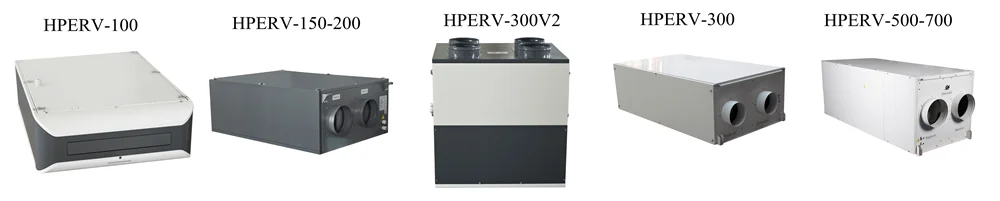

Parameters of ceiling type heat pump heat recovery ventilator

Model		HPERV--100	HPERV--150	HPERV-200	HPERV-300	HPERV-400	HPERV-500	HPERV-700
Type		Ceiling	Ceiling	Ceiling	Ceiling	Ceiling	Ceiling	Ceiling
Rated cooling capacity	W	650	750	830	2000	2300	3200	4650
Rated heating capacity	W	750	880	950	3000	3500	3800	6000
Rated cooling power	W	240	260	290	550	630	890	1450
Rated heating current	A	1.1	1.23	1.37	2.6	3	4.16	6.64
Rated heating power	W	240	260	290	400	460	750	1150
Rated cooling current	A	1.1	1.23	1.37	1.9	2.2	3.75	5.26
Maximum operating power	W	380	400	430	750	800	1380	1700
Maximum operating CURRENT	A	1.8	1.9	2.04	3.6	3.8	6.3	7.78
Compressor	/	Constant speed compressor	Constant speed compressor	Constant speed compressor	Constant speed compressor	Constant speed compressor	Constant speed compressor	Constant speed compressor
Power	V/Ph/Hz	220-240/1/50	220-240/1/50	220-240/1/50	220-240/1/50	220-240/1/50	220-240/1/50	220-240/1/50
SA/EA airflow	m3/h	30~100	70~150	100~200	150~300	220~400	160~500	300~700
E.S.P	Pa	50	80	80	130	130	130	130
Noise	dB(A)	31	31	31	31	32	32	39
Air vent size	mm	100	150	150	184	184	200	250
Condensate drain size	inch(BSP)	1/2"	1/2"	1/2"	1/2"	1/2"	3/4"	3/4"
Machine size	mm	840/685/250	840/685/250	840/685/250	1170/760/400	1170/760/400	1800/930/515	1800/930/515
Package size	mm	891/731/358	891/731/358	891/731/358	1211/811/498	1211/811/498	1900/1030/695	1900/1030/695
NW/GW	Kg	43/50	43/50	43/50	120/135	120/135	175/255	181/261
Refrigerant	/	R134a	R134a	R134a	R410A	R410A	R410A	R410A

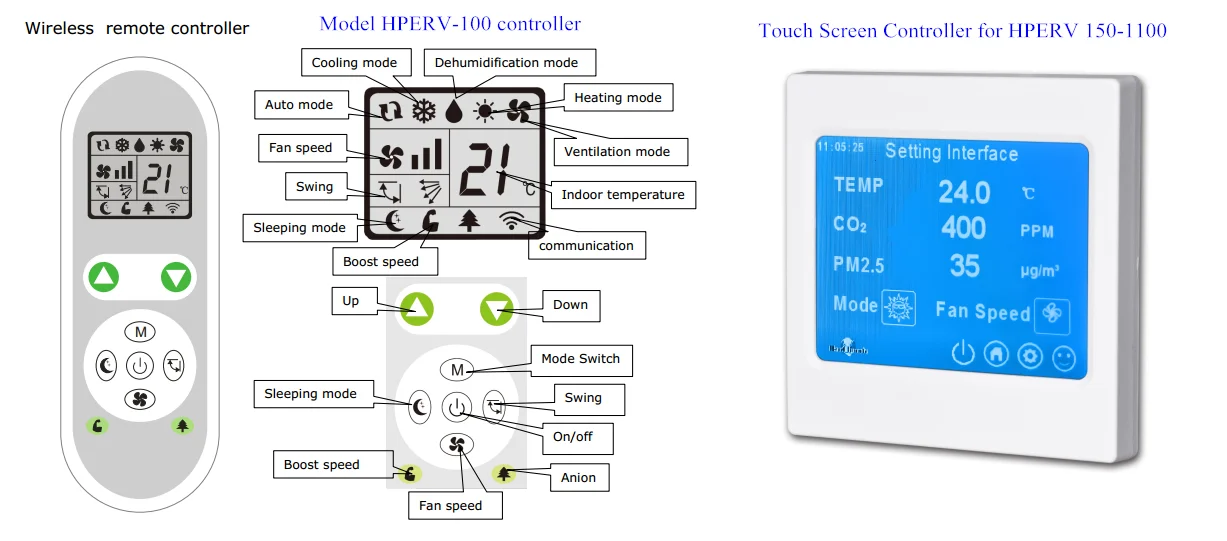

Control description of heat pump heat recovery ventilator

(1) Operation data display (2) Airflow adjustment according to ambient temperature (3) Room temperature setting (4) Modbus connection (5) Auto defrosting (optional) (6) Auto bypass (optional)

(7) Running mode selection (8) Auto restart (9) Filter monitor (10) Auto water drain (11) Alarm (12) Multiple protection



Application of heat pump heat recovery ventilator

Suitable for residential house, villa, hotels, hospital, etc..
