Высококачественный электродвигатель вентилятора переменного тока 3

Описание и отзывы

Характеристики

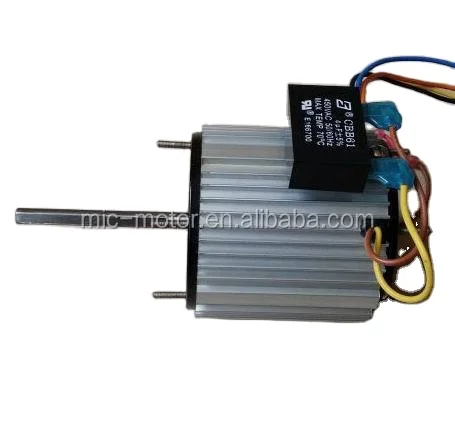

3.3 Inch AC Motor,fan motor



1)Rated Voltage:110V-230V
2)Rated Frequency:60-50Hz
3)Power:1/12HP
4)Number of Pole:4 Pole
5)Working Condition:Continuous
6)Insulation Class: class B
7)Environment Temperature:-10-43 degree

8)Loaded Condition: Fan

9)High efficiency,High reliability,Little vibration,Low noise



• Reversible plug for easy rotation
• Class B Insulation
• Extra mounting nuts for quick installation
• Energy efficient
• Quiet operation
• Ball bearing
• Dual voltage 115/208-230 voltage
• 4 MFD capacitor pre-mounted on motor
• Automatic overload
• Operating temp 32^oF -104^oF (0^oC-40^oC)
• Thermal protection





Category:	Sub-Fractional Horsepower Motors	Part number:	416
Model number:	YDZ-50-4	type:	PSC
Frame:	3.3" diameter	Power:	1/12HP
Voltage:	115/208-230V 50/60Hz	Pole:	4
Amps:	1.1/0.6	Speed:	1
Enclosure:	open	Bearing:	ball
Shaft:	8x80	Body length:	90
Certification:	UL2111,CSA	Rotaion:	CW & CCW







we are a professional manufacturer that devoted to research, design, manufacturer, sale and service on motor and electrical appliance.We always provide best quality
