TGK20-6M HITECH Skiving роликовая полировальная машина для глубокого скребка ролика с лучшей
- Категории: Другое станочное оборудование >>>
- Поставщик: Taizhou,Hitech,Nc,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

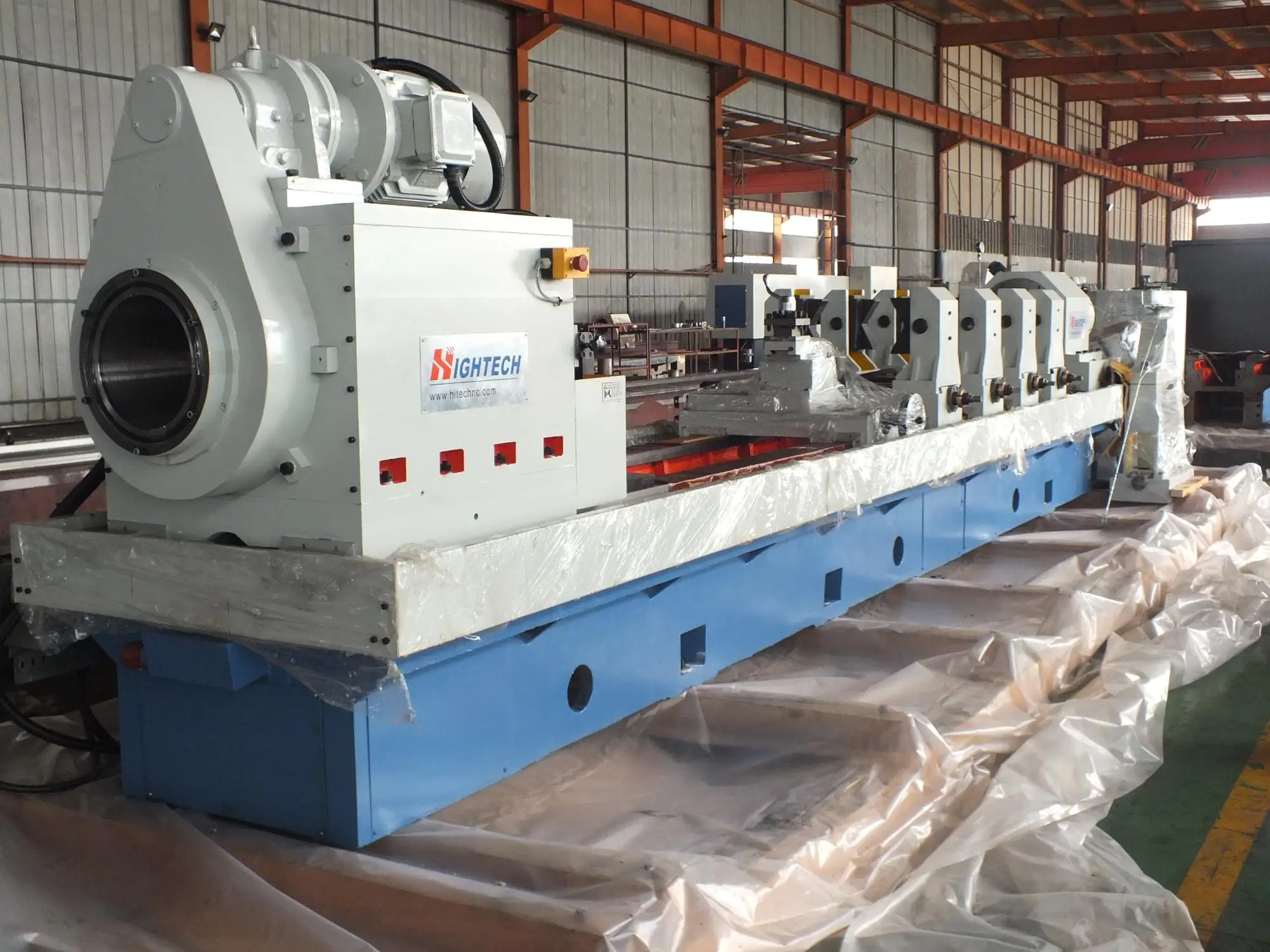

Product Pictures

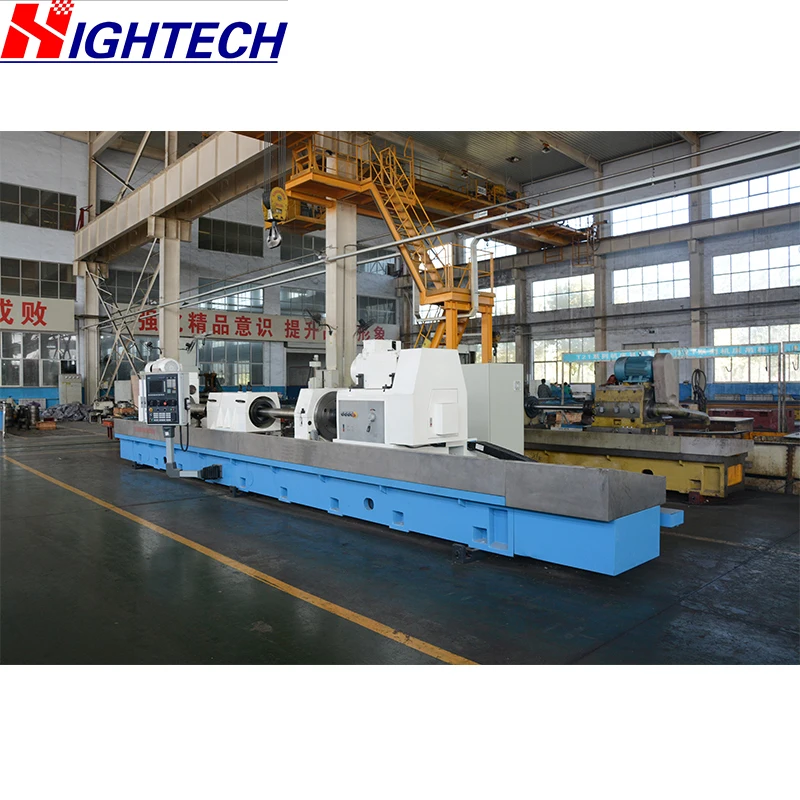

TGK CNC Skiving roller burnishing machine is newly developed by our company.This machine has the smart and simple CNC operation system with high efficiency and stable performance,the configuration design is uniform,artistic and clean,using the environmental protection measures against oil splash and leakage.

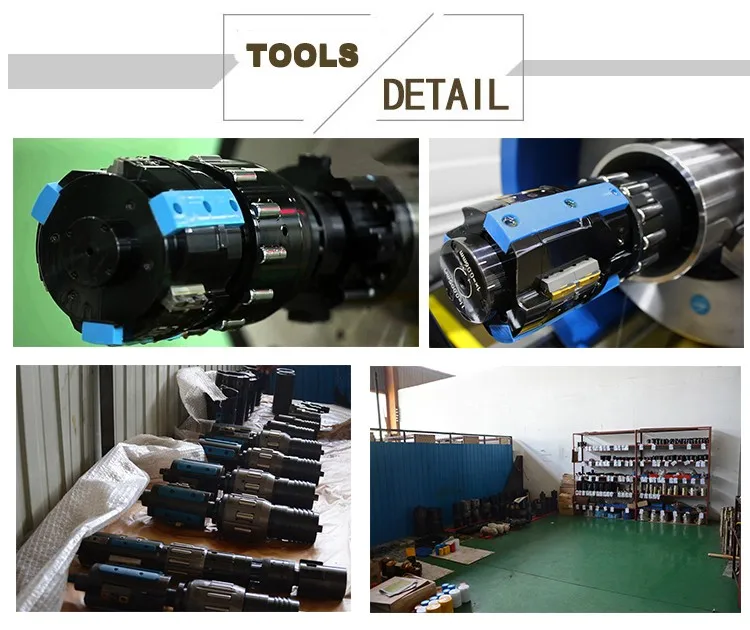

When processing,the workpiece is fixed and the tool is rotated.Adopting the combined technology of skiving and roller burnishing ,the machine gives a good solution for the severe deviation in rough processing of hot roller steel tube,and the inferior straightness in fine processing of cold drawn steel tube.It is mainly used for the compound process of boring and roller burnishing for hydraulic cylinder part.The hole tolerance is up to IT7-8,the surface roughness is up to Ra0.2-0.4 um.Its processing efficiency is 10 times of the traditional boring technology and 20 times of ordinary honing machines.The traditional technology usually includes four independent steps in order:rough boring-semi fine boring-floating boring-roller burnishing,which is inefficient and needs a long time.
Item | Main specification |
Processing diameter range | Φ40－φ250mm |
Max processing depth | 4000mm |
Machine guideway width | 650mm |
Spindle center height | 650mm |
Spindle rotation speed range and steps | 3~1000r/min (4 gears, stepless) |
Main motor | 45kW(AC variable frequency motor) |
CNC system | SIEMENS 808 |
Feeding speed range | 5－2000mm/min (stepless) |
Carriage rapid moving speed | 3000mm/min |
Clamping workpiece diameter range | Φ50~Φ280mm |
Feeding motor | 5.5KW (AC servo motor) |
Cooling pump motor | 7.5KW 2 groups 5.5KW 2 groups |
Hydraulic pump motor | 1.5kW, n=1440r/min |
Cooling system rated pressure | 2.5MPa |
Cooling system flow | 200L/min,300L/min, 300L/min |
Hydraulic system rated pressure | 6.3Mpa |

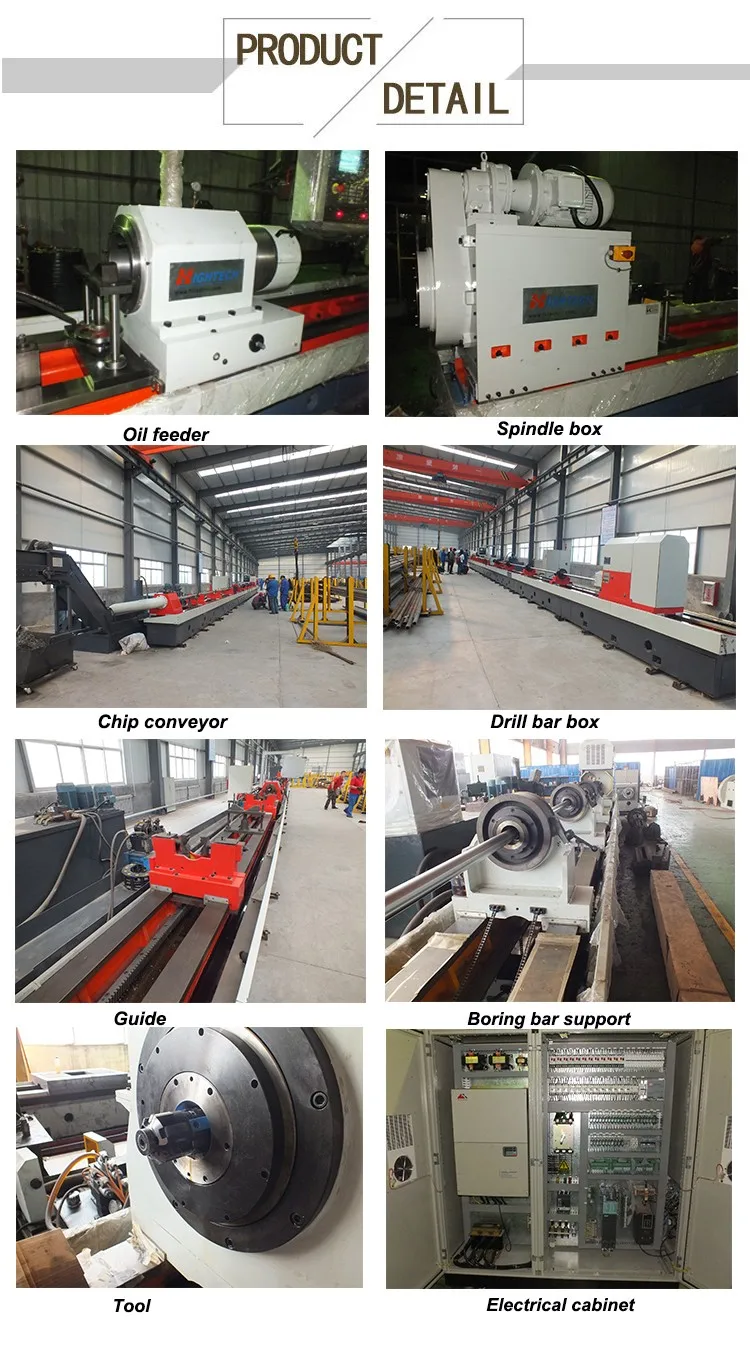

Product Parameters

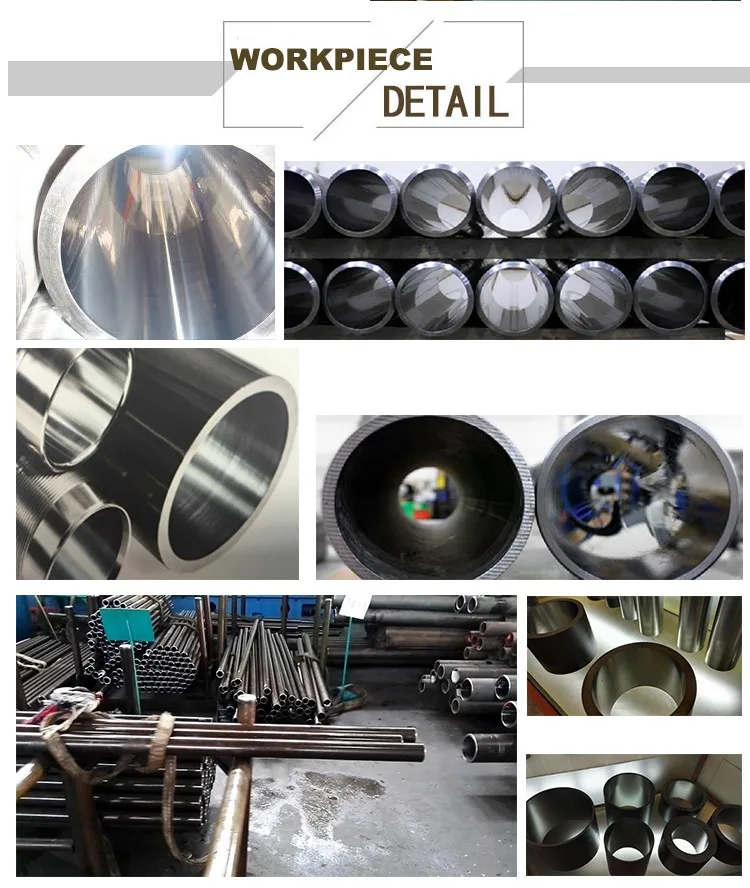

Workpiece
Related Products
Deep hole boring machine.
Deep hole drilling and boring machine is mainly used for hole reaming with large machining allowance.
Deep hole honing machine.
Deep hole honing is mainly used for fine honing inner hole, which has good surface roughness and is mainly to process oil cylinder.

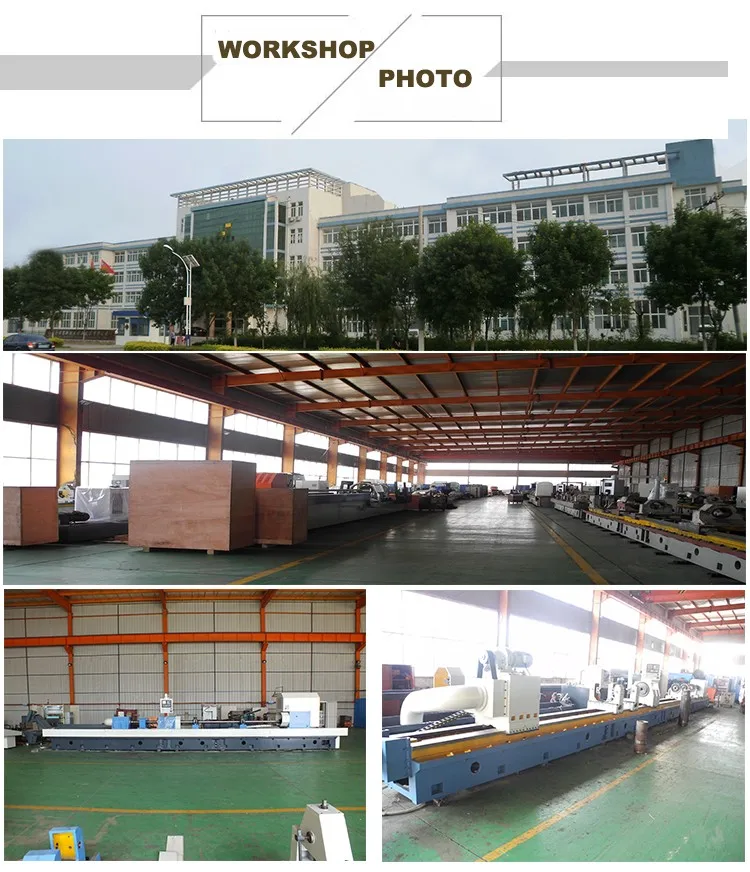

Company Profile
Our company specializes in researching,manufacturing and selling precision machines.Our products include metal cutting
machines,metal forging machines,special EDM machines,and complete set of machine for metallurgy industry,coving 14 kinds of machines,such as vertical CNC maching centers,horizontal CNC machining centers,CNC planer-type(gantry-type)machining centers,floor
type boring and milling machining centers,turning lathes series,grinding machine series,plate shearing series,press brake
series,plate rolling series,press machine series,EDM machine series,deep hole processing series,pipe production lines,slitting line,steel coil uncoiler and leveling line,stc.
machines,metal forging machines,special EDM machines,and complete set of machine for metallurgy industry,coving 14 kinds of machines,such as vertical CNC maching centers,horizontal CNC machining centers,CNC planer-type(gantry-type)machining centers,floor
type boring and milling machining centers,turning lathes series,grinding machine series,plate shearing series,press brake
series,plate rolling series,press machine series,EDM machine series,deep hole processing series,pipe production lines,slitting line,steel coil uncoiler and leveling line,stc.
Packing and Delivery
FAQ
Our Service
1.OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After shipment,we will track the products for you once every two days,until you get the products.When you get the goods, test them, and give me a feedback.If you have any questions about the problem,contact with us,we will offer solution within 24 hours.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our skiving and roller burnishing machine in export stander plywood case packing.If you have a special request,we can do it according to your requirements,we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T,irrevocable L/C at sight.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, the machine tools it will take 7-10 days and the CNC gun drill machine need 90 days after receiving receiving
advanced payment.The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
1.OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After shipment,we will track the products for you once every two days,until you get the products.When you get the goods, test them, and give me a feedback.If you have any questions about the problem,contact with us,we will offer solution within 24 hours.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our skiving and roller burnishing machine in export stander plywood case packing.If you have a special request,we can do it according to your requirements,we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T,irrevocable L/C at sight.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, the machine tools it will take 7-10 days and the CNC gun drill machine need 90 days after receiving receiving
advanced payment.The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
