CAT.6 48 портов UTP двойная IDC коммутационная панель с кабельным
- Категории: Патч-панель >>>
- Поставщик: Yuyao,Simante,Network,Communication,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

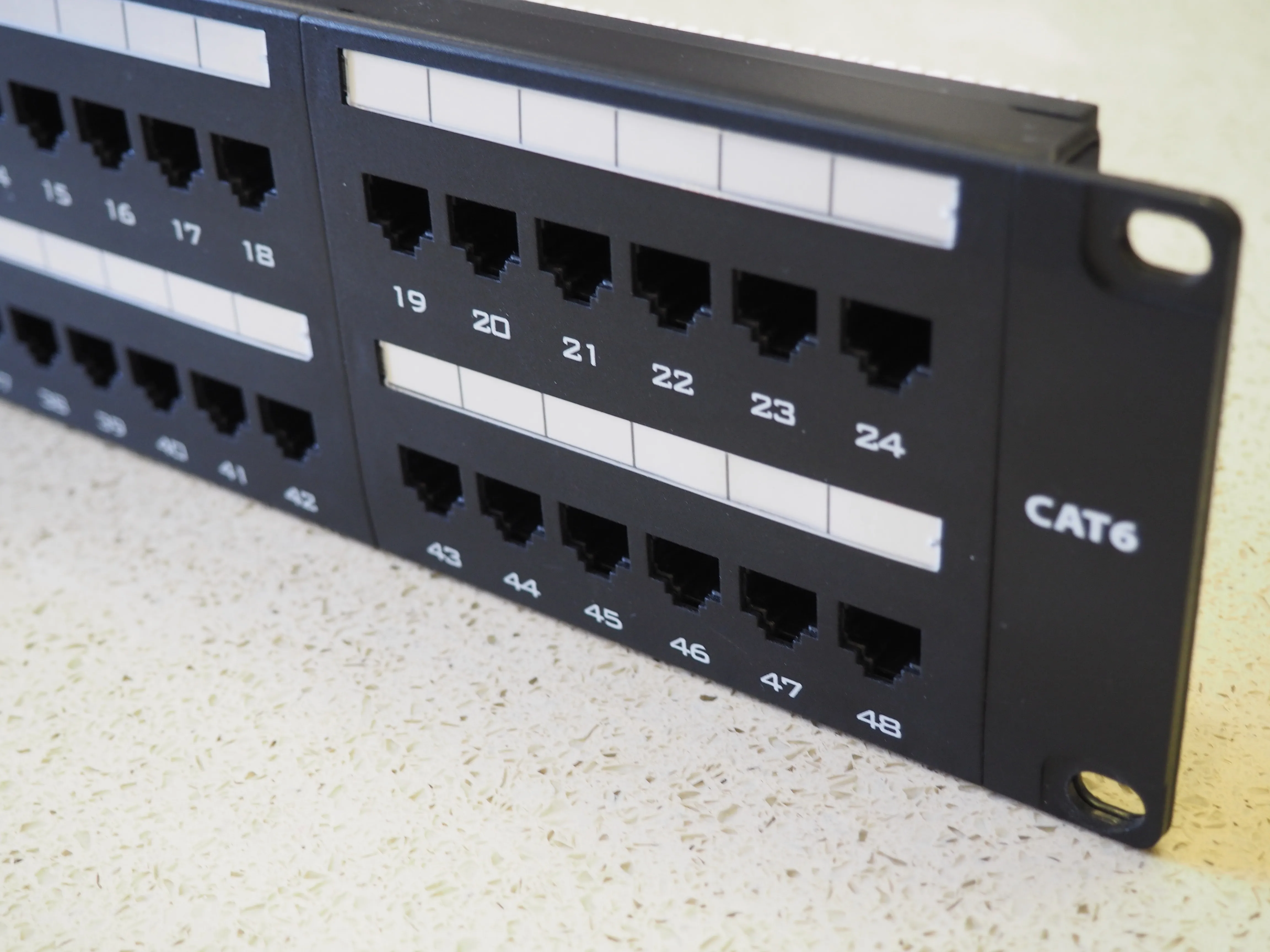

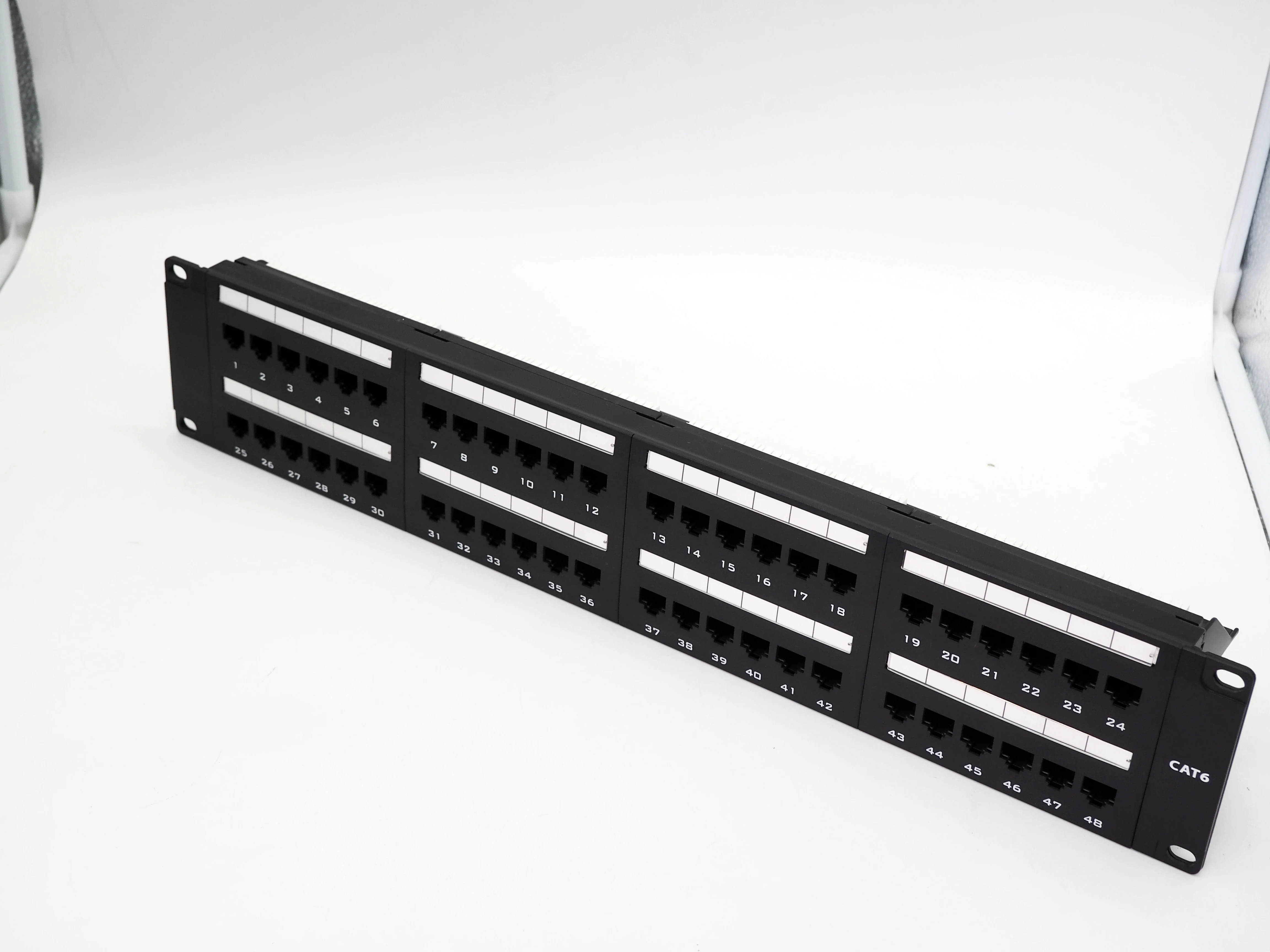

CAT.6 48 Port UTP Dual IDC Patch Panel with cable management
Product Description
Factory Advantages:
- OEM & ODM Services
- 25 years warranty
- 100 % Tester, 100% Pass Fluke Test ( DTX-1800)
- Shortest Leading Time
Description:

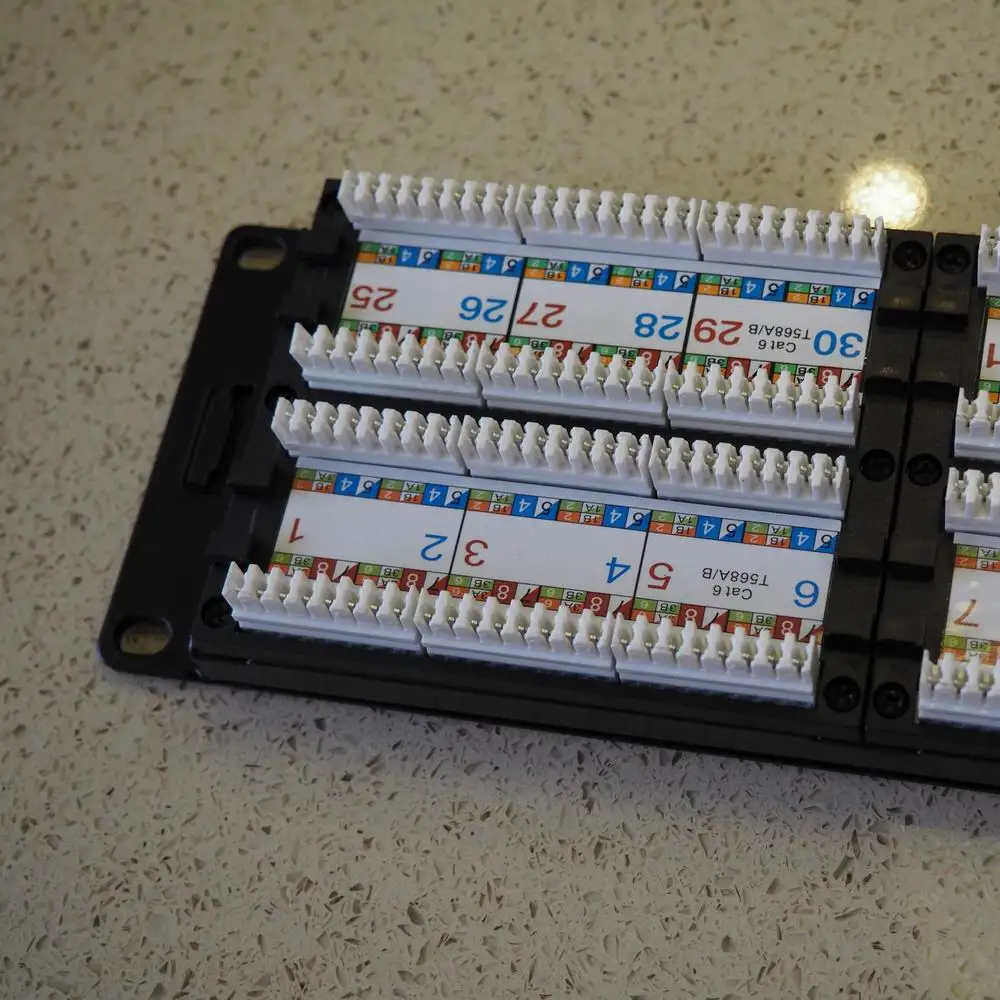

This PCB 2u patch panel comes complete with cable management, accessories and full installtion instruction.
Application:
-Horizontal Distribution & Backbone Cabling
-4/16 Mbps Token Ring
-155 Mbps ATM
-100 Mbps TP-PMD
Technical Details:
| Current Rating: | 1.5 Amps |
| Insulation Resistance: | 500 Megaohm |
| DC Resistance: | 0.1 ohm MAX |
| Contact Resistance | 20 Mili-ohm |
| Voltage: | 150 VAC MAX |
| Insertion Life: | ≥ 1000 Mating Cycles |
| Plug Retention Force: | 89N |
| Temperature: | — 60~80 °C |
| Humidity | 10%-90% RH |
| IDC Accept: | 22-26 AWG Solid Wire |
| Wire Scheme: | T568A/B |
Material:
| Panel | Cold rolled steel(thickness1.5mm) |
| Back Bar | Cold rolled steel(thickness1.5mm) |
| Housing | ABS |
| Spring Wire | Phosphor Bronze With Gold-plated 3u -50 u |
| IDC Contact | Phosphor Bronze |
| IDC Holder | High Impact PC |
Packaging & Shipping
Company Information
FAQ
| Q: How could I get quotation? | Q: How could I get a sample? |
Please send e-mail to us, which item your are interested in , we will send price list within 2 days | Samples will be free, but need freight collect |
Q: Can we have our logo on products or packing? | Q:How to place order? |
Yes, logo can print on the products if up to our MOQ. If you need logo on packing also available . | Please send purchase order to our e-mail or ask us to send proforma invoice to you. |
| Q: Can you do OEM & ODM? | Q: What about delivery time? |
| Yes , OEM and ODM are welcome | Samples: within 3 days /Goods: 15-20days usually. |
| Q: Factory Inspection? | Q: Company Address |
| Any time . | Our Address: Fumin Road 2#, Fumin Industrial Zone, Moushan Town , Yuyao Ningbo,China, 315456 |
