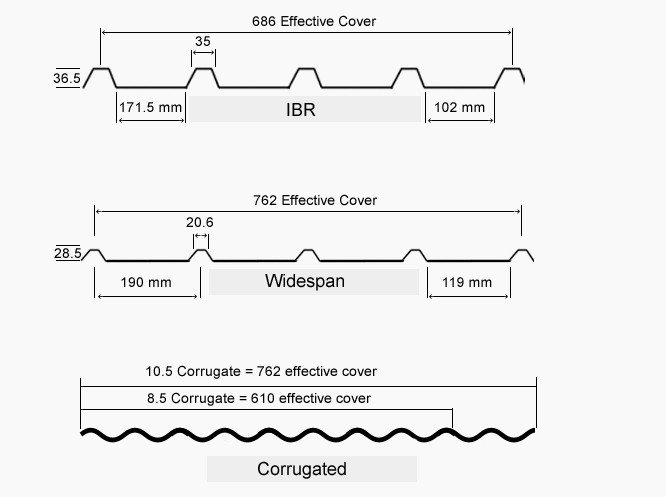

    China IBR And WideSpan Metal Roofing Machine South Africa

roof metal roofingmanufacturing machine,high quality metal roof machine,easy operation metal roofing machine

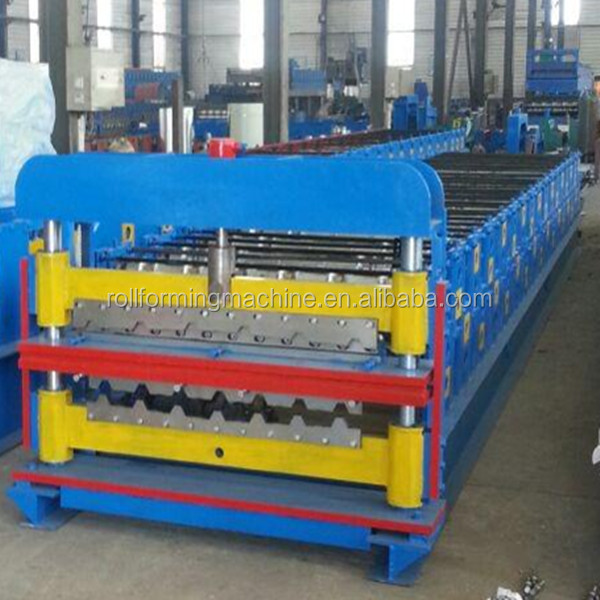

                                                      1.The picture machine:







                                       2.Product information



Technical parameters:
2	Main motor power			7.5kw, 3 phase or as your request
3	Hydraulic motor power			3kw
4	Hydraulic Pressure			10-12MPa
5	Voltage			380V /3phase/ 50 HZ (or as your requirement)
6	Control System			PLC Delta Inverter
7	Main Frame			300mm/350mm H-Beam or 350mm
8	Backboard Thickness			16mm
9	Chain Size			20mm
10	Feeding Material			color steel coils
11	Feeding Thickness			0.3-0.8mm
12	Feeding Width			1200mm
13	Effective width			1000mm
14	Productivity			0-3/min
15	Roll Station			14/16/18 roll steps(according to different design)
16	Roller Diameter			70mm/76/80mm(depend on different design)
17	Roller material			45# steel
18	Cutter material			Cr12 , quenched
19	Cr-Plating Size			0.05mm
20	Overall Size			7500×1400×1500mm
21	Total Weight			4.0T
22	Components			Manual Uncoiler-------------------1 set
				Guiding Platform------------------1 set
				Coil Strip Leveler------------------1 set
				Main Machine of Roll Forming------1 set
				Electric-Motor---------------------1 set
				Cutting Device--------------------1 set
				Hydraulic Station------------------1 set
				PLC Control-----------------------1 set
				Supporter Table-------------------1 set
24	Package			nude in the container
All technical parameters can be changed, according to user's need.







                              3.The production process



Decoiler→Flating→Feeding →Forming→Cut to length→Colletion



(finish goods)

 roof tile making machine,roll forming mchine roof making machine,roof sheet making machine

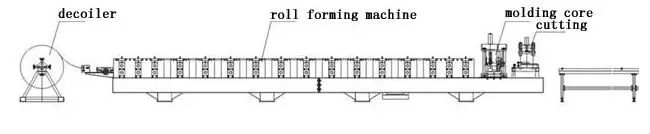

                              4.Production Flow

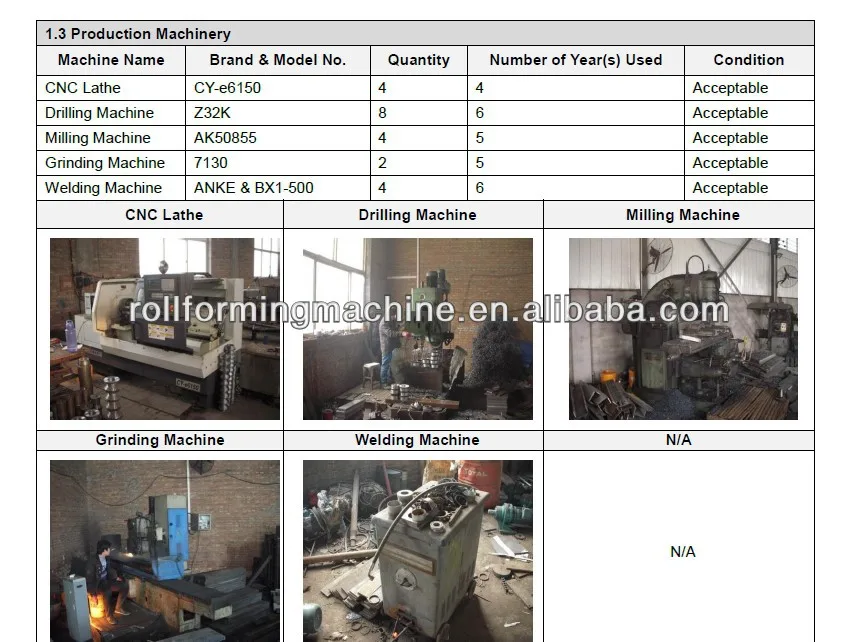

                                5.Production Machinery







We provide the technical support for whole life.

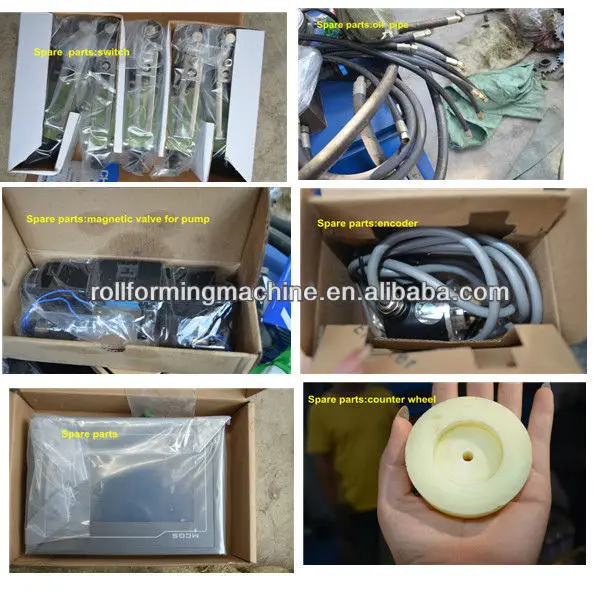

Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.



When need the technician to go abroad, we will arrange the technician.



But the buyer should take all the cost, including Visa, Roundtrip ticket,



suitable accommodation and pay the service fee to the technician with $150/days









payment:

T/T( 30% by T/T in advance, the rest 70% to be payed by T/T after you inspect the machine in seller's factory before delivery )









Our company has been built over 15 years,it is located in north of China,near from Tianjin port,we have strong selling team and exquisite technology







1:How to make an order you?

Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK



2:How to go to our company?



Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.



Fly to Tianjin Airport: then we can pick up you.



If any questions,you can call me mobile phone at any times:0086-15028723007

3:If the quality is good?

We have beening making and exporting the machines since from the year of 1998,not small factory or trading also with good after service.

4:Why your price is higher?

For example,2 kinds of apples here,2 different prices, why prices are still different?You can see the difference from the appearance directly,the cheap one some holes in the apple,it is going to fade.And make your stomach not good.The more expensive one,it is fresh,no scrath,no holes,no worm.The most important,you can if you give it to your girlfriend she will be happy!If your budget is a problem now,ok we offer you 3 standard machine with different prices and parameters.

 Like our machine,appearance good,the machine run well with life long tracking service.The most important little problem,running well to help you make more money!
