Шэньчжэнь производство MUP разъем для смарт-карт считывания карт
- Категории: Sockets for ICs >>>
- Поставщик: Shenzhen,Mup,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
General Characteristics | ||||||
No. | Items | Standard | Descriptions | |||
1 | Dimensions | 61. 0LX32.0WX3.4H mm | ||||
2 | Weight | Approx4.9±0.5g | ||||
3 | Card size | ISO7816 Part 2 | 85.60×54.00×0.76mm | |||
4 | Contact principle | Friction technology | ||||
5 | Mounting System | SMT(with post) | ||||
6 | Durability | 100,000 cycles Min. | ||||
Material | ||||||
1 | Insulator | Thermoplastic UL94V-0 | ||||
2 | Latch | Plated:Tin overal | ||||
3 | Contact | Phosphor bronze | ||||
4 | Plating | Gold over nickel | ||||
Data Contact | ||||||
1 | Number of Contacts | 8 Pins | ||||
2 | Contact highly | 0.70±0.20mm | ||||
3 | Insulation resistance pin to pin | IEC512-2-3a | >1000 MΩ/500 VDC | |||
4 | Rated voltage | 50V max | ||||
5 | Rated current | 1A max., 10μA min. | ||||
6 | Contact resistance | IEC512-2-2a | 50 mΩ typical, 100mΩ max. | |||
7 | Dielectric withstanding voltage | IEC512-2-4a | 500V AC rms 1min. | |||
Packing & Delivery

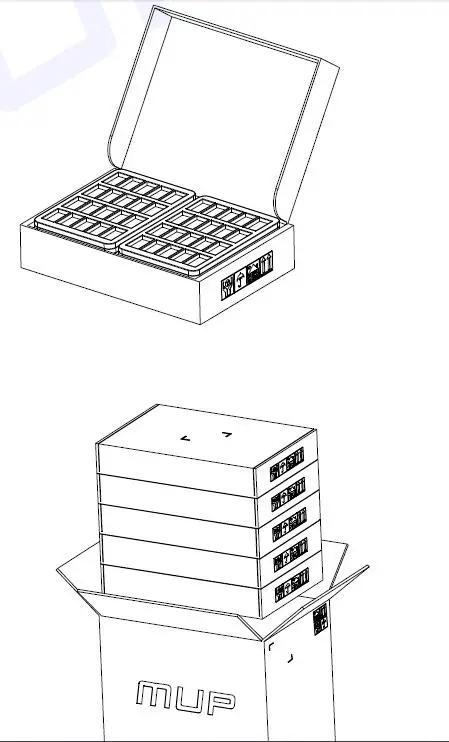

Package
♦ Inside: tray packing,252PCS/Box
♦ Outside: carton,1260PCS/Carton
♦ To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services
will be provided.
Payment Terms & Delivery
♦ T/T, Paypal,Western Union
♦ UPS, DHL, FEDEX,TNT,By sea,By Air
♦ Select the most economic and efficient way.
♦ Sent the tracking number to u after delivery.
Company Profie
1.17 years of R&D and manufacturing experience in the connector field.
2.Four modern production bases over 50000 m2 with 800 employees.more than 50 R&D engineers.
3.Offering IC,SIM,Memory card connector, HDMI,USB C Type,Battery,RF ,BTB, and other kinds of precision connector.
4.Widely used in POS,STB,DTV,Automotive electronics, Computer communications, Smart meters, and other electronic products.
5.Exporting to 50+ countries in Europe,America,Asia and Africa.
6.Supplying Ingenico,Verifone, Sagemcom,Huawei,Teltonika and Pegatron..
7.ISO9001:2015 & ISO14001:2015 - certified.
8. ROHS, EMV,NDS,PCI,HDMI& TID professional cerifications
Certifications
Application
Main Customer
Exhibition
FAQ
1.Shipping :By sea,By Air DHL, TNT, UPS,FedEX
2. Guarantee and warranty : One Yeas warranty
3.Services:
A. Replied within 12
B. OEM and ODM
C.Business will be confidential ;Good after-sale service
D. How about samples?
1-20pcs free sample is available, only charge for freight fees
3.Services:
A. Replied within 12
B. OEM and ODM
C.Business will be confidential ;Good after-sale service
D. How about samples?
1-20pcs free sample is available, only charge for freight fees
