 road cleaning sweeper truck,road sweeper machine

Airport Runway Sweeper Technical Parameters:

Model                                    clwcy

Chassis model                    QL1040A7HAY(EURO 5)

Chassis engine power       96kw

Auxiliary engine power     118kw/2600r/min

Max. laden weight              16000kg

Max Running Speed          90km/h

Max. sweeping width        3.5m

Hopper capacity                 6m³

water tank capacity           1400L

Overall size                          7860×2470×3190mm



Equipment

1. Max cleaning width: 2500mm

2. Max cleaning capacity: 70000m

3. Cleaning EF: 95%

4. Max cleaning speed: 15km/h

5. Max tipping angle: ≥45°

6. Max suction granularity: 55mm

7. Dustbin capacity: 6m3

8. Water tank capacity: 4m3

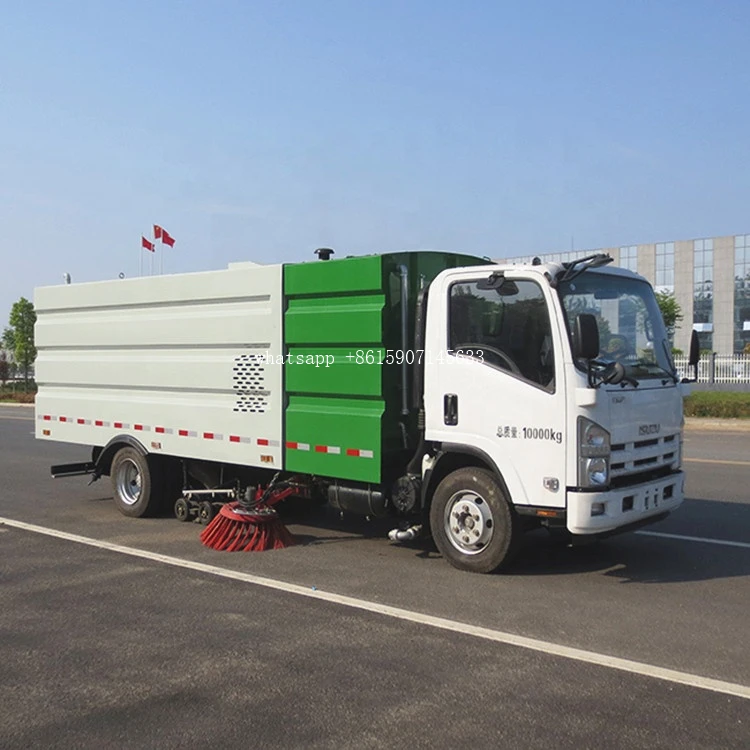

Airport Runway Sweeper CLWCY56

Airport runway sweeper sweeps roads mainly by suction and blowing functions, and by auxiliary methods such as flushing and magnetic suction and wet dust removal. The vehicle is suitable for road cleaning of city streets, squares, airports, wharfs, etc. It works by picking up gravel, rind, scrap of paper, cigarette end, kernel, plastic bag, stone, brick, grains of sand, dust, and etc.

"Airport Runway Sweeper CLW features :

"1. It is set up a complete new pneumatic conveying system with parts wind volume filtration for parts reverse blow circulation as well as wind channel switch air damper during rainy day operation, which can realize working condition switch between dry dust collection operation and sweep operation in rainy day, so which can working in all weather condition without reference to weather condition.

2. The whole machine adopted stainless steel inner garbage box and water tank, which have following character: antisepsis, antirust, large room and long time operation continuity, especially it is good for longtime operation in high express way, water in water tank can be used for dust collection and normal clean with road condition, floating multidimensional reverse blow Pneumatic Conveying circulation can be flatted, so which can increase effect for sucker largely.

Centrifugal dust collection device in dust box can collect large granule dust in effect, which can decrease damage for wine channel and fan, and it is set up high efficacy spray dust collection system in dust box that can resolve problem for dust rise completely during seep road and dust collection car is discharge.

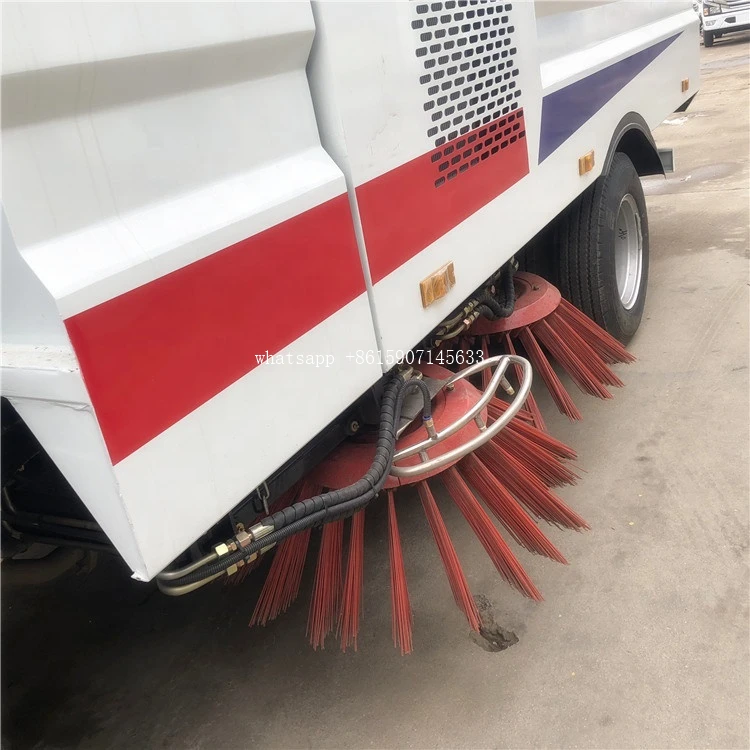

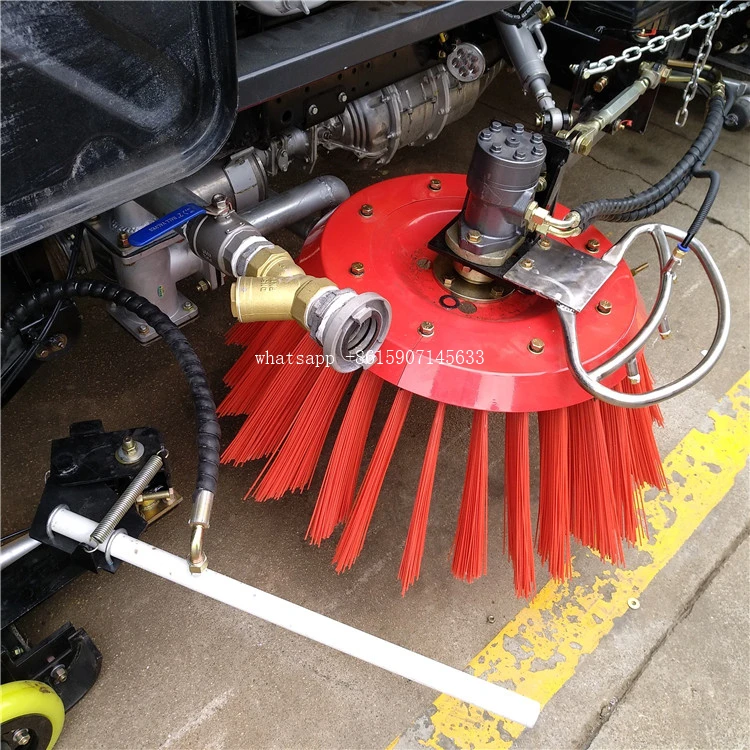

3. Front sweep in right and left can work individual or linkage in order to ensure for confirm left front sweep work individual or right front sweep work individual in effect. Sweep trap speed can be adjusted and chose for high, middle and low level in according with its relative devices, which can ensure get good sweep effect and cut down operating cost under all pollution situation.

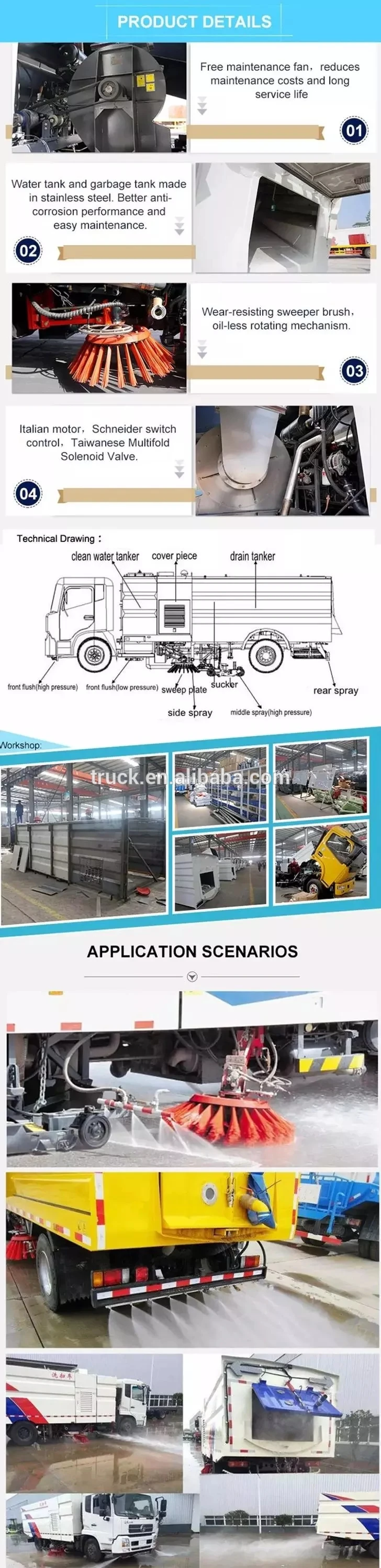

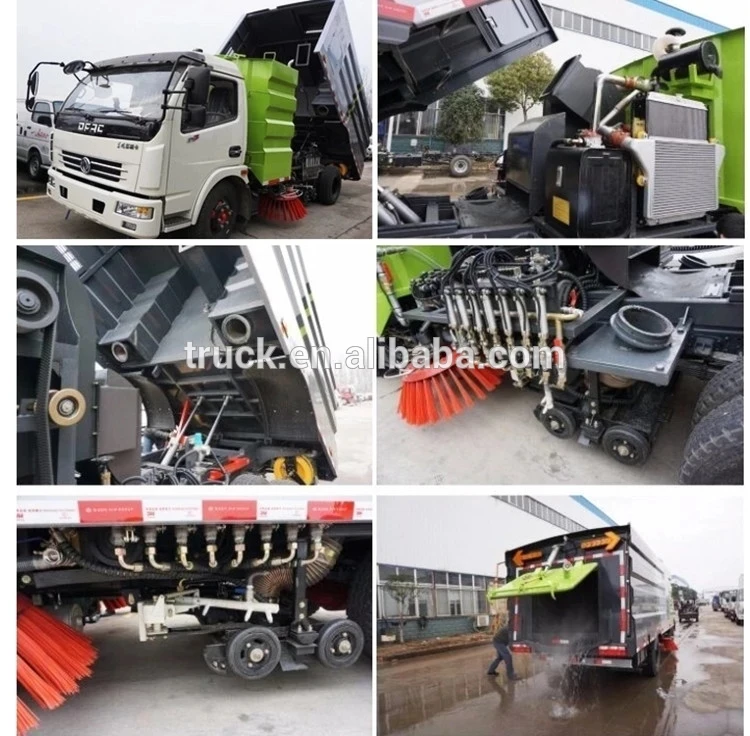

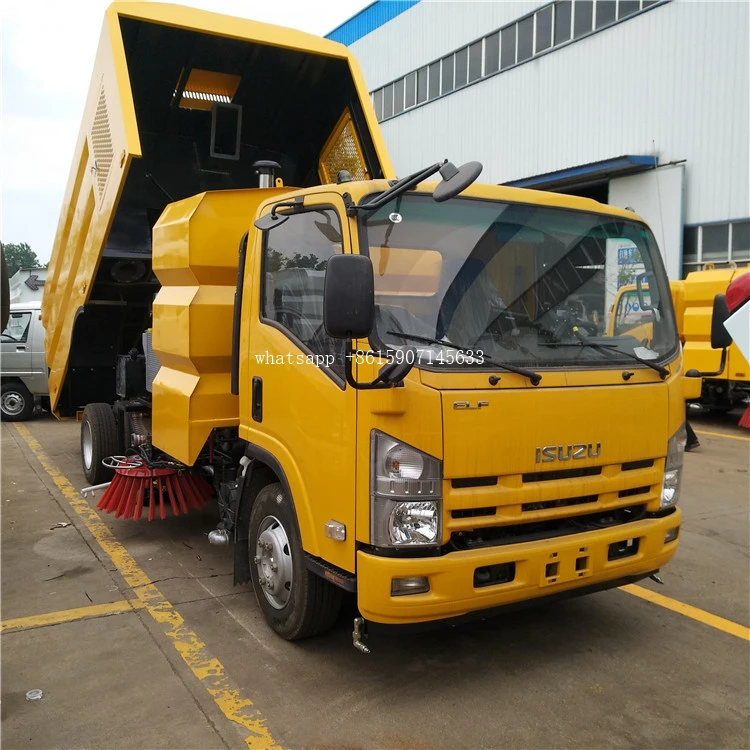

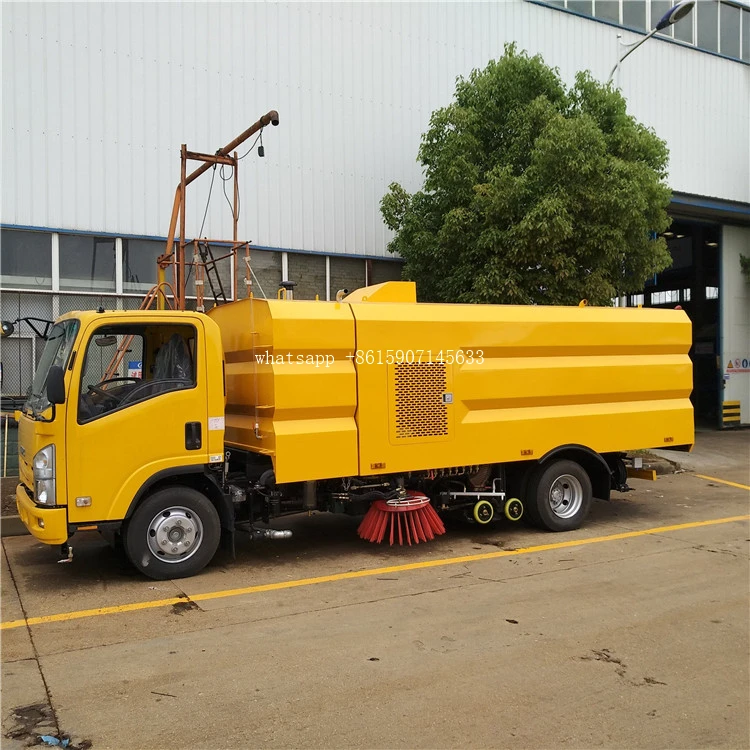

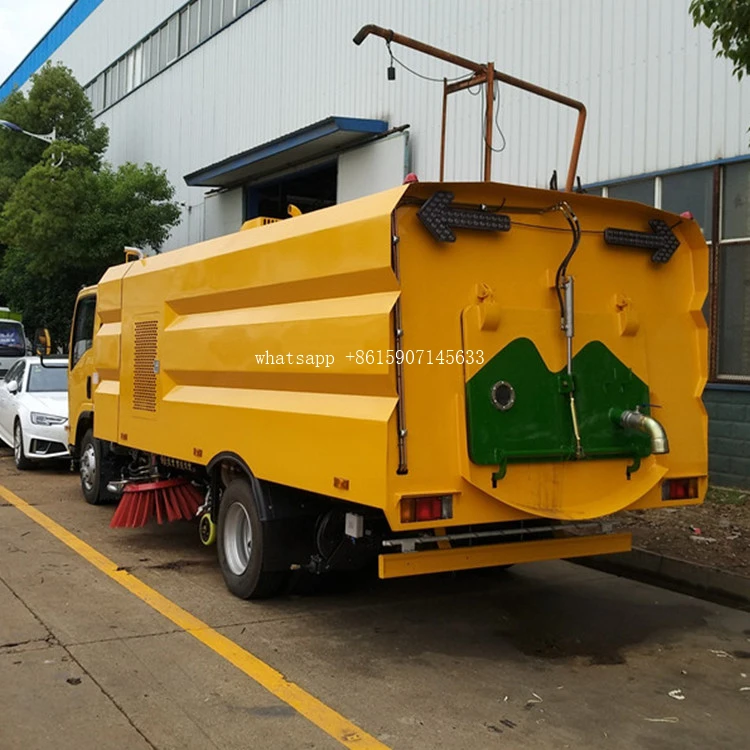

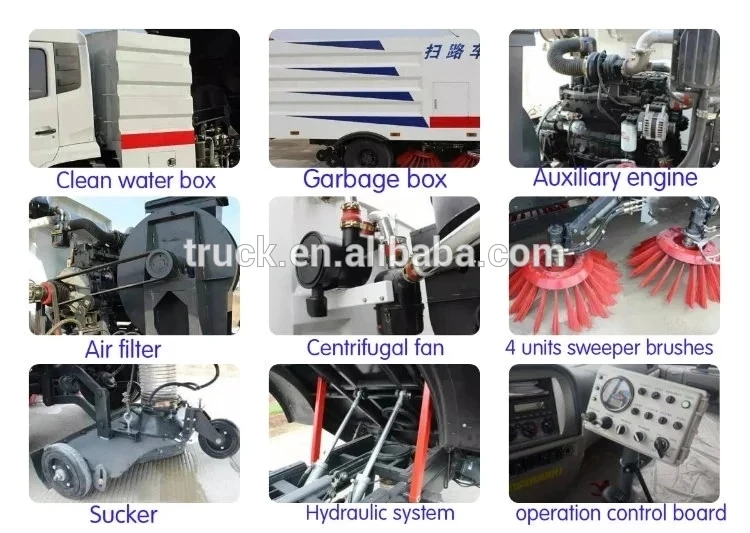

Details of sweeper truck
