Машина для изготовления салфеток
- Категории: Paper Production Machinery >>>
- Поставщик: Fujian,Peixin,Machine,Manufacture,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

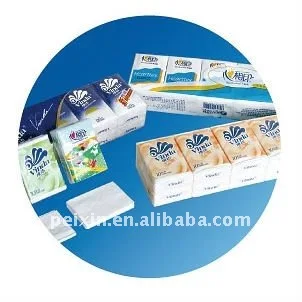

Finish Product:
Equipment Function & Character:
1.This machine adopts folding through vacuum absorption, under embossment and cutting, the tissue is auto-folded into mini type and portable handkerchiefs tissue. This machine is stable in running, fast in speed and trim in folding. Multi sizes can be adjustable if tissue length is in the range of 68mm~110mm.
2. Under European CE standard designing, Passed CE certificate, With CE or UL certificate for Electric Parts and with safety device, such as, safety-guard door, emergency stop and so on.
3. Most of parts are precisely processed by numerical-control machine; the key mechanical parts are under CNC processing; while the main outsourcing parts are world famous brand.
4. As per requirement, 1~4 color printing for pattern or logo can be added.
Main Technical Parameter:
Machine model | PX-SPZ-(CY)ZD200/210 |
Finished products size | 200(L)x200(W)±2mm 210(L)x210(W)±2mm (other sizes can be ordered) |
Folded products size (mm) | A. L×W =75×52mm, B. L×W =105×52mm; |
Jumbo roll size | The width is as per machine model, Roll diameter≤1100mm 13~15g/m2 (3 layer)16~20g/m2 (2 layers) |
Folding speed | 500~550 pcs/min |
Power | 5kw (380V, 50Hz) |
Vacuum system power | 3KW |
Embossment down roller | Steel to rubber, steel to steel( ordered separately) |
Overall size | L×W×H=3.5×1.0×1.5m |
Weight of equipment | 1.0T |
PEIXIN is sincerely looking forward to cooperate with you from all over the world!
