QDD-F 4-колесный электрический багажный буксировочный

Описание и отзывы

Характеристики

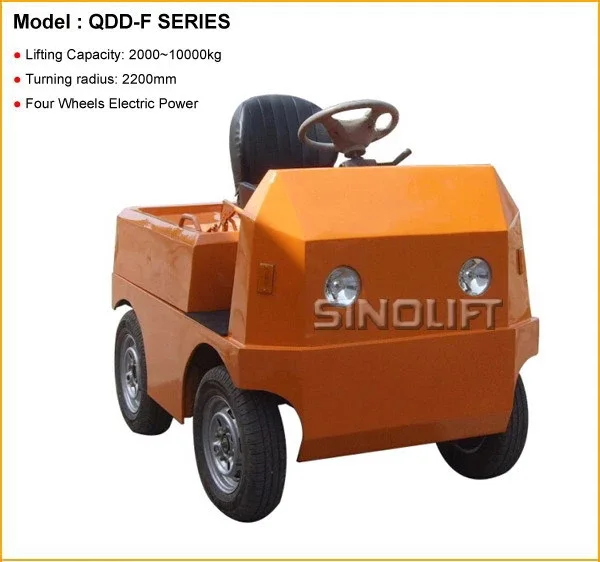

                                                               QDD-F 4-wheel electric towing tractor

1)Features

 The practical work table raised the auxiliary work efficiency effectively.

 New exempts the maintenance motor with moisture-proof, the dustproof protection.
 Electron steering provides the precise control.
 The self-braking causes the operation to be safer.
 Special design's the space lets driver's work be more relaxed comfortably.
 Seater electric tow,Convenience operation.



2)Specification Data

Model				QDD-2F	QDD-5F	QDD-8F	QDD-10F
Operating Type				4-Wheels, Back Drive, Hydraulic Brake System, MOFSET, Hand Brake
Drawbar Pull			N	800	1100	1100	250N
Towing Capacity			kg	2000	5000	8000	10000
Drive Speed (full-loaded)			Km/h	11	10	8	8
Turning Radius		R	mm	2200	2200	2200	2200
Gradeability (full-loaded)			(%×m)	10%×12m	10%×12m	10%×12m	10%×12m
Load Distribute	front wheel		kg	420	492	492	630
	rear wheel		kg	520	608	608	1180
Service Weight			kg	940	1100	1100	1810
Load Rate (front : rear)				0.45:0.55	0.45:0.55	0.45:0.55	0.35:0.65
Motor Model				XQ-3-1	XQ-4.5	XQ-4.5	XQ-6.3
Rated Power			Kw	3	4.5	4.5	6.3
Rated Voltage			V	45	45	45	45
Rated Current			A	87	120	120	173
Battery			V/Ah	48/250	48/350	48/520	48/520
Rated rotate speed			EPM	1780	1600	1600	1200
Overall Length		L	mm	1700	1700	1700	2095
Overall Width		W	mm	1130	1130	1130	1080
Overall Height		H	mm	1300	1300	1300	1390
Wheel base		L1	mm	1030	1030	1030	1150
Tread	front wheel		mm	980	980	980	920
	rear wheel		mm	1000	1000	1000	890
Ground Clearance		B	mm	110	110	110	142
Seat Height (above ground)		H1	mm	1050	1050	1050	1050
Drawbar Height (above ground)		H2		320	320	320	365
Tire	Type			penumatic	penumatic	penumatic	penumatic
	Front Wheel			145/70-R12/×2	145/70-R12×2	145/70-R12×2	6.50-10/×2
	Rear Wheel			145/70-R12/×2	145/70-R12×2	145/70-R12×2	6.50-10/×2

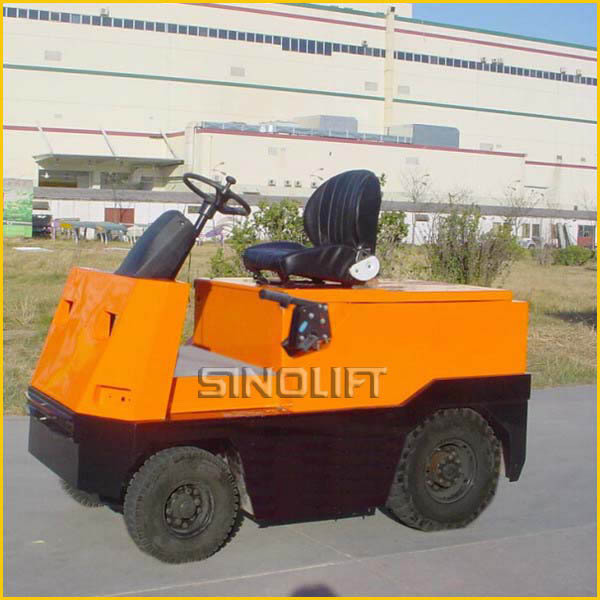

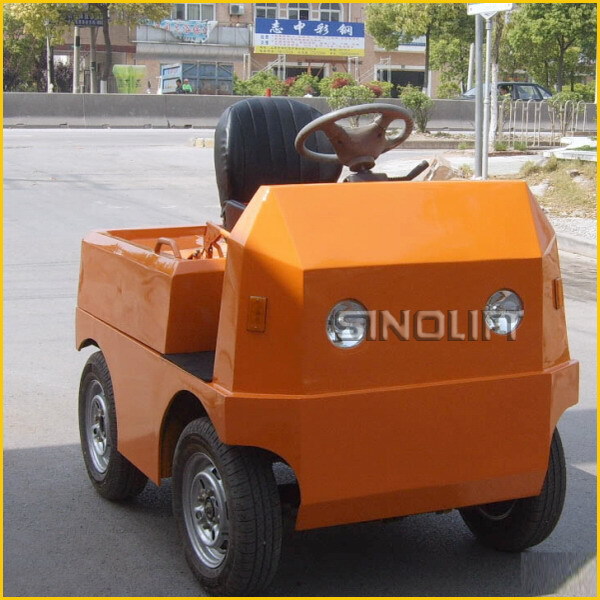

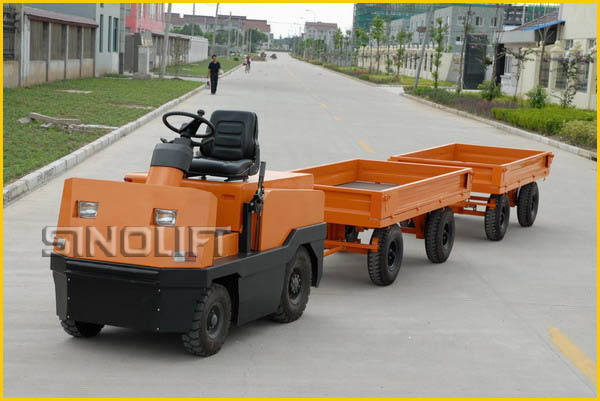

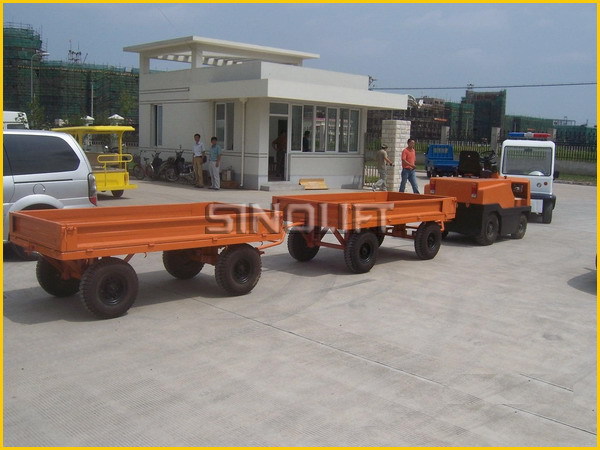

3)Photos

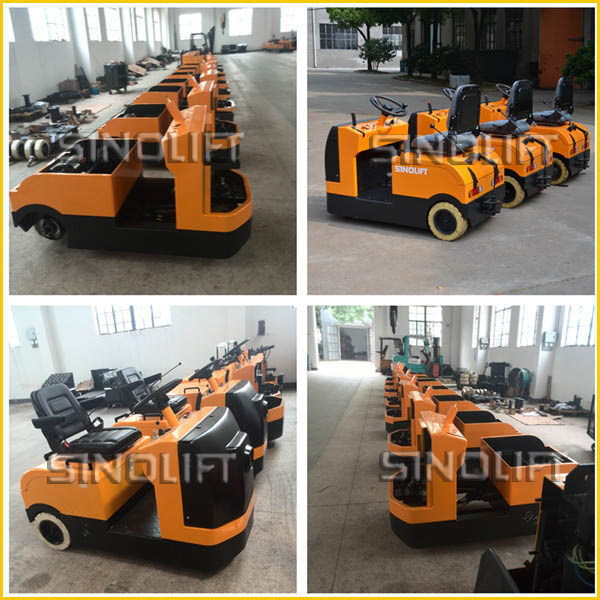

4)Workshop



5) terms and service:



1.Lead time	3-4 weeks
2.Packing	Standard export fumigated wooden pallet, foam rubbers
3.Payment term	T/T payment in advance; L/C at sight.
4.Lead term	FOB Shanghai or CFR/CIF
5.Warranty period	12 months
6.Shipping method	by sea or air; by express.



6) Warranty Policy and service program



SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.



Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.



If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.



SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 24 months warranty on major components and 180 days on wearable items.



7) Why choose us?



1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.



2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.



3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.



4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.



5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.



6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.



7- Most parts are available, no matter assembly or small components, because it’s produced by Sinolift itself. You don’t need to replace any assembly when its components are damaged, which will help to save 90% of the replacements parts cost sometimes.



8- Fast. Fast delivery time, Fast service and communication. Within one hour Sinolift will respond and within 3 hours we will offer the solution. Less than 15 days standard delivery time for electric products.



9- We don’t ask more though we do much better! We offer reasonable price level!



10- We're honest and straight forward at work because that's the way we are in our homes, we keeps loyal to our partners!
