Product Description

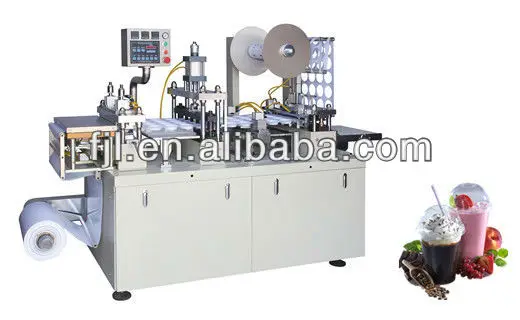

Usage
This is a mini machine for making various of lids and trays for hardward or food and etc.
I.Main technical Parameter
Model | FJL-400A | FJL-410F | FJL-400S |
Used Material | HIPS,PS,PVC,PET, and ETC | ||
Cutting Frequency | 8-32times/min | ||
Travel Range | 50-160mm | ||
Max.Forming Depth | 35mm(adding depth style 50mm) | 52mm | 52mm |
Max.Forming Area | 400x160mm | 410 × 240mm | 420x300mm |
Mould Cooling | Tap Water of Circulating Water 60L/S | ||
Total Power | 4.6kw | 10kw | 10kw |
Air Consumptions | >0.3M/Min | 0.5M/MIN | >0.5M/Min |
Air pressure | 0.4-0.7Mpa | 0.5-0.7Mpa | 0.5-0.7Mpa |
Overall Diamensions | 2700 x 830 x 1450mm | 2700*920*1550mm | 3500 x 1000 x 1700mm |
Weight(kg) | 800kg | 1000kg | 1200kg |
II.Features
1. This machine is suitable for making lids and trays with PS,PVC,PET sheets and etc.
2. It adopts PLC system and operated by touch screen.
3. Sheet feeding +heating +forming +hole or cross punching+trimming into one process Automatically.
4. The frame of this machine made of high qulity stainless steel to make sure work stably.
5. The journey of this machine is adjustable and easy to change the moulds for different products.
6. Operation Area and Transmission Parts are complete isolation to avoid pollution and convenient to clean.
7.The achievement of GMP/QS double standard purification clean production,improve product hygiene and safety,meanwhile.resolve cross-contamination.
8.Mould can be designed according to customer's requirment.

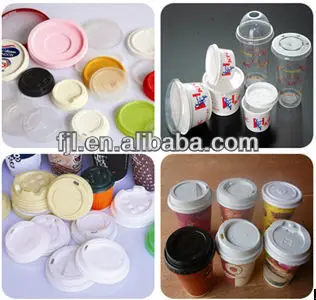

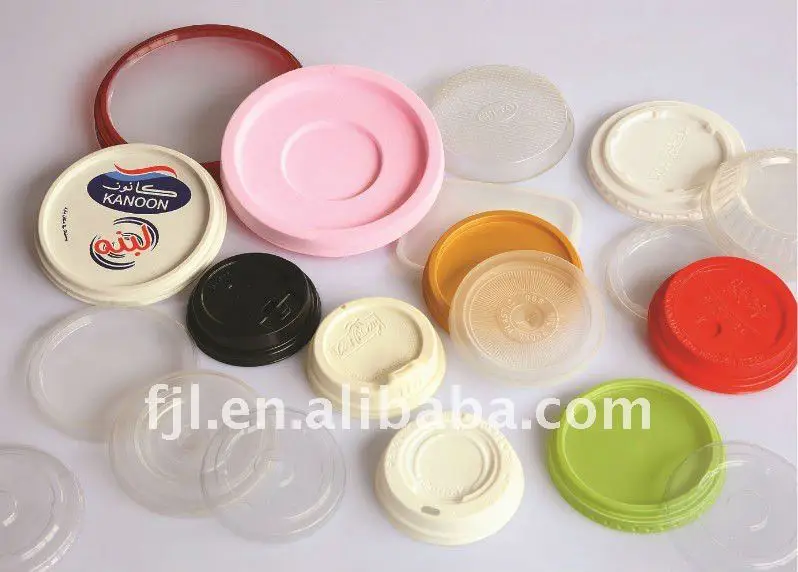

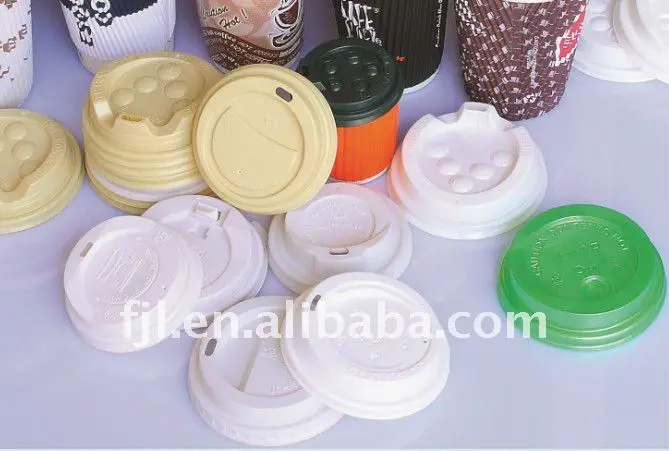

III. Some Sample
Packaging & Shipping
Our Services
Warranty and After-sale service
The warranty of all our testing machine is one year
During this Warranty,it is free to replace the spare parts
Out of this warranty, it only charges the cost of the spare parts
All our testing machines enjoy a long after-sales service
Our products are sold in whole China and exported to many countries and regions such as USA, Japan, Canada, Indonesia, Taiwan, Malaysia, Iran, Singapore, Australia, South Africa, Saudi Aribian, Egypt, Turkey, Philipines, etc. Our company slogan is “Credit by Quality, Market by Service”.
We are appreciated with advance equipment, experience and production power. We provide on time after- sales service. We integrate the design, development, production, sales and after-sales services to our clients.
IV.Marketing
During Last ten years ,we participated Chinaplas fair , Canton Fair,K show and other professional plastic machinery exhibition at home and aboard. Our products are sold around the world,Such as Sweden, Romania,Macedonia,Russia,Canada,Peru,Mexico,Mideast,Southeast Asia,Africa and etc.

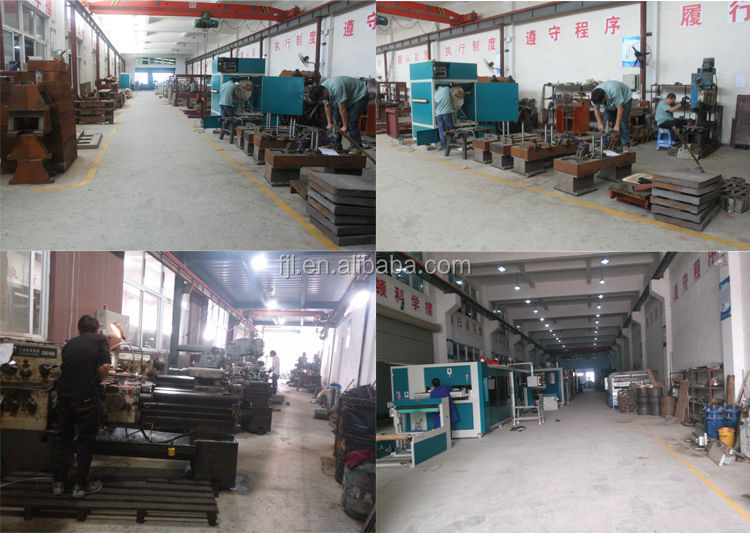

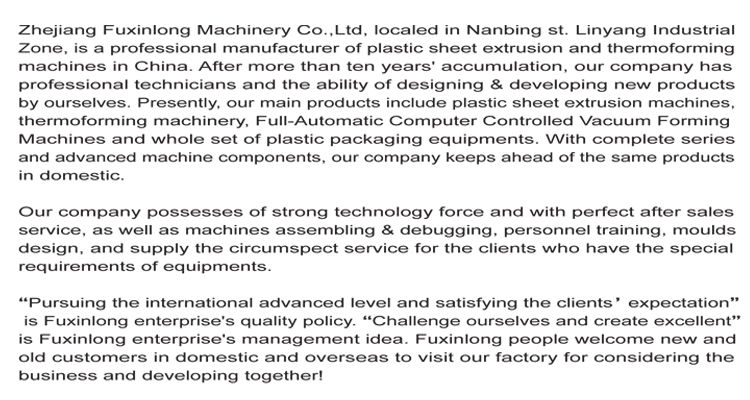

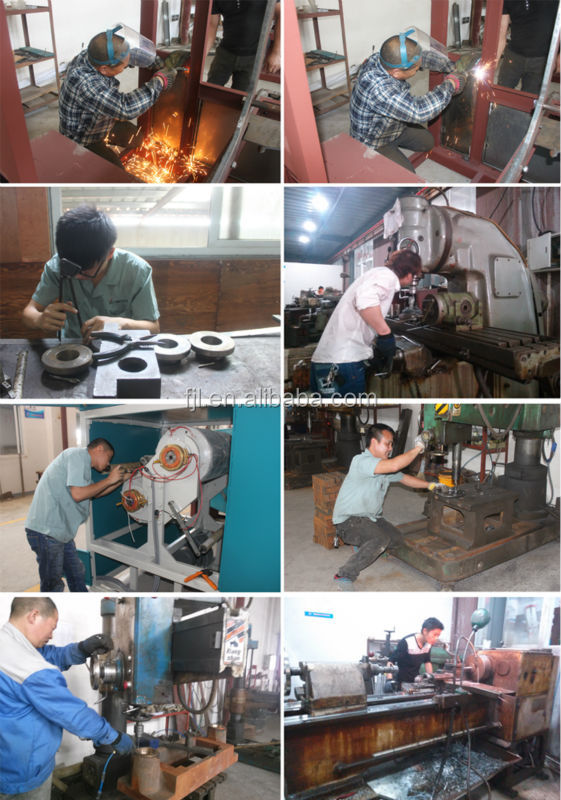

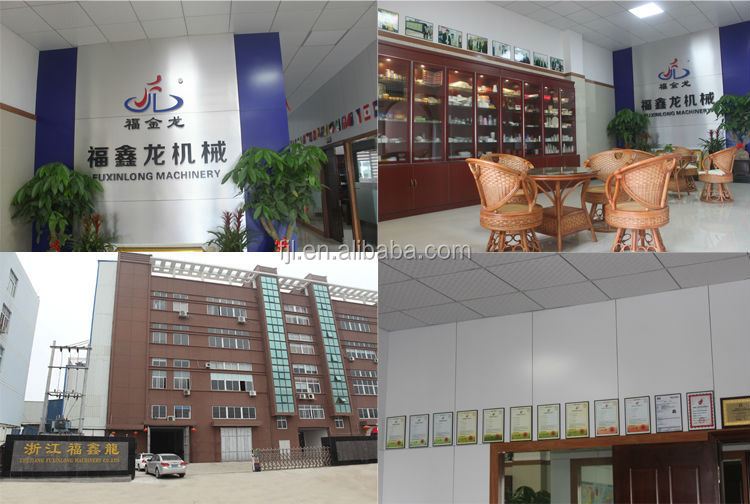

Company Information
V.Certification
FAQ
machine adjustment and installation
we can send technicians go to customers' country for mahchine adjustment and installation
gaurantee time and after-sale
one year guarantee time, after one year , we have professional after-sales department providing best service if any problems.
Note:We can customize the machine according to customer request.
Thanks for visiting our website , need more details welcome to contact me any time !
Thanks for visiting our website , need more details welcome to contact me any time !
