Европейский стиль 40 позиций быстросменный инструмент столб и держатель для токарного станка с размером Aa A E B

Описание и отзывы

Характеристики

 European Style 40 position quick change  tool post  and holder for lathe with size Aa,A,E,B,C



1)it is main parts of normal lathe
2)Cam-lock handle can firmly lock and quickly release tool holder.

3)Height of cuting edge is easily & accurately adjusted by special screw.

4)Tools can be reground without removal tool holder and set device remain unchanged.

5)40 different angles (every 9°) can be conveniently selected from position dials with marker.

6)holders are interchangeable with most other brand 40 position tool post.

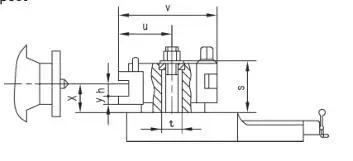

Tool post:





order no.	lathe swing	Xmin	Xmax	y	h	v	s	u	t
Aa	120-220	18.5	26.5	6.5	12	68	37	34.75	13
A	150-300	25.5 29.5	36.5 40.5	9.5	16 20	104	55	52	20
E	200-400	32 37	49 52	12	20 25	132	68	66.5	20
B	300-500	38 46	58 57	13 14	25 32	150	76	75	32
C	400-700	48 56 61	88 92 91	16 16 16	32 40 45	192 201 202	107	92 102 102	40







5-piece set

order no.	each set includes	N.W(kgs)
Aa-00	1Pcs Aa. 3Pcs AaD12x50 and 1pcs AaH12x50	1.13
A-00	1Pcs A. 3Pcs AD20x90 and 1pcs AH20x85	3.60
E-00	1Pcs E. 3Pcs ED20x100 and 1pcs EH30x100	7.50
B-00	1Pcs B. 3Pcs BD25x120 and 1pcs BH32x130	11.80
C-00	1Pcs C. 3Pcs CD32x150 and 1pcs CH40x160	23.70
